Description
| material | Corning 7980 2F or equal |
| Geometry | ∅ = 12.7mm t = 6.35mm |
| Form | Front Side (S2) plane Rear Side (S1) plane |

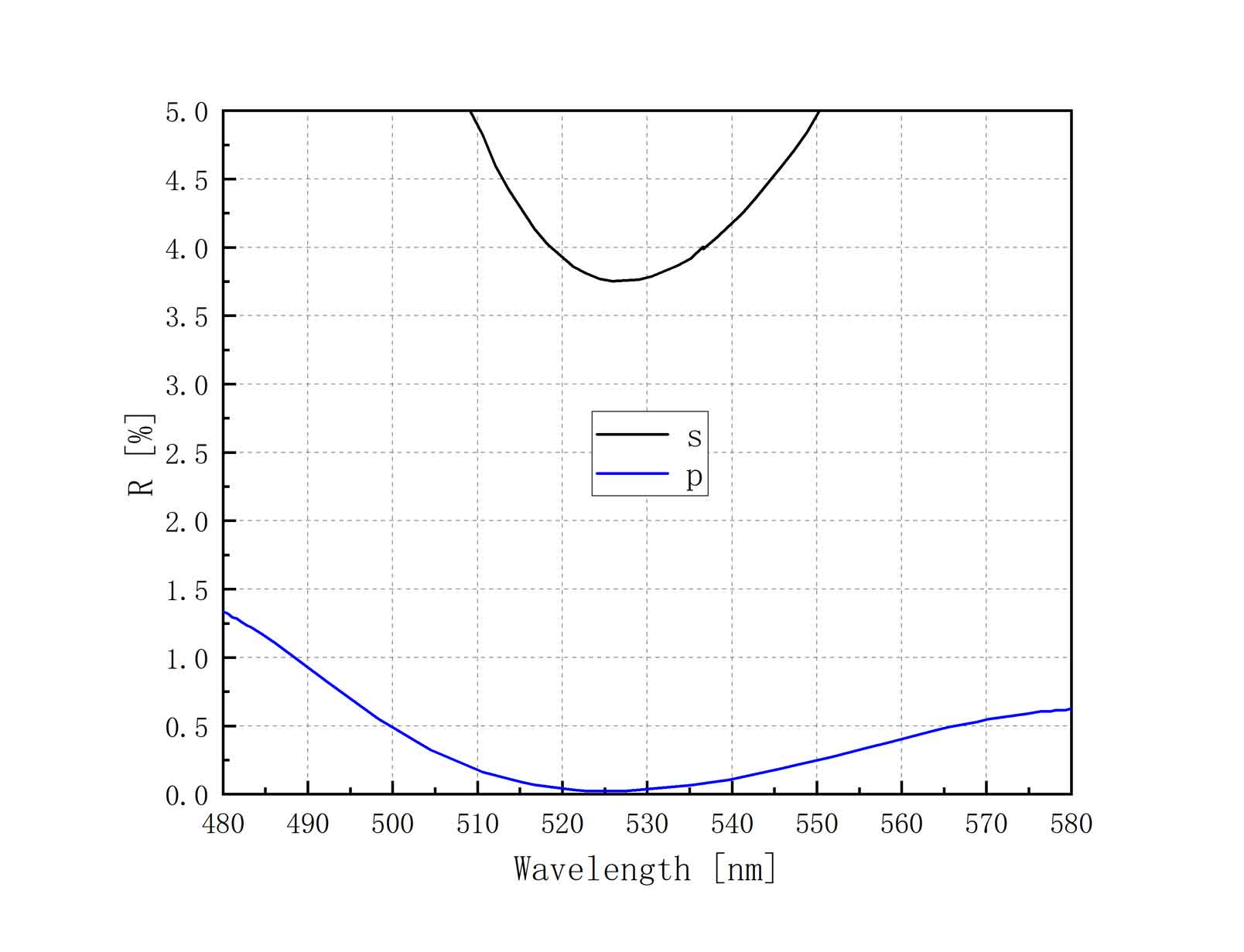

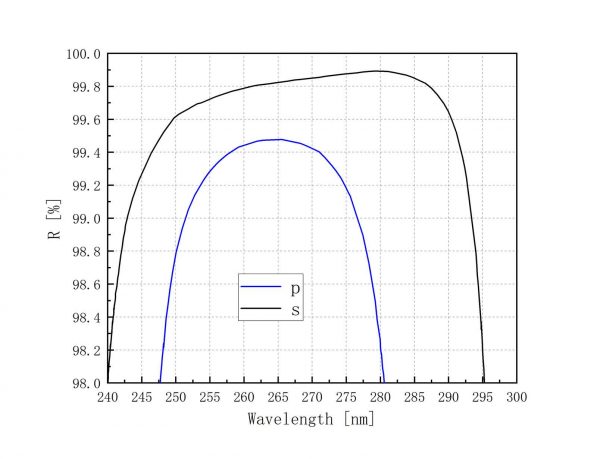

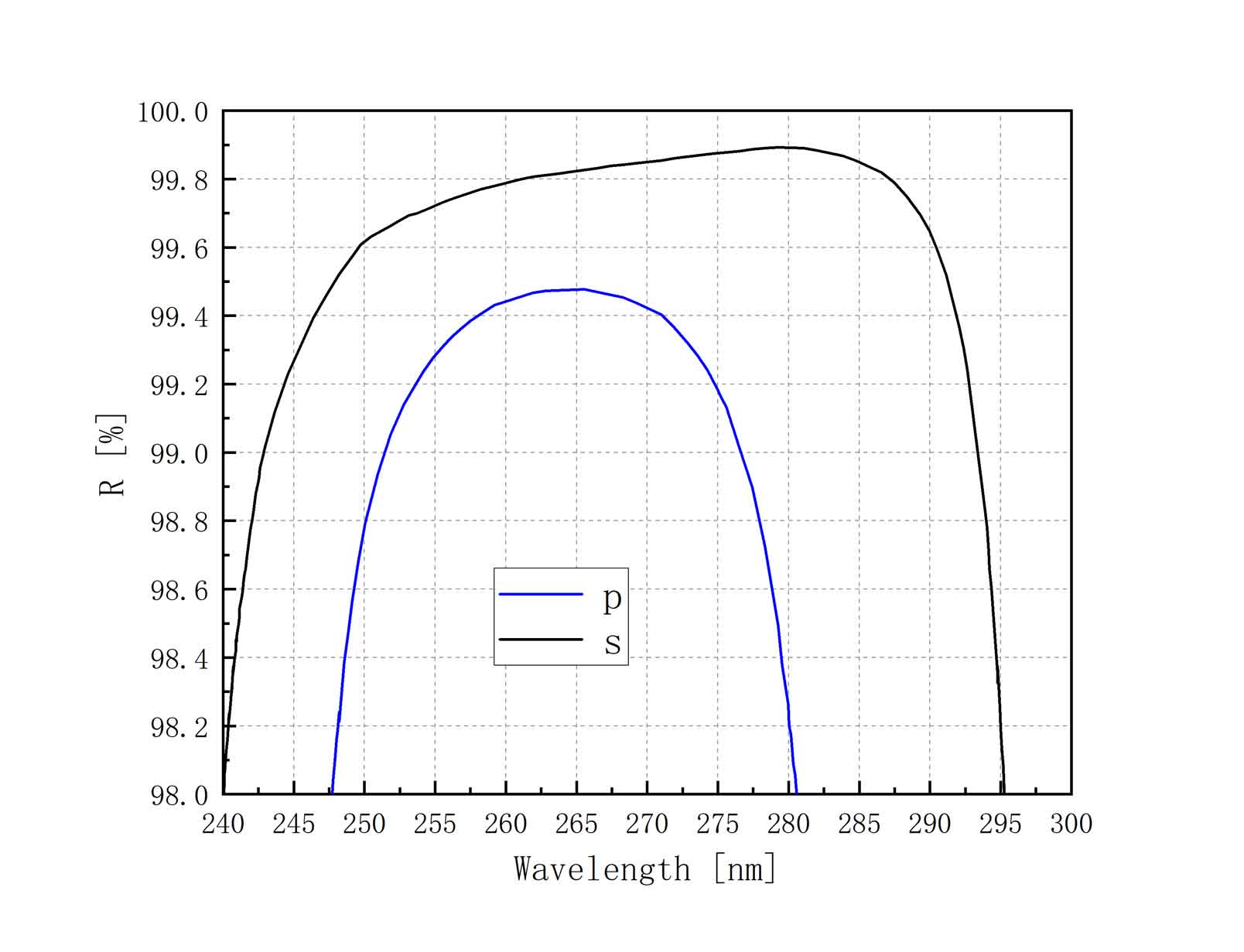

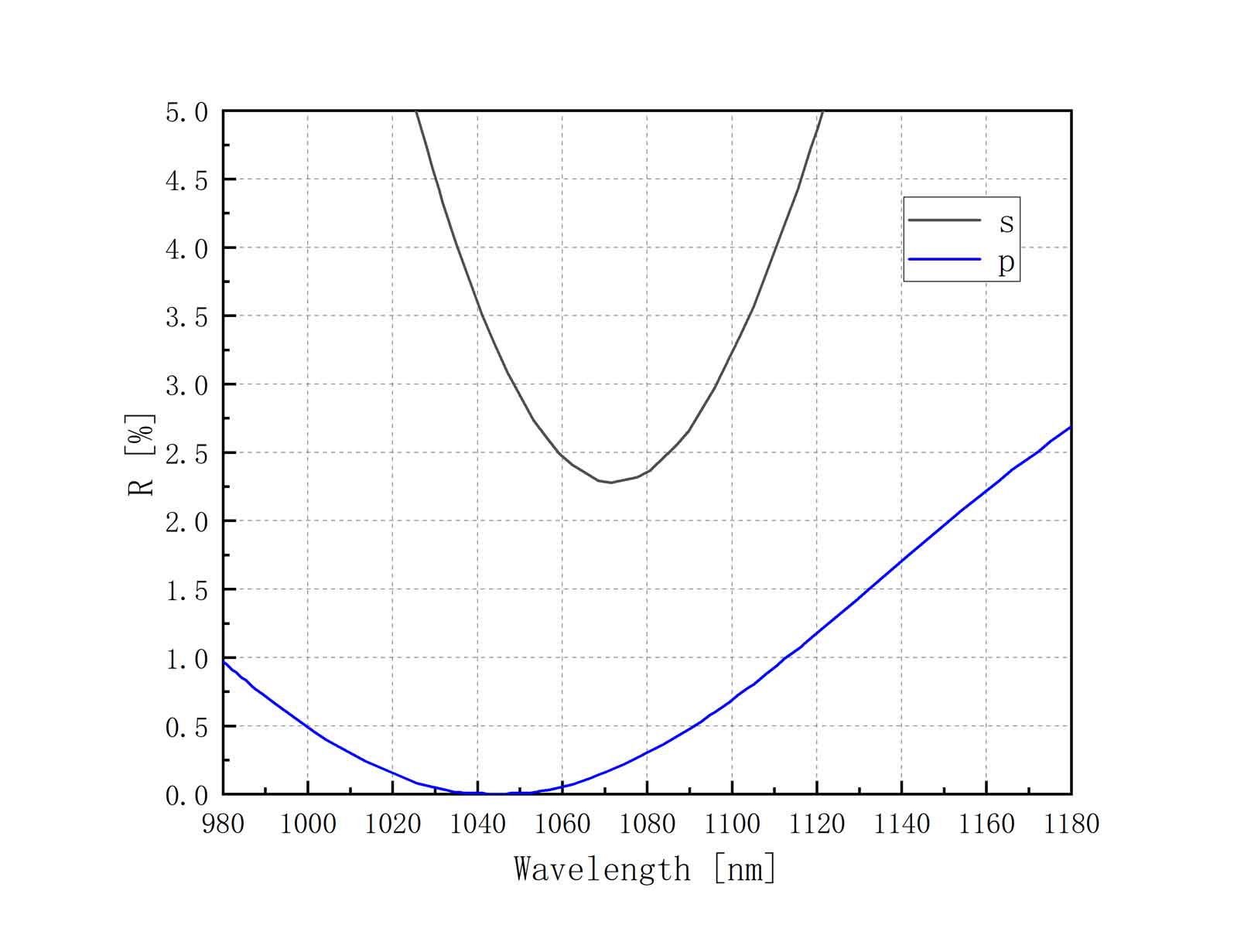

| Coating | Front Side (S2) HRs(45°,266nm)>99.5% Rp(45°,532nm)<2% Rs(45°,532nm)<10% Rp(45°,1064nm)<2% Rp(45°,1064nm)<10% |
| application | cw/ns |
| optical element | Separator Combiner |
| Shape | Round |
| type | Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.3 mm (±0.05 mm) Rear Side (S1) 1 mm (±0.1 mm) |
