Description
| Material | Corning 7980 2F or equal |
| Geometry | ∅=12.7 mm(-0.1mm) t=3.05 mm(±0.1mm) |
| Form | Front Side (S2) plane Rear Side (S1) plane |

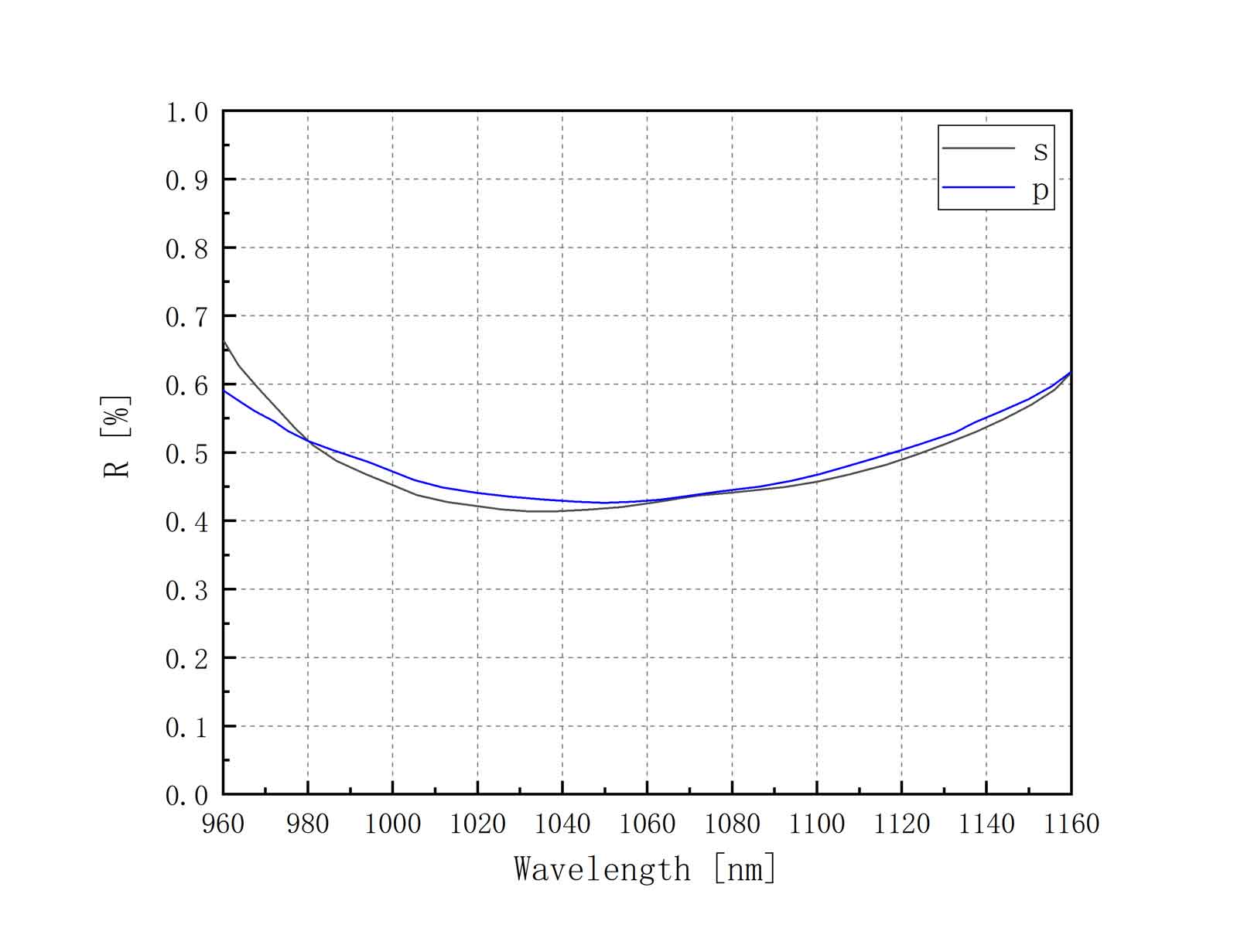

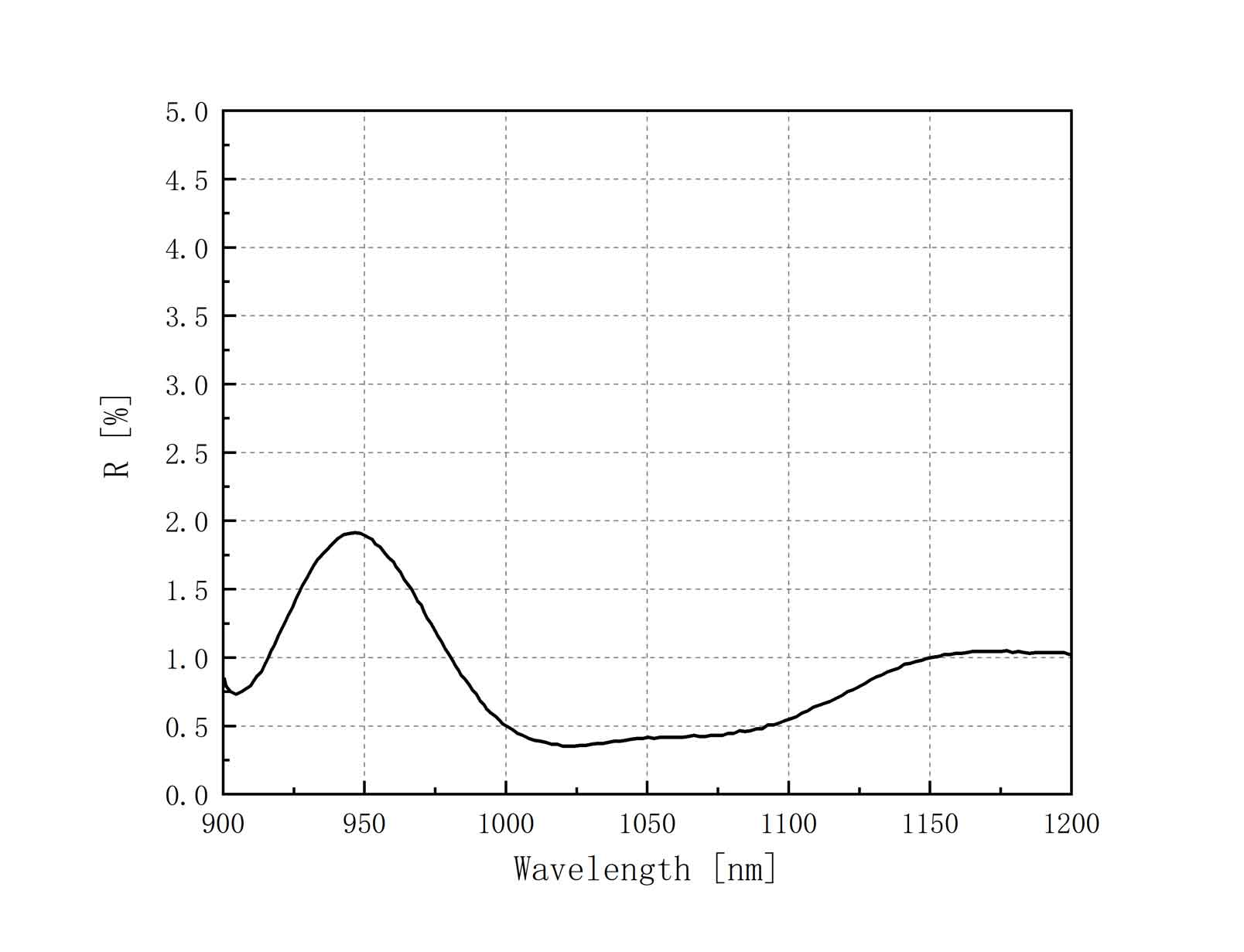

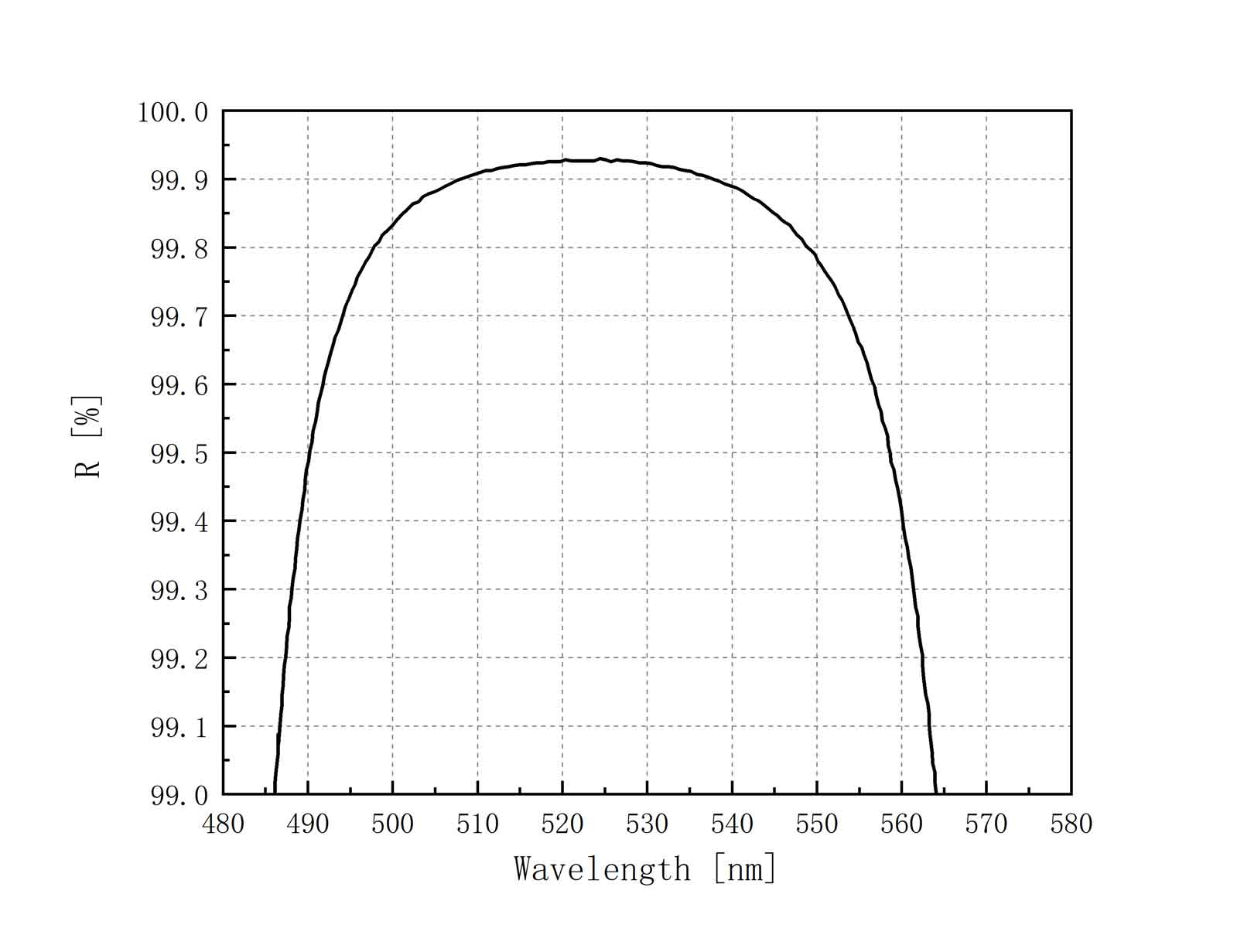

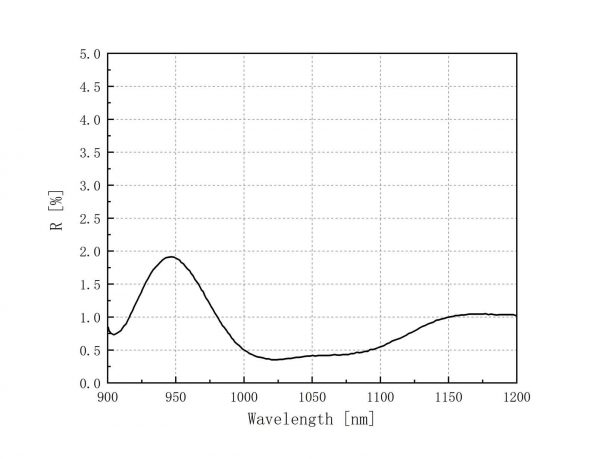

| Coating | Front Side (S2) HRu(45°,515-532nm)>99.8% Ru(45°,1030-1064nm)<3% Rear Side (S1) ARu(45°,1030-1064nm)<0.6% |
| Application | cw/ns |
| Optical element | Separator Combiner |
| Shape | Round |
| Parallelism | 5ʹ |
| Type | Yb:YAG-Laser Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.2mm (±0.1mm) Rear Side (S1) 0.2mm (±0.1mm) |
