Description
| Material | Corning 7980 2F or equal |
| Geometry | ∅ = 12.7 mm (-0.1 mm) t = 6.35 mm (±0.1 mm) |
| Form | Front Side (S2) plane Rear Side (S1) plane |

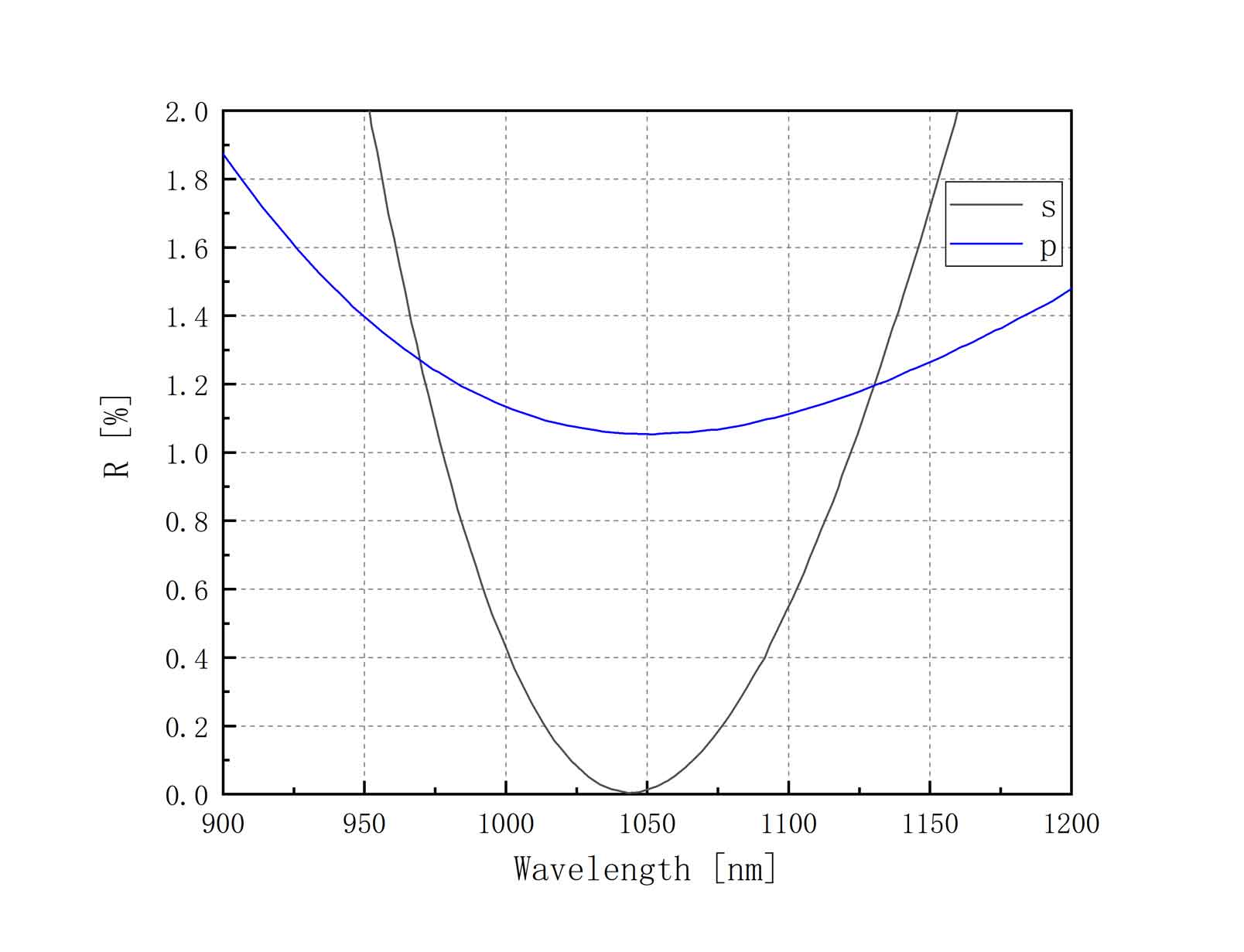

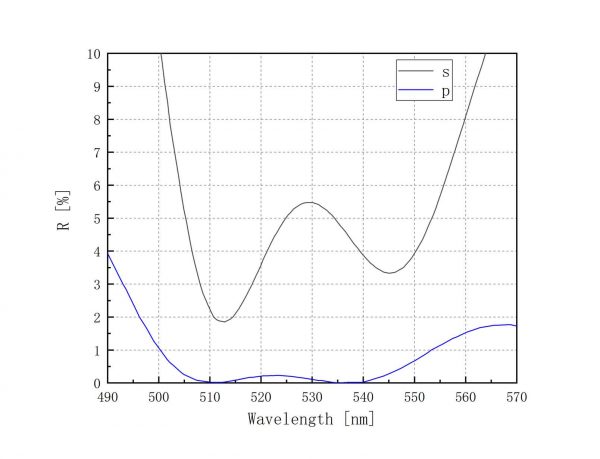

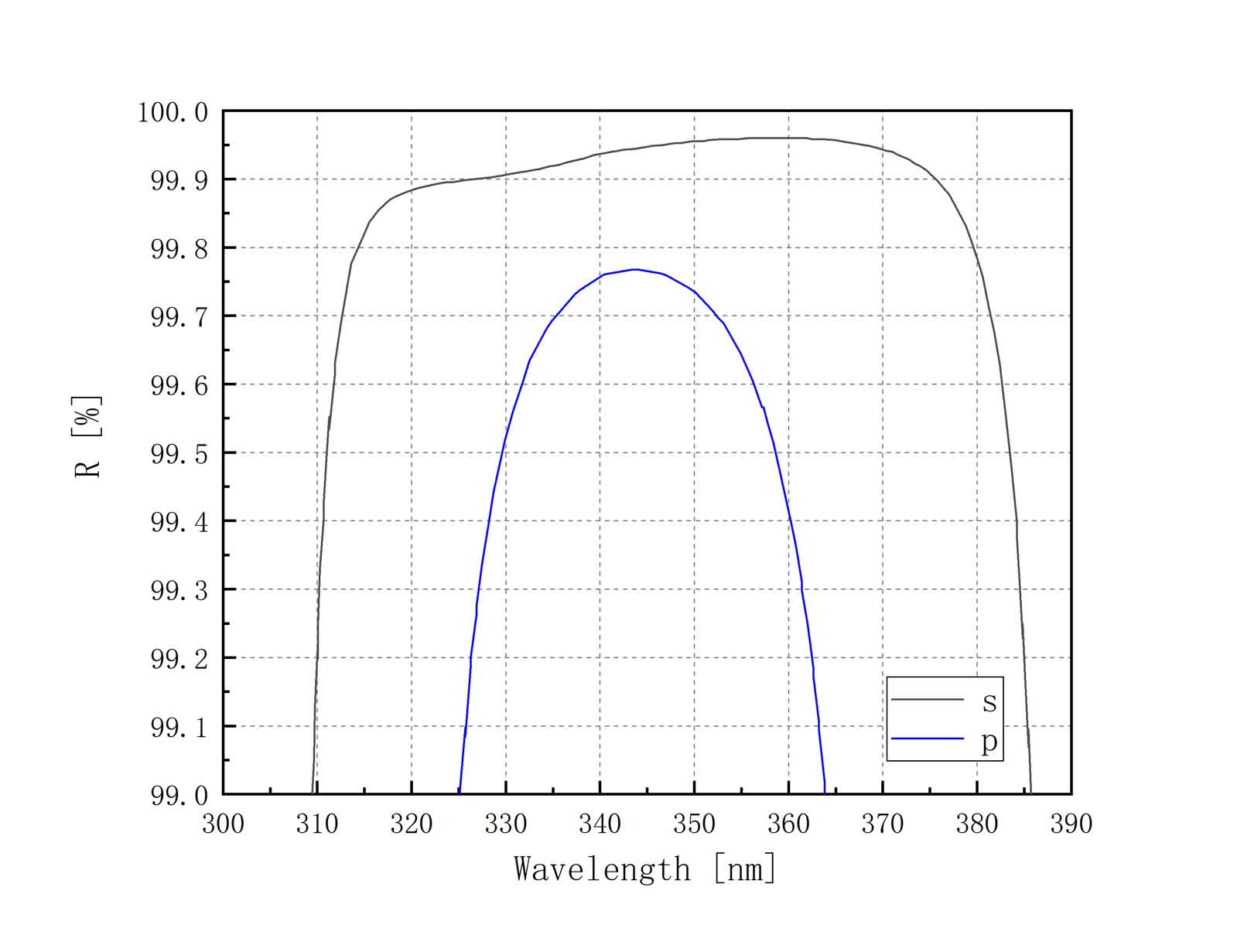

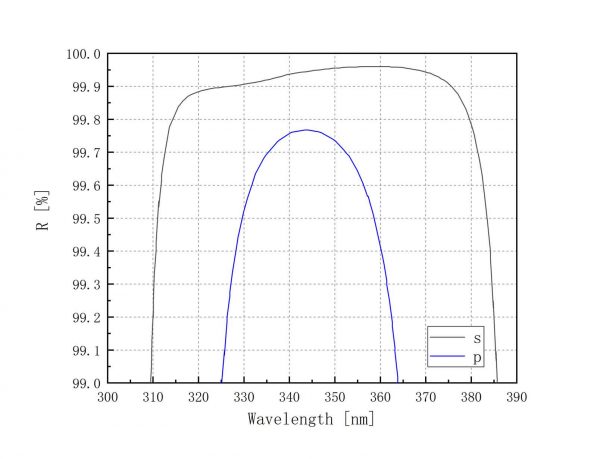

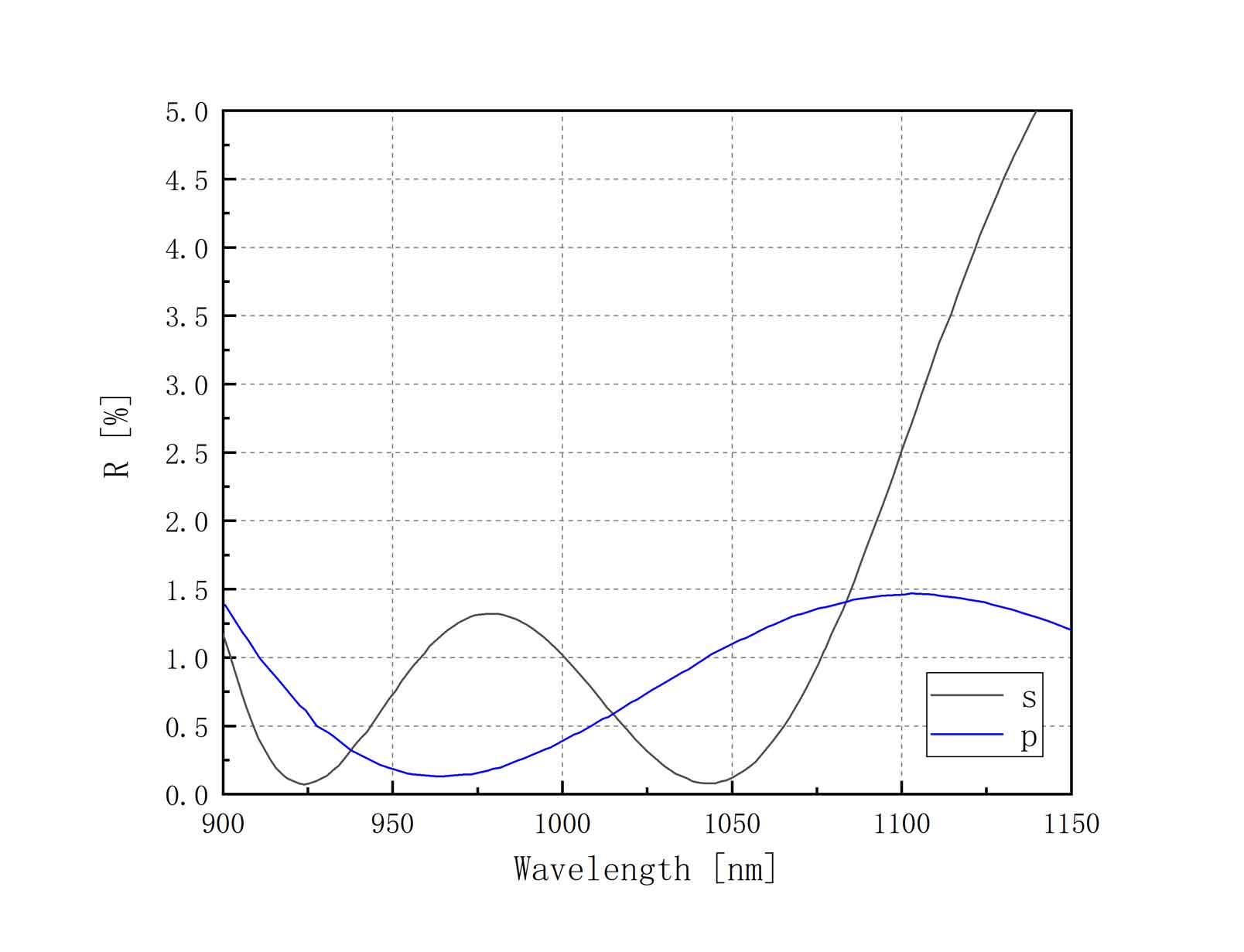

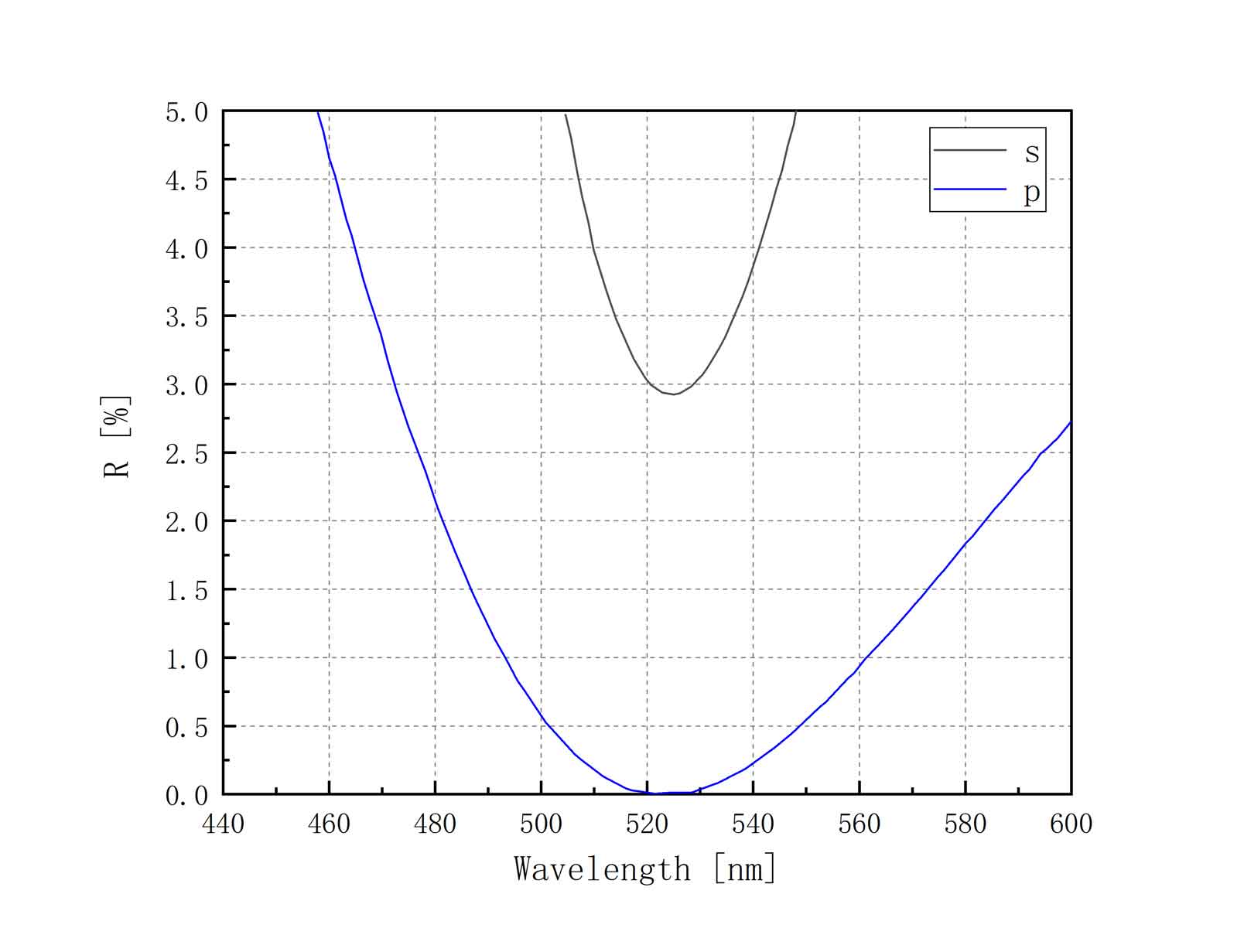

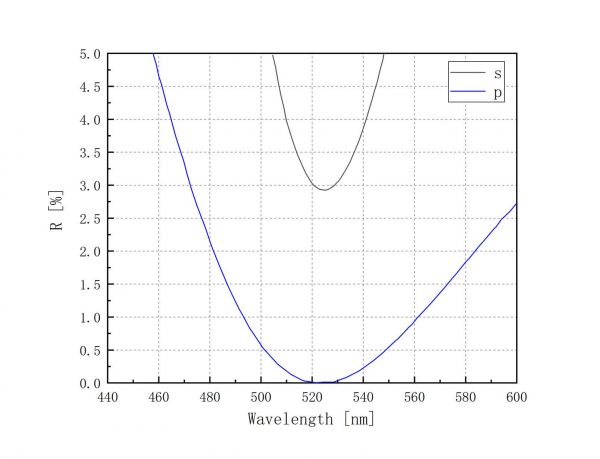

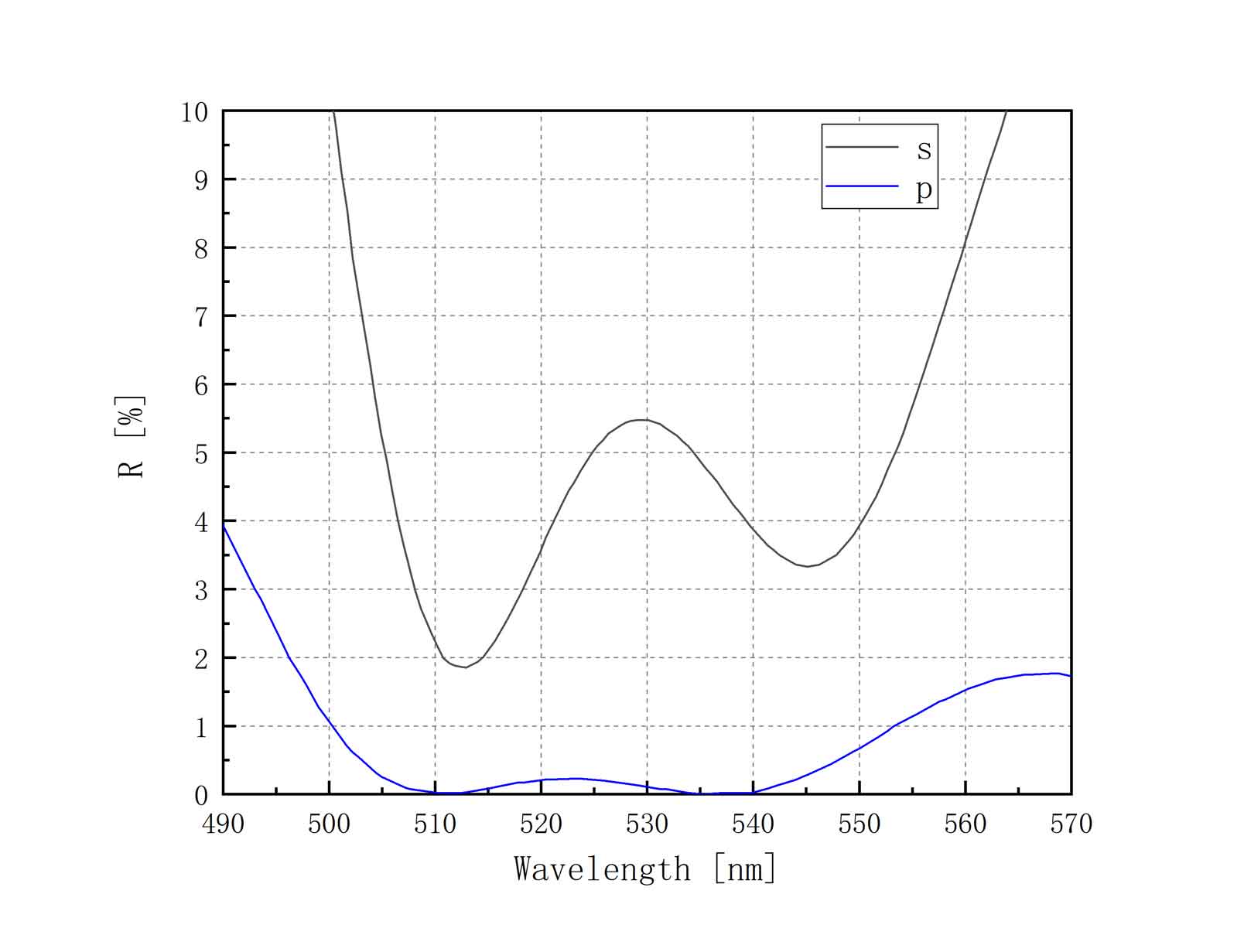

| Coating | Front Side (S2) HRs(45°,343-358nm)>99.9% Rp(45°,515-532nm)<1% Rs(45°,1030-1064nm)<1% Rear Side (S1) ARp(45°,515-532nm)<0.3% ARs(45°,1030-1064nm)<0.2% |
| Application | |
| Optical element | Combiner Beamsplitter |
| Shape | Round |
| Parallelism | 5ʹ |
| Type | Yb:YAG-Laser Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.3 mm (±0.1 mm) Rear Side (S1) 0.3 mm (±0.1 mm) |
