Laser mirror 102249

Description

Material Corning 7980 2F or equal
Geometry ∅ = 25 mm  (-0.1 mm)
t = 6.35 mm (±0.1 mm)
Form Front Side  (S2)
plane
Rear Side  (S1)
plane
Coating Front Side   (S2)
HR(0°,355nm)>99.5%
R(0°,532nm)<5%
R(0°,1064nm)<5%
Rear Side   (S1)
AR(0°,532nm)<0.5%
AR(0°,1064nm)<0.5%
Optical element Laser mirror
Separator
Combiner
Shape Round
Parallelism
Type Nd:YAG-Laser
Chamfer Front Side  (S2)
0.3 mm (±0.1 mm)
Rear Side  (S1)
0.3 mm (±0.1 mm)

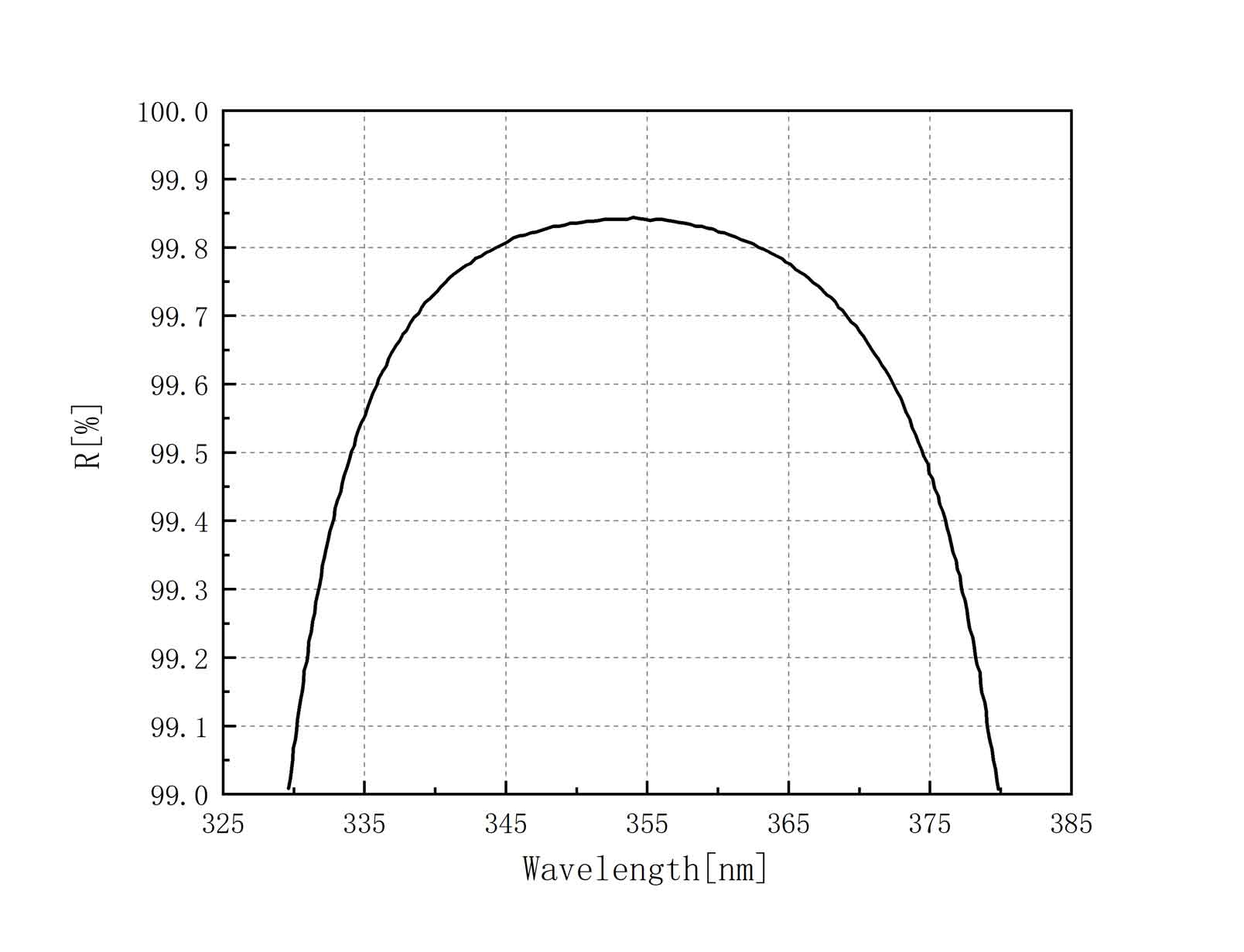

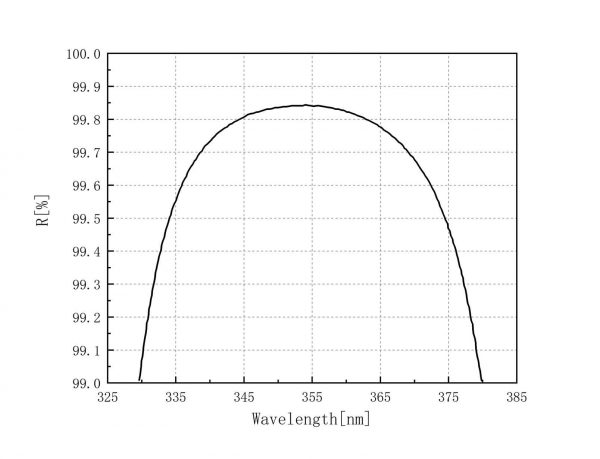

102249-s2-1
s2-1

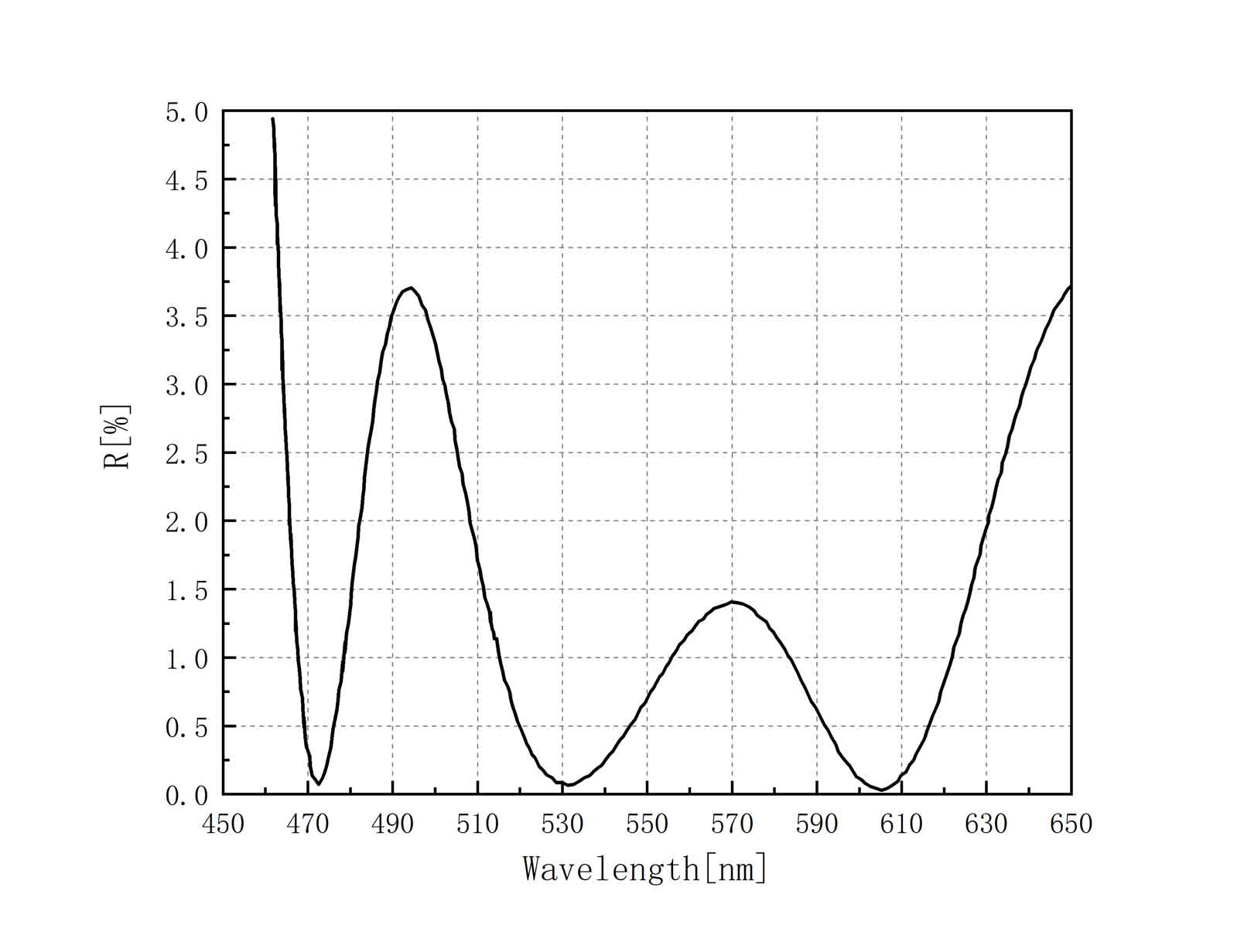

102249-s2-2
s2-2

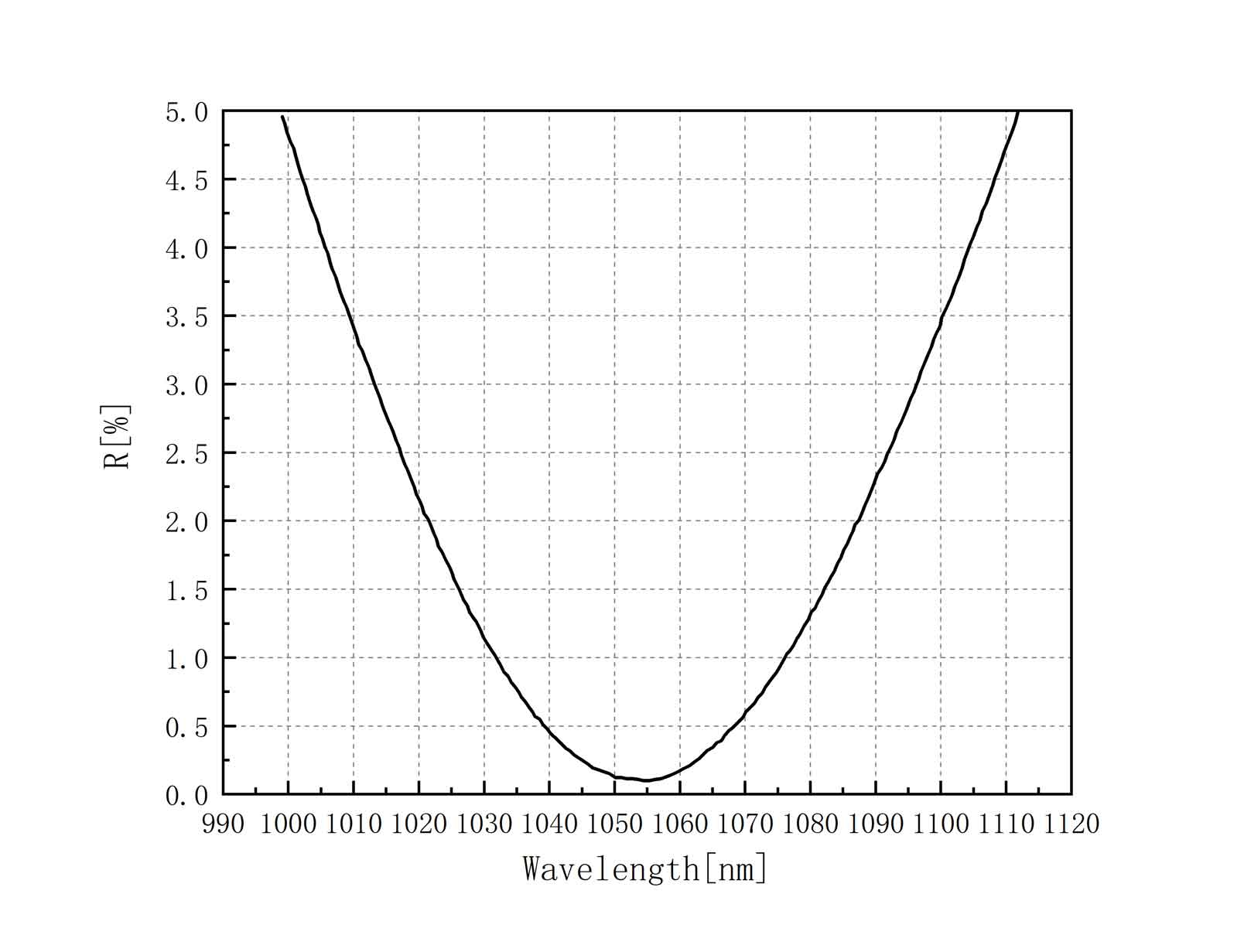

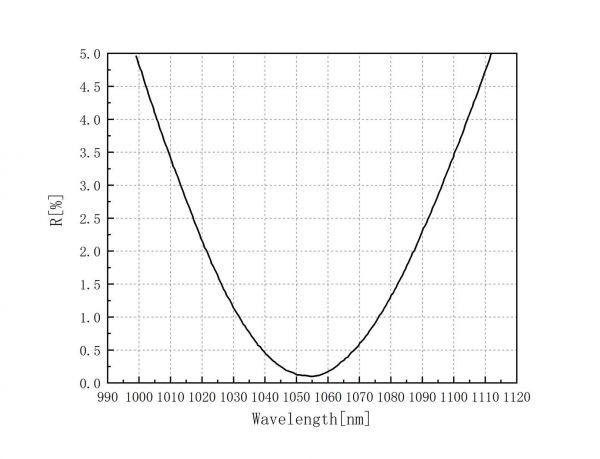

102249-s2-3
s2-3

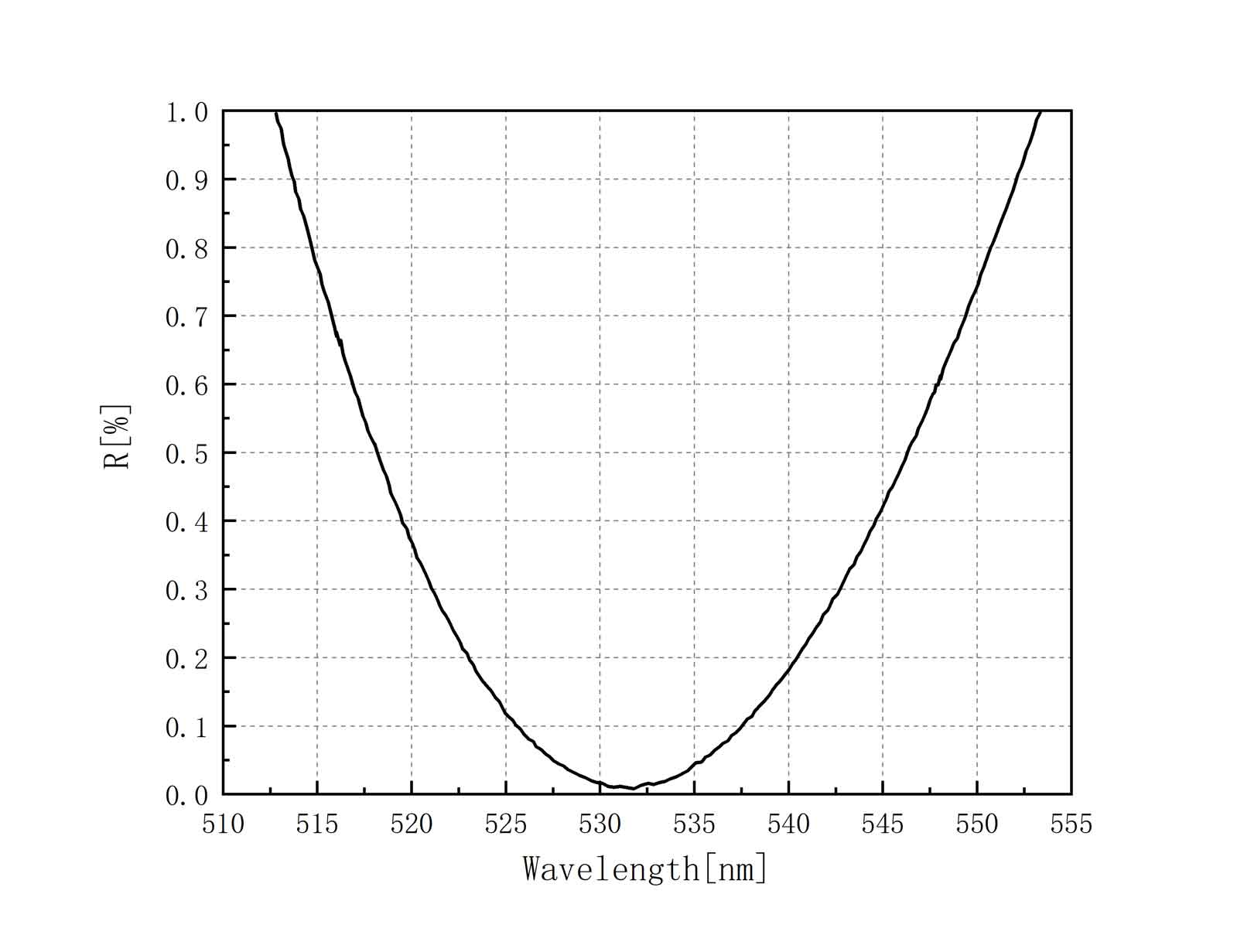

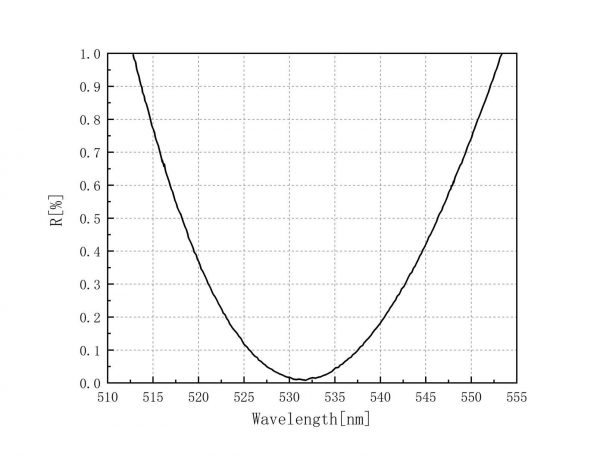

102249-s1-1
s1-1

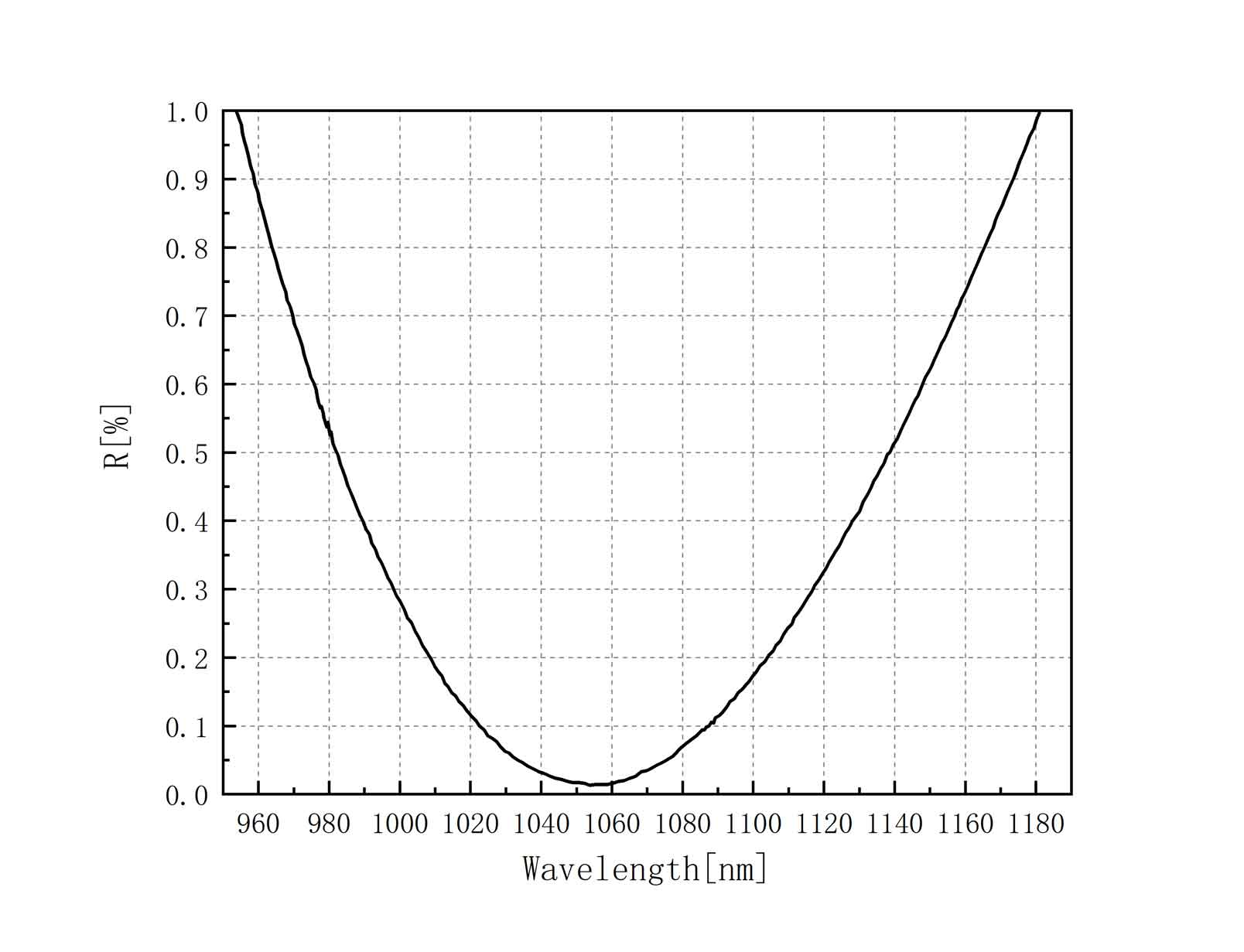

102249-s1-2
s1-2
