Description
| Material | Corning 7980 2F or equal |
| Geometry | ∅ = 25 mm (-0.1 mm) t = 3.05 mm (±0.1 mm) |
| Form | Front Side (S2) plane Rear Side (S1) plane |

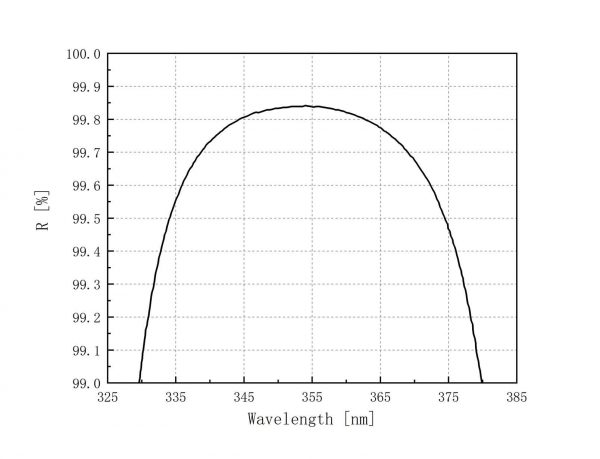

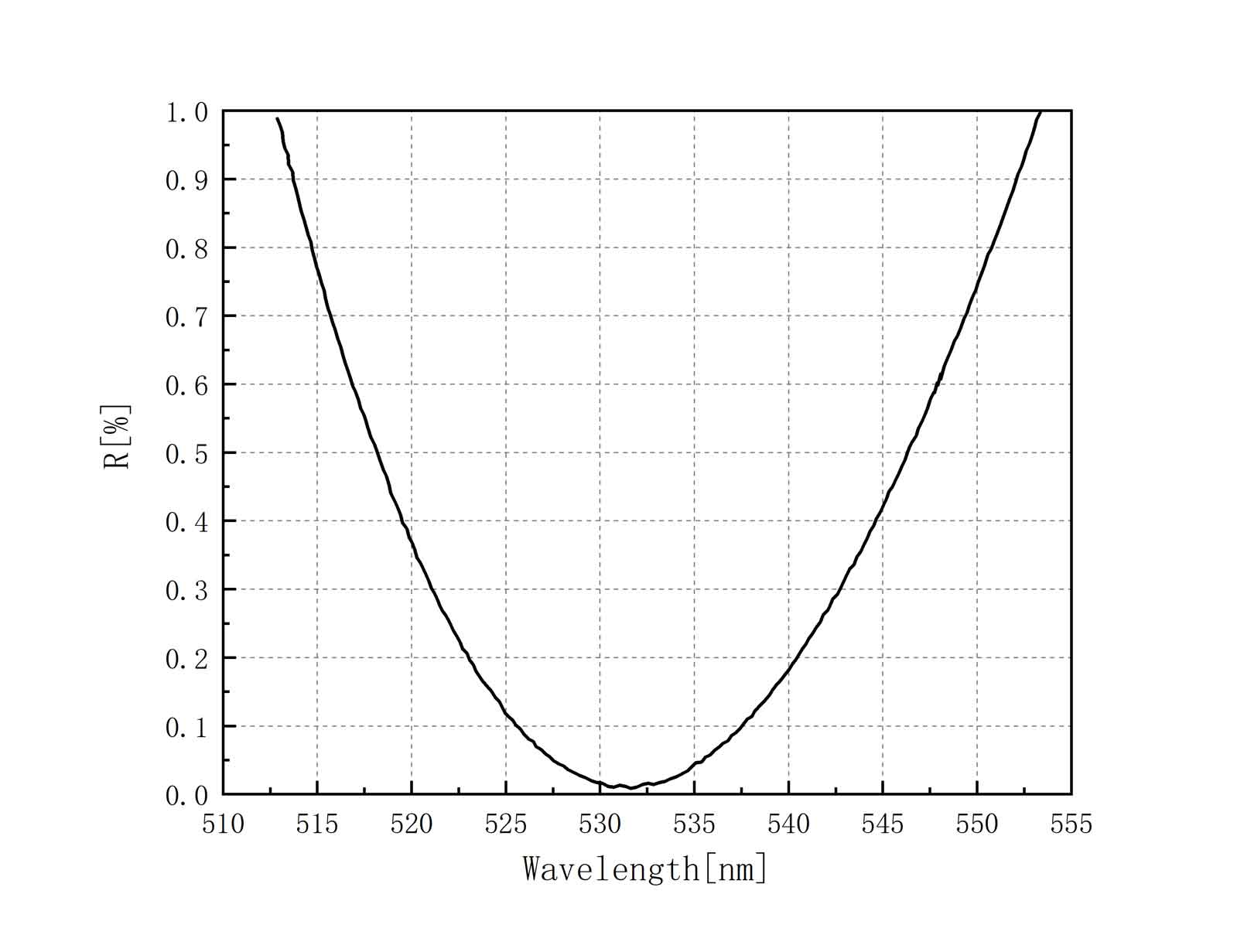

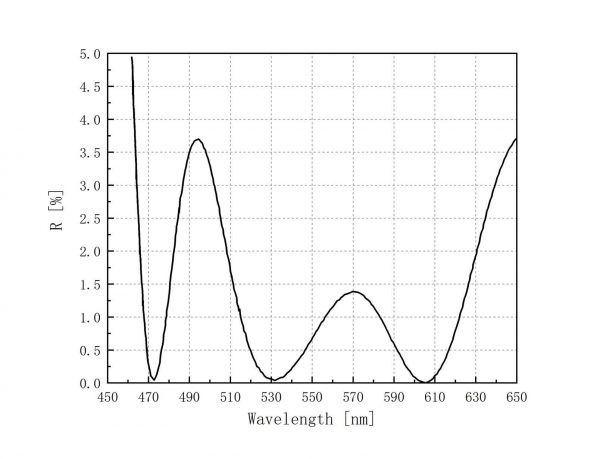

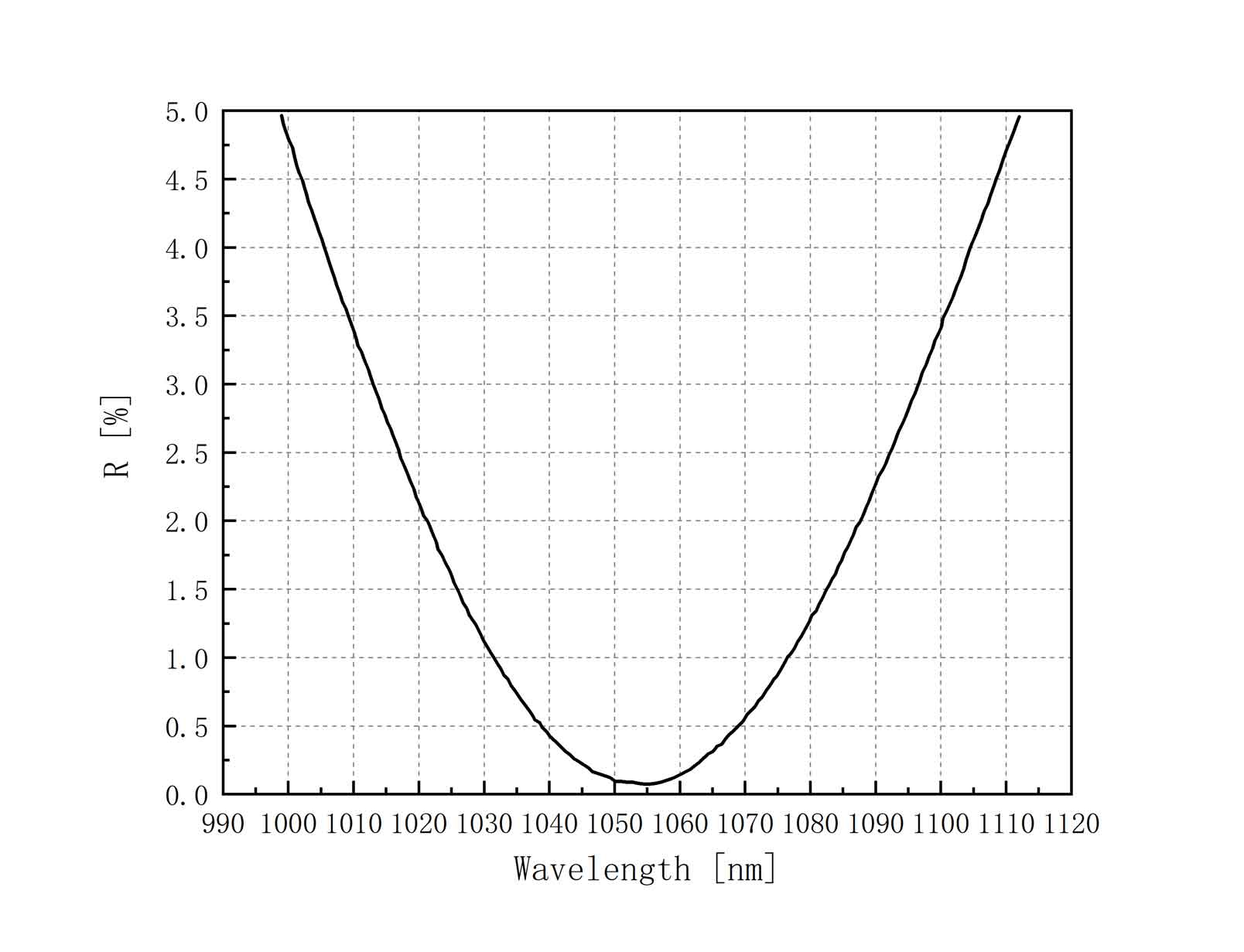

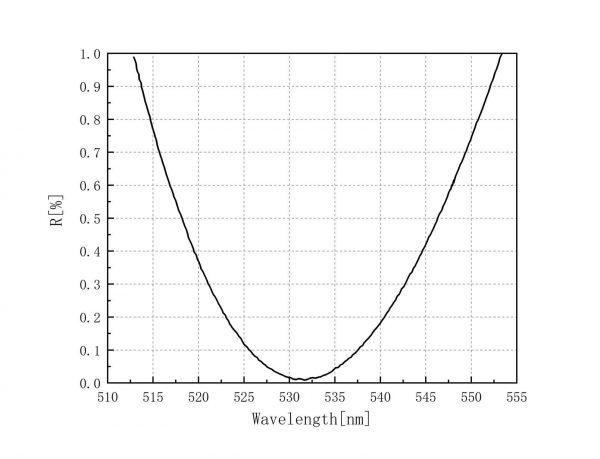

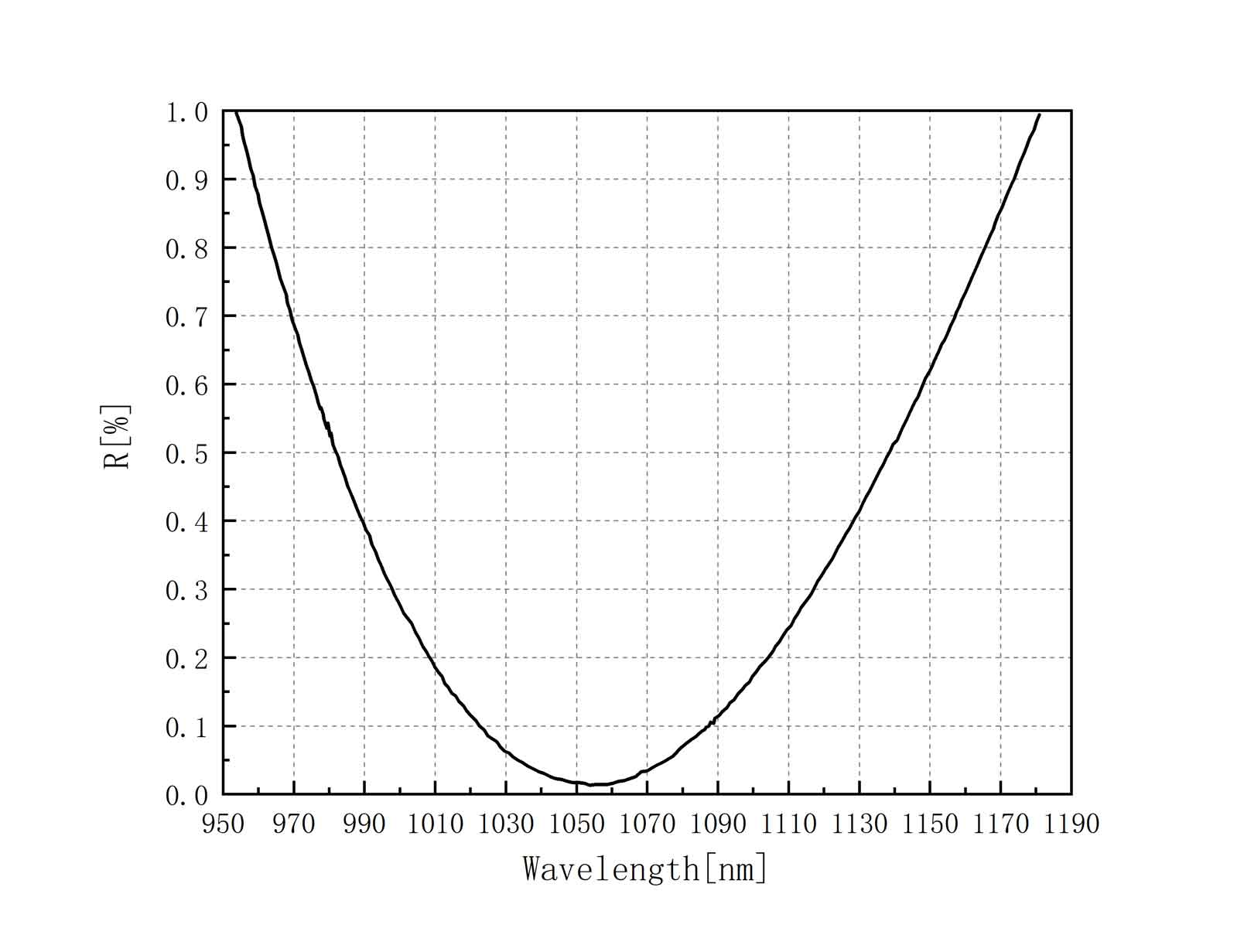

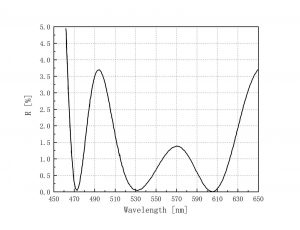

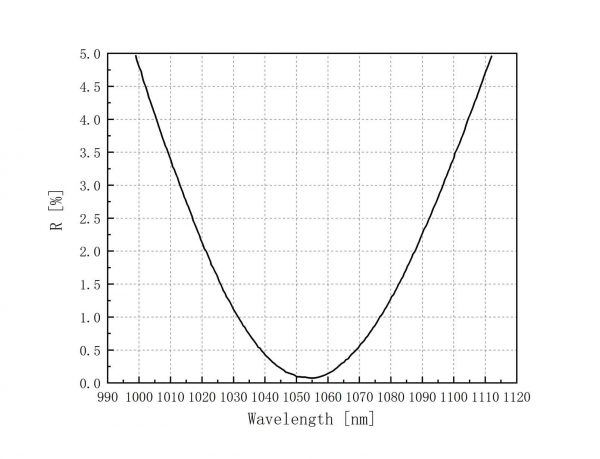

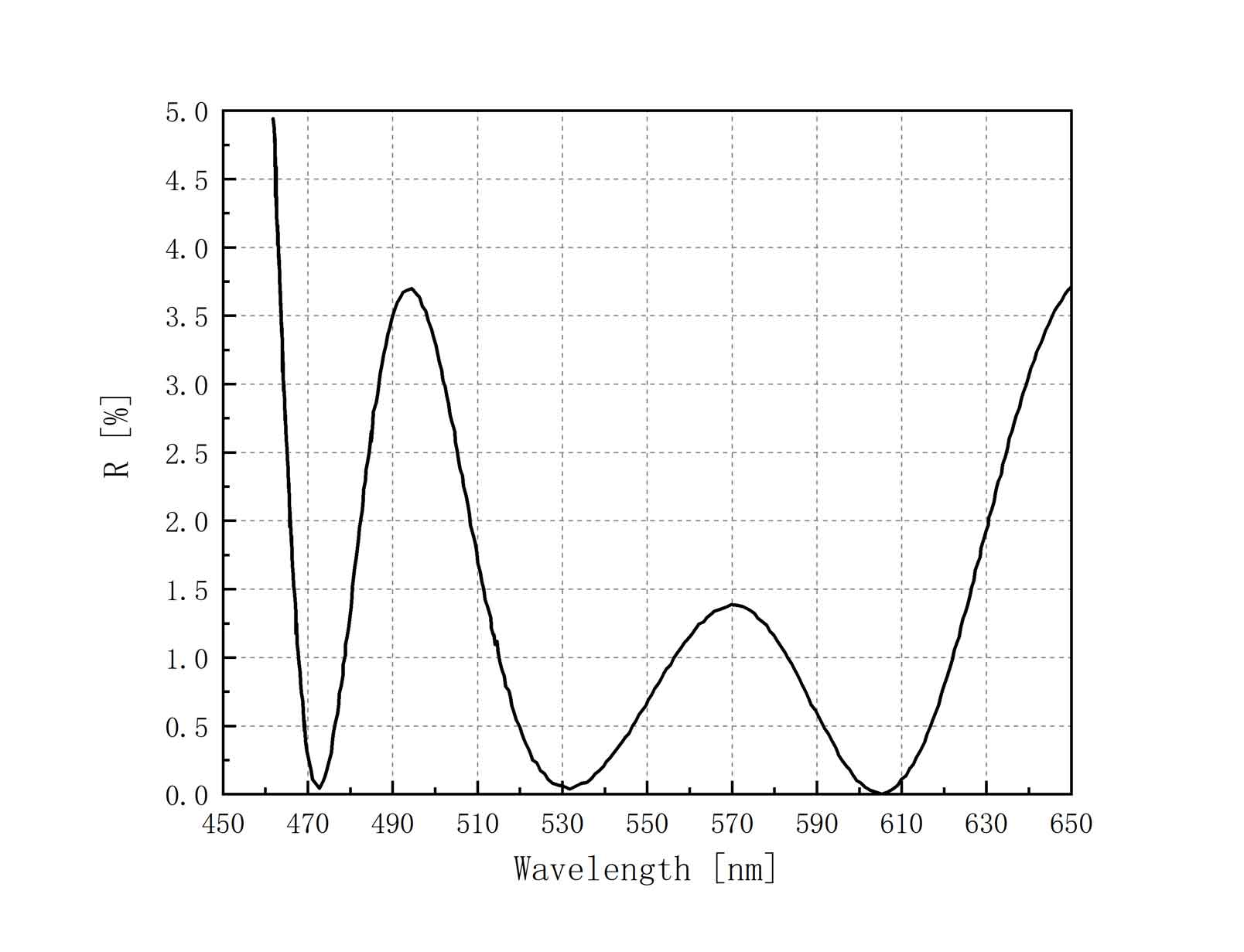

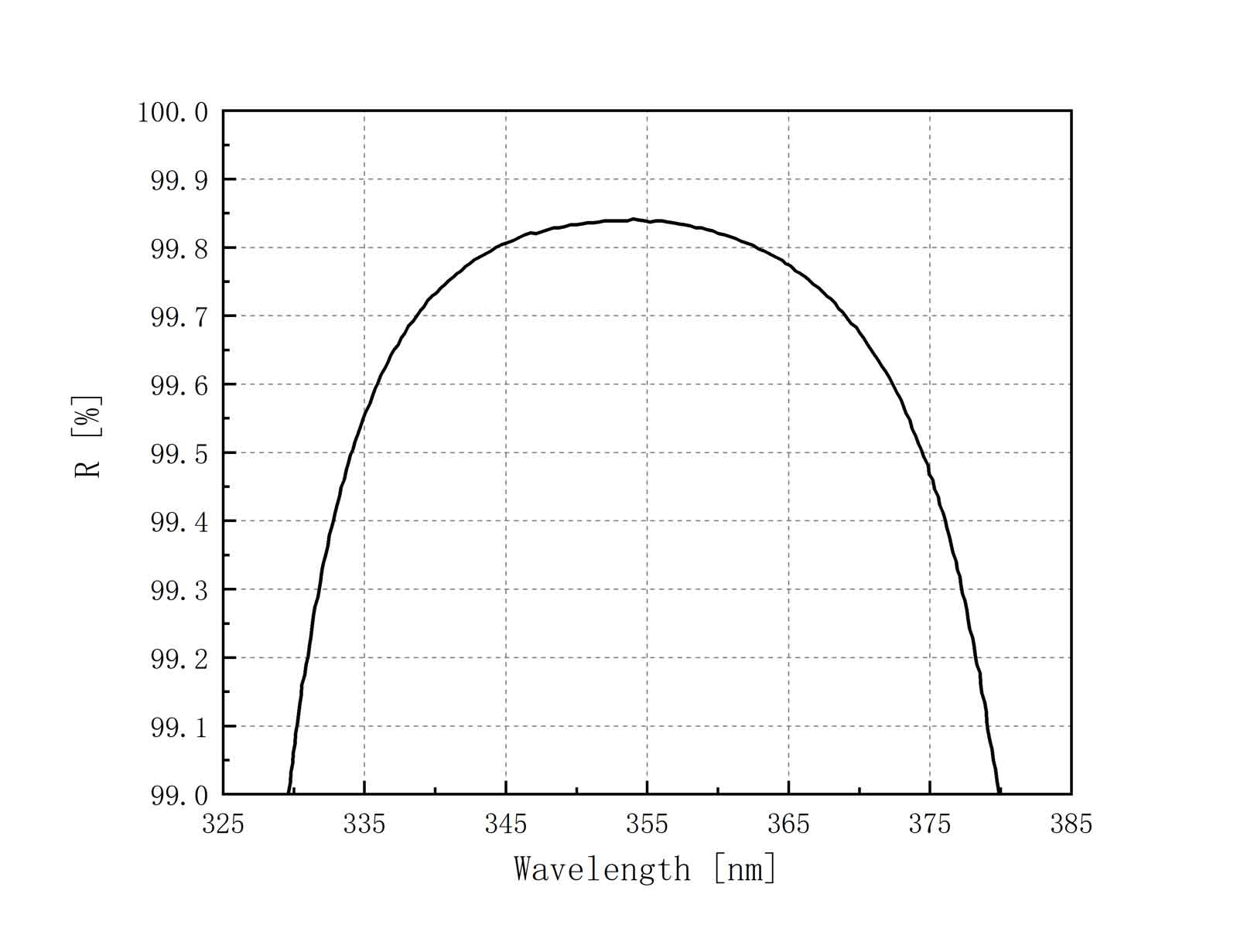

| Coating | Front Side (S2) HR(0°,355nm)>99.5% R(0°,532nm)<5% R(0°,1064nm)<5% Rear Side (S1) AR(0°,532nm)<0.5% AR(0°,1064nm)<0.5% |
| Optical element | Laser mirror Separator Combiner |
| Shape | Round |
| Parallelism | 5ʹ |
| Type | Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.2 mm Rear Side (S1) 0.2 mm |
