Laser mirror 102353

Category:

Description

material Corning 7980 2F or equal
Geometry ∅ =12.7mm
t = 6.35 mm
Form Front Side  (S2)
concave
r =200 mm (±0.5 %)
Rear Side  (S1)
plane
Coating Front Side   (S2)
HR(0°,1020-1070nm)>99.95%
application cw/ns
optical element Laser mirror
Shape Round
Parallelism
type Yb:YAG-Laser
Nd:YAG-Laser
Chamfer Front Side  (S2)
0.3 mm(±0.1 mm)
Rear Side  (S1)
0.3 mm(±0.1 mm)

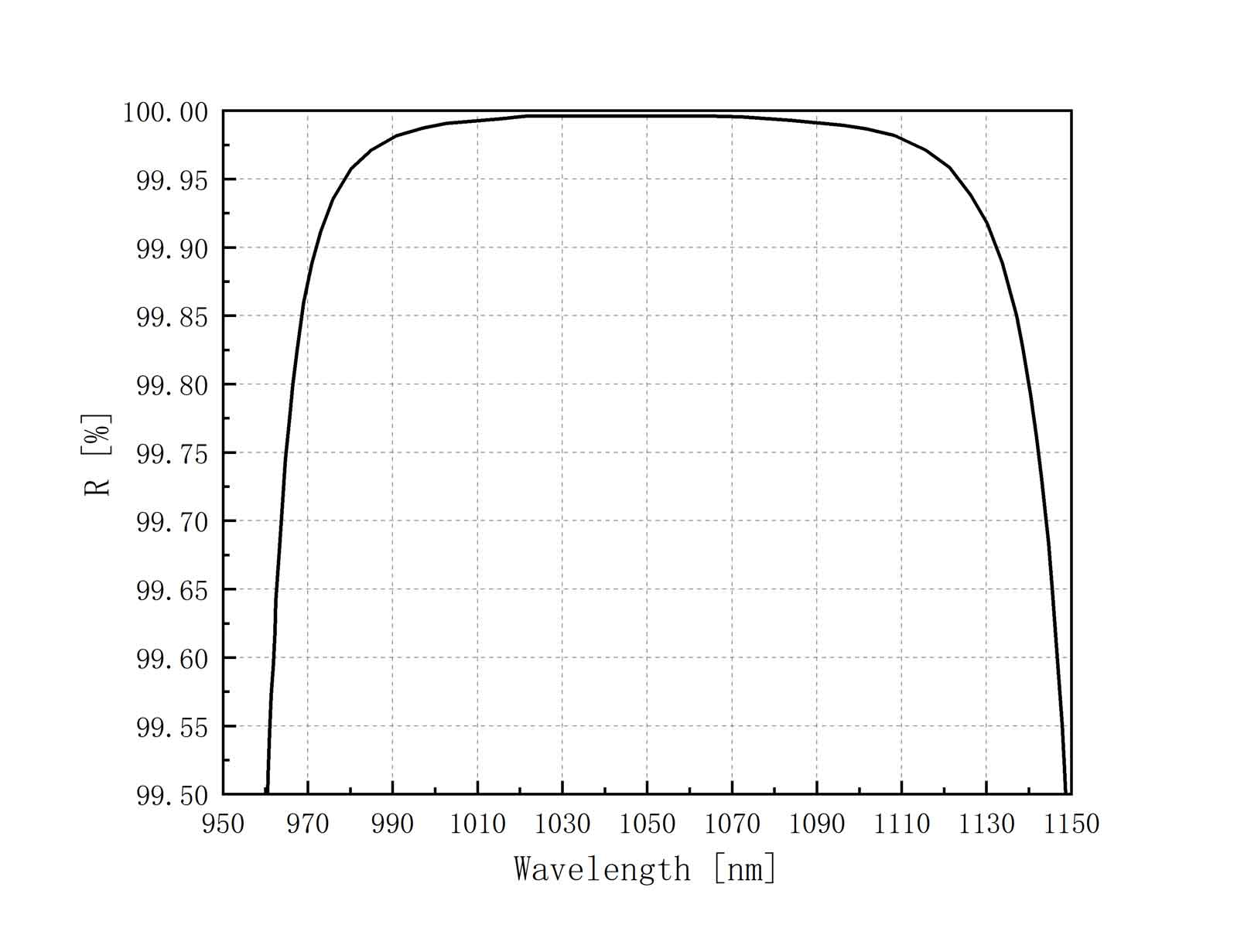

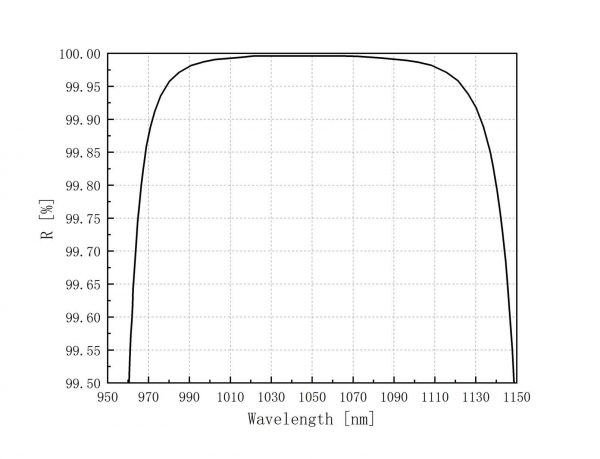

102353-s2
s2
