Description
| Material | Corning 7980 2F or equal |
| Geometry | ∅ = 12.7 mm (-0.1mm) t = 6.35 mm (±0.1mm) |
| Form | Front Side (S2) plane Rear Side (S1) plane |

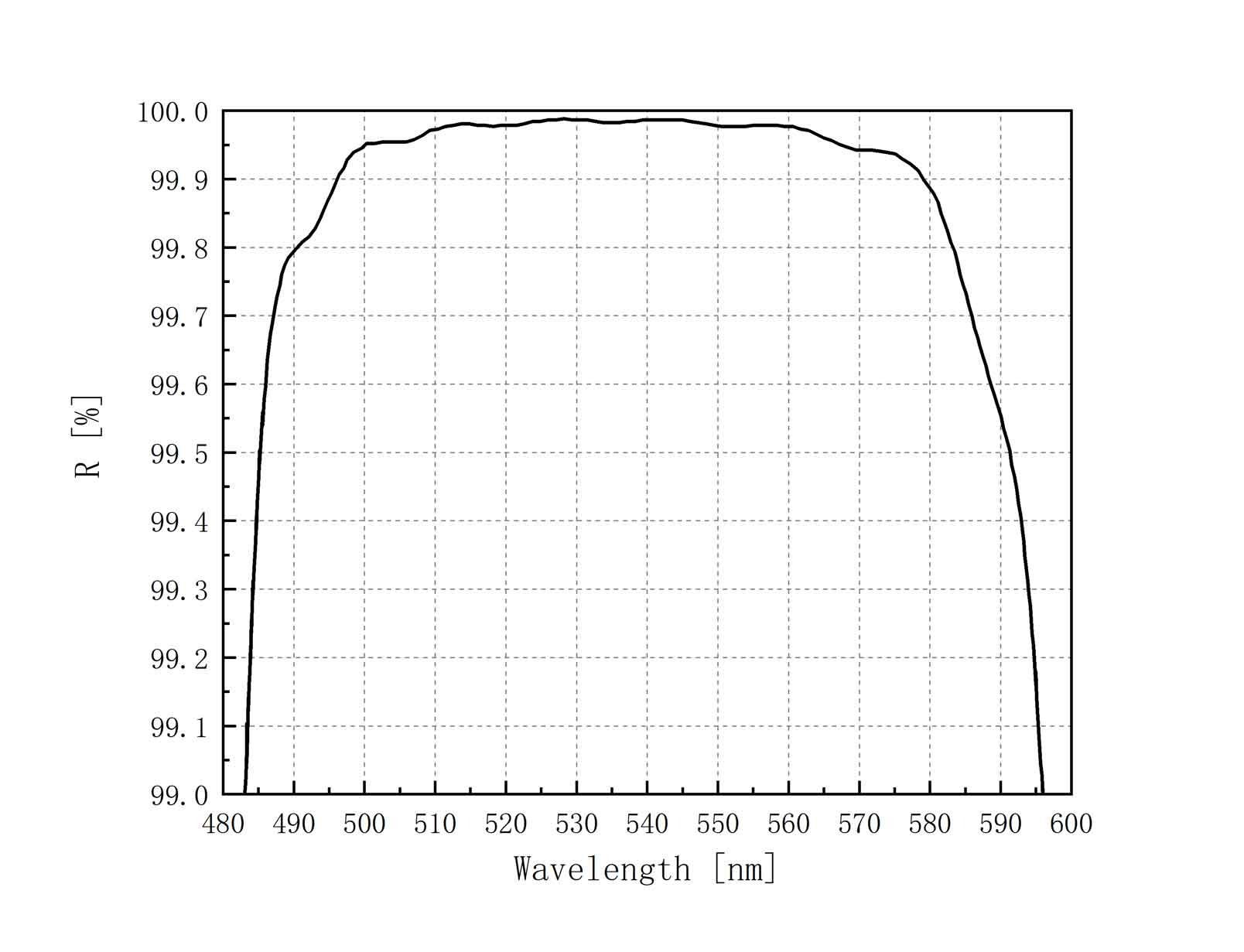

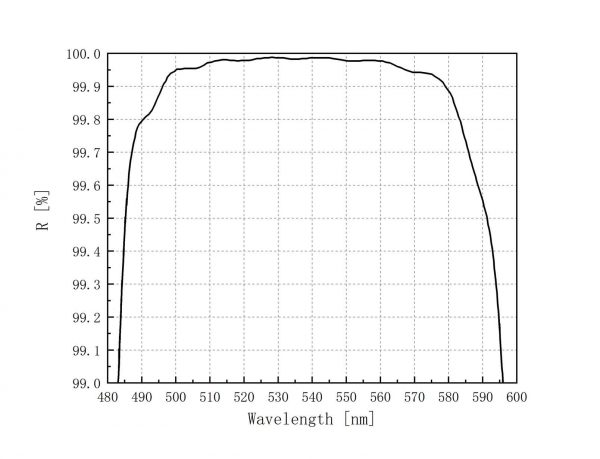

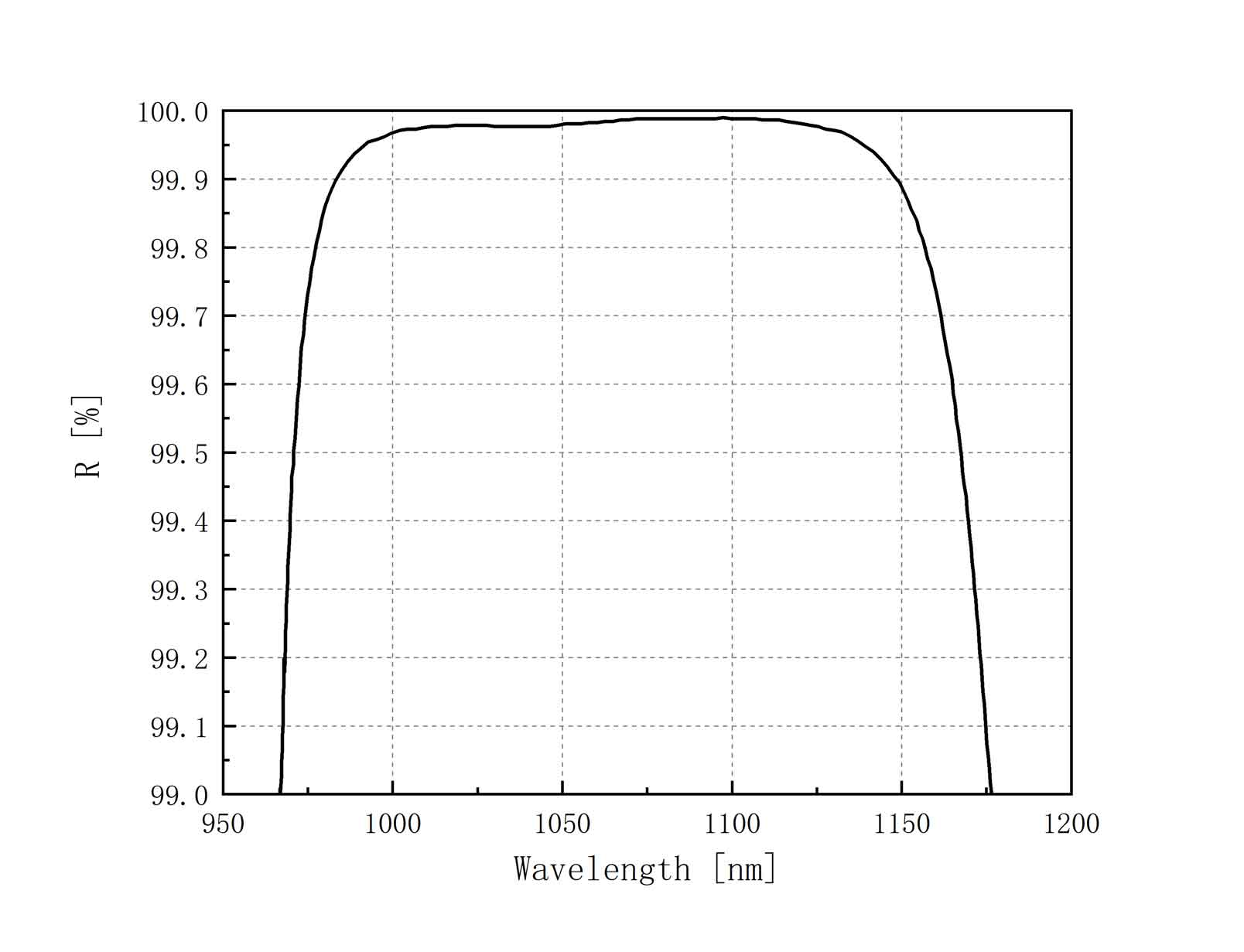

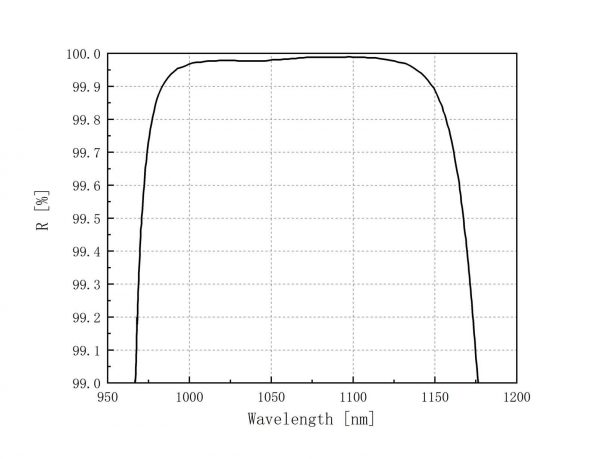

| Coating | Front Side (S2) HR(0°,532nm)>99.9% HR(0°,1064nm)>99.9 % |
| Application | cw/ns |
| Optical element | Laser mirror |
| Shape | Round |
| Parallelism | 5ʹ |
| Type | Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.3mm (±0.1mm) Rear Side (S1) 0.3mm (±0.1mm) |
