Laser mirror 103753

Category:

Description

material Corning 7980 2F or equal
Geometry ∅ =12.7mm
t = 6.35 mm
Form Front Side  (S2)
concave
r =1,000 mm (±1 %)
Rear Side  (S1)
plane

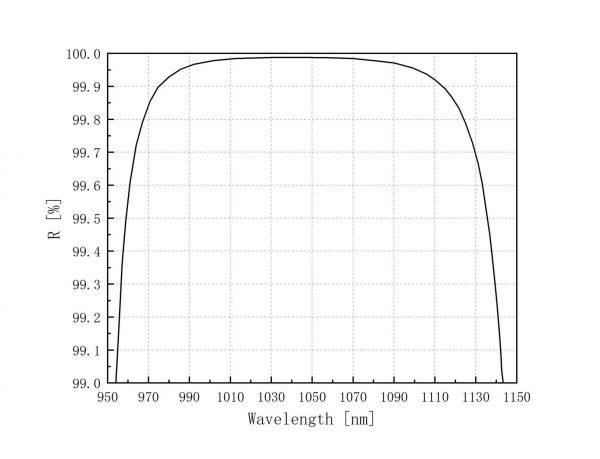

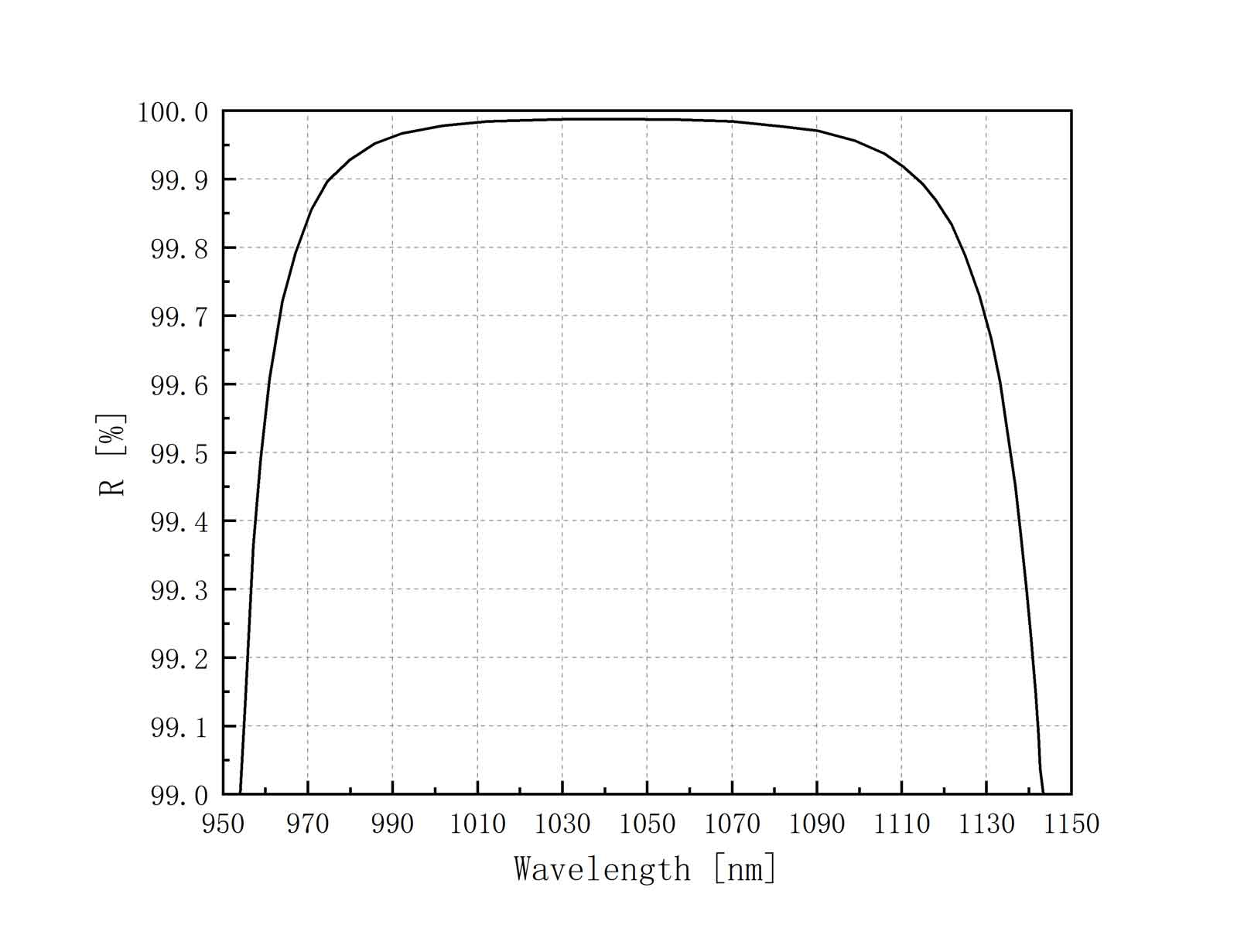

Coating Front Side   (S2)
HR(0°,1030-1064nm)>99.9%
application cw/ns
optical element Laser mirror
Shape Round
type Yb:YAG-Laser
Nd:YAG-Laser
Chamfer Front Side  (S2)
0.3 mm(±0.1 mm)
Rear Side  (S1)
1 mm (±0.1 mm)
103753-s2
s2
