Laser mirror 104340

Category:

Description

material Corning 7980 2F or equal
Geometry ∅ =25 mm
t = 6.35 mm
Form Front Side  (S2)
concave
r =100 mm (±0.5 %)
Rear Side  (S1)
plane
Coating Front Side   (S2)
HR(0°,532nm)>99.9%
HR(0°,1064nm)>99.9%
application cw/ns
optical element Laser mirror
Shape Round
Parallelism
type Nd:YAG-Laser
Chamfer Front Side  (S2)
0.3 mm (±0.1 mm)
Rear Side  (S1)
0.3 mm (±0.1 mm)

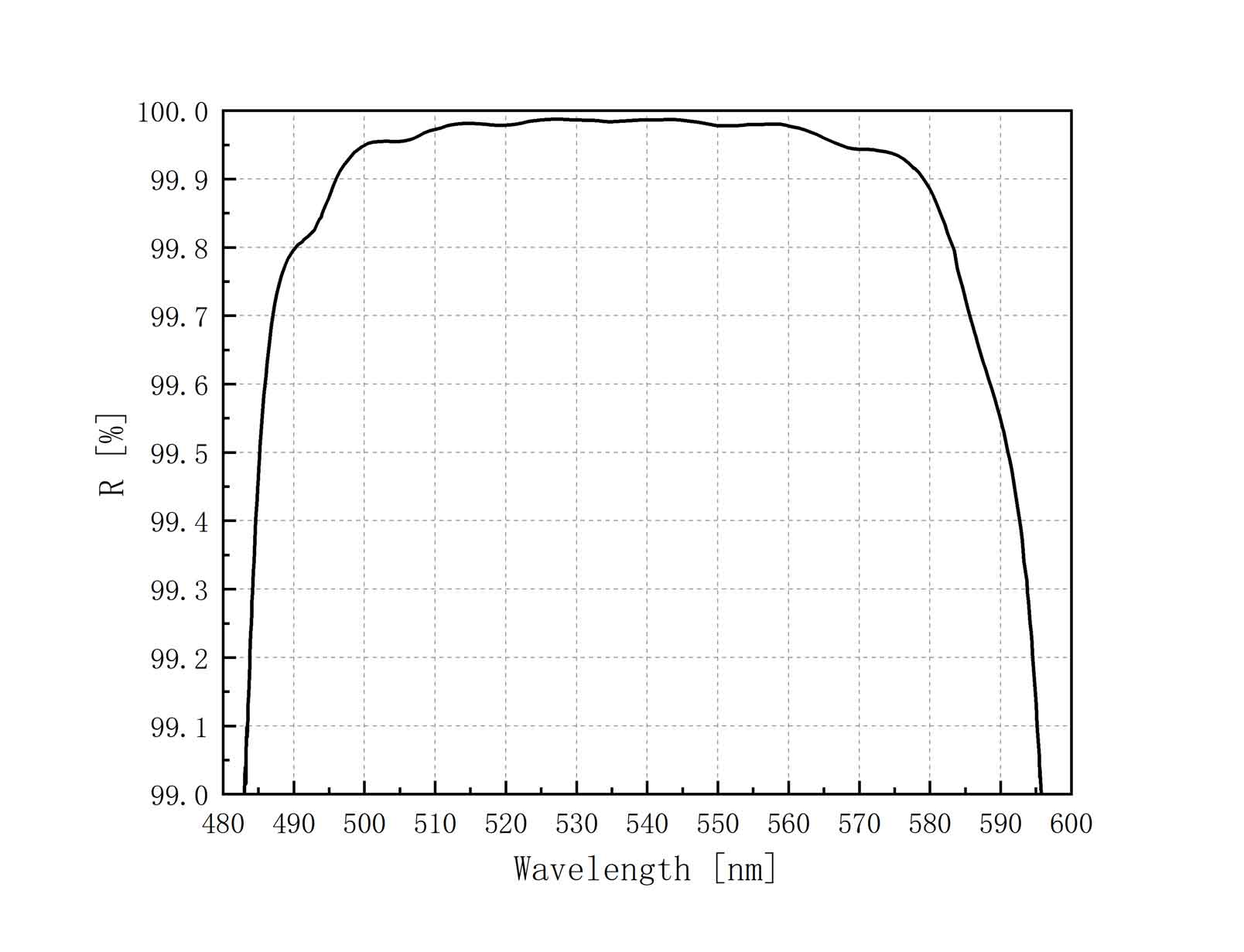

104340-s2-1
s2-1

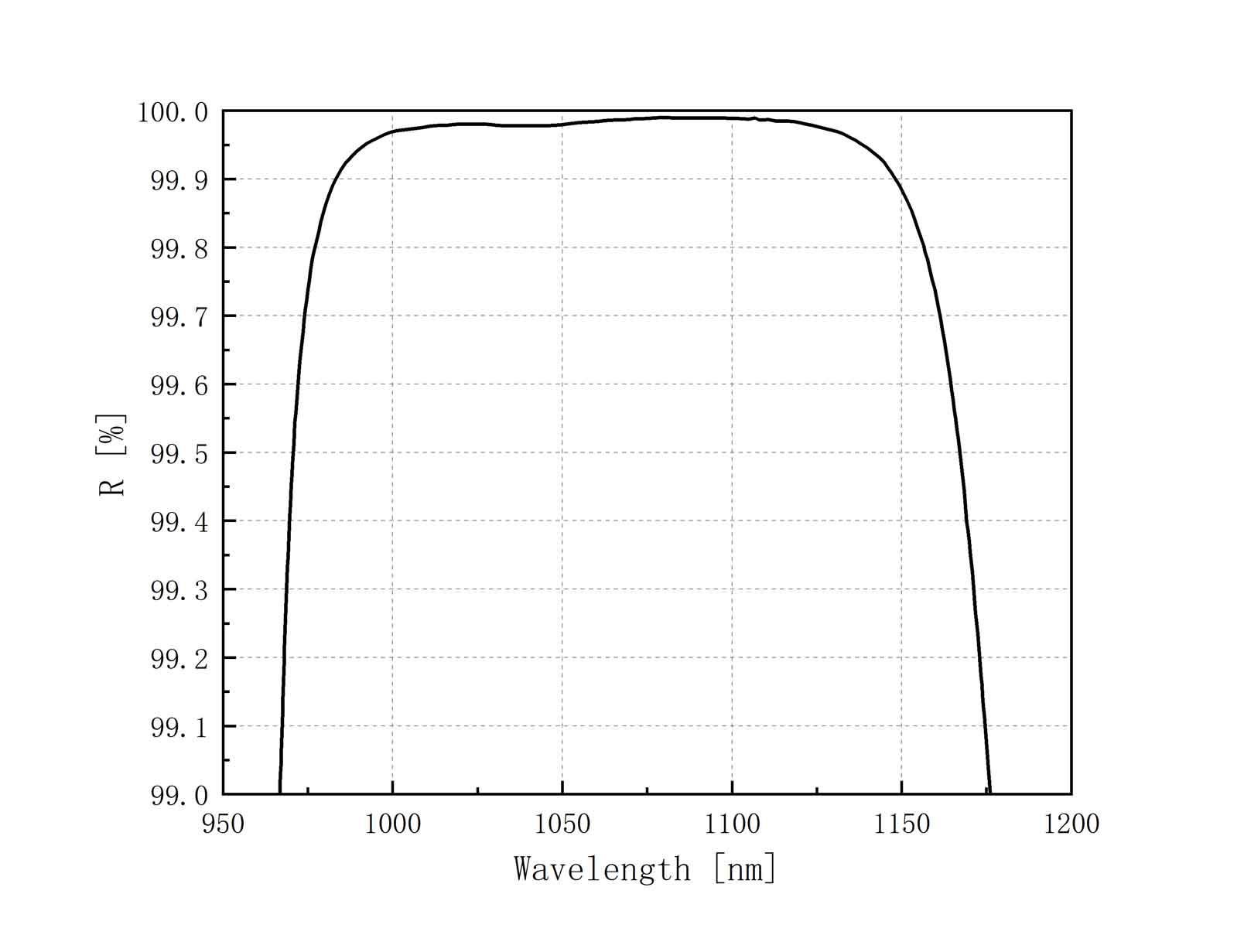

104340-s2-2
s2-2
