Laser mirror 105535

Category:

Description

Material Corning 7980 2F or equal
Geometry ∅ = 25 mm (-0.1mm)
t = 6.35 mm (±0.1mm)
Form Front Side  (S2)
concave
r = 750 mm (±0.5 %)
Rear Side  (S1)
plane
Coating Front Side   (S2)

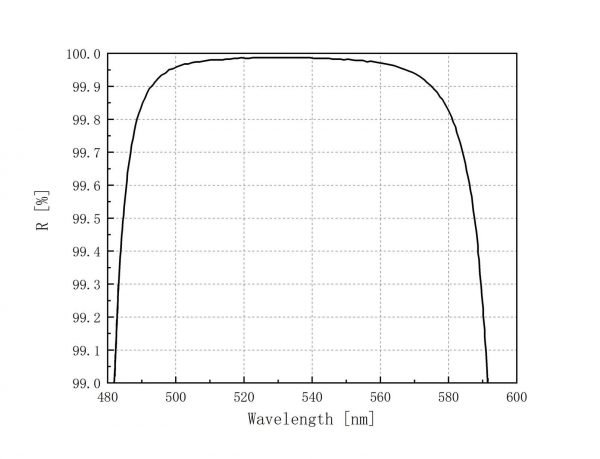

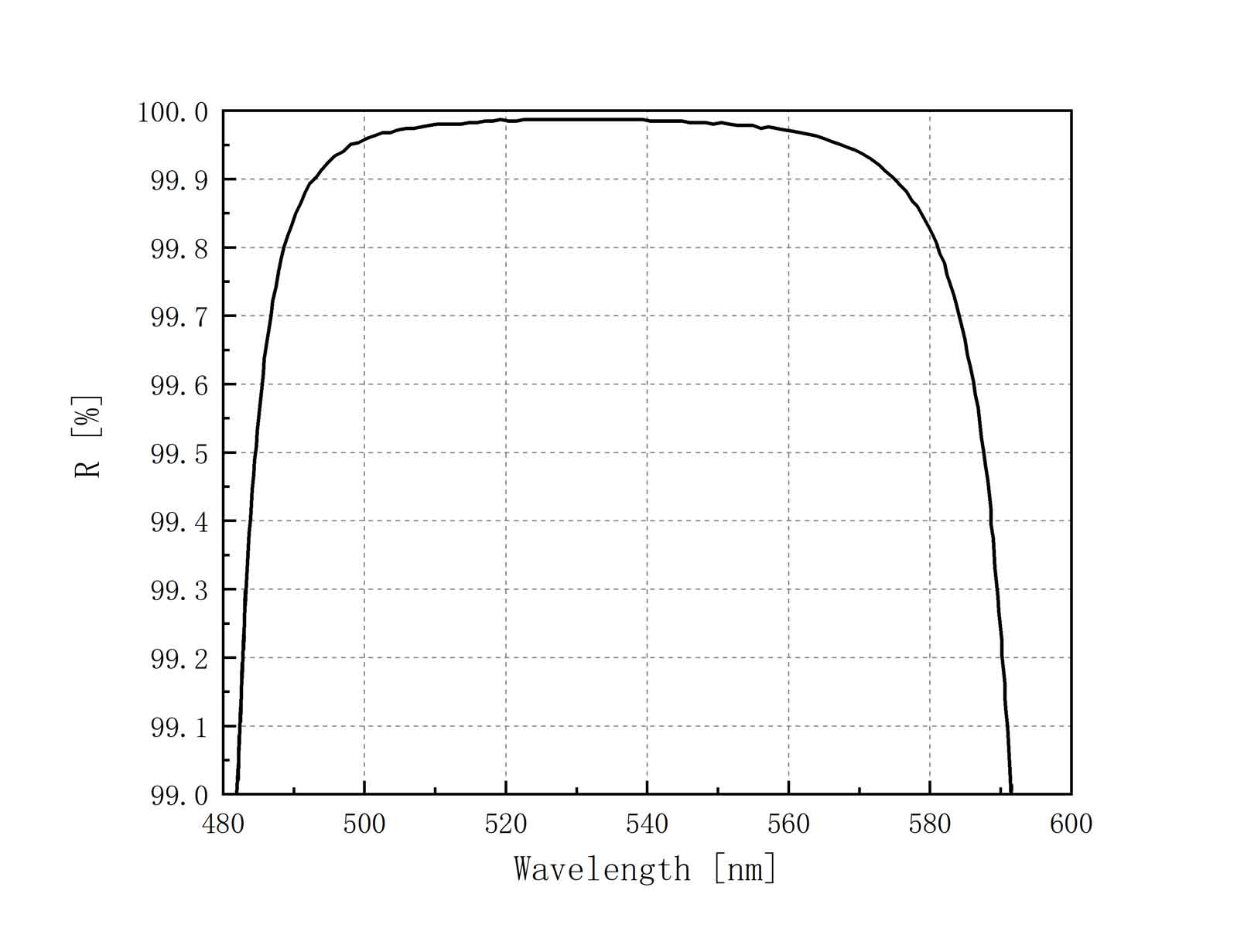

HR(0°,532nm)>99.9%
Application cw/ns
Optical element Laser mirror
Shape Round
Parallelism
Type Nd:YAG-Laser
Chamfer Front Side  (S2)
0.3mm (±0.1mm)
Rear Side  (S1)
0.3mm (±0.1mm)
105535-s2
s2
