Laser mirror 107597

Category:

Description

Material Corning 7980 2F or equal
Geometry ∅ = 25 mm (-0.1mm)
t = 6.35 mm (±0.1mm)
Form Front Side  (S2)
concave
r = 2000 mm (±1 %)
Rear Side  (S1)
plane

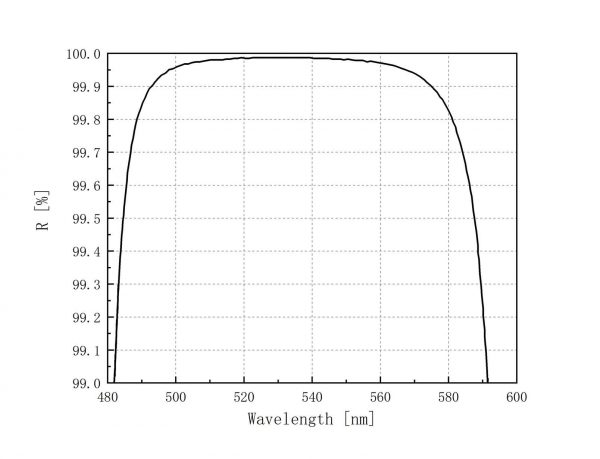

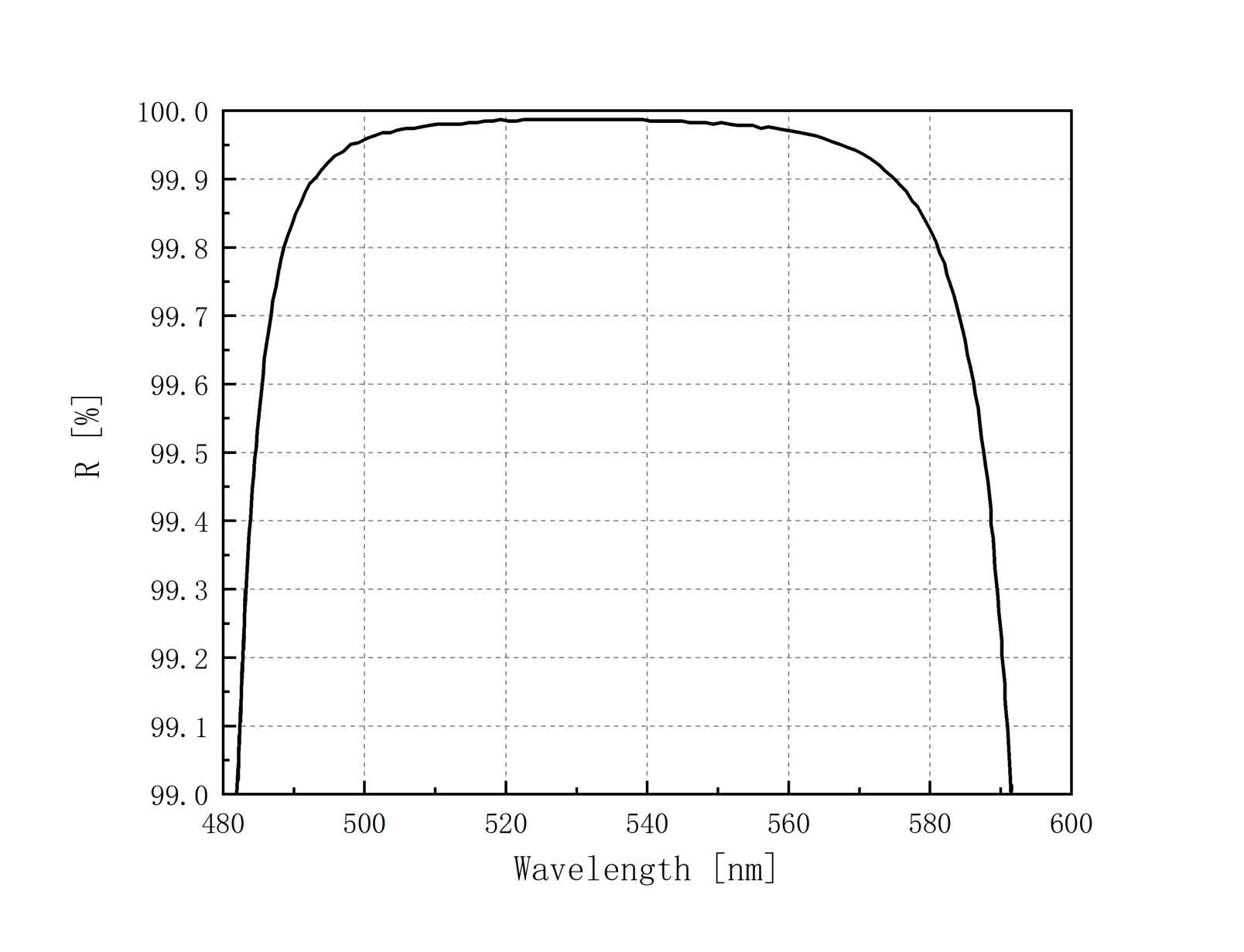

Coating Front Side   (S2)
HR(0°,532nm)>99.9 %
Application cw/ns
Optical element Laser mirror
Shape Round
Parallelism
Type Nd:YAG-Laser
Chamfer Front Side  (S2)
0.3mm (±0.1mm)
Rear Side  (S1)
0.3mm (±0.1mm)
107597-s2
s2
