Description
| Material | Corning 7980 2F or equal |
| Geometry | ∅ = 12.7 mm(-0.1mm) t = 6.35 mm(±0.1mm) |
| Form | Front Side (S2) concave r = 100 mm (±0.5 %) Rear Side (S1) plane |

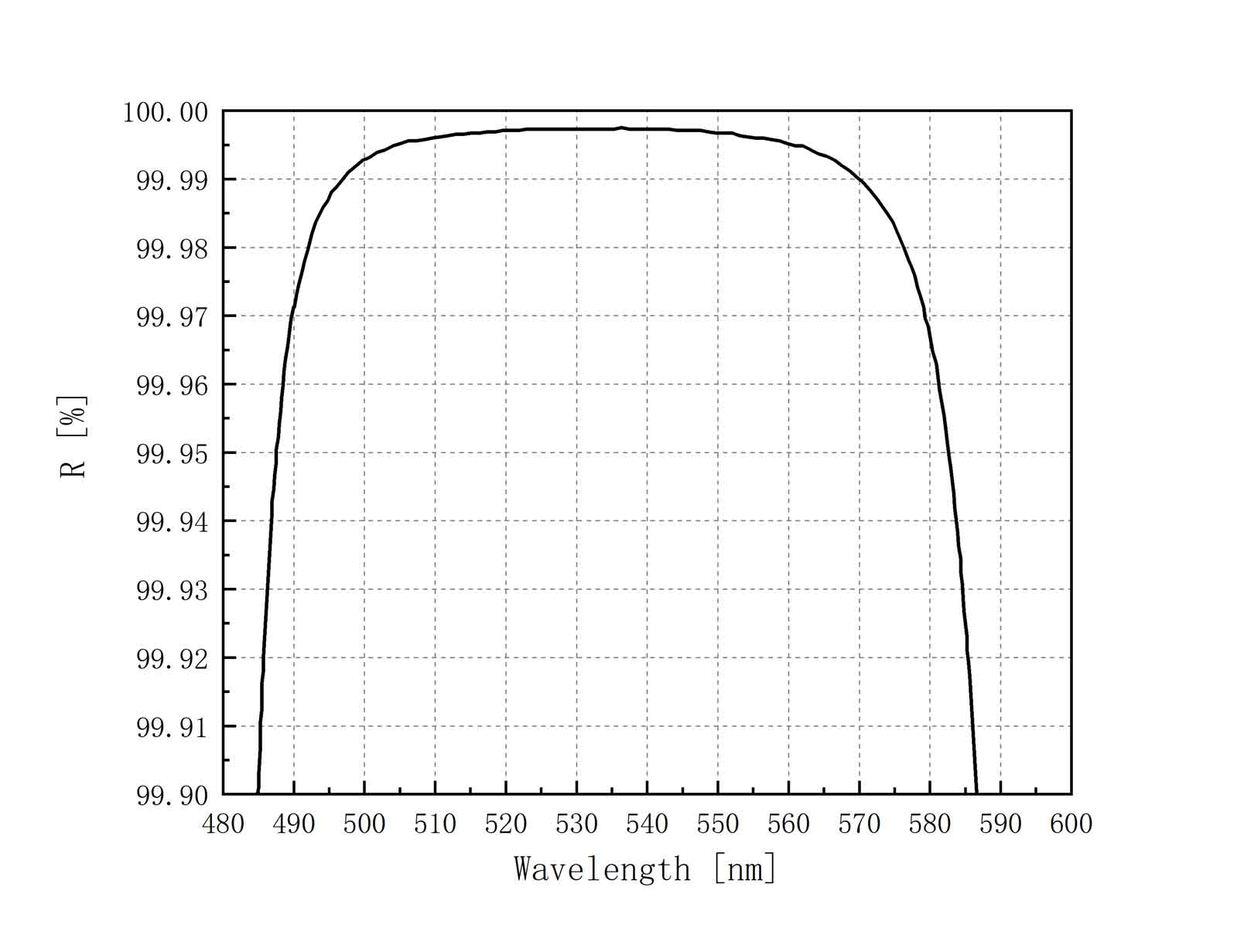

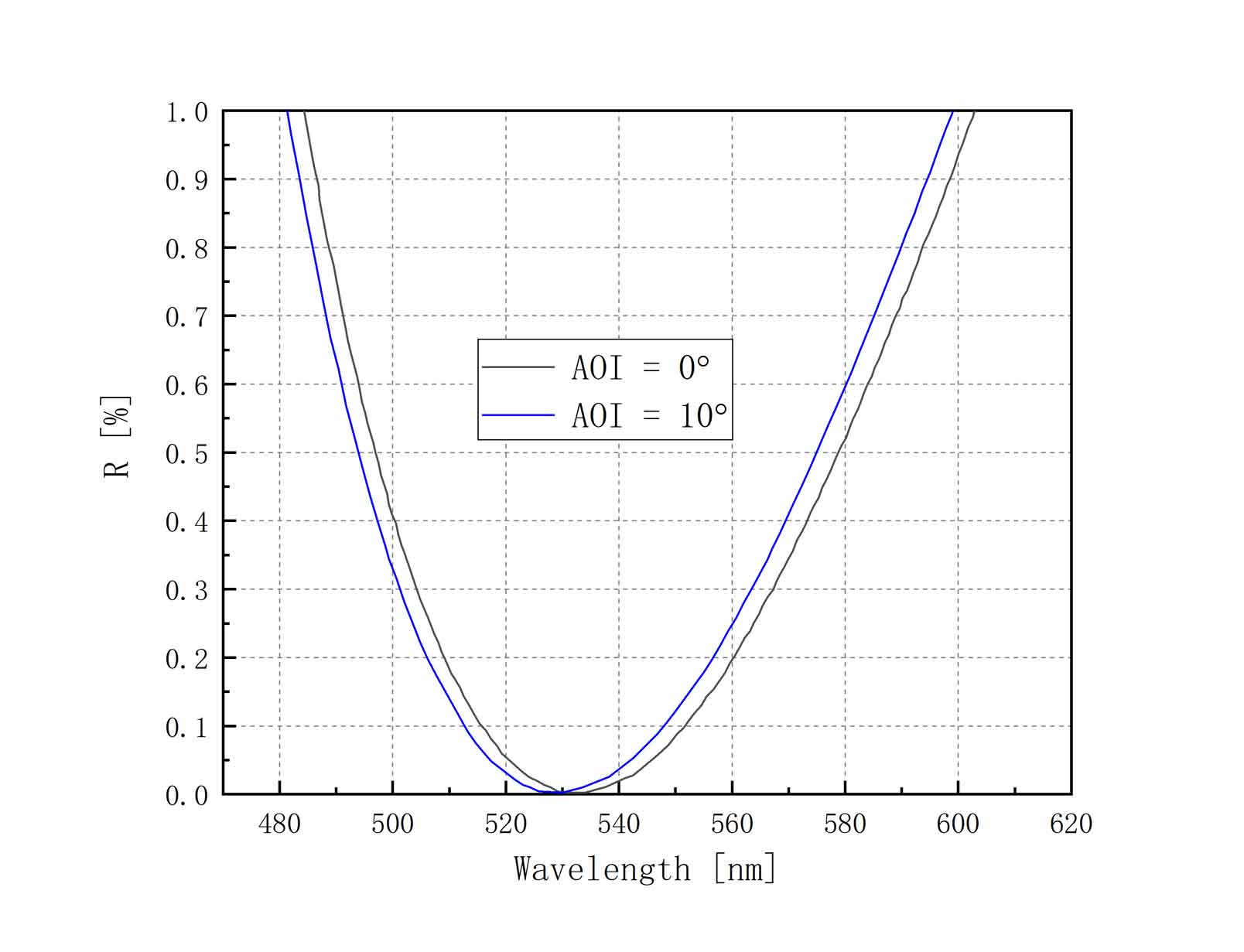

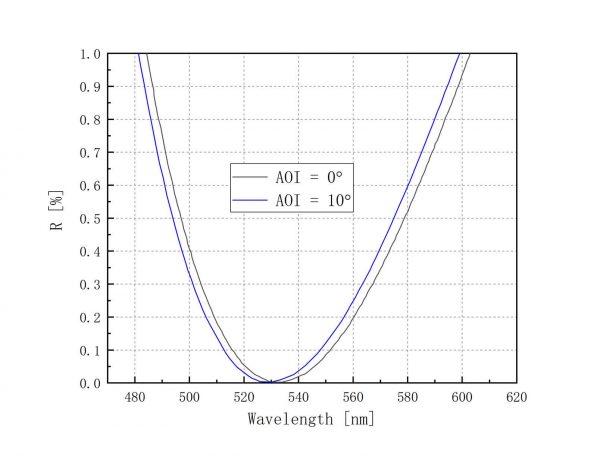

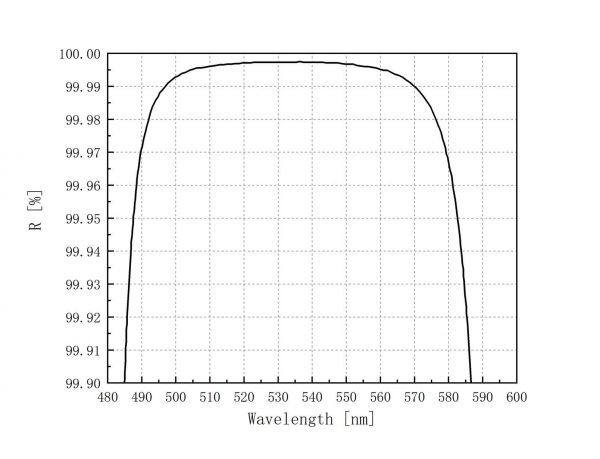

| Coating | Front Side (S2) HR(0°,532nm)> 99.99% T(0°,532nm)~0.001% Rear Side (S1) AR(0°,532nm)<0.2% |
| Application | cw/ns Low Loss Optics |
| Optical element | Laser mirror |
| Shape | Round |
| Parallelism | 5ʹ |
| Type | Nd:YAG-Laser |
