Laser mirror 108451

Category:

Description

Material Corning 7980 2F or equal
Geometry ∅=12.7 mm(-0.1mm)
t=6.35 mm(±0.1mm)
Form Front Side  (S2)
concave
r = 200 mm (±0.5 %)
Rear Side  (S1)
plane
Coating Front Side   (S2)
HR(0°,532nm)>99.9 %
Application cw/ns
Optical element Laser mirror
Shape Round
Parallelism
Type Nd:YAG-Laser
Chamfer Front Side  (S2)
0.3mm (±0.1mm)
Rear Side  (S1)
0.3mm (±0.1mm)

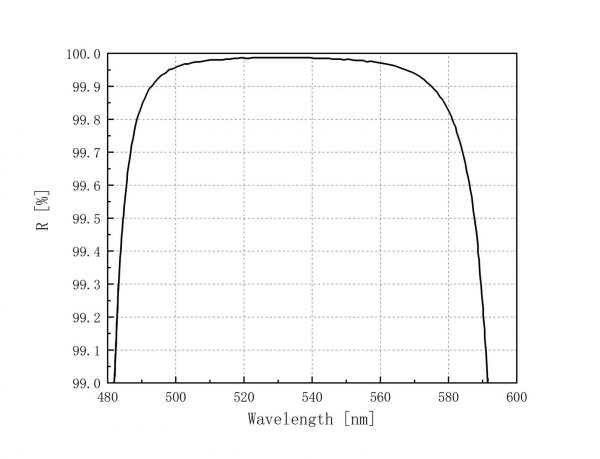

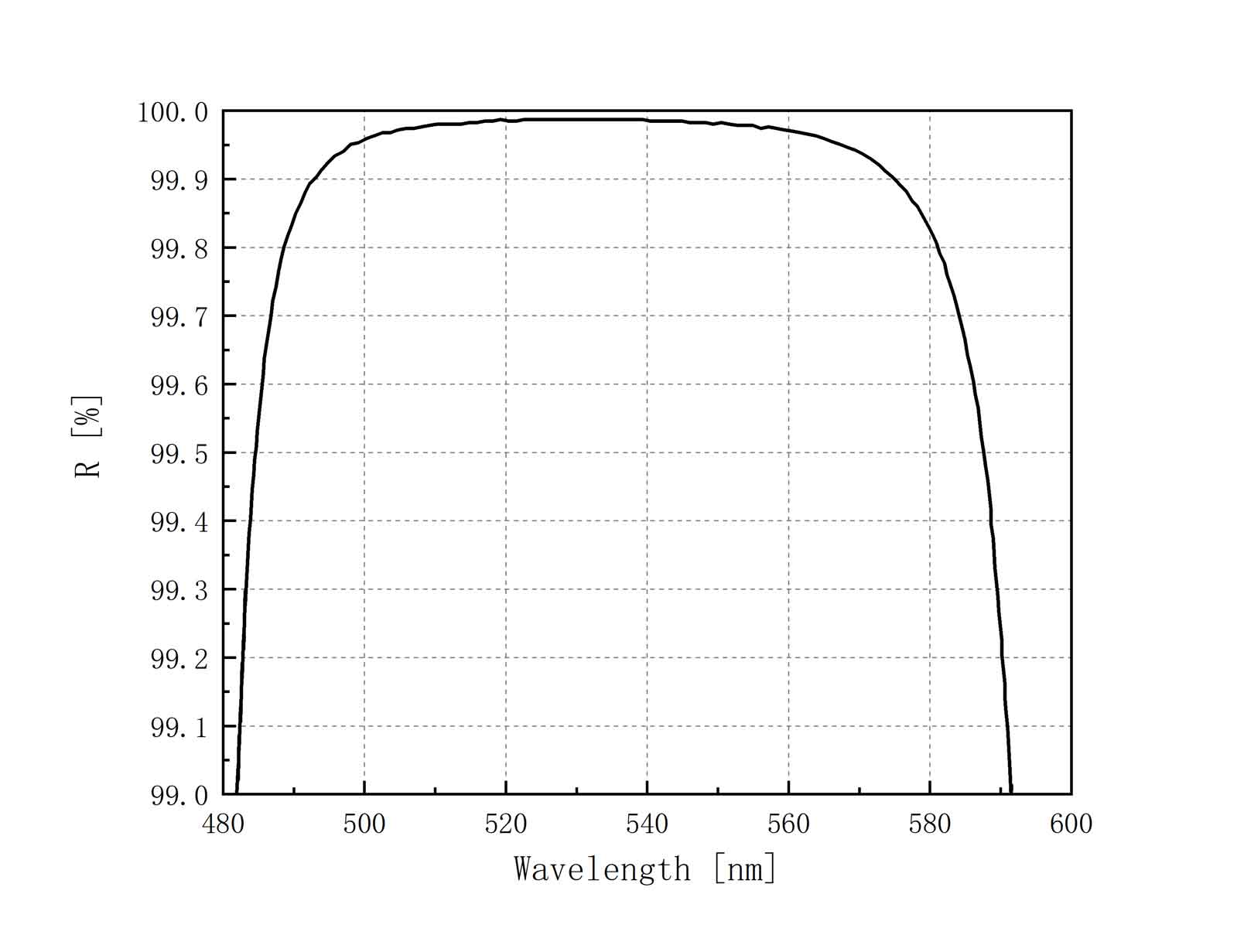

108451-s2
s2
