Description
| Material | Corning 7980 2F or equal |
| Geometry | ∅=25 mm (-0.1mm) t=6.35 mm(±0.1mm) |
| Form | Front Side (S2) concave r = 1,000 mm (±1 %) Rear Side (S1) plane |

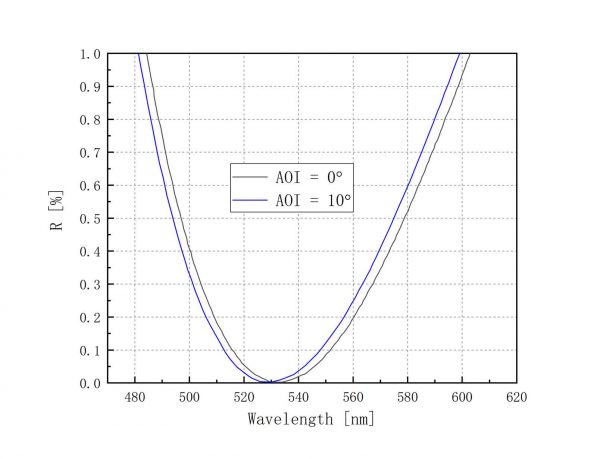

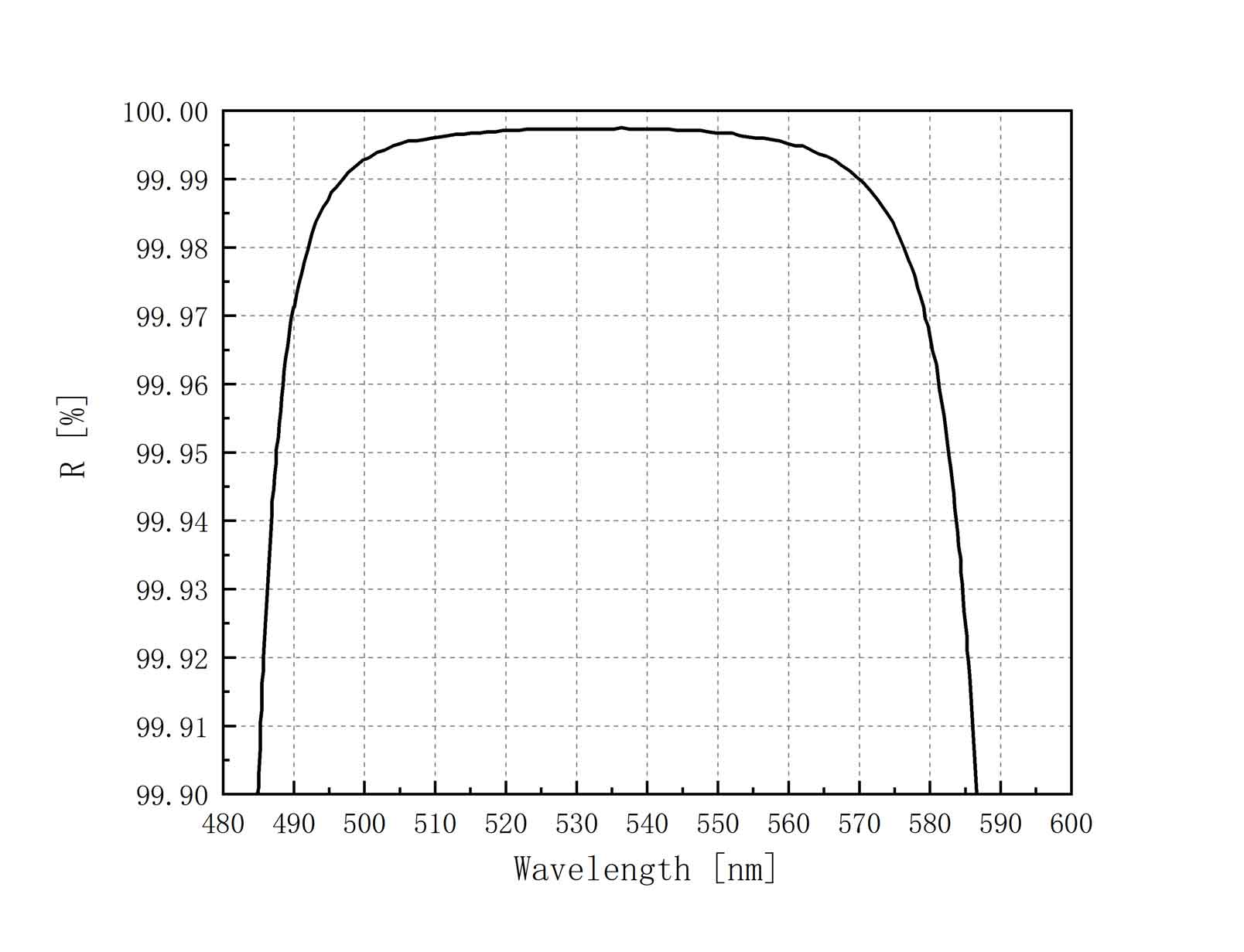

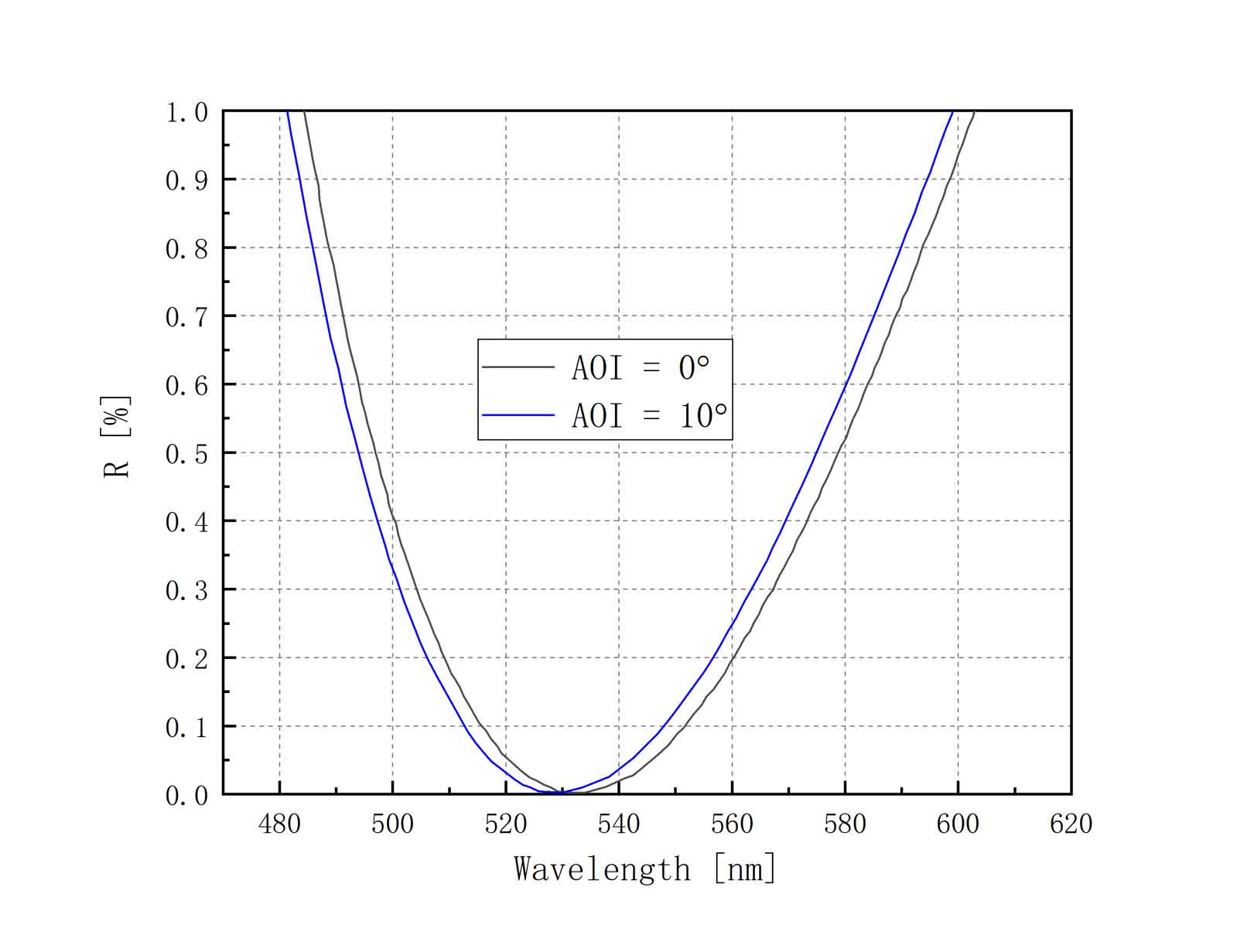

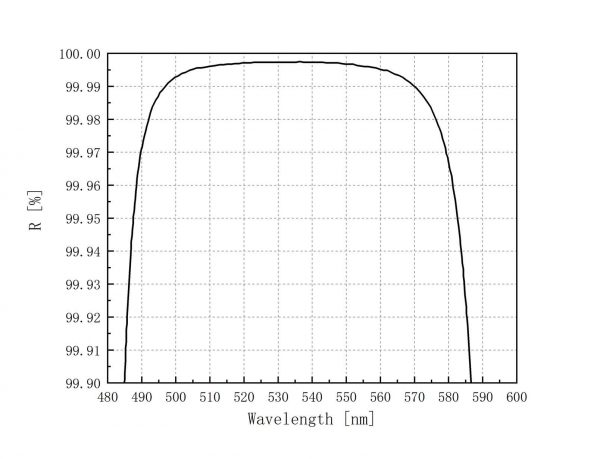

| Coating | Front Side (S2) HR(0°,532nm)> 99.99% Rear Side (S1) AR(0°,532nm)<0.2% |
| Application | Low Loss Optics |
| Optical element | Laser mirror |
| Shape | Round |
| Parallelism | 5ʹ |
| Type | Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.3mm (±0.1mm) Rear Side (S1) 0.3mm (±0.1mm) |
