Description
| Material | Corning 7980 2F or equal |
| Geometry | ∅ = 12.7 mm (-0.1 mm) t = 6.35 mm (±0.1 mm) |
| Form | Front Side (S2) plane Rear Side (S1) plane |

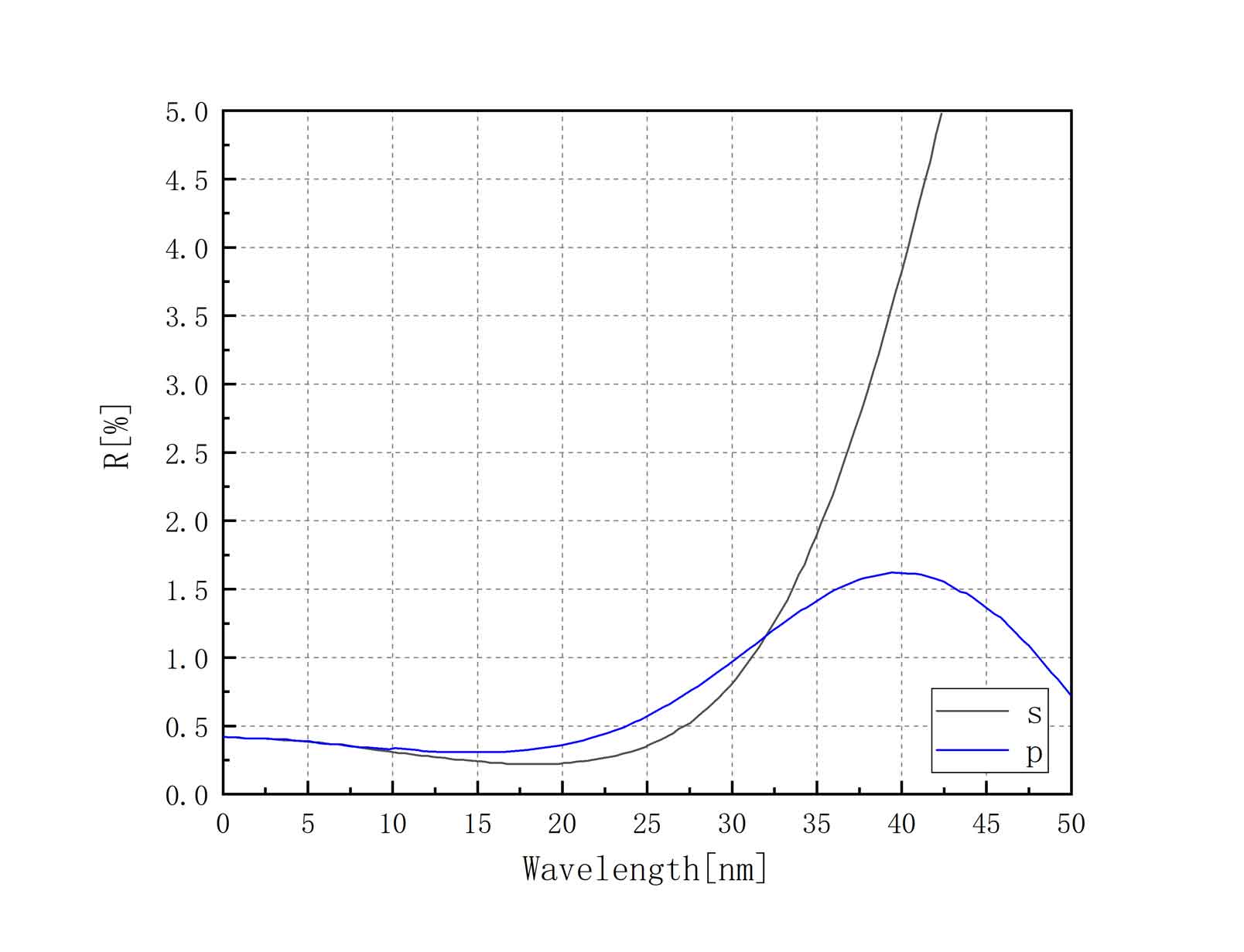

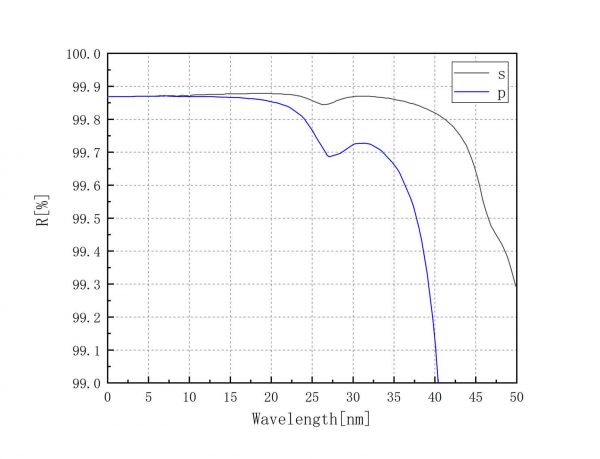

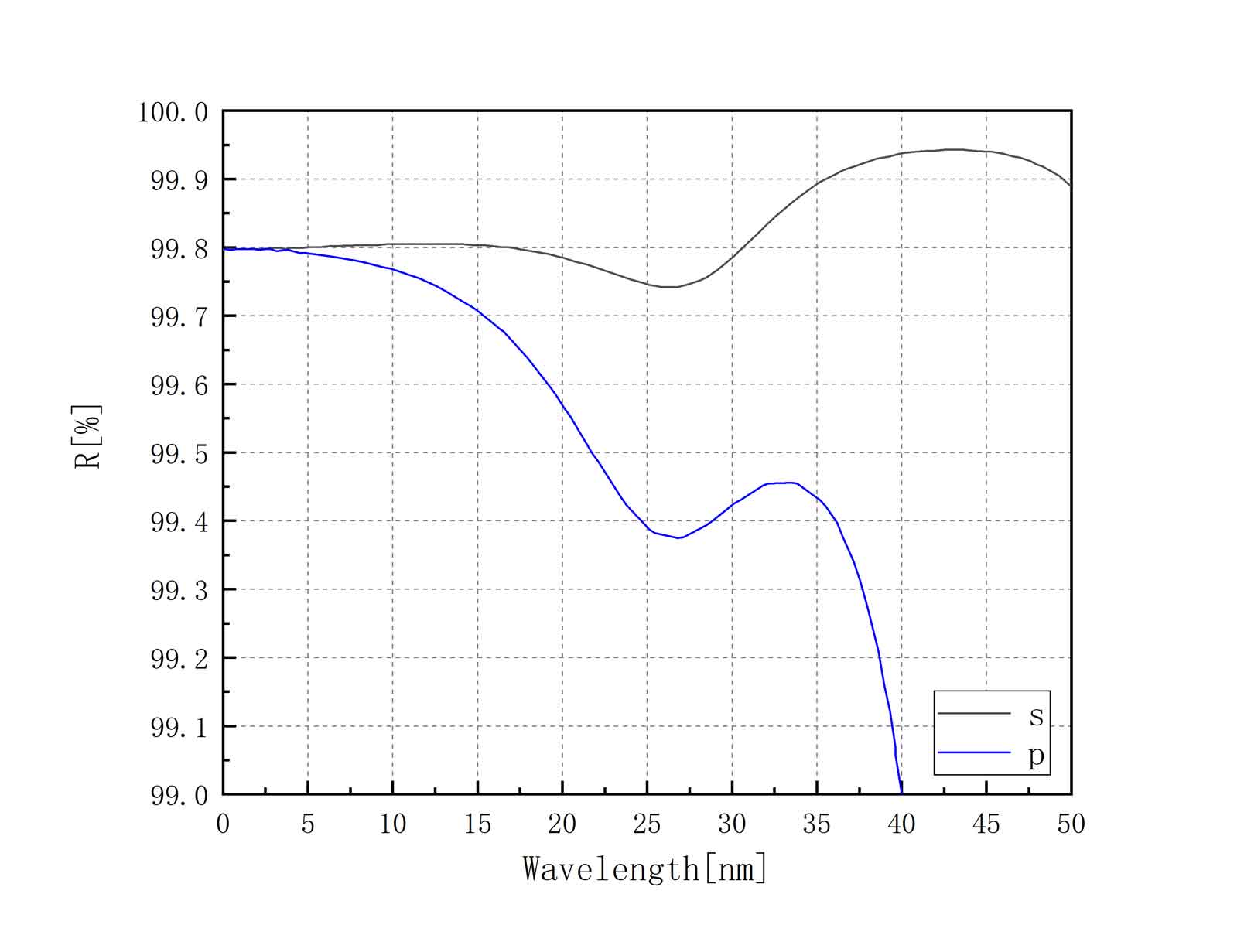

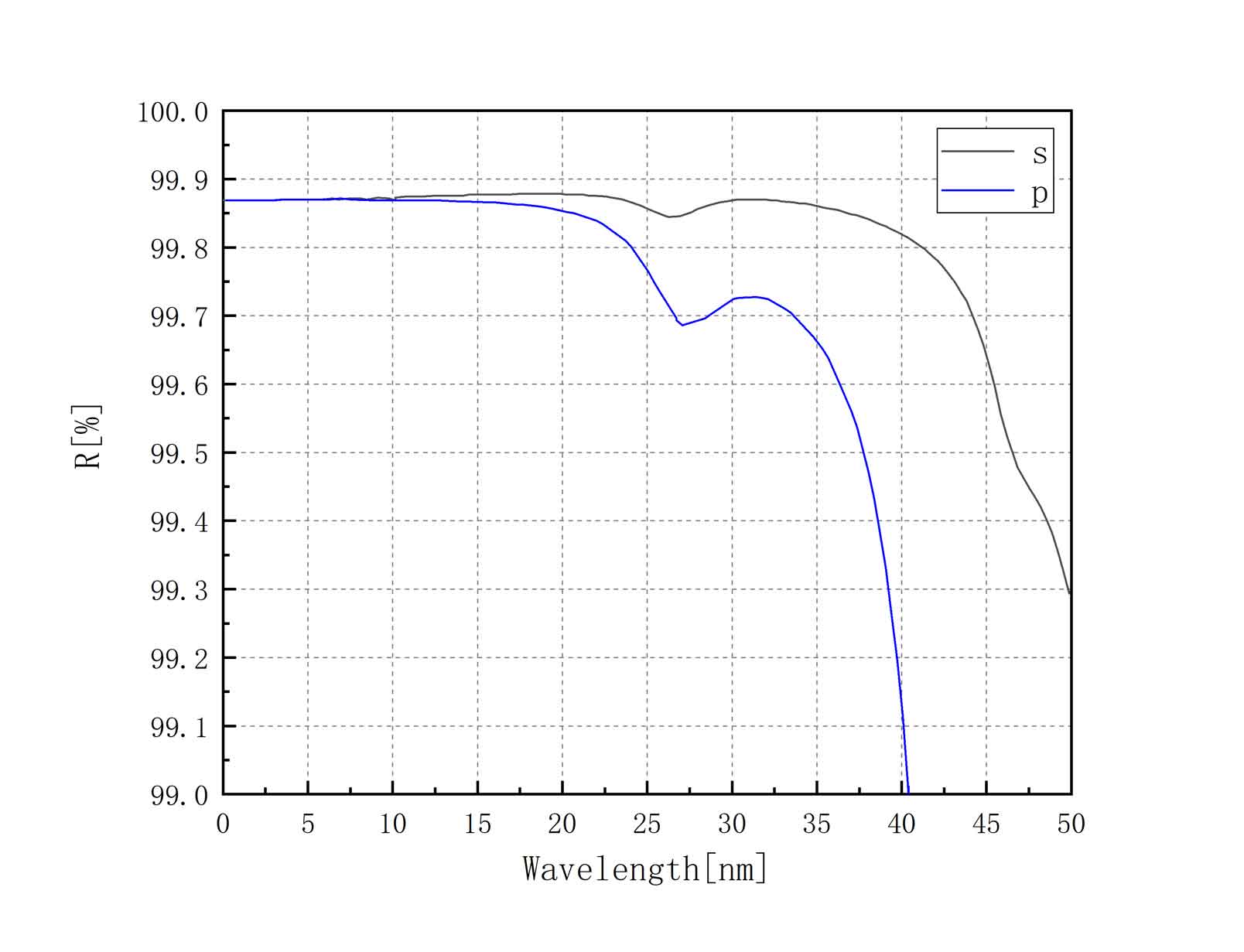

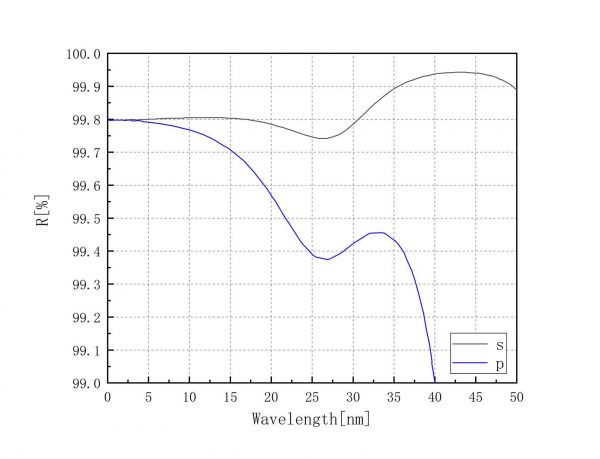

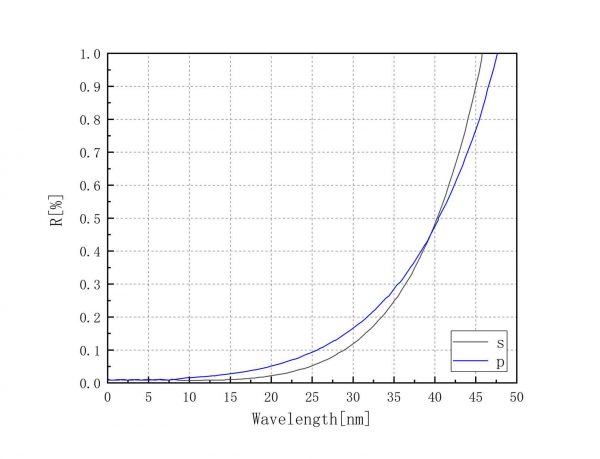

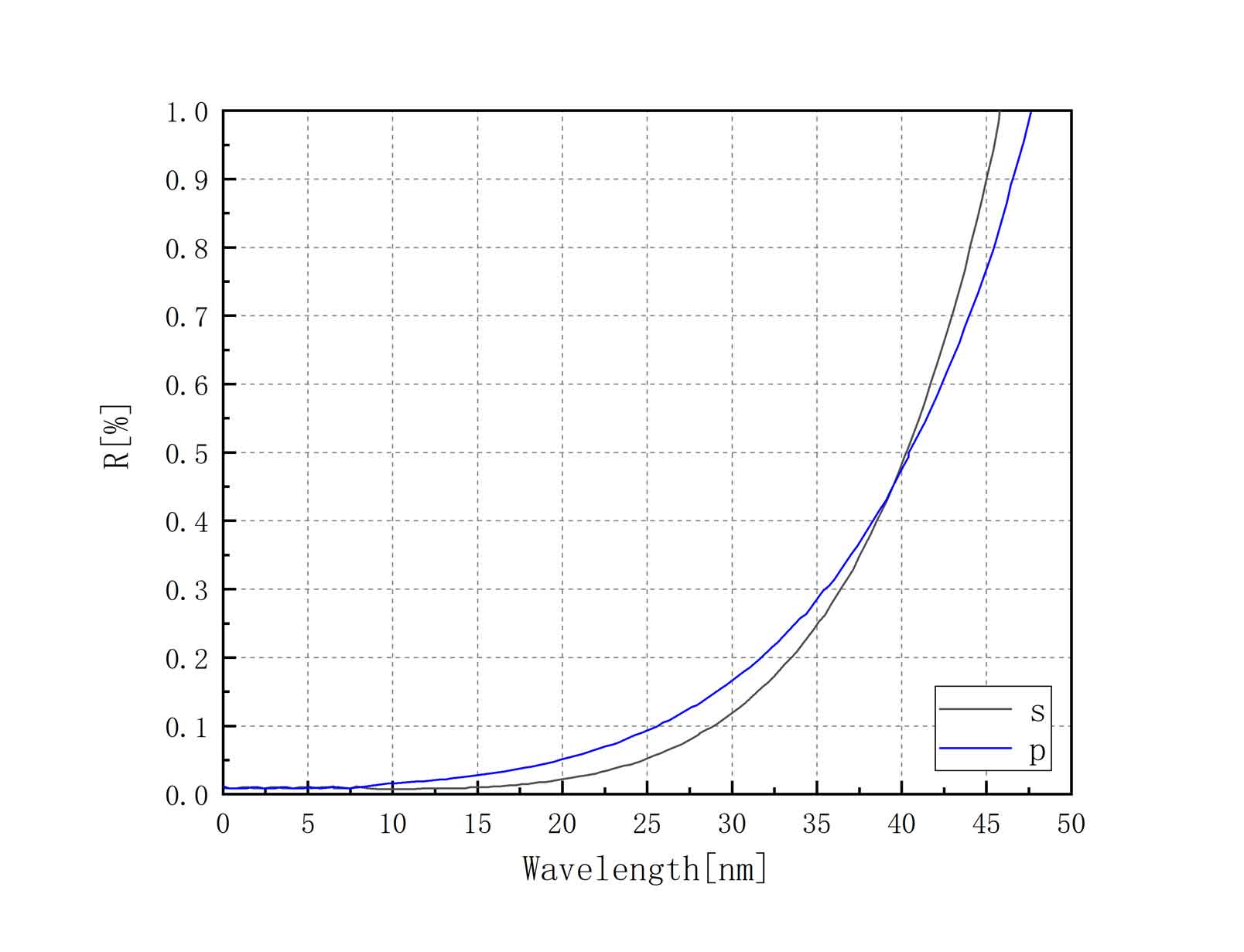

| Coating | Front Side (S2) HRs,p(0-20°,355nm)>99% HRs,p(0-20°,532nm)>99% Rs,p(0-20°,1064nm)<1% Rear Side (S1) ARs,p(0-20°,1064nm)<0.25% |
| Application | cw/nc/ps/fs |
| Optical element | Laser mirror |
| Shape | Round |
| Parallelism | 5ʹ |
| Type | Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.3 mm (±0.1 mm) Rear Side (S1) 0.3 mm (±0.1 mm) |
