Description
| material | Corning 7980 2F or equal |
| Geometry | ∅ =25mm t =6.35mm |
| Form | Front Side (S2) plane Rear Side (S1) plane |

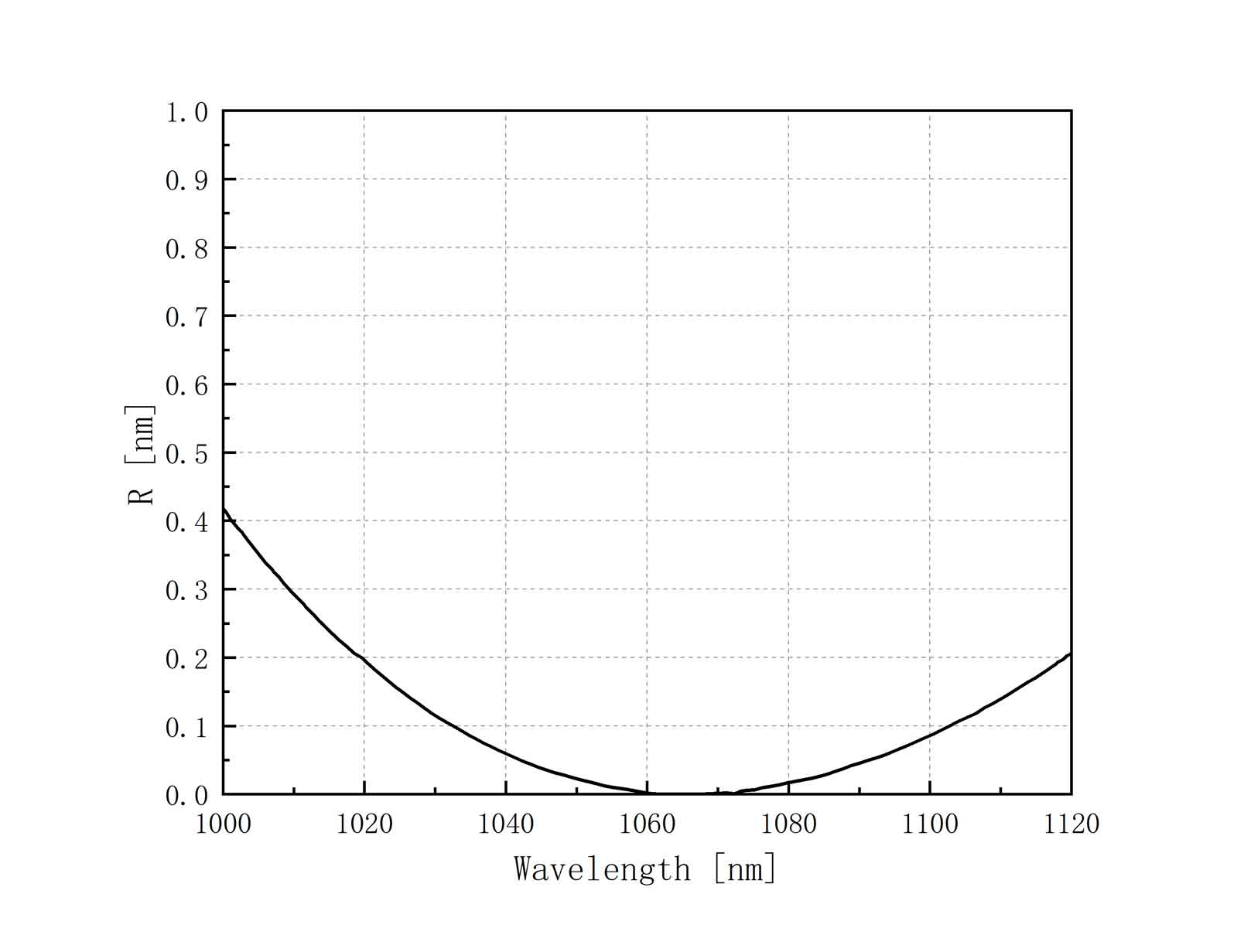

| Coating | Front Side (S2) HR(0°,532nm)>99.95% R(0°,1064nm)<0.25% Rear Side (S1) AR(0°,1064nm)<0.25% |
| application | cw/ns |
| optical element | Laser mirror Pump Mirror |
| Shape | Round |
| Parallelism | 5ʹ |
| type | Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.3 mm (±0.1 mm) Rear Side (S1) 0.3 mm (±0.1 mm) |
