Description
| Material | Corning 7980 2F or equal |
| Geometry | ∅=12.7 mm(-0.1mm) t=6.35 mm(±0.1mm) |
| Form | Front Side (S2) plane Rear Side (S1) plane Wedge = 60ʹ |

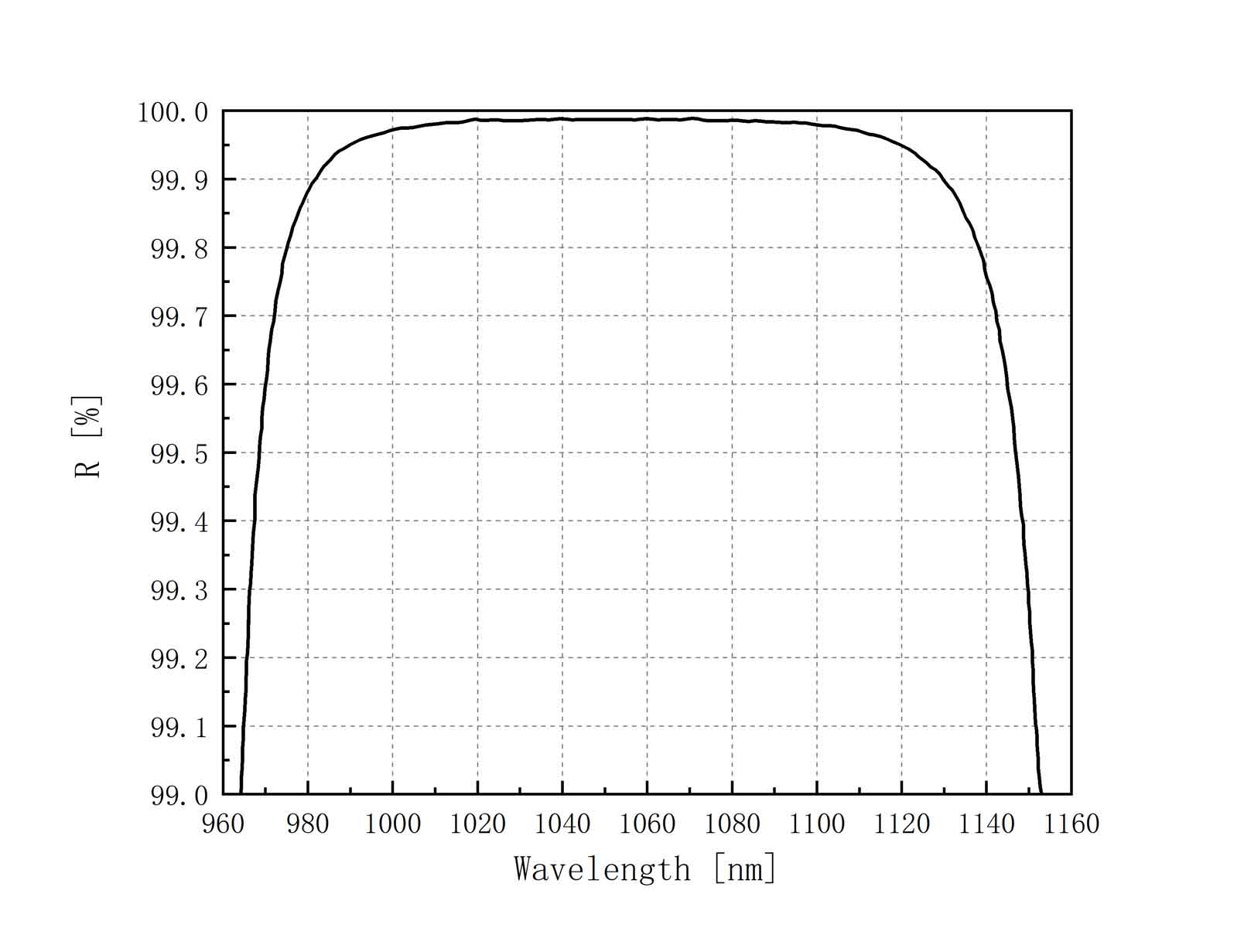

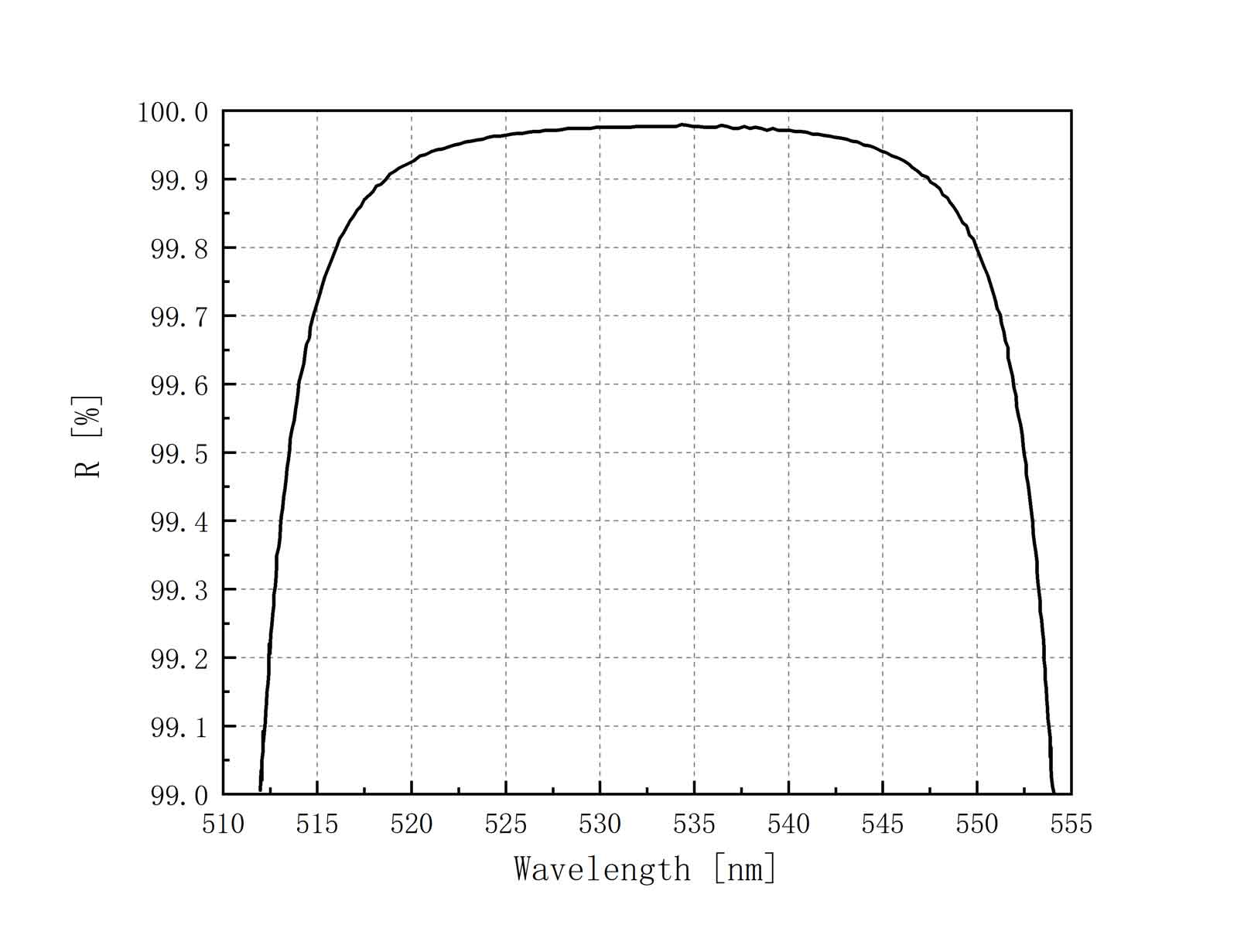

| Coating | Front Side (S2) HR(0°,532nm)> 99.9% HR(0°,1064nm)> 99.9% |
| Application | cw/ns |
| Optical element | Laser mirror |
| Shape | Round |
| Type | Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.3mm (±0.1mm) Rear Side (S1) 1mm (±0.1mm) |
