Laser mirror 110912

Category:

Description

material Corning 7980 2F or equal
Geometry ∅ =12.7mm
t = 6.35 mm
Form Front Side  (S2)
concave
r =100 mm (±0.5 %)
Rear Side  (S1)
plane
Coating Front Side   (S2)

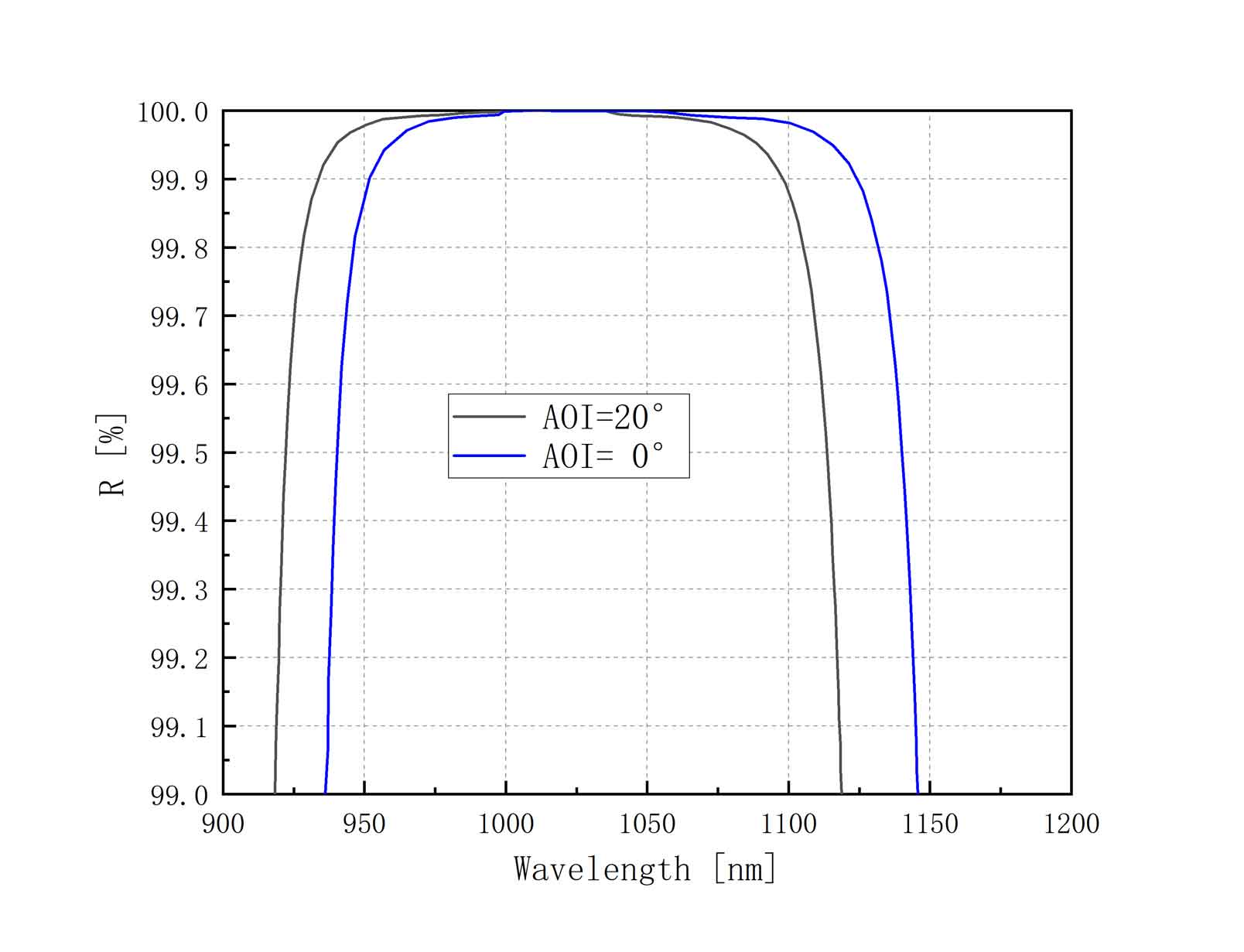

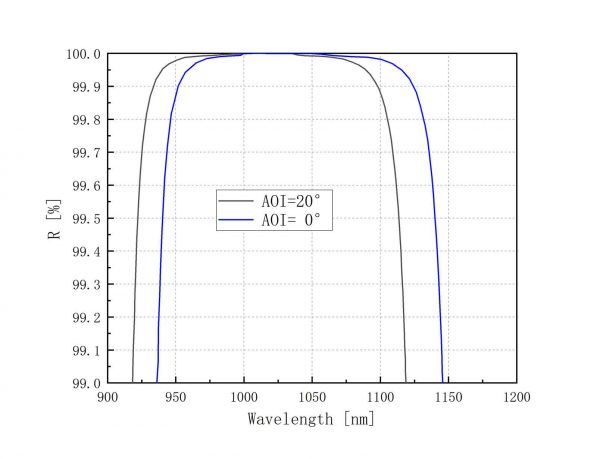

HR(0°,970-1090nm)>99.95%
application cw/ns
optical element Laser mirror
Shape Round
Parallelism
type Yb:YAG-Laser
Nd:YAG-Laser
Chamfer Front Side  (S2)
0.3 mm (±0.1 mm)
Rear Side  (S1)
0.3 mm (±0.1 mm)
110912-s2
s2
