Description
| material | Corning 7980 2F or equal |
| Geometry | ∅ =12.7mm t = 6.35 mm |
| Form | Front Side (S2) concave r =150 mm (±0.5 %) Rear Side (S1) plane |

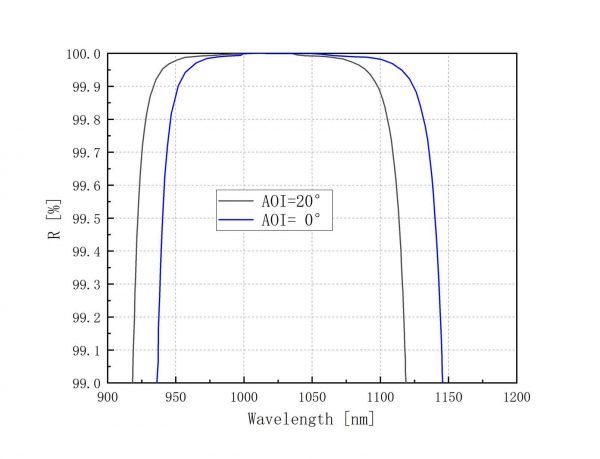

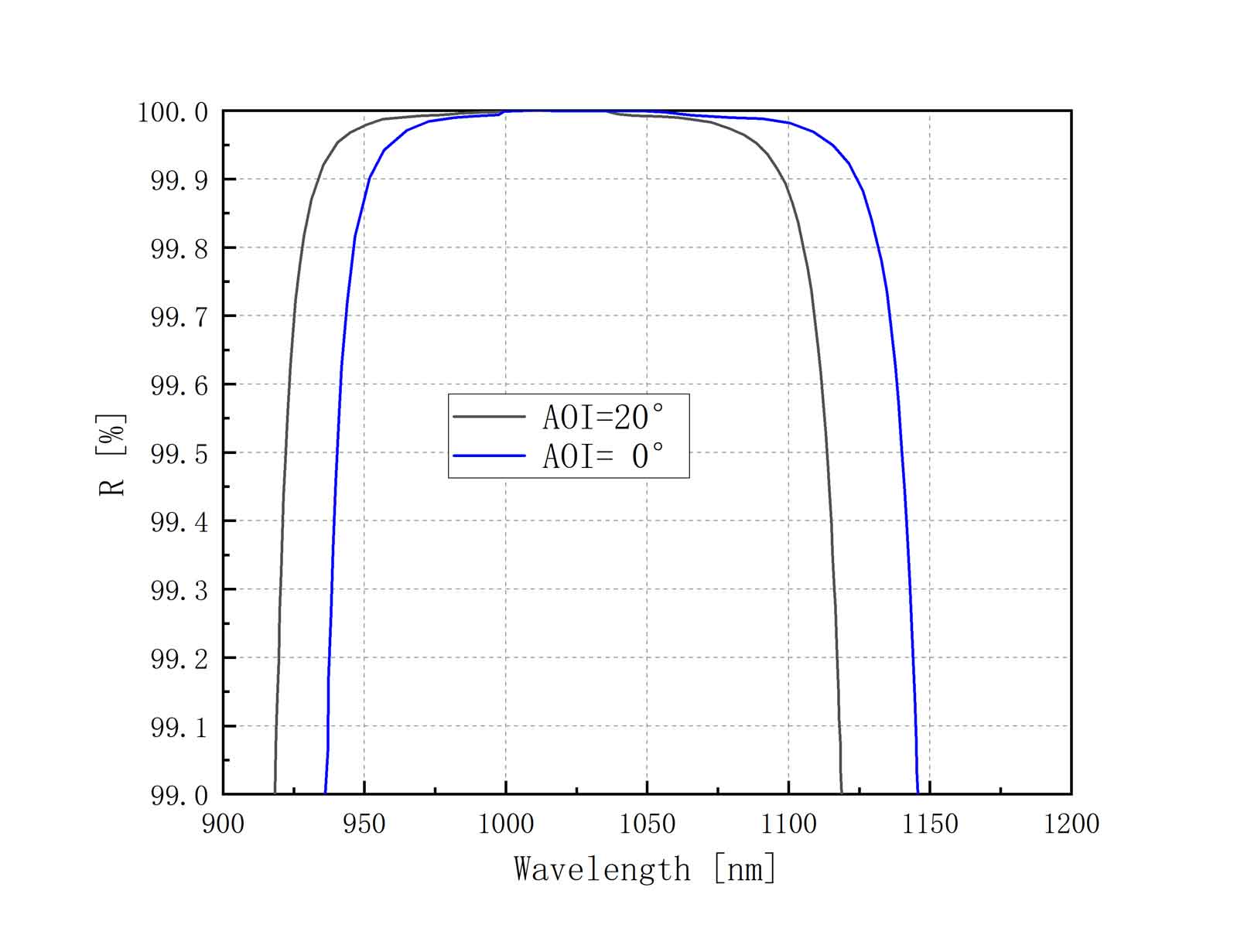

| Coating | Front Side (S2) HRu(0-20°,970-1090nm)>99.95% |
| application | cw/ns |
| optical element | Laser mirror |
| Shape | Round |
| Parallelism | 5ʹ |
| type | Yb:YAG-Laser Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.3 mm (±0.1 mm) Rear Side (S1) 0.3 mm (±0.1 mm) |
