Description
| Material | Corning 7980 2F or equal |
| Geometry | ∅=12.7 mm(-0.1mm) t=6.35 mm(±0.1mm) |
| Form | Front Side (S2) concave r = 1,000 mm (±1 %) Rear Side (S1) plane |

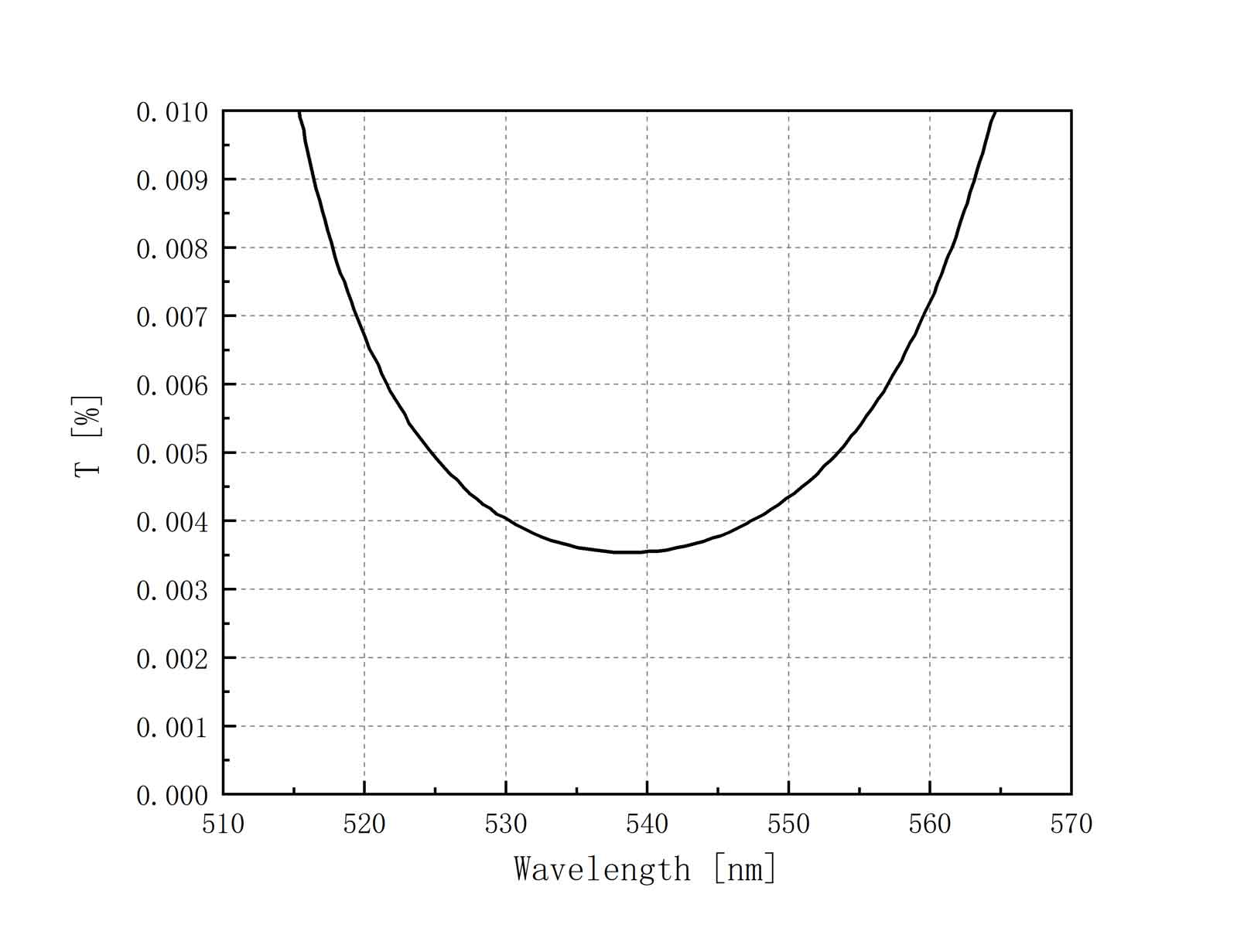

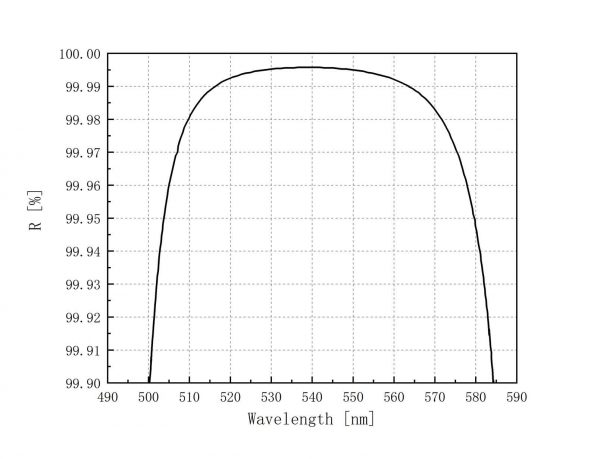

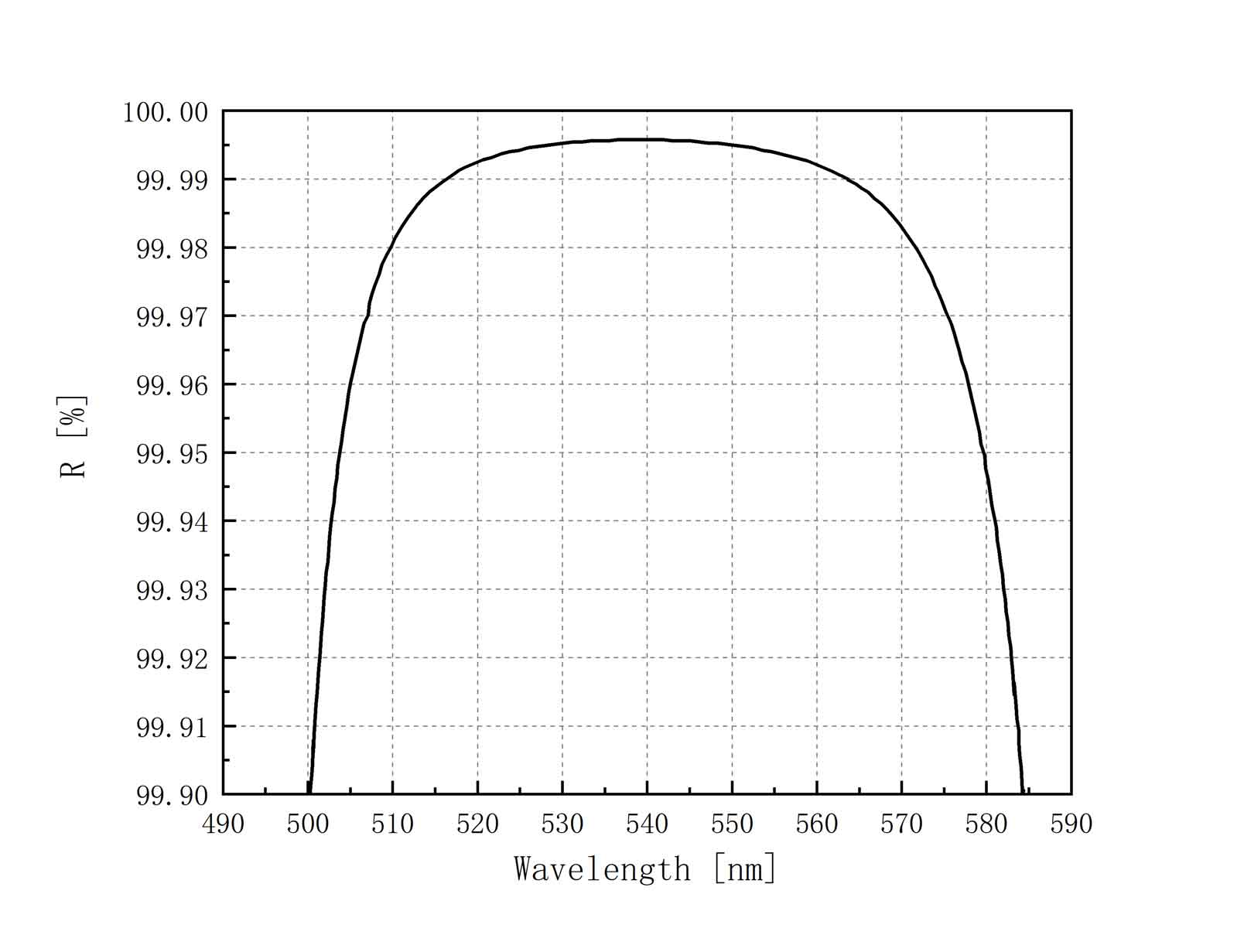

| Coating | Front Side (S2) HR(0°,520-560nm)>99.98% T(0°,520-560nm)~0.004(± 0.001%) Rear Side (S1) AR(0°,520-560nm)<0.25% |
| Optical element | Laser mirror |
| Shape | Round |
| Parallelism | 5ʹ |
| Type | Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.3mm (±0.1mm) |
