Description
| material | Corning 7980 2F or equal |
| Geometry | ∅ =50mm t = 9.5 mm |
| Form | Front Side (S2) concave r =5,000 mm (±1 %) Rear Side (S1) plane |

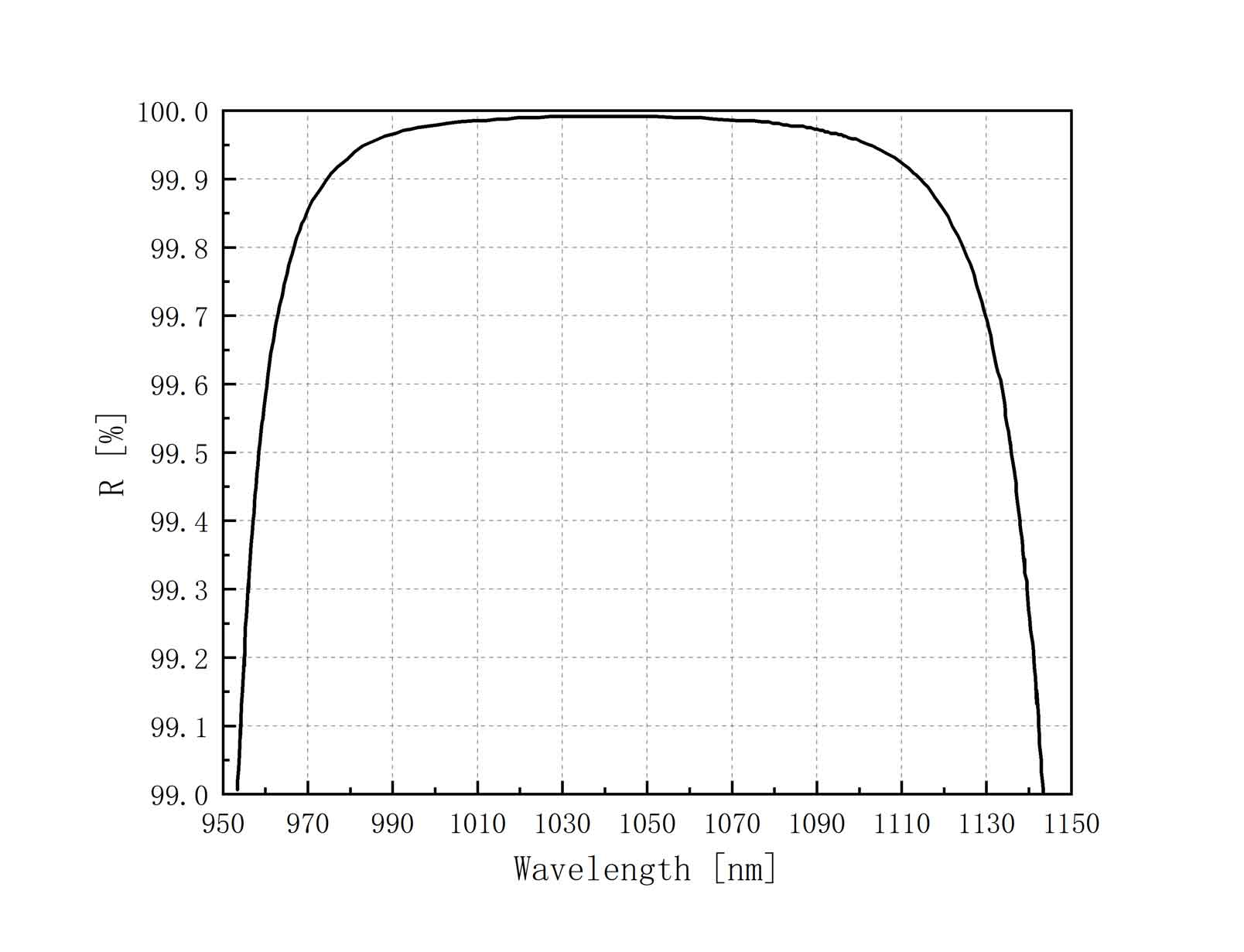

| Coating | Front Side (S2) HR(0°,1030-1064nm)>99.9% |
| application | cw/ns |
| optical element | Laser mirror |
| Shape | Round |
| Parallelism | 5ʹ |
| type | Yb:YAG-Laser Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.5 mm (±0.1 mm) Rear Side (S1) 0.5 mm (±0.1 mm) |
