Description
| Material | Corning 7980 2F or equal |
| Geometry | ∅ = 25 mm (-0.1mm) t = 6.35 mm (±0.1mm) |
| Form | Front Side (S2) concave r = 1,000 mm (±1 %) Rear Side (S1) plane |

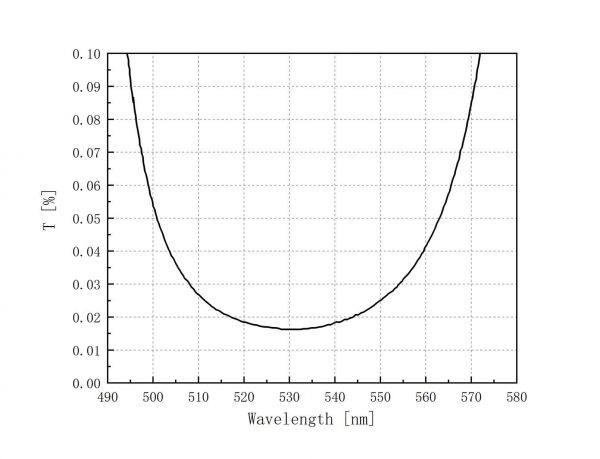

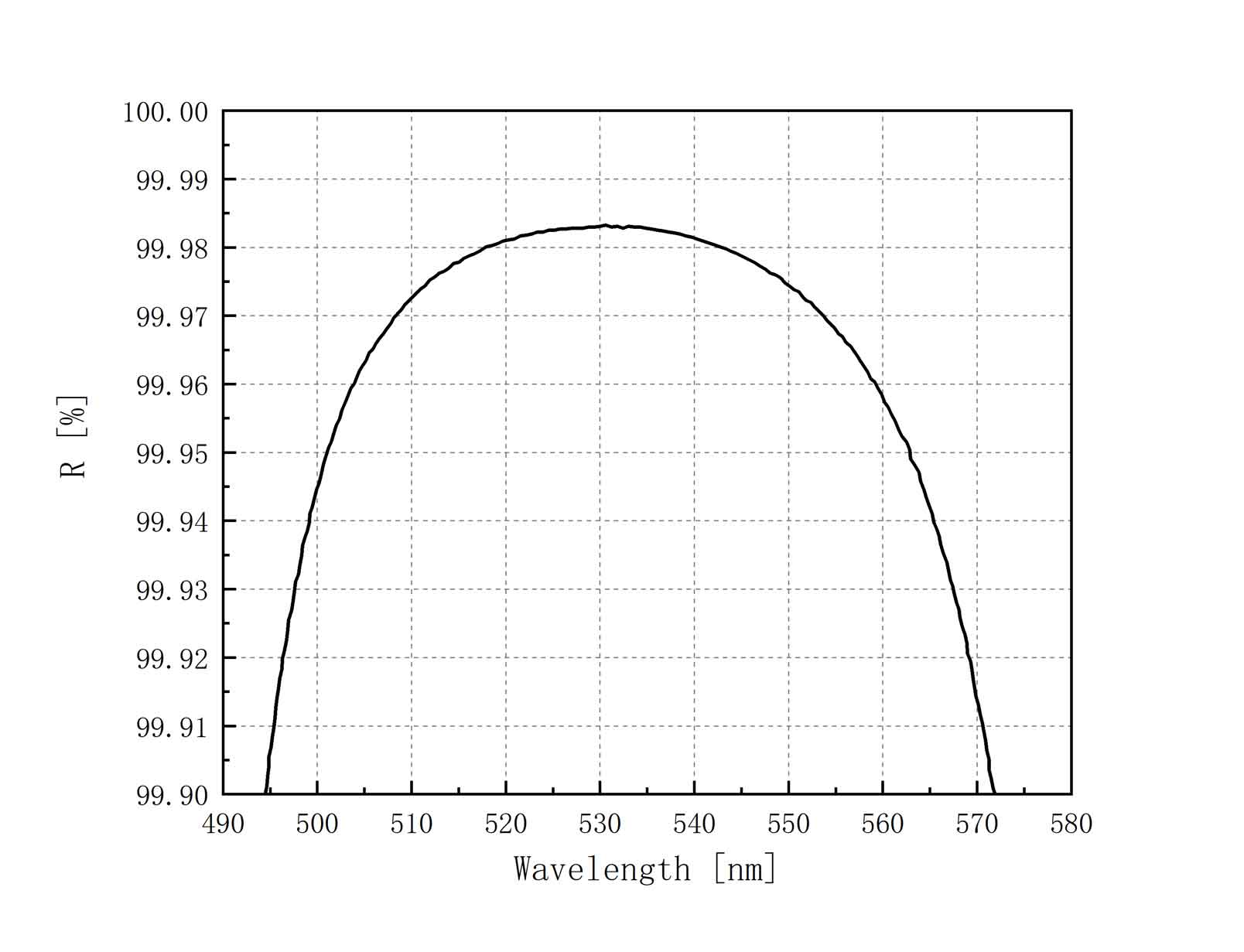

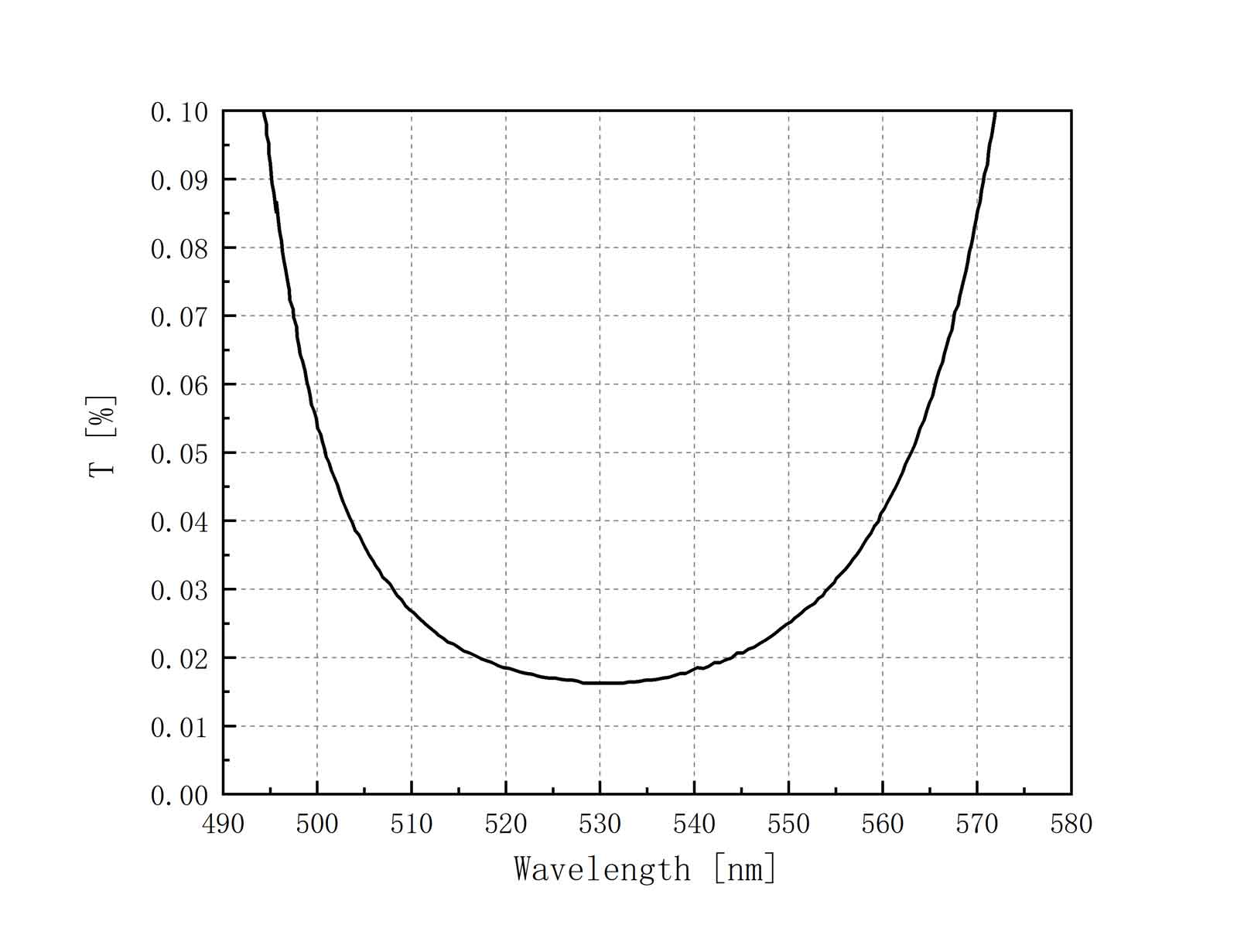

| Coating | Front Side (S2) PR(0°,532nm)>99.98 % T(0°,532nm)~0.01% Rear Side (S1) AR(0°,532nm)<0.2% |
| Application | Low Loss Optics |
| Optical element | Laser mirror |
| Shape | Round |
| Parallelism | 5ʹ |
| Type | Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.3mm (±0.1mm) Rear Side (S1) 0.3mm (±0.1mm) |
