Laser mirror 144466

Category:

Description

Material Corning 7980 2F or equal
Geometry ∅ = 25 mm (-0.1mm)
t = 6.35 mm(±0.1mm)
Form Front Side  (S2)
concave
r = 3,000 mm (±1 %)
Rear Side  (S1)
plane
Coating Front Side   (S2)
HR(0°,532nm)> 99.99%
T(0°,532nm)~0.001%
Rear Side   (S1)
AR(0°,532nm)<0.2%
Application Low Loss Optics
Optical element Laser mirror
Shape Round
Parallelism
Type Nd:YAG-Laser
Chamfer Front Side  (S2)
0.3mm (±0.1mm)
Rear Side  (S1)
0.3mm (±0.1mm)

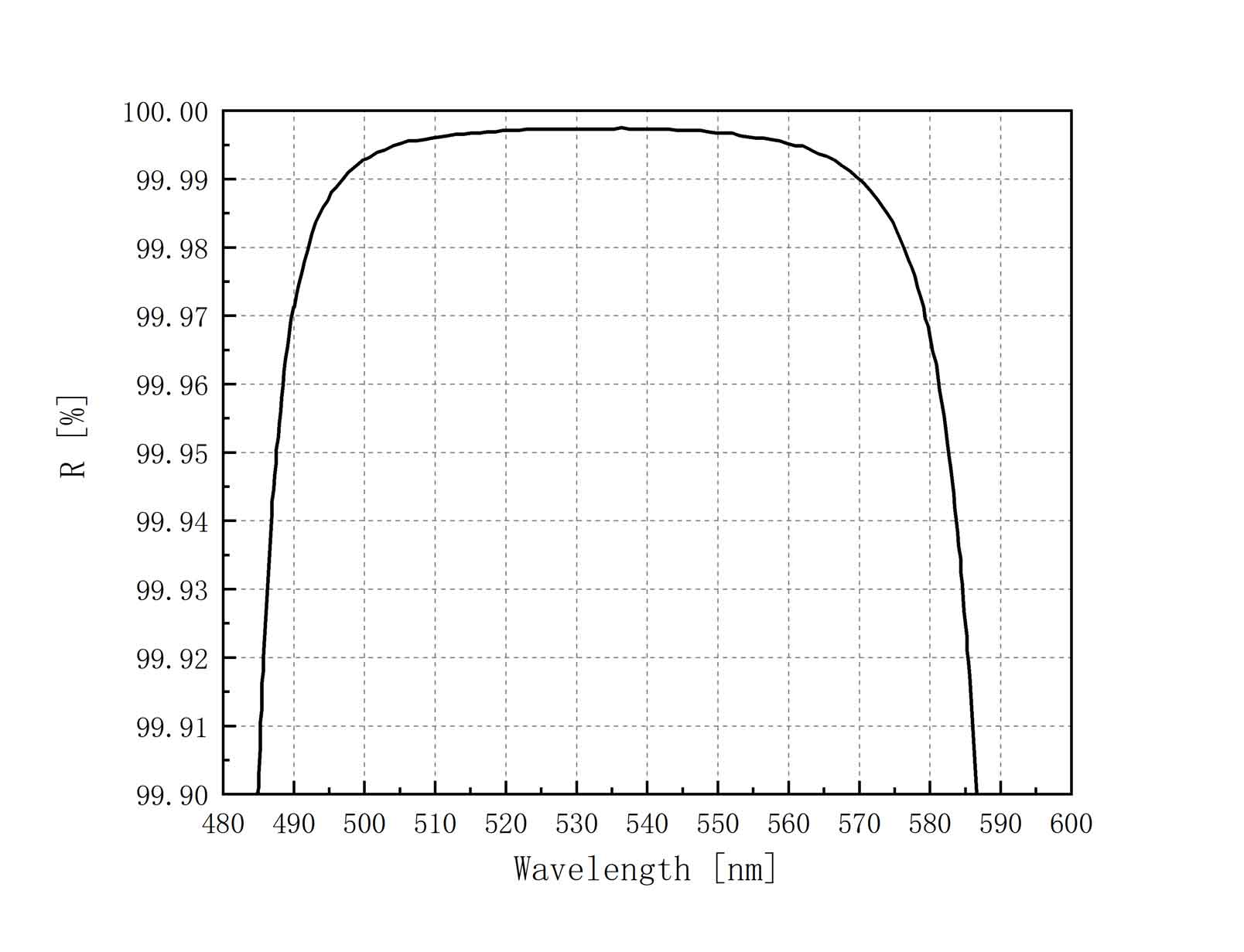

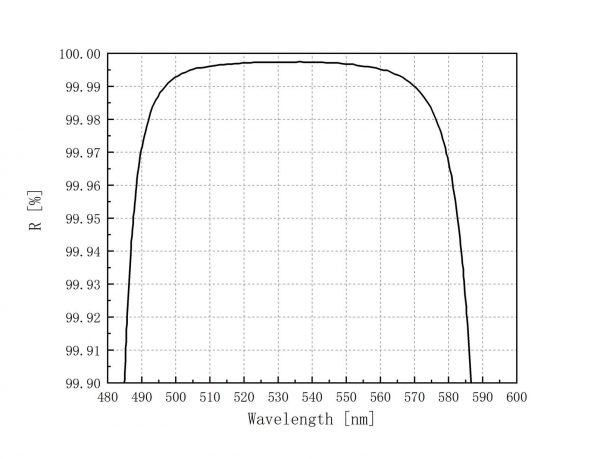

144466-s2
s2

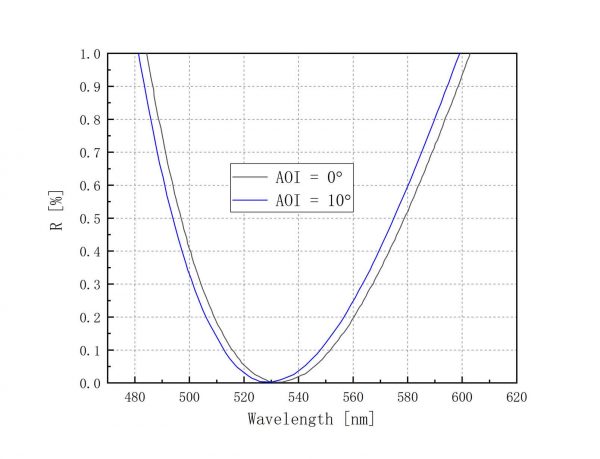

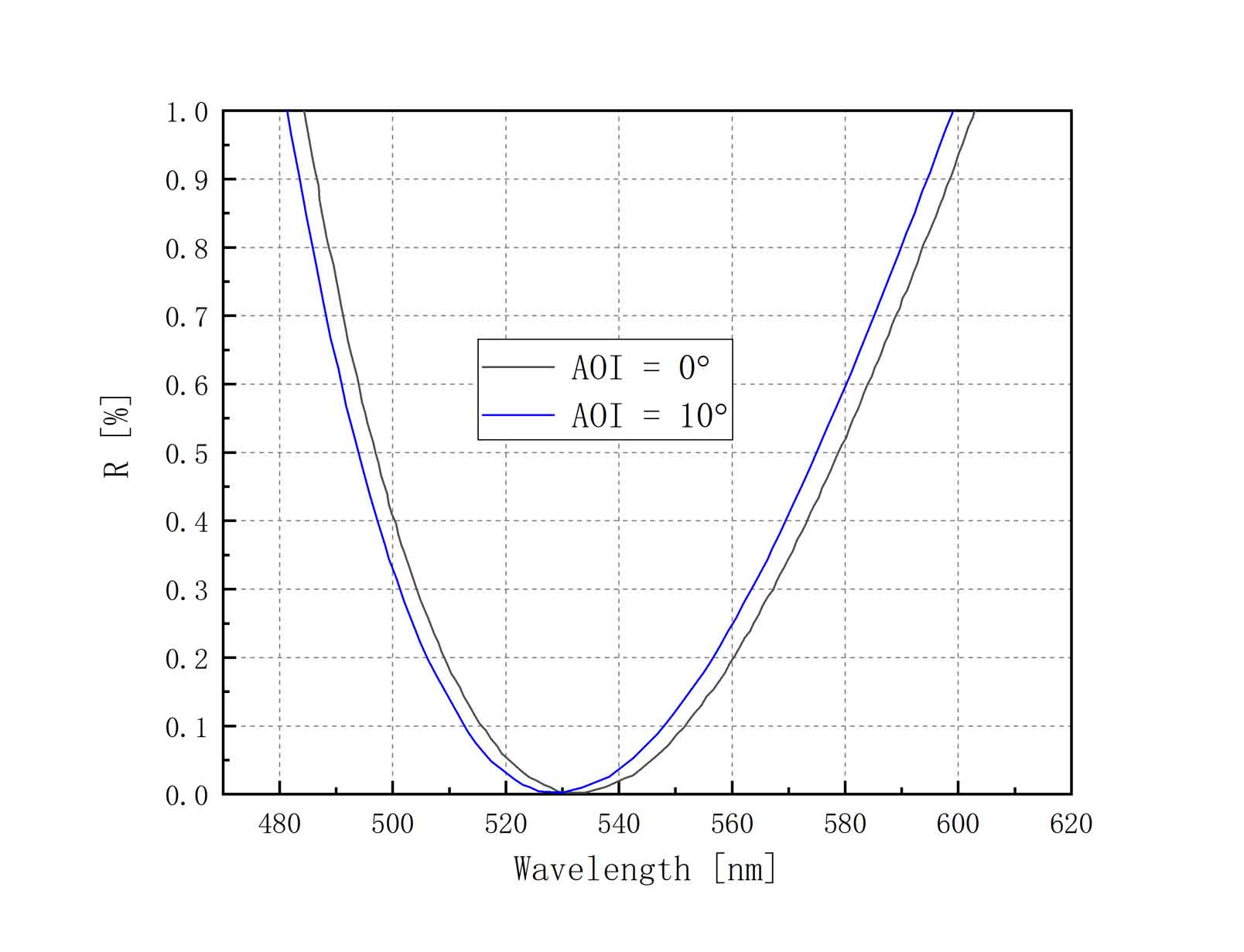

144466-s1
s1
