Description
| Material | Corning 7980 2F or equal |
| Geometry | ∅=12.7 mm(-0.1 mm) t=2.3 mm(±0.1 mm) |
| Form | Front Side (S2) plane Rear Side (S1) plane |

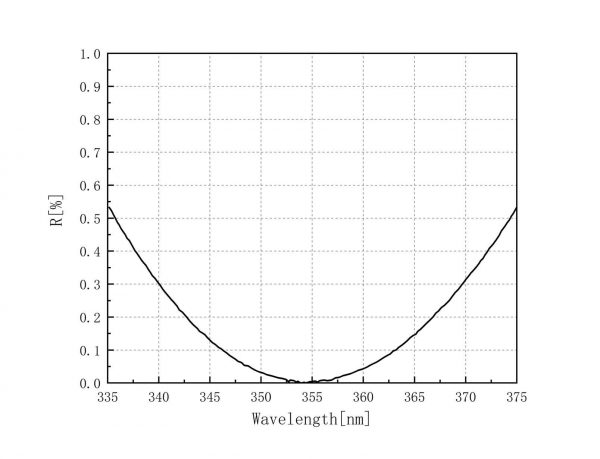

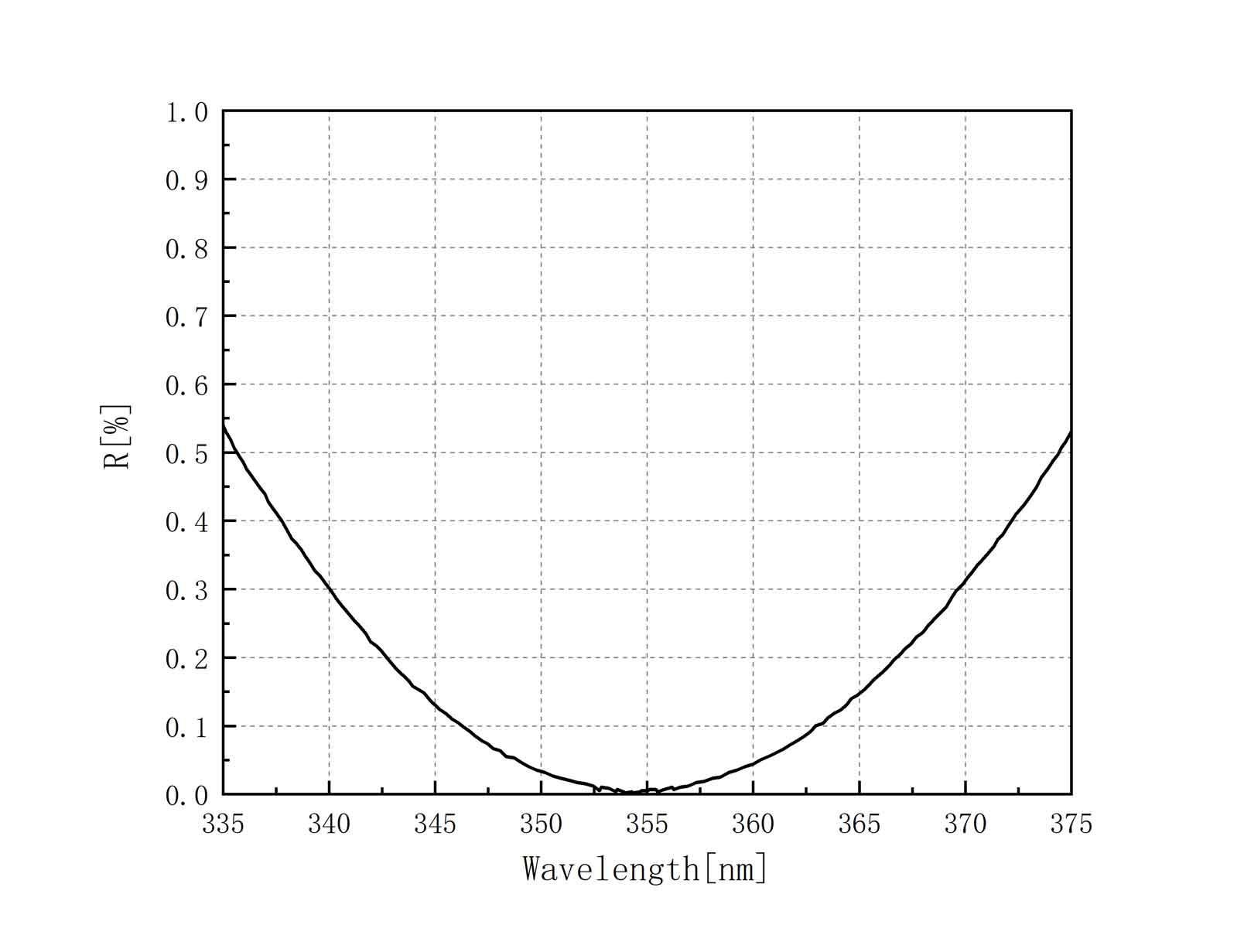

| Coating | Front Side (S2) AR(0°,355nm)<0.15% Rear Side (S1) AR(0°,355nm)<0.15% |
| Application | ns/ps |
| Optical element | Laser window |
| Shape | Round |
| Parallelism | 5ʹ |
| Type | Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.2 mm (±0.1 mm) Rear Side (S1) 0.2 mm (±0.1 mm) |
