Description
| Material | Corning 7980 2F or equal |
| Geometry | ∅ = 25 mm (-0.1mm) t=3.05 mm(±0.1mm) |
| Form | Front Side (S2) plane Rear Side (S1) plane |

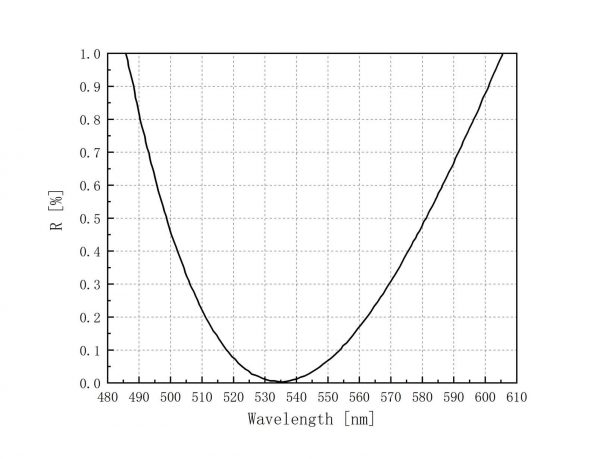

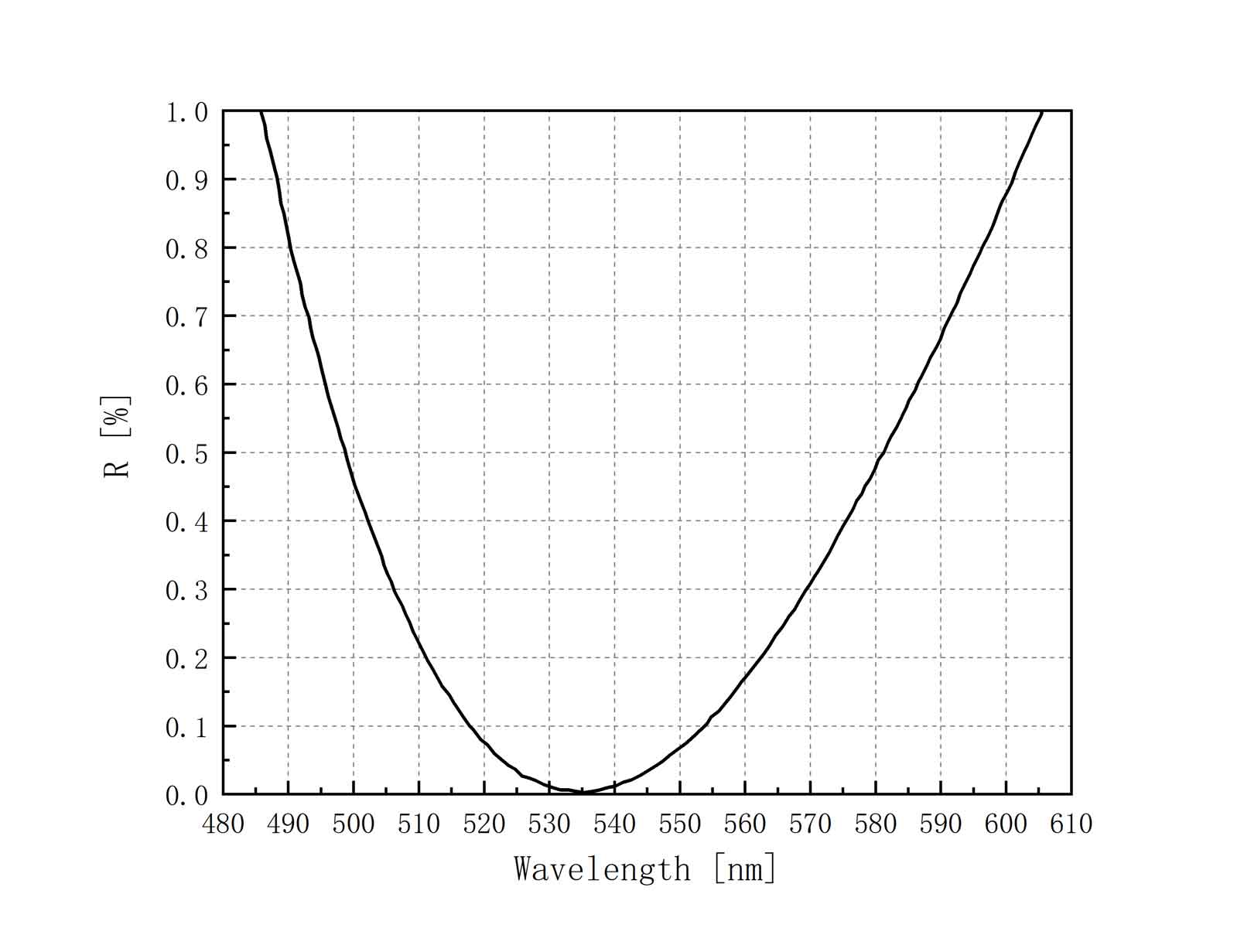

| Coating | Front Side (S2) AR(0°,532nm)<0.1% Rear Side (S1) AR(0°,532nm)<0.1% |
| Application | ns |
| Optical element | Laser window |
| Shape | Round |
| Parallelism | 5ʹ |
| Type | Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.2mm (±0.1mm) Rear Side (S1) 0.2mm (±0.1mm) |
