Description
| material | Corning 7980 2F or equal |
| Geometry | ∅ = 25 mm t = 6.35 mm |
| Form | Front Side (S2) plane Rear Side (S1) plane |

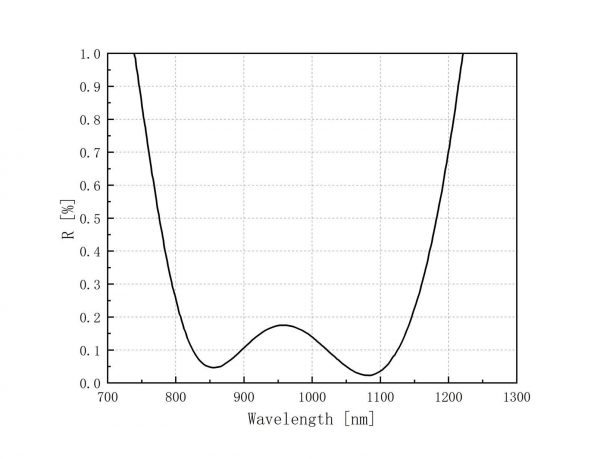

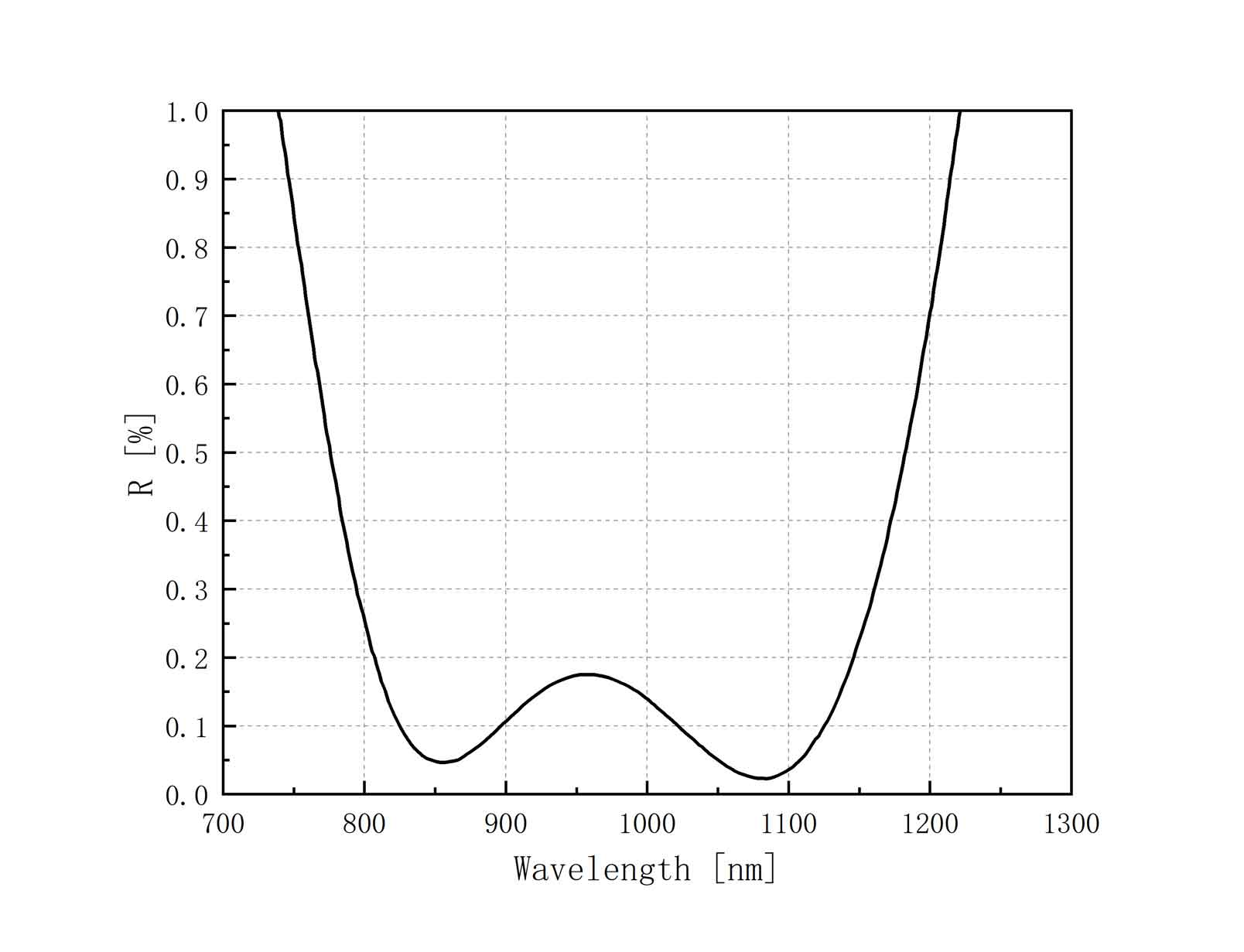

| Coating | Front Side (S2) AR(0°,850-1150nm)<0.5% Rear Side (S1) |
| application | cw/ns |
| optical element | Laser window |
| Shape | Round |
| Parallelism | 5ʹ |
| type | Diode Laser Yb:YAG-Laser Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.3 mm (±0.1 mm) Rear Side (S1) 0.3 mm (±0.1 mm) |
