Description
| material | Corning 7980 2F or equal |
| Geometry | ∅ = 12.7 mm(-0.1mm) t=6.35 mm(±0.1mm) |
| Form | Front Side (S2) plane Rear Side (S1) plane |

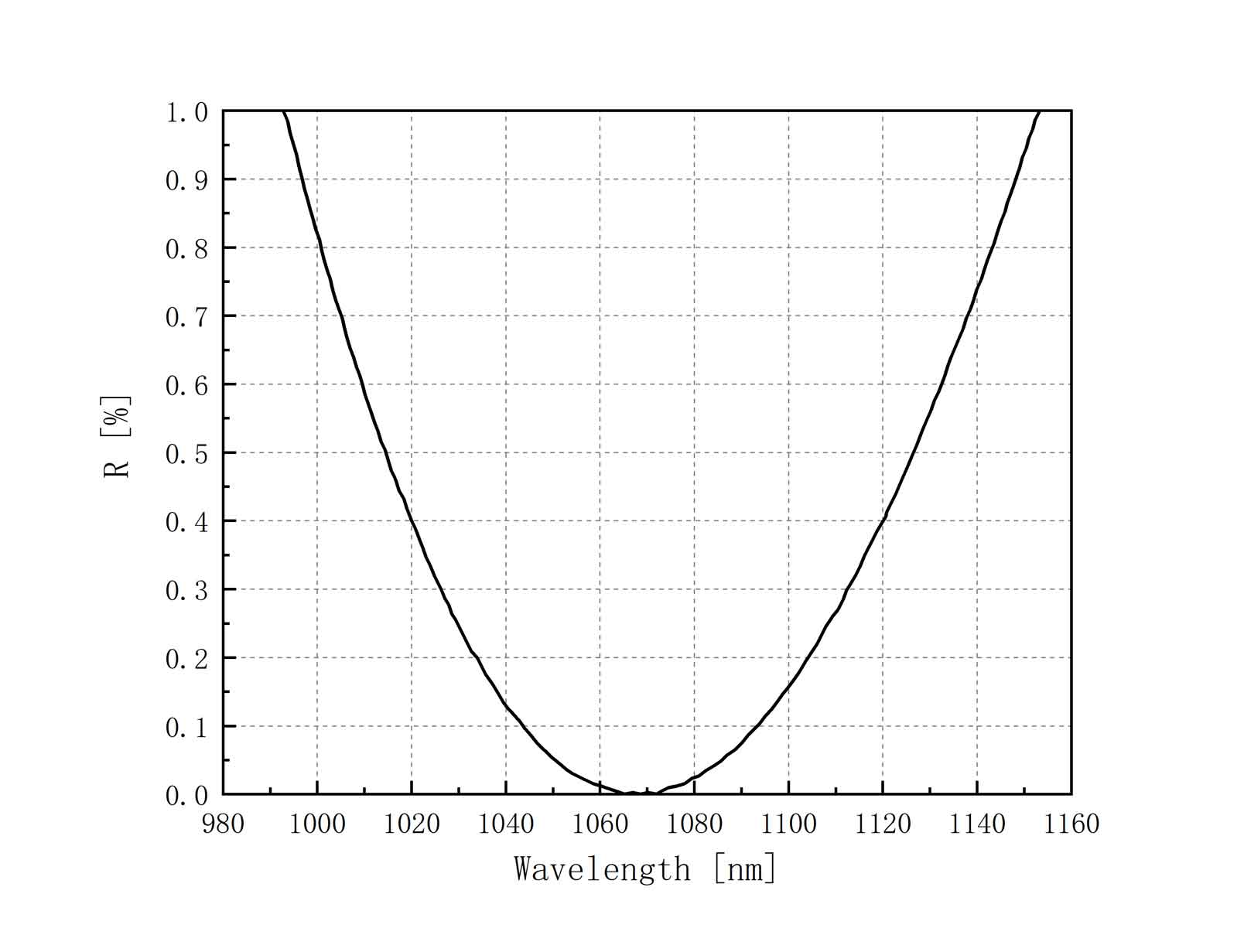

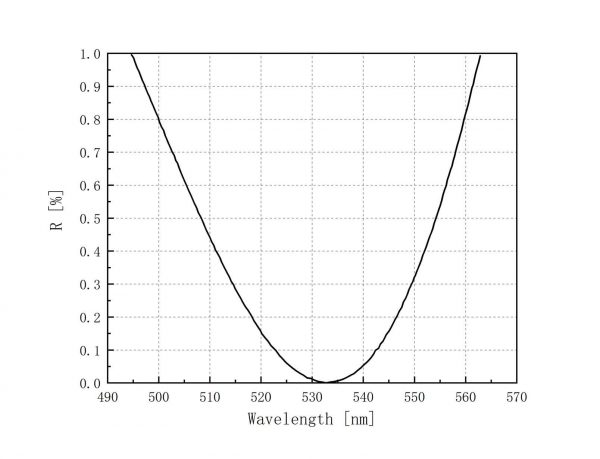

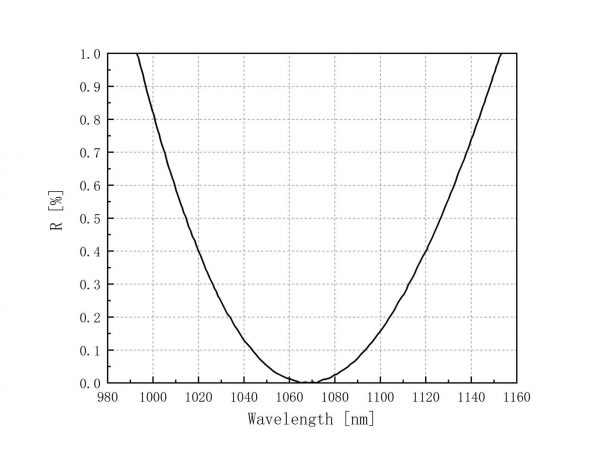

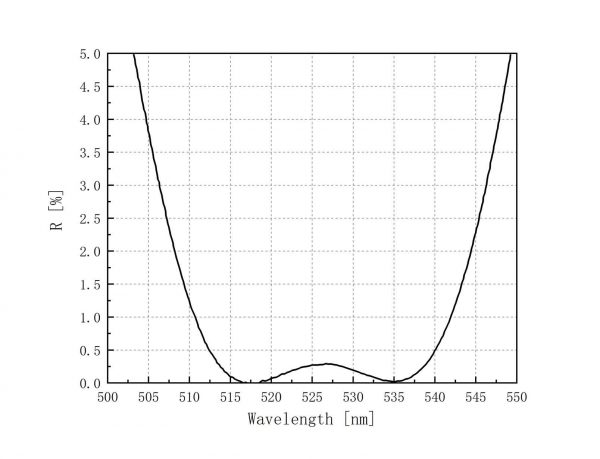

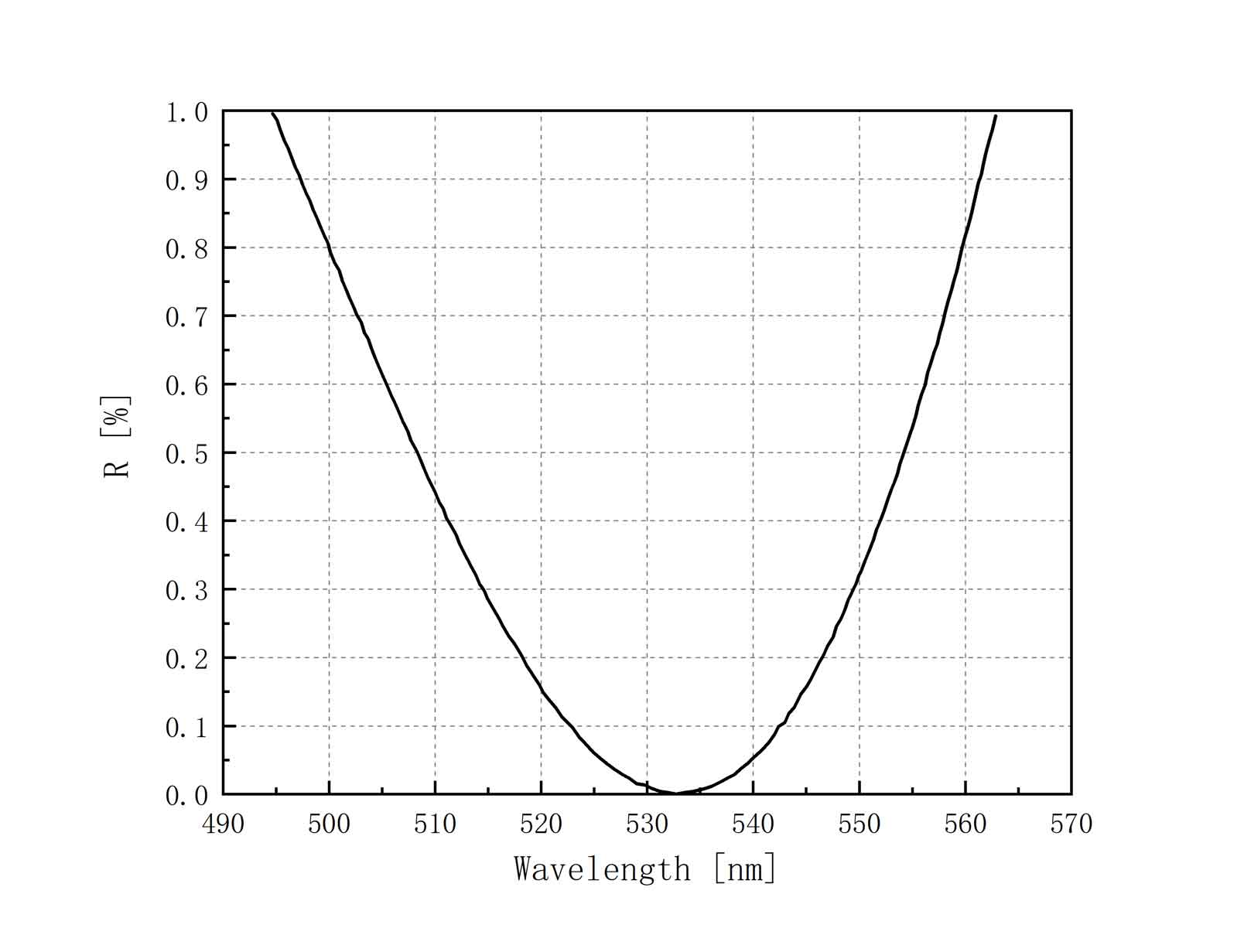

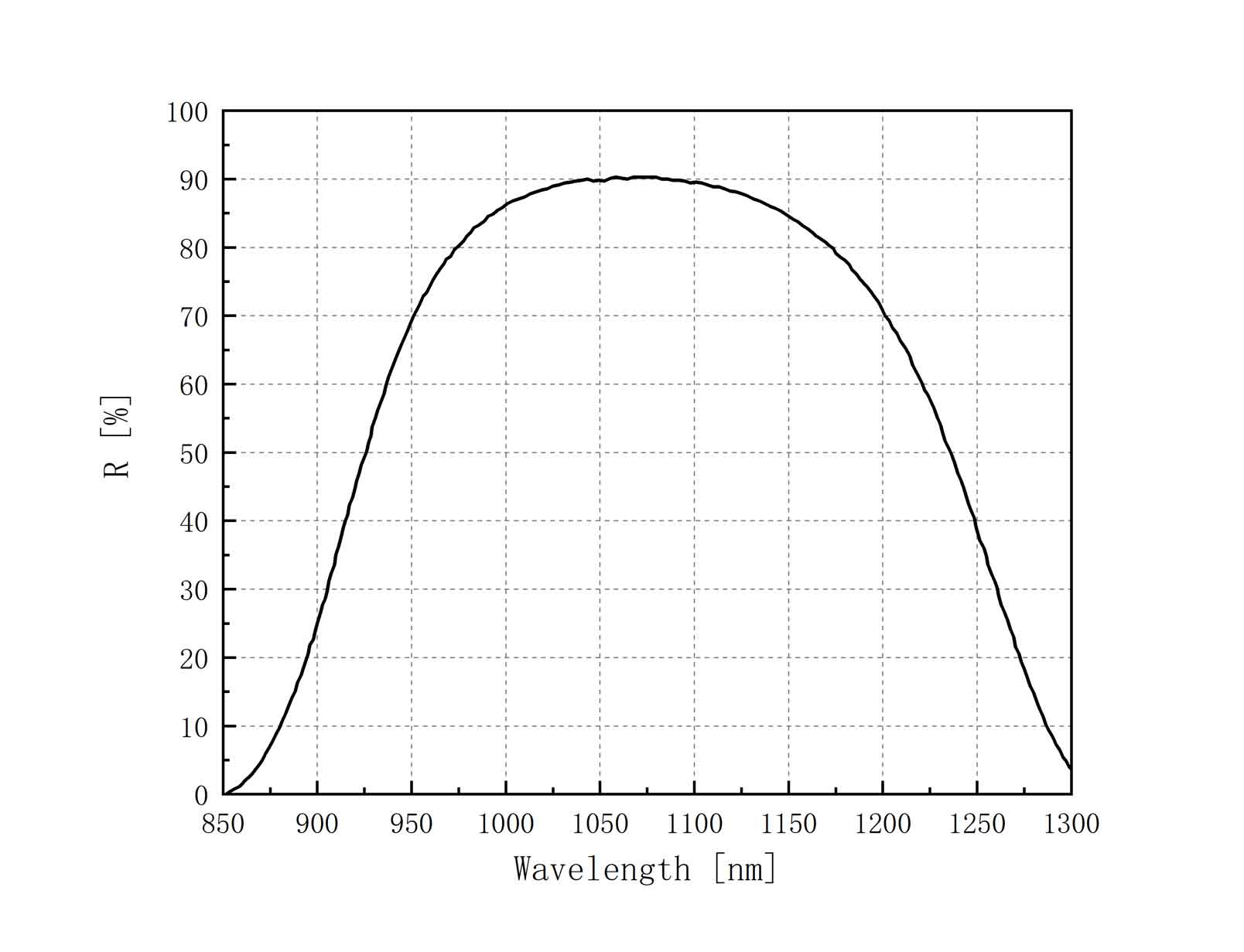

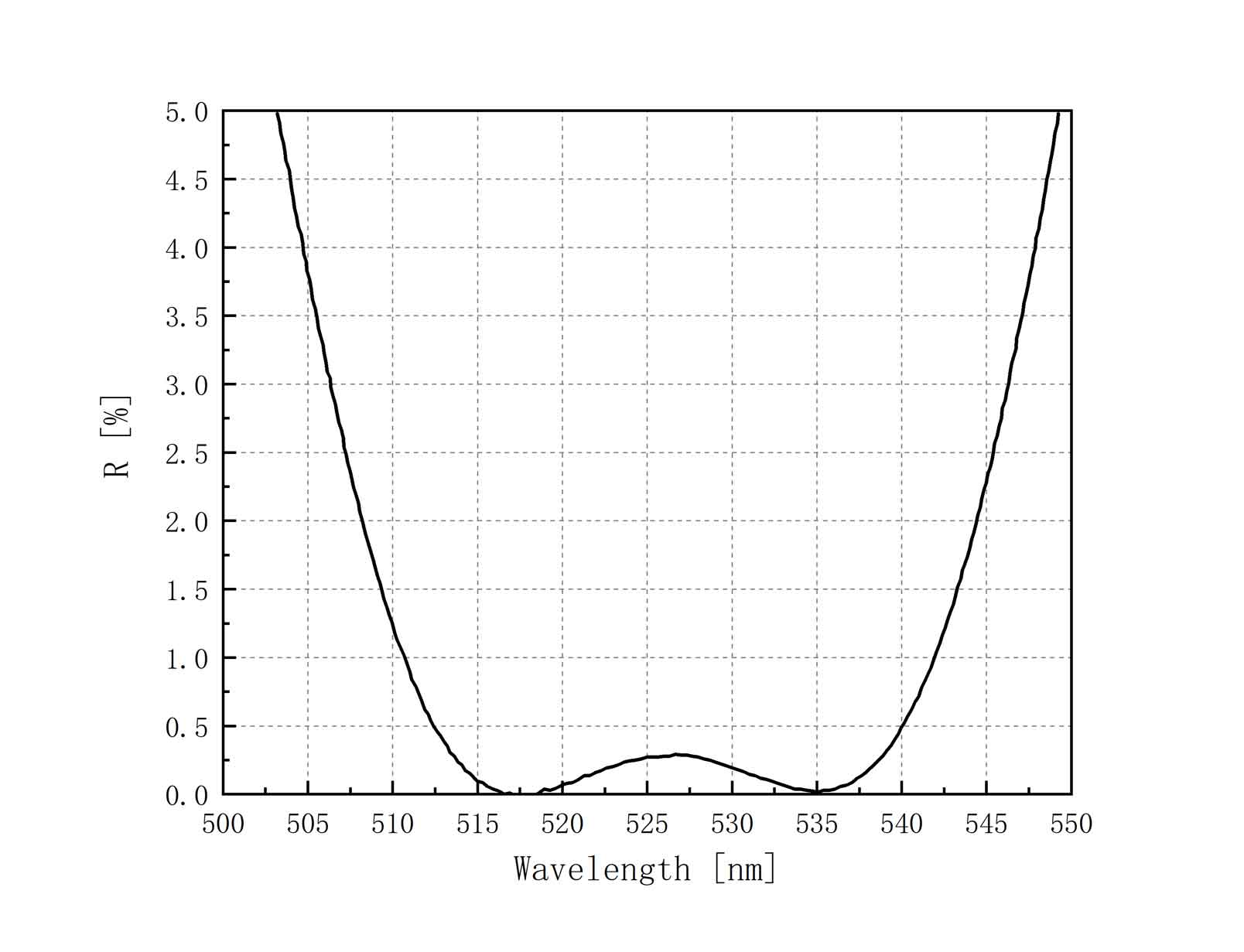

| Coating | Front Side (S2) PR(0°,1064nm)= 90(±1%) AR(0°,532nm)<3% Rear Side (S1) AR(0°,532nm)<0.25% AR(0°,1064nm)<0.25% |
| application | cw/ns |
| optical element | Output Coupler |
| Shape | Round |
| Parallelism | 5ʹ |
| type | Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.3mm (±0.1mm) Rear Side (S1) 0.3mm (±0.1mm) |
