Pump Mirror 100386

Category:

Description

Material Corning 7980 2F or equal
Geometry ∅ = 12.7 mm (-0.1mm)
t = 6.35 mm (±0.1mm)
Form Front Side  (S2)
concave
r = 100 mm  (±0.5 %)
Rear Side  (S1)
plane
Coating Front Side   (S2)
HR(0°,1064nm)>99.9%
R(0°,532nm)<5%
Rear Side   (S1)
AR(0°,532nm)<0.2%
Application cw/ns
Optical element Pump Mirror
Shape Round
Parallelism
Type Nd:YAG-Laser
Chamfer Front Side  (S2)
0.3mm (±0.1mm)
Rear Side  (S1)
0.3mm (±0.1mm)

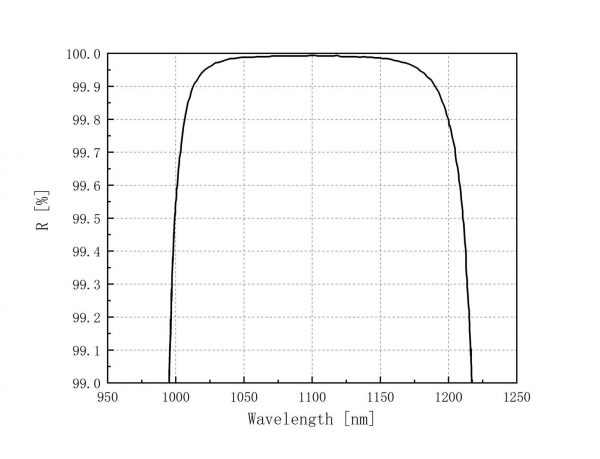

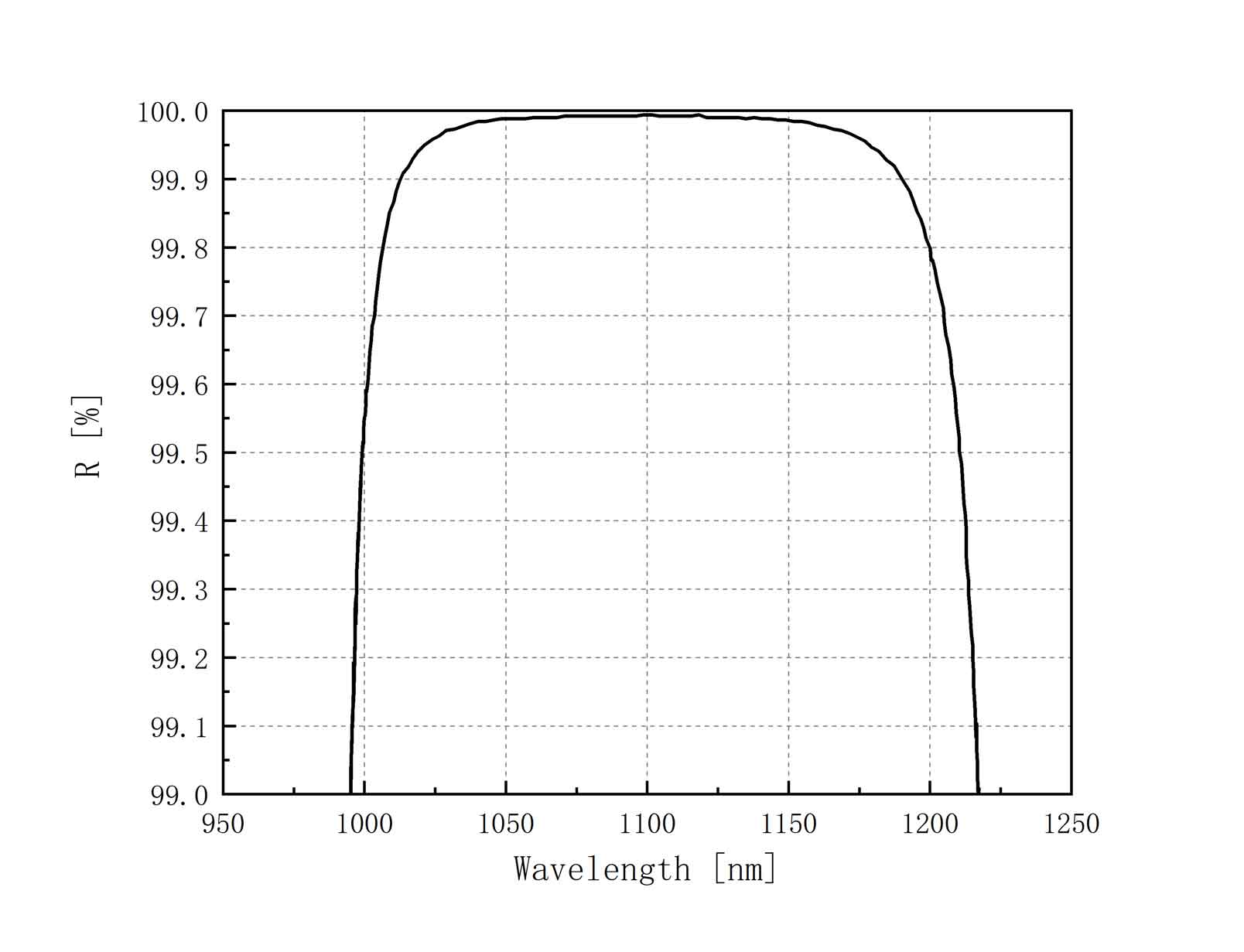

100386-s2-1
s2-1

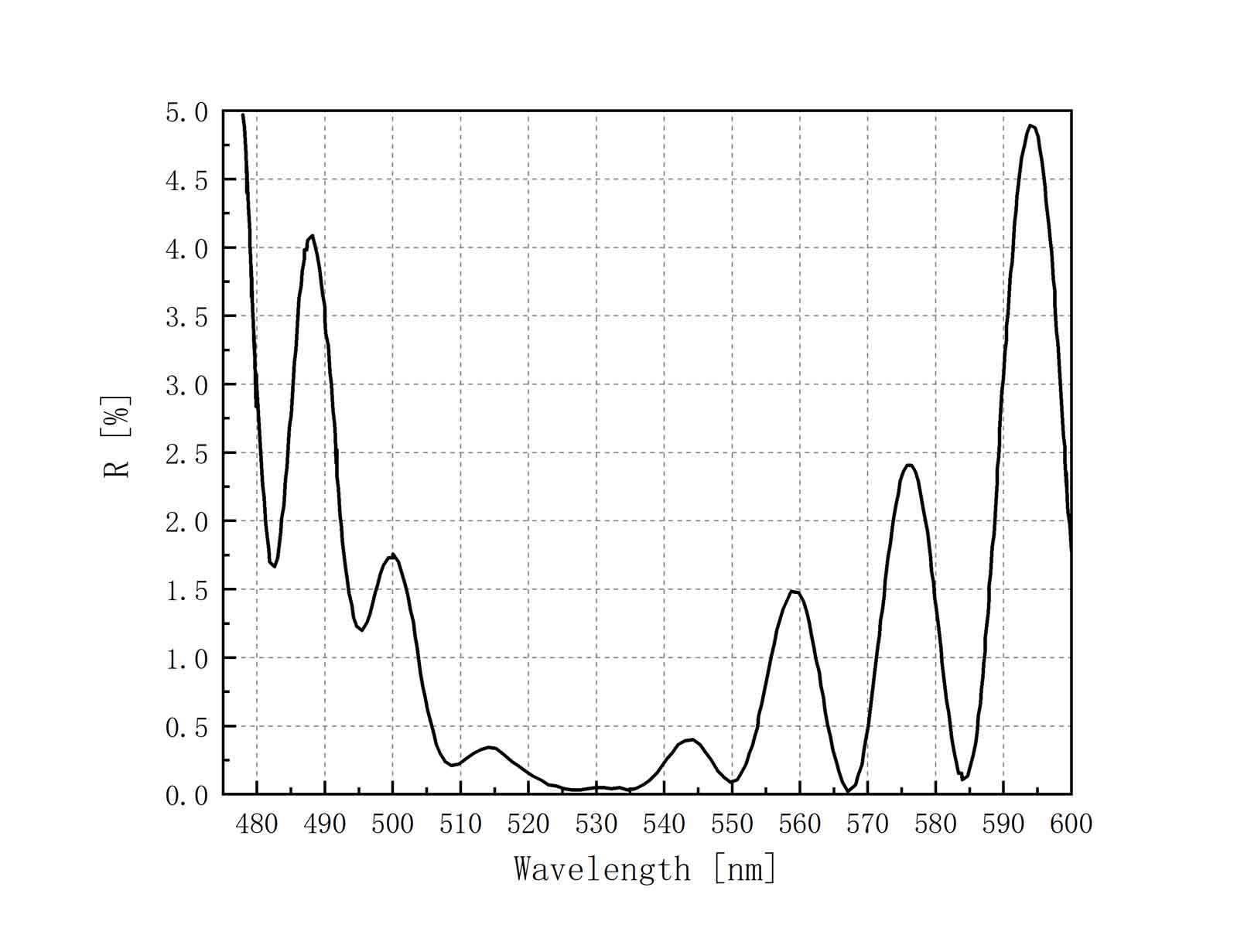

100386-s2-2
s2-2

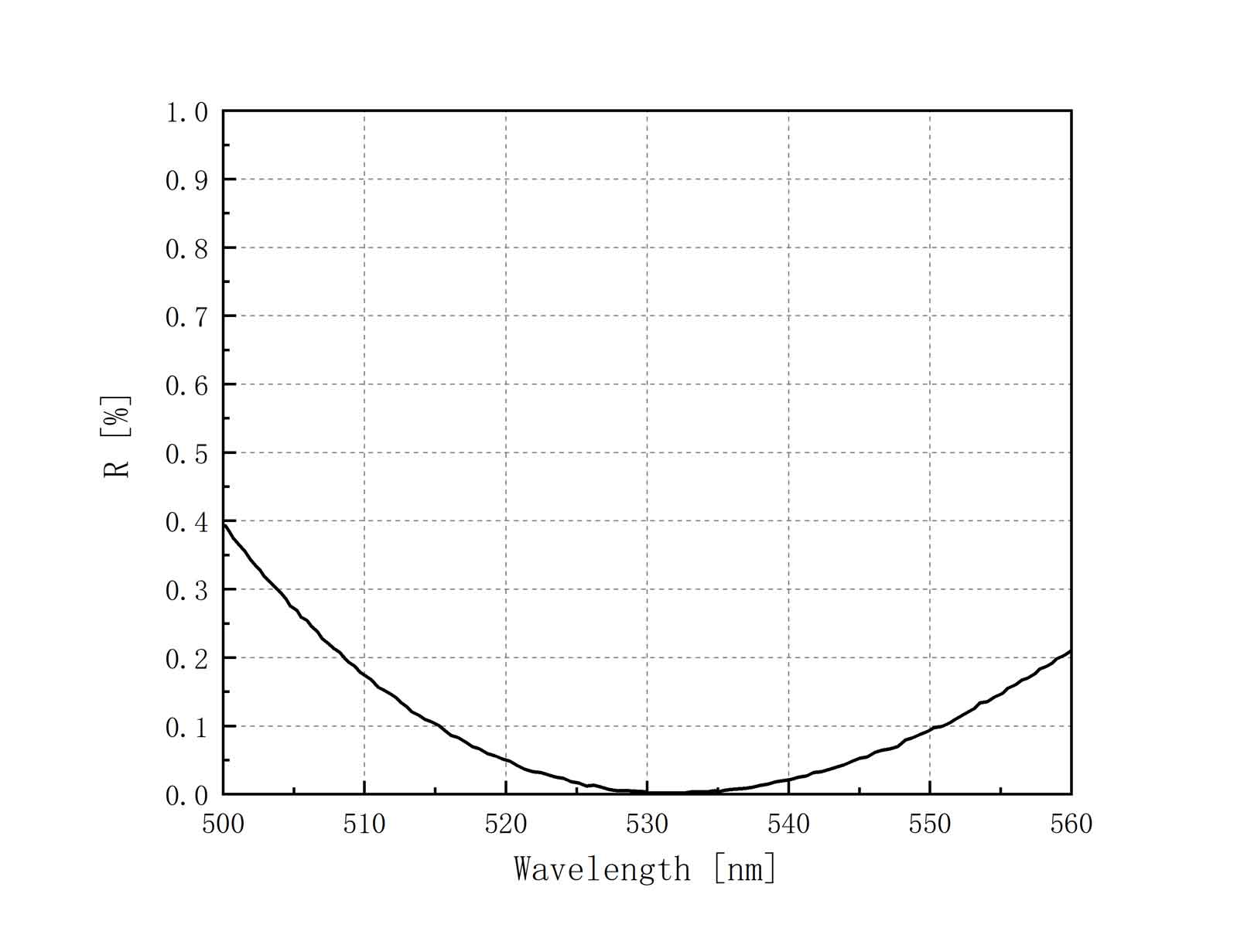

100386-s1
s1
