Description
| Material | Corning 7980 2F or equal |
| Geometry | ∅=25 mm(-0.1mm) t=6.35 mm(±0.1mm) |
| Form | Front Side (S2) plane Rear Side (S1) plane |

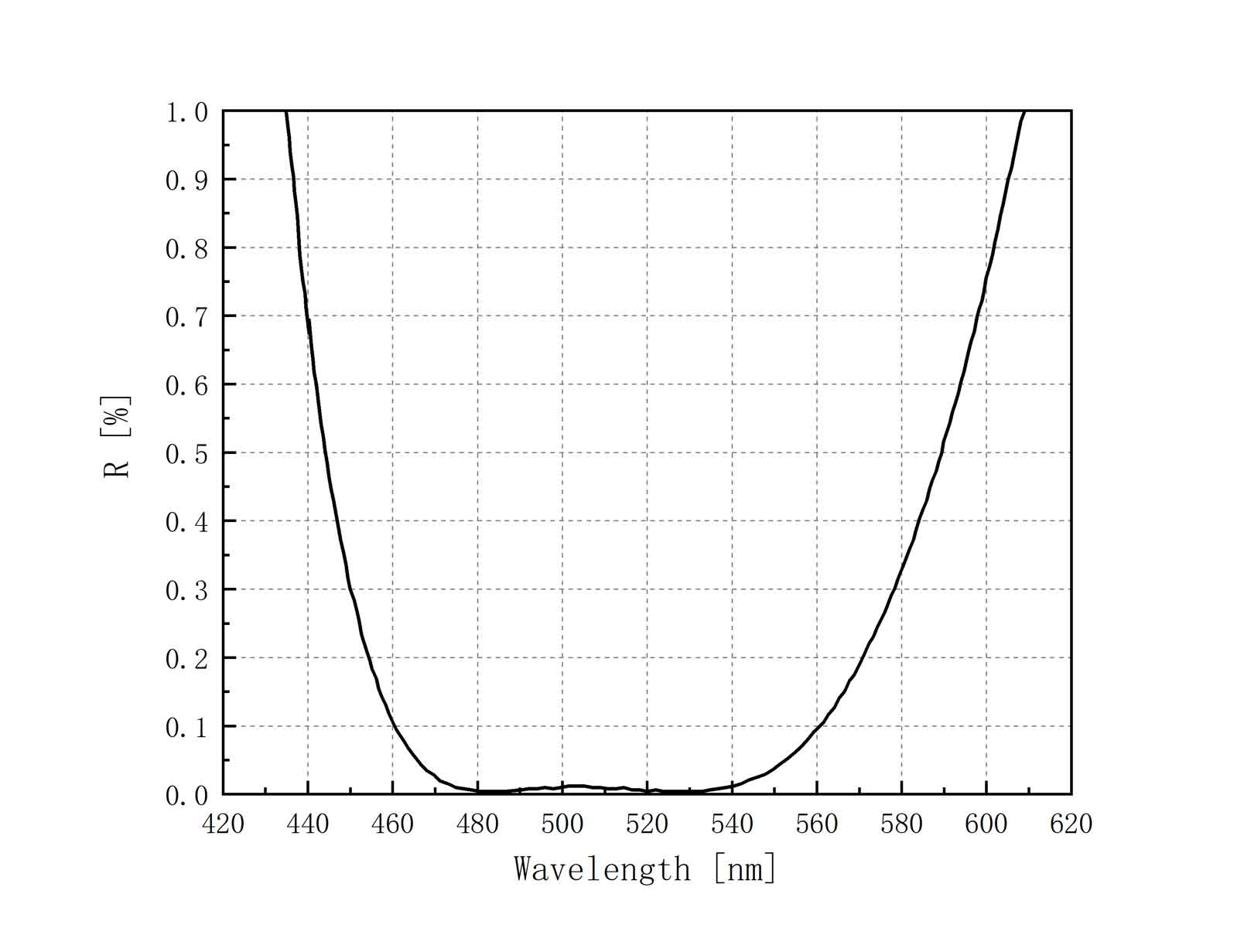

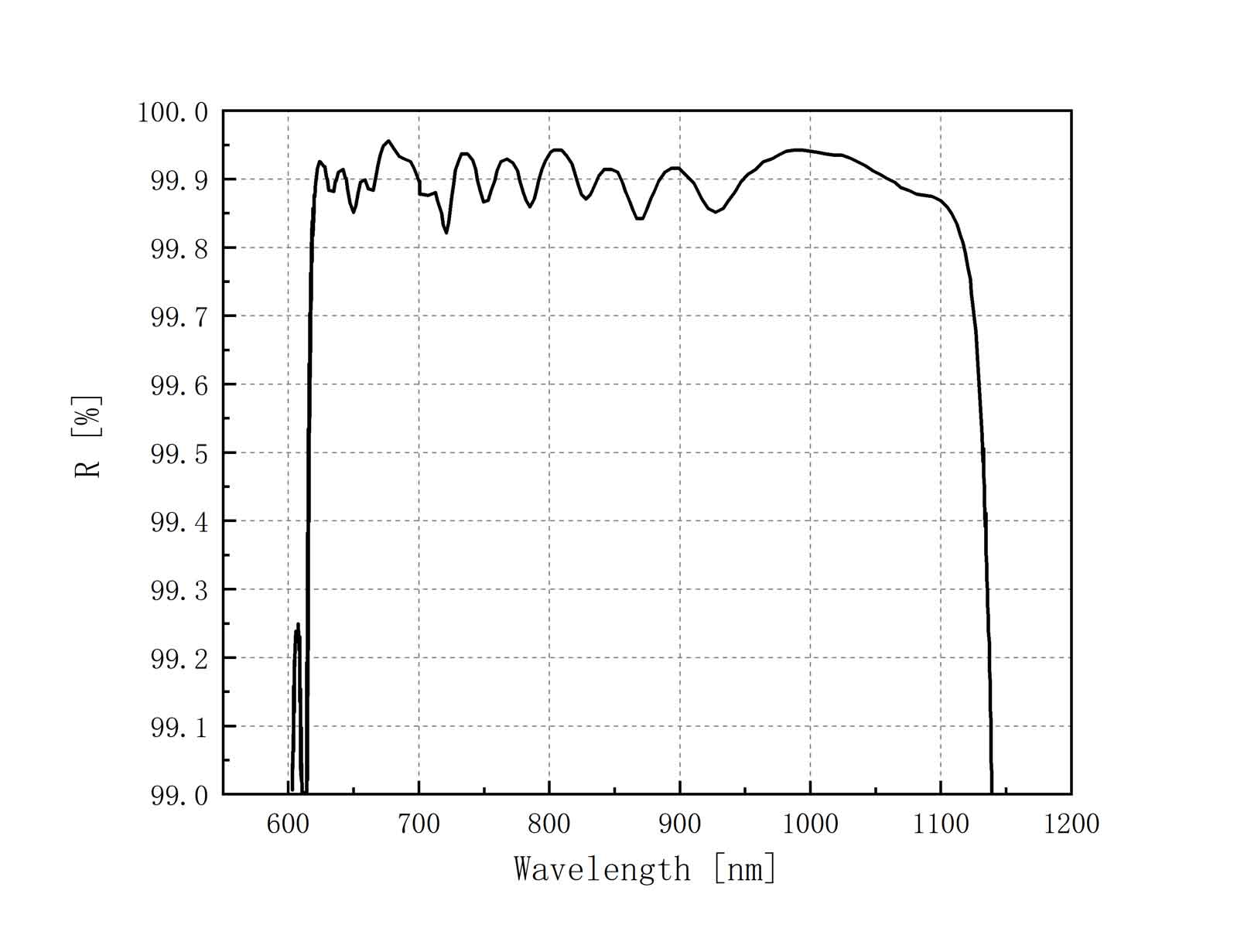

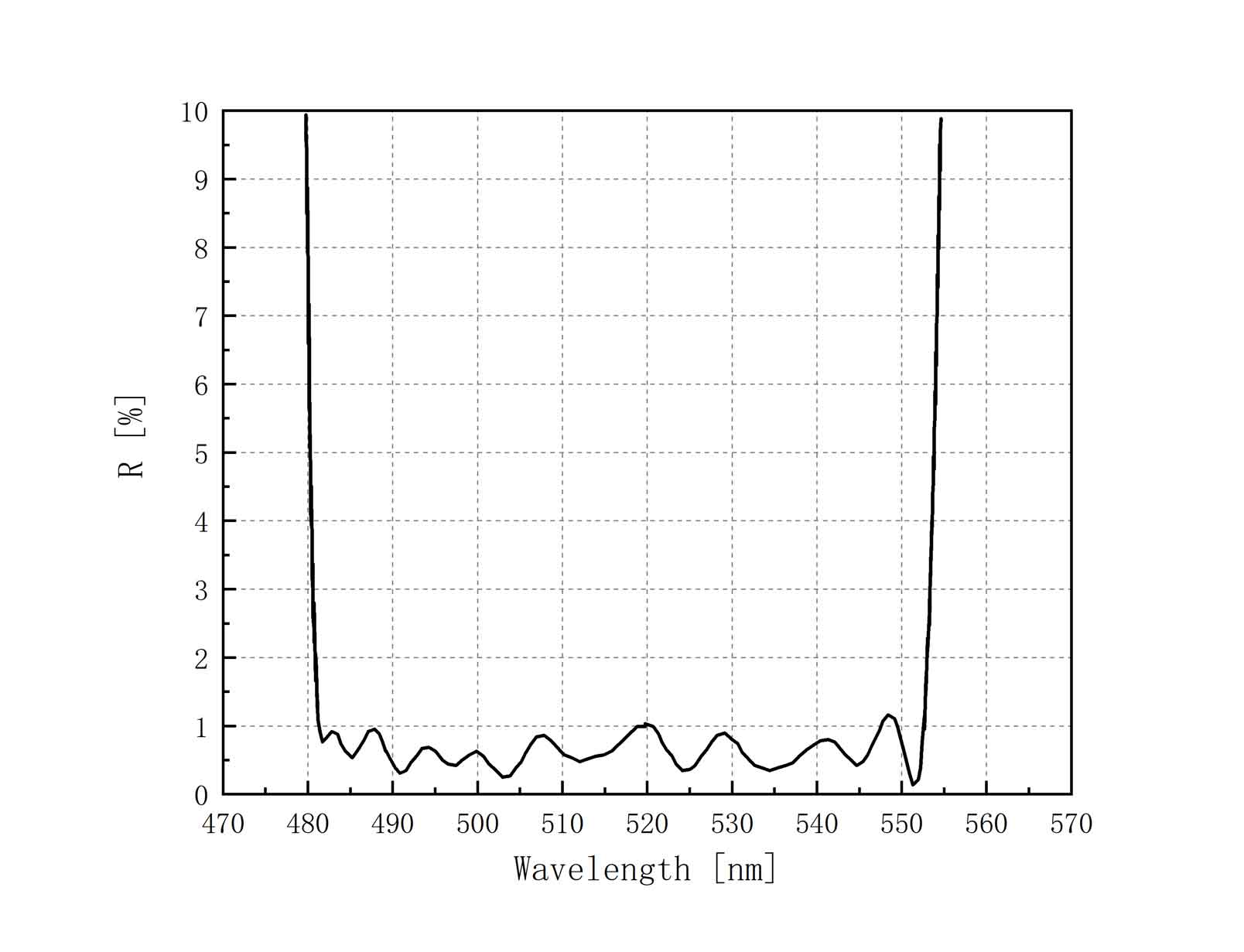

| Coating | Front Side (S2) HR(0°,680-1100nm)>99.8% R(0°,488-532nm)>10% Rear Side (S1) AR(0°,488-532nm)<0.25% |
| Application | ns/fs |
| Optical element | Pump Mirror |
| Shape | Round |
| Parallelism | 5ʹ |
| Type | Ti:Sa Laser Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.3mm (±0.1mm) Rear Side (S1) 0.3mm (±0.1mm) |
