Description
| Material | Corning 7980 2F or equal |
| Geometry | ∅=12.7 mm(-0.1mm) t=6.35 mm(±0.1mm) |
| Form | Front Side (S2) concave r = 150 mm (±0.5 %) Rear Side (S1) plane |

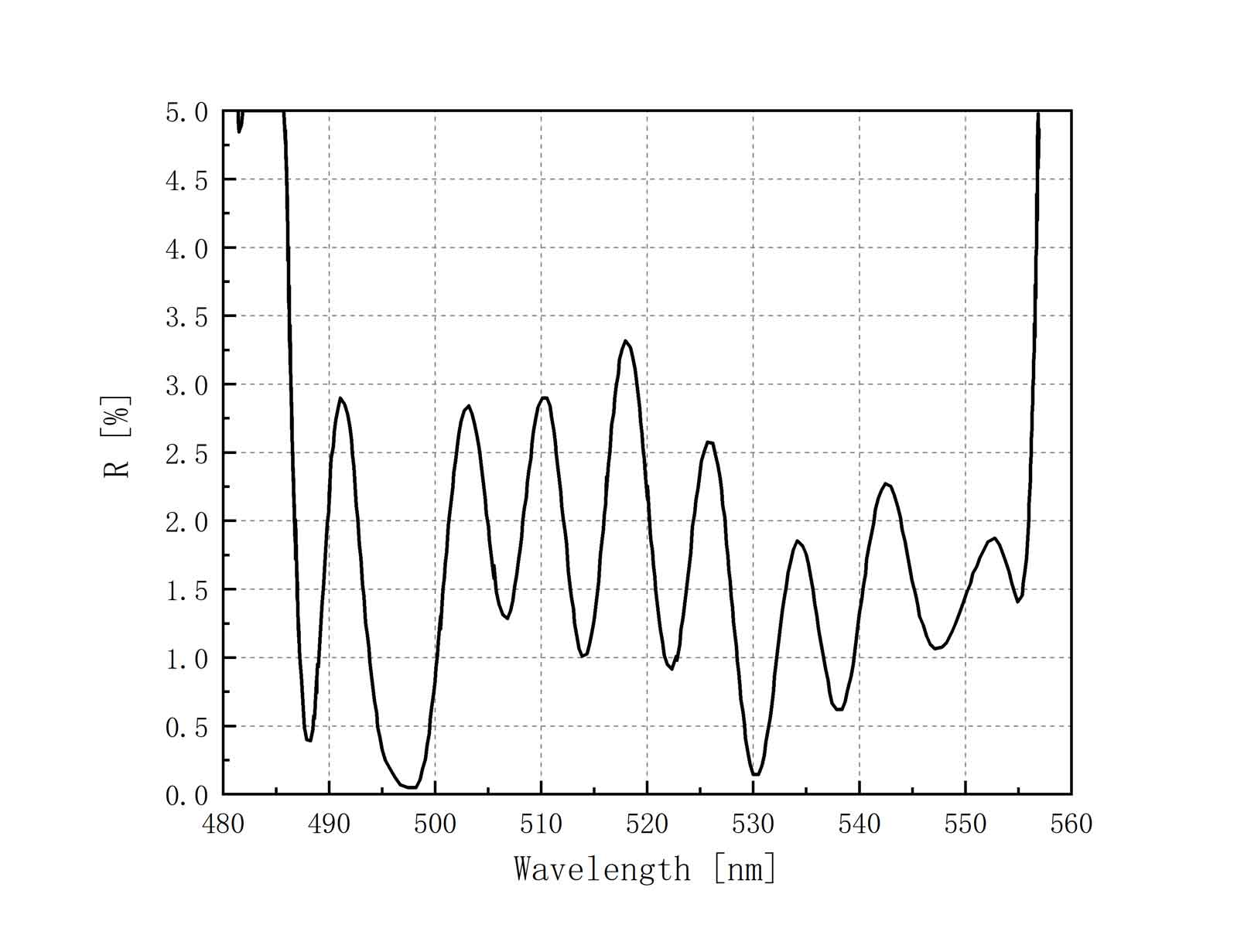

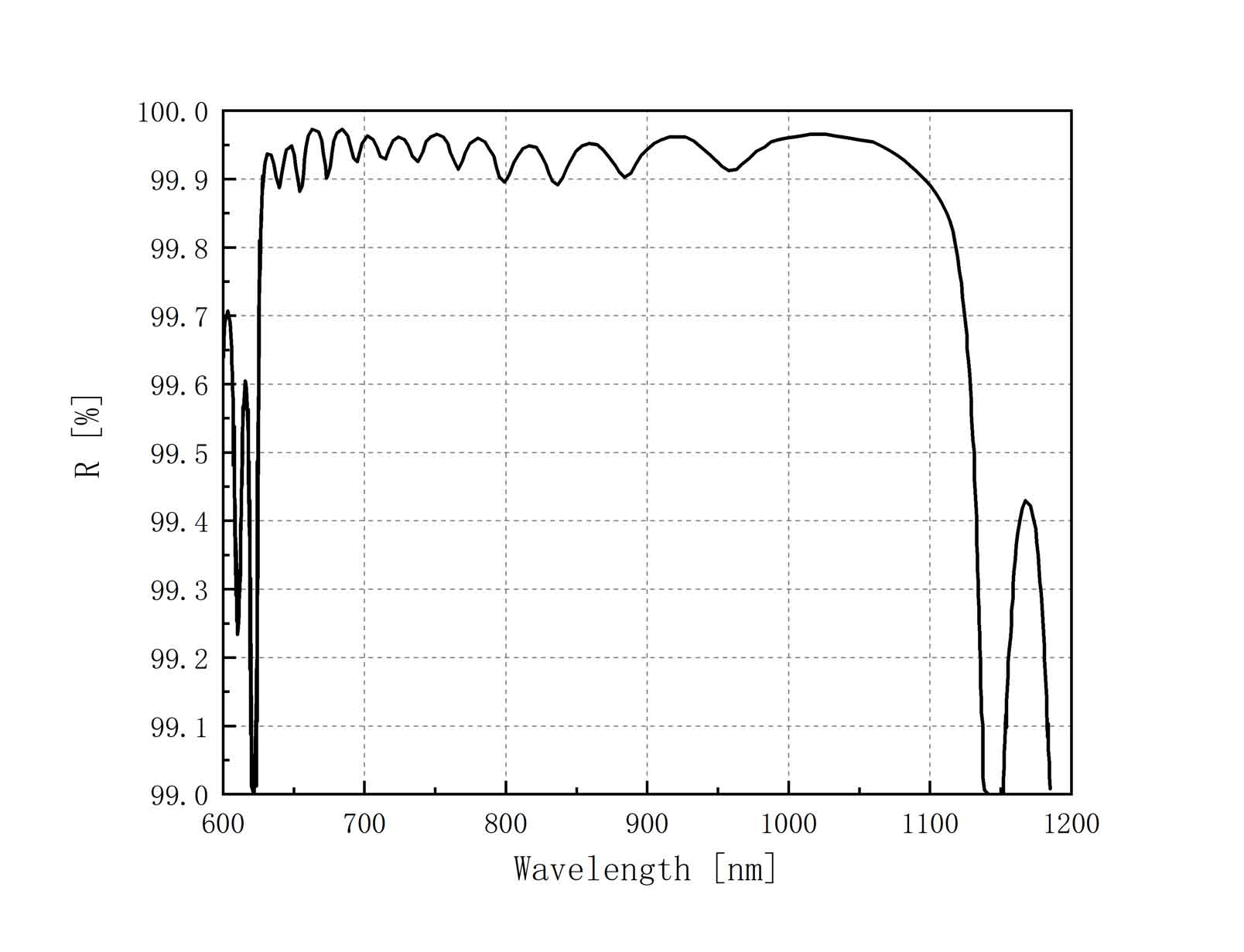

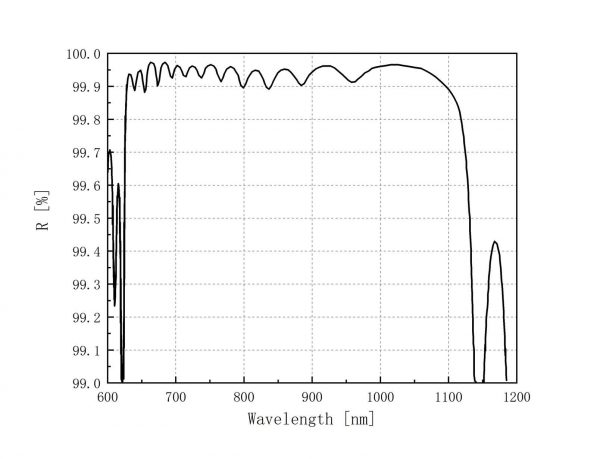

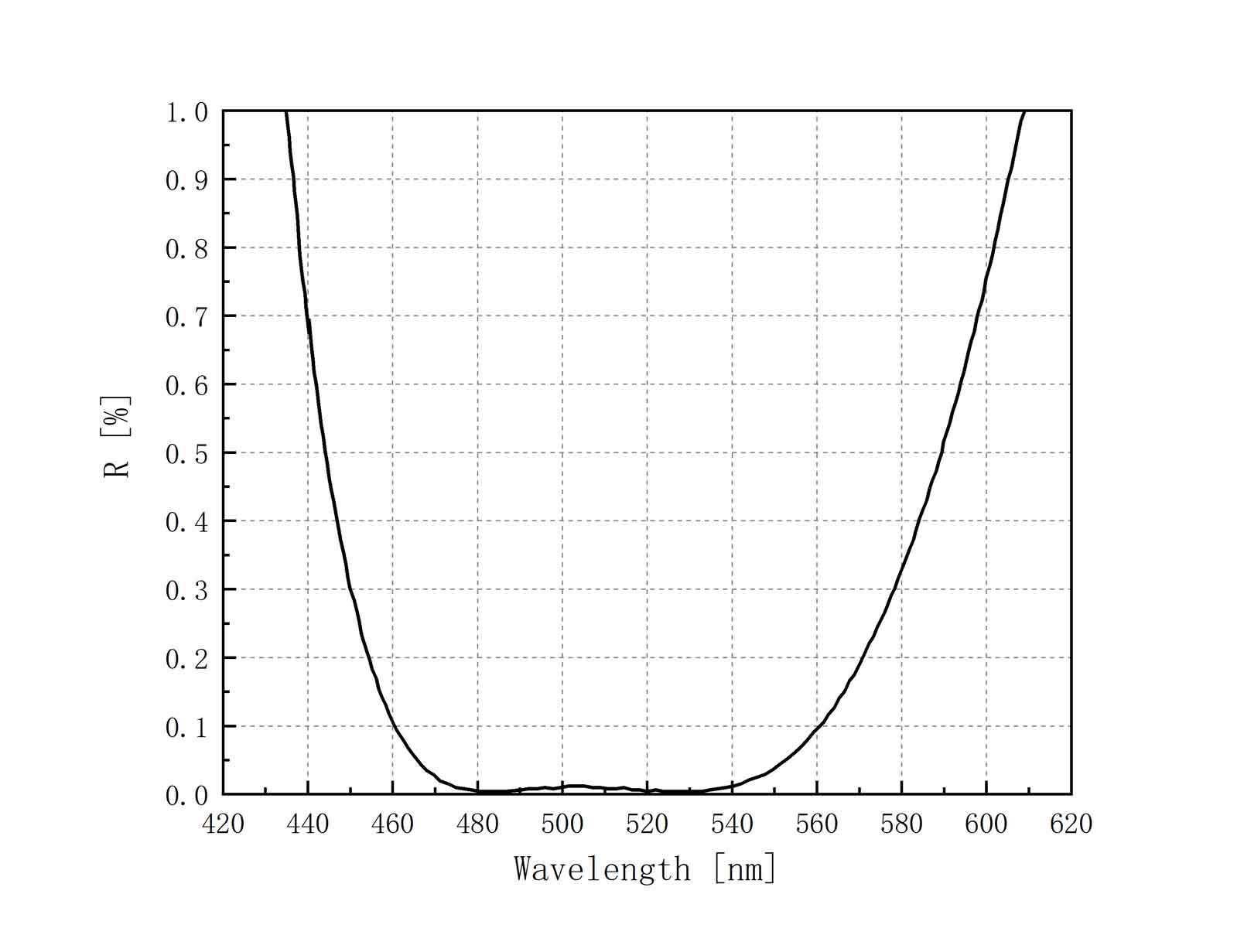

| Coating | Front Side (S2) HR(0°,650-1100nm)>99.8% R(0°,488-532nm)<5% Rear Side (S1) AR(0°,488-532nm)<0.25% |
| Application | cw/ns/ps/fs |
| Optical element | Pump Mirror |
| Shape | Round |
| Parallelism | 5ʹ |
| Type | Ti:Sa Laser Yb:YAG-Laser Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.3mm (±0.1mm) Rear Side (S1) 0.3mm (±0.1mm) |
