Description
| Material | Corning 7980 2F or equal |
| Geometry | ∅ = 25 mm (-0.1mm) t = 6.35 mm (±0.1mm) |
| Form | Front Side (S2) concave r = 125 mm (±0.5 %) Rear Side (S1) plane |

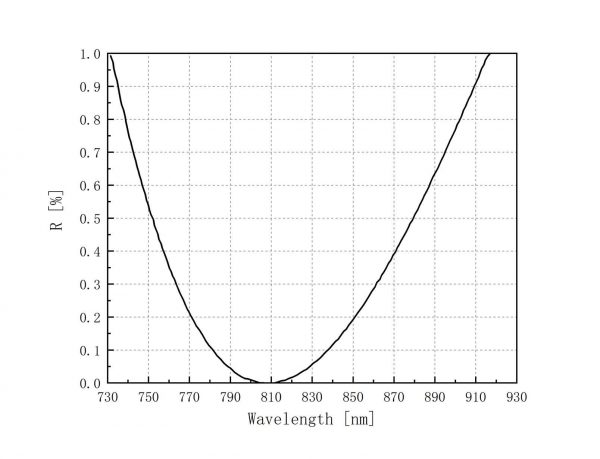

| Coating | Front Side (S2) HR(0°,532nm)>99.9% HR(0°,1064nm)>99.9% R(0°,808nm)<5% Rear Side (S1) AR(0°,808nm)<0.2% |
| Application | cw/ns |
| Optical element | Pump Mirror |
| Shape | Round |
| Parallelism | 5ʹ |
| Type | Diode Laser Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.3mm (±0.1mm) Rear Side (S1) 0.3mm (±0.1mm) |
