Description
| material | Corning 7980 2F or equal |
| Geometry | ∅ = 25 mm (-0.1mm) t = 1 mm (±0.1mm) |
| Form | Front Side (S2) plane Rear Side (S1) plane |

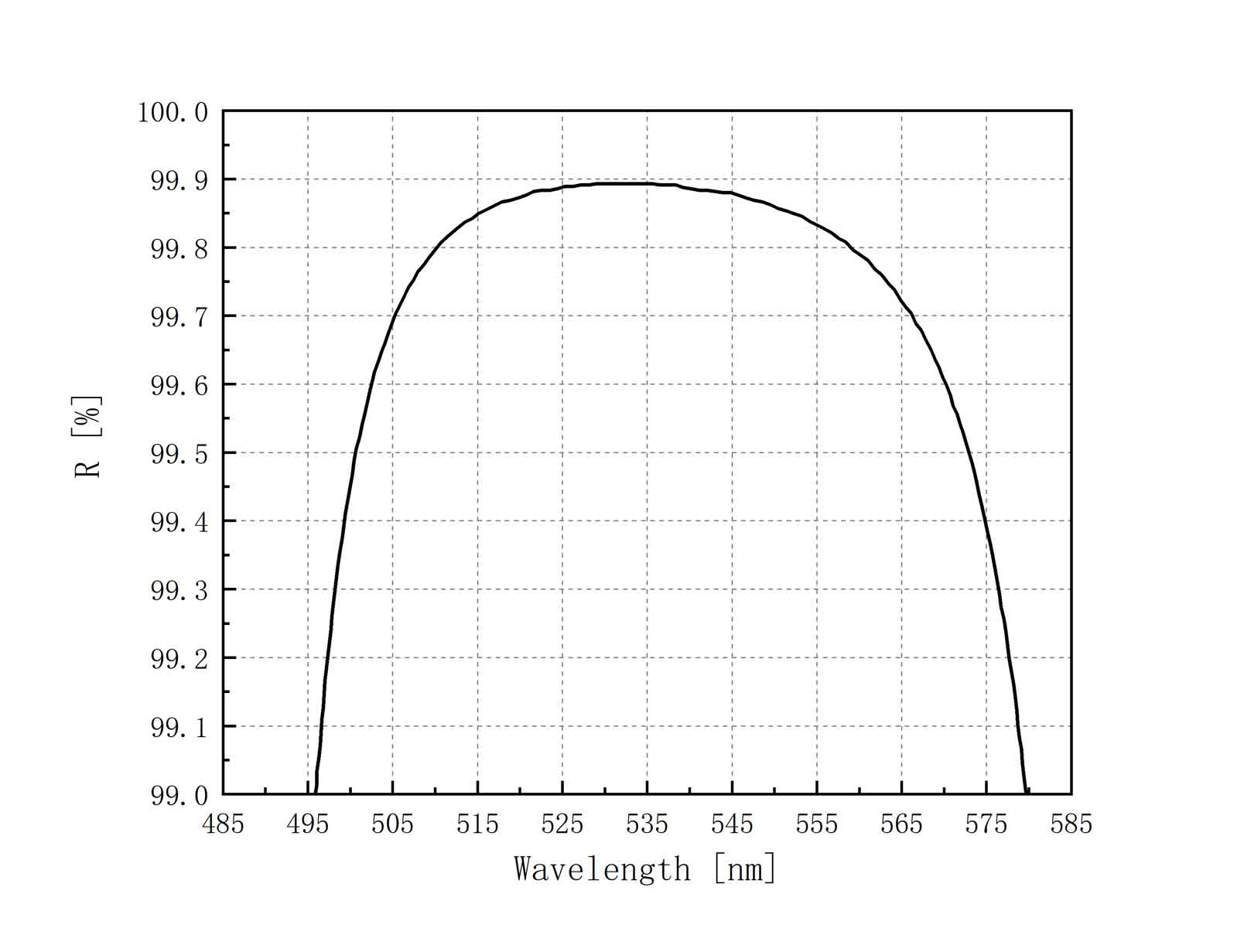

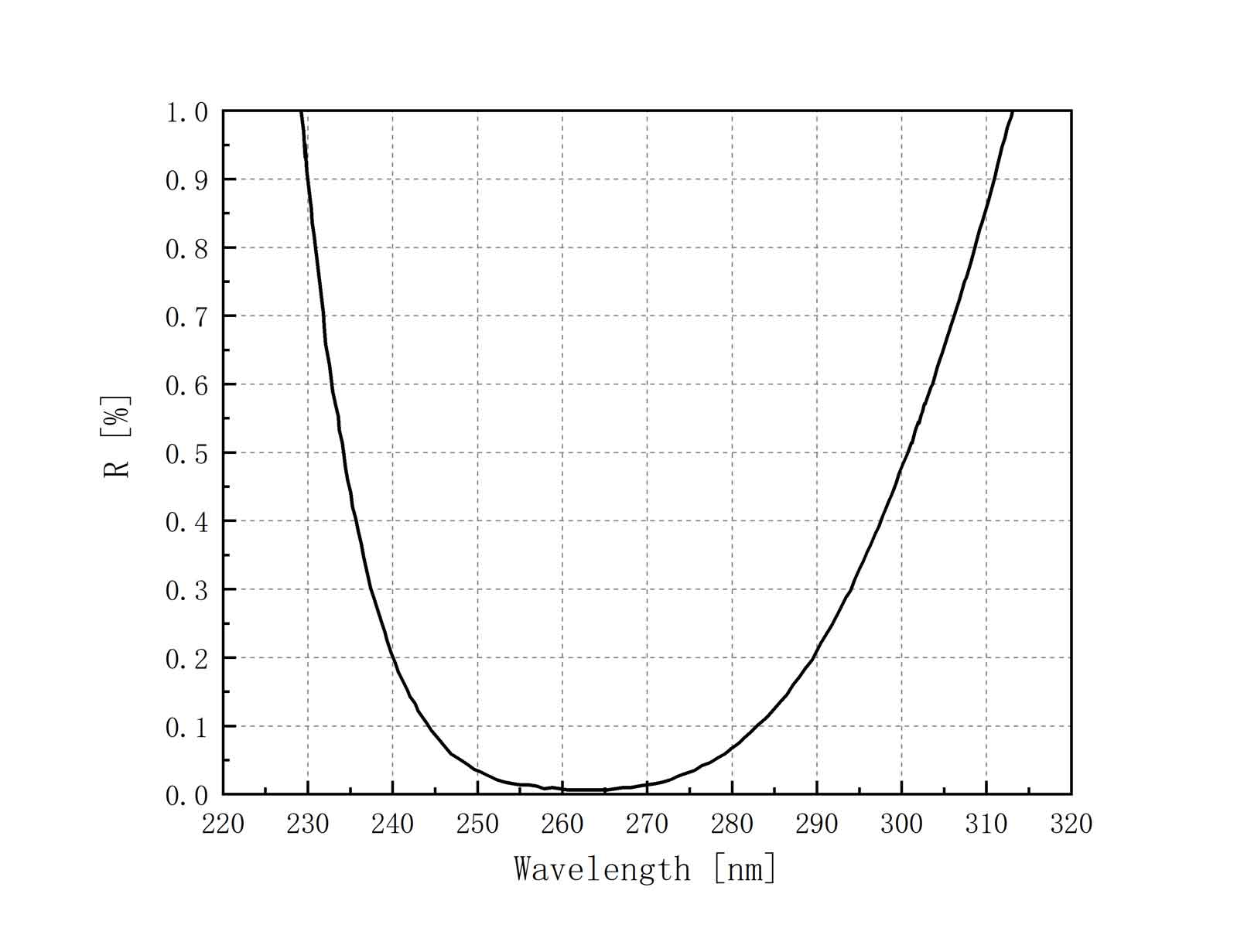

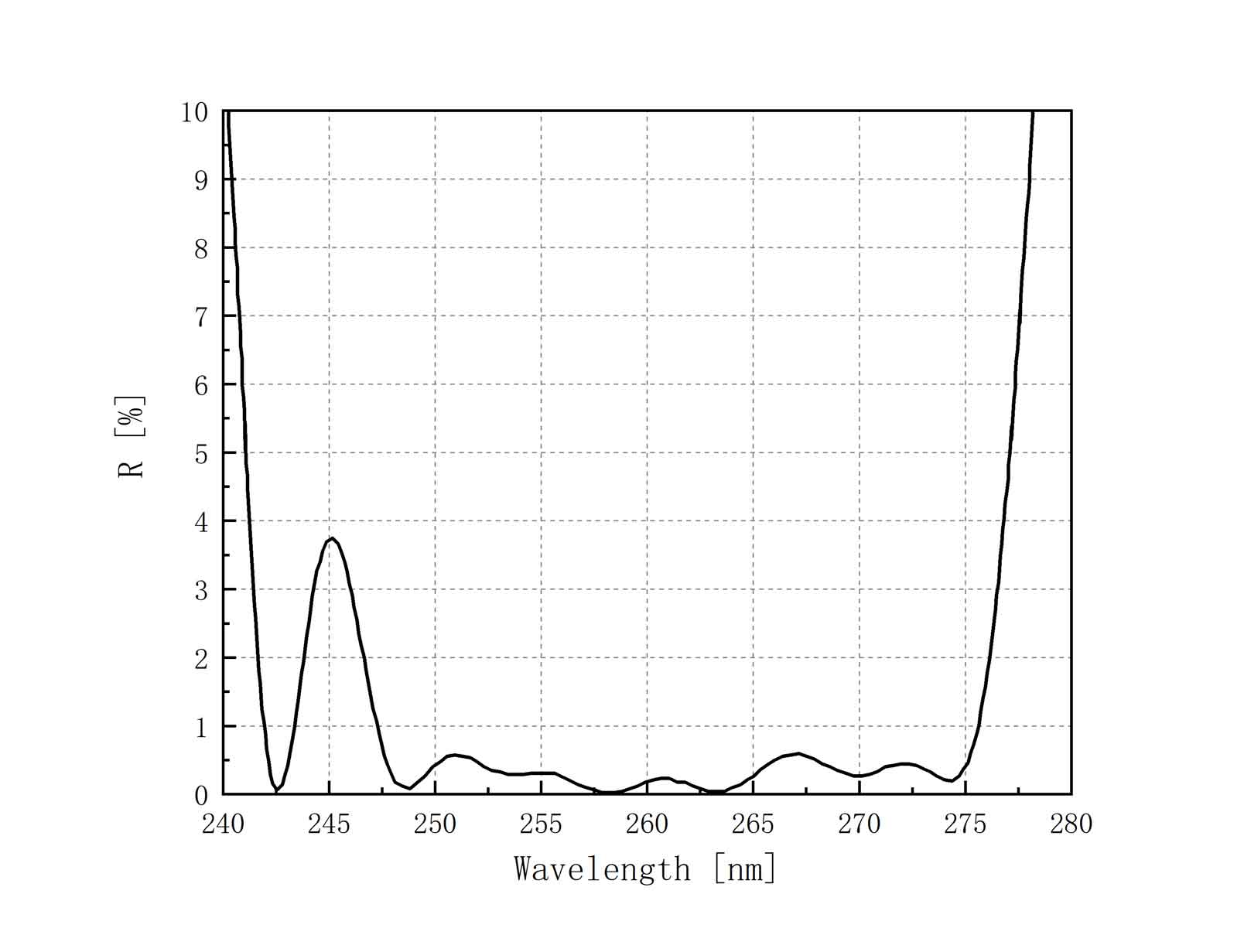

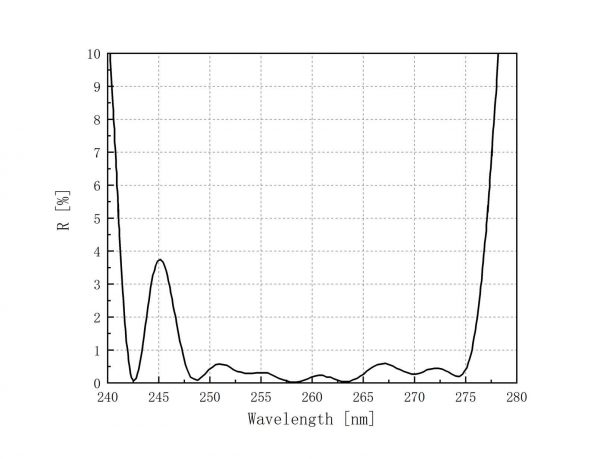

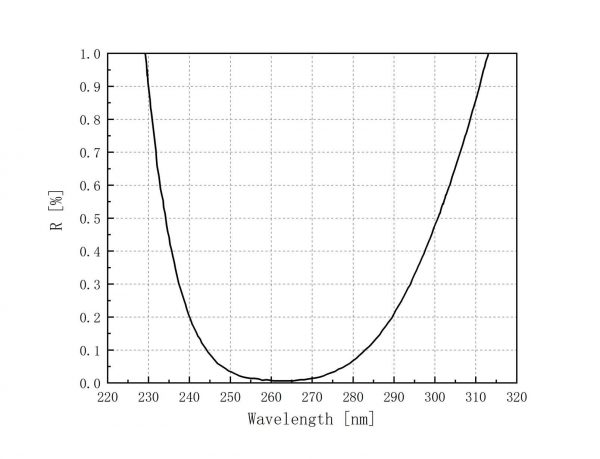

| Coating | Front Side (S2) HR(0°,515-545nm)>99.5% R(0°,255-270nm)<10% Rear Side (S1) AR(0°,255-270nm)<0.5% |
| application | cw/ns |
| optical element | Pump Mirror |
| Shape | Round |
| Parallelism | 5ʹ |
| type | Yb:YAG-Laser Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.3mm (±0.1mm) Rear Side (S1) 0.3mm (±0.1mm) |
