Pump Mirror 108985

Category:

Description

Material Corning 7980 2F or equal
Geometry ∅=12.7 mm(-0.1mm)
t=6.35 mm(±0.1mm)
Form Front Side  (S2)
concave
r = 25 mm  (±0.5 %)
Rear Side  (S1)
plane
Coating Front Side   (S2)
HR(0°,650-1100nm)>99.8%
R(0°,488-532nm)<5%
Rear Side   (S1)
AR(0°,488-532nm)<0.25%
Application fs
Optical element Pump Mirror
Shape Round
Parallelism
Type Ti:Sa Laser
Nd:YAG-Laser
Chamfer Front Side  (S2)
0.3mm (±0.1mm)
Rear Side  (S1)
0.3mm (±0.1mm)

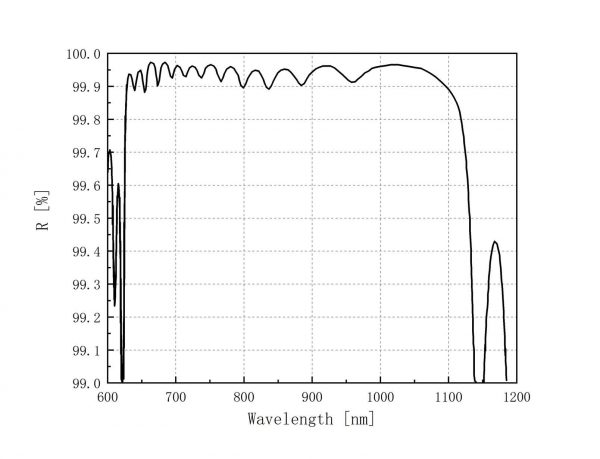

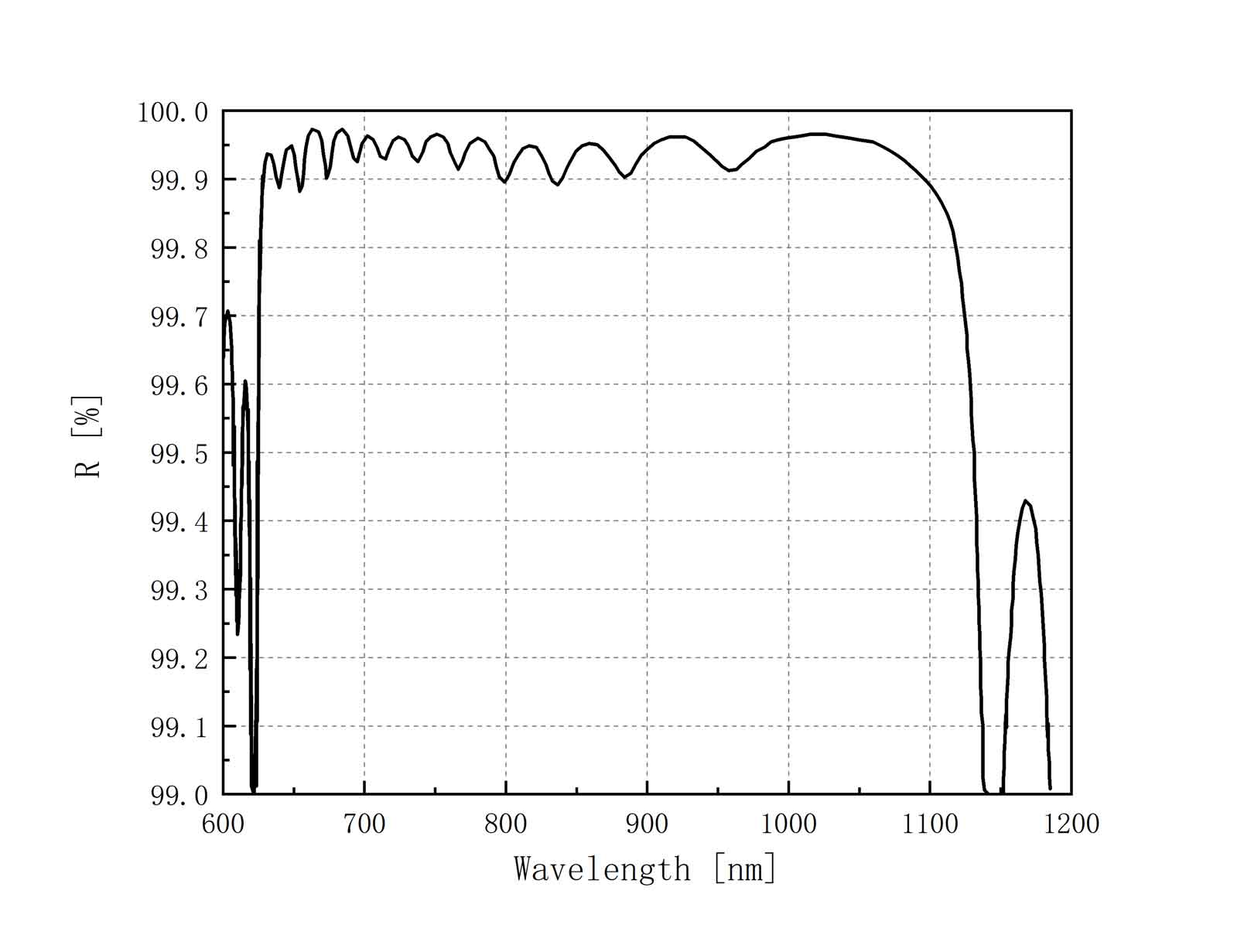

108985-s2-1
s2-1

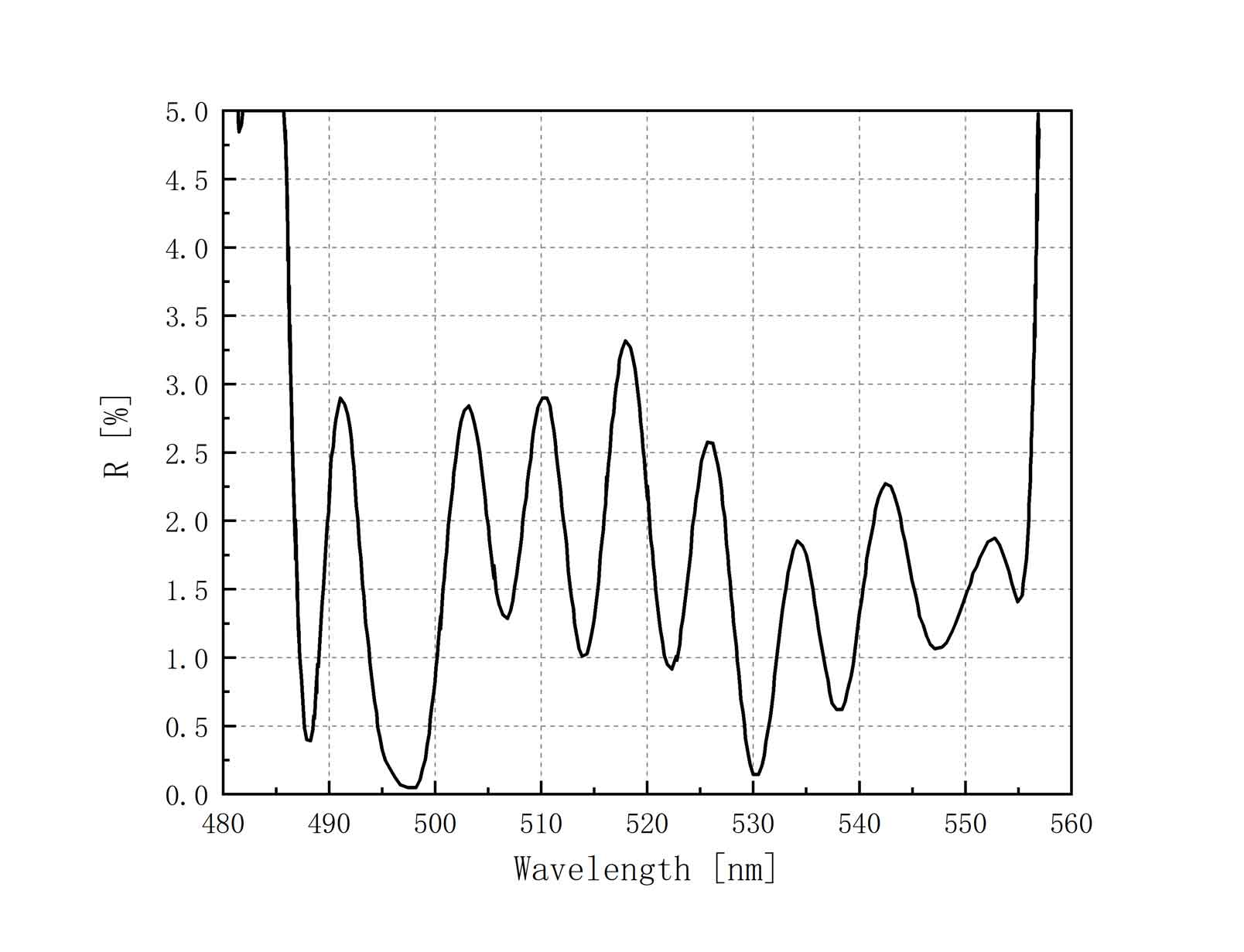

108985-s2-2
s2-2

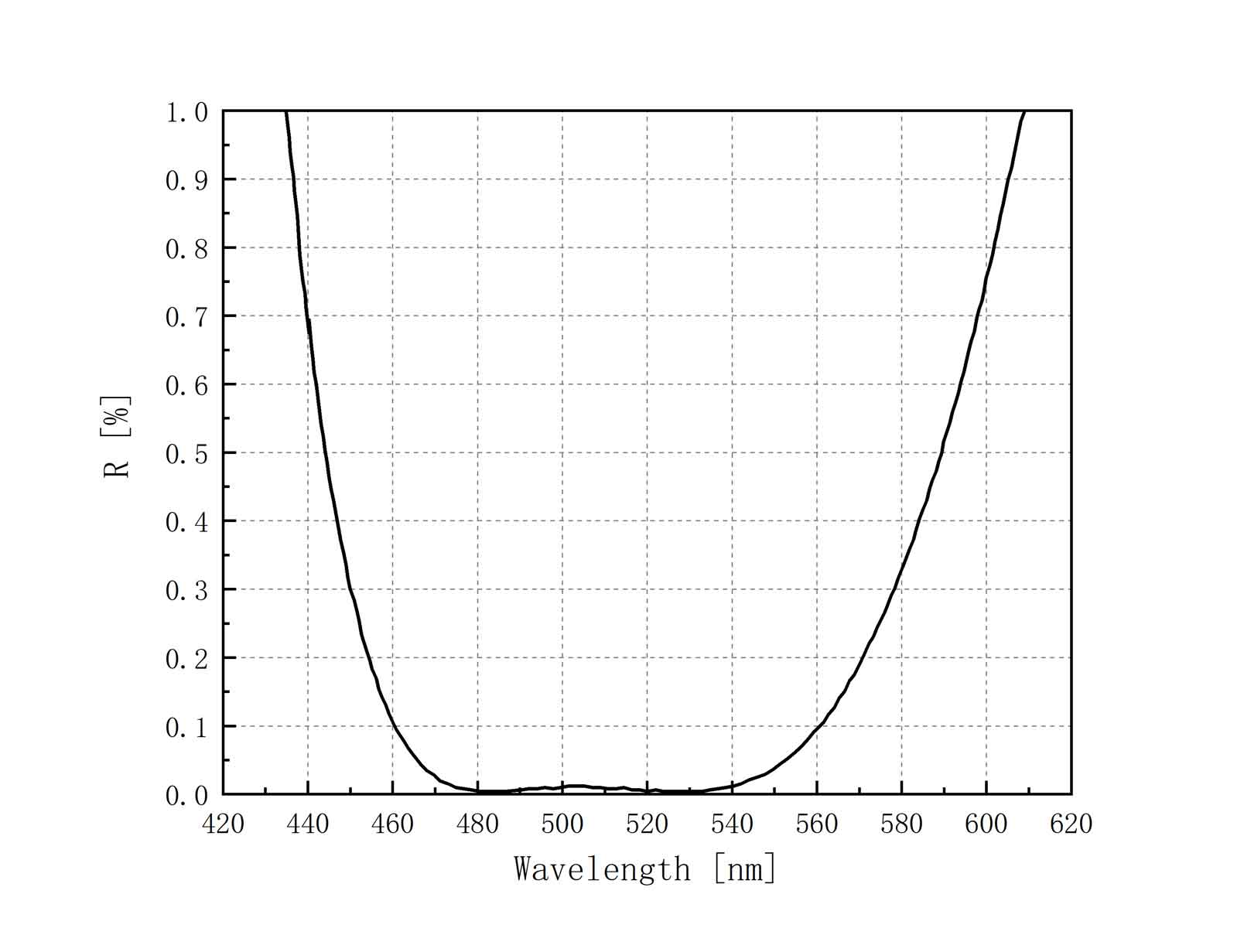

108985-s1
s1
