Description
| material | Corning 7980 2F or equal |
| Geometry | ∅ =25mm t =6.35mm |
| Form | Front Side (S2) plane Rear Side (S1) plane ′ |

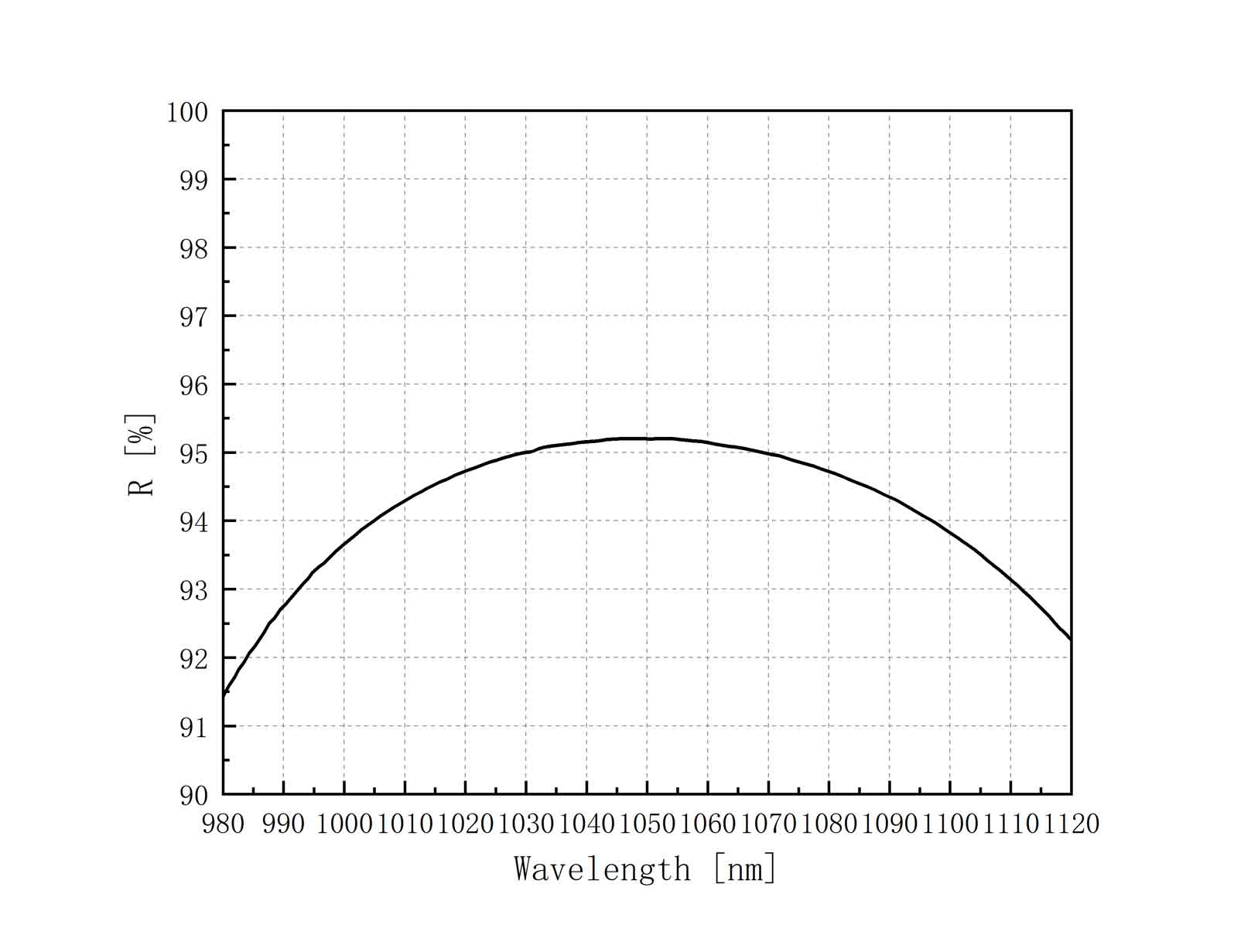

| Coating | Front Side (S2) PR(0°,1030-1064nm)=95(±1%) Rear Side (S1) |
| application | cw/ns |
| optical element |
Pump Mirror Output Coupler |
| Shape | Round |
| Parallelism | 5ʹ |
| type |
Yb:YAG-Laser Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.3 mm(±0.1 mm) Rear Side (S1) 0.3 mm(±0.1 mm) |
