Description
| material | Corning 7980 2F or equal |
| Geometry | ∅=25 mm (-0.1 mm) t=6.35 mm(±0.1 mm) |
| Form | Front Side (S2) plane Rear Side (S1) plane |

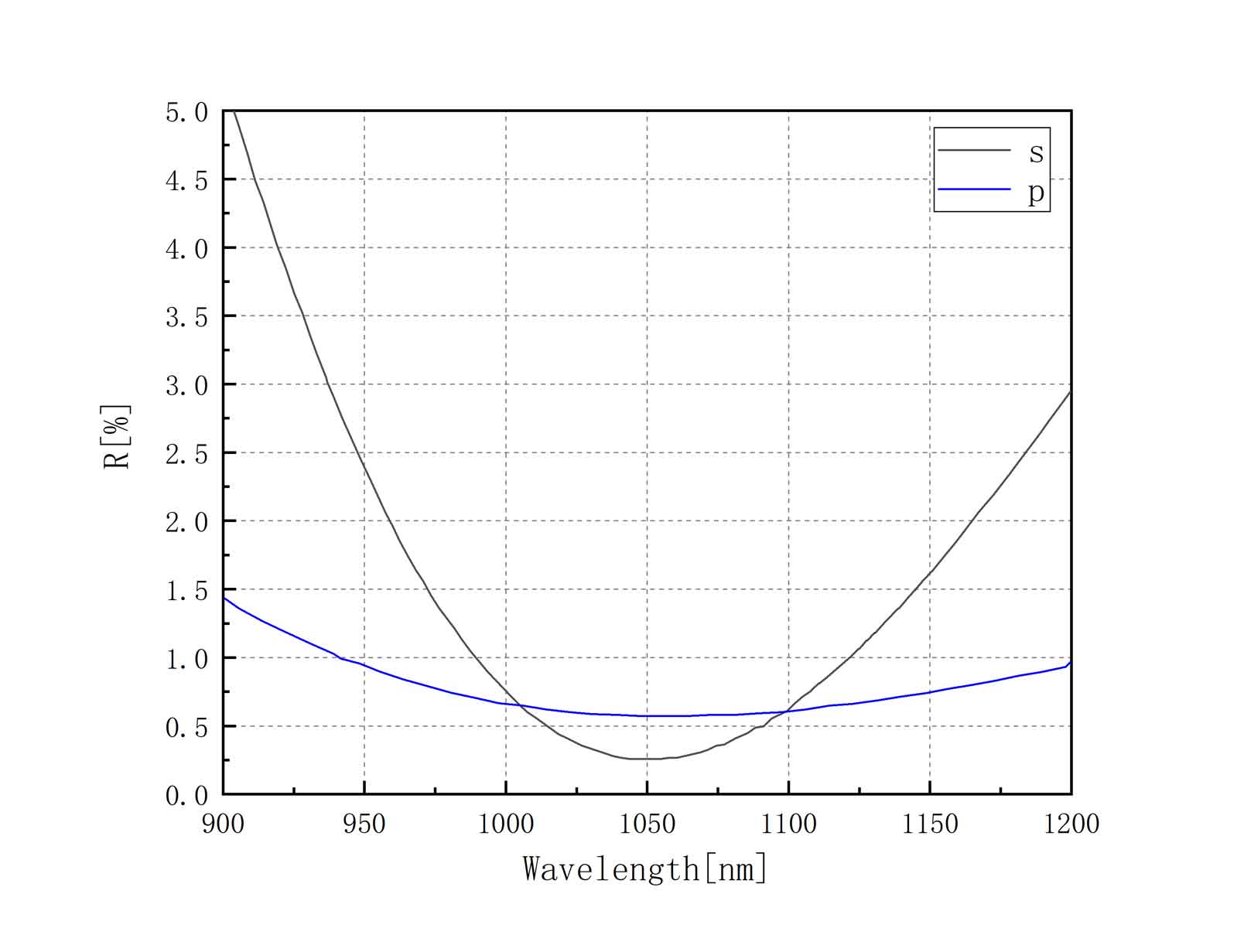

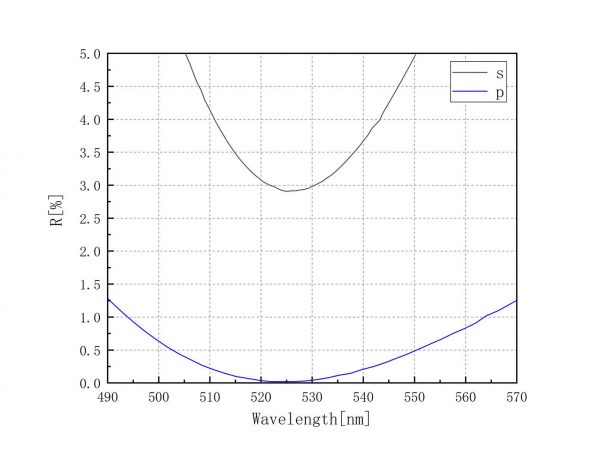

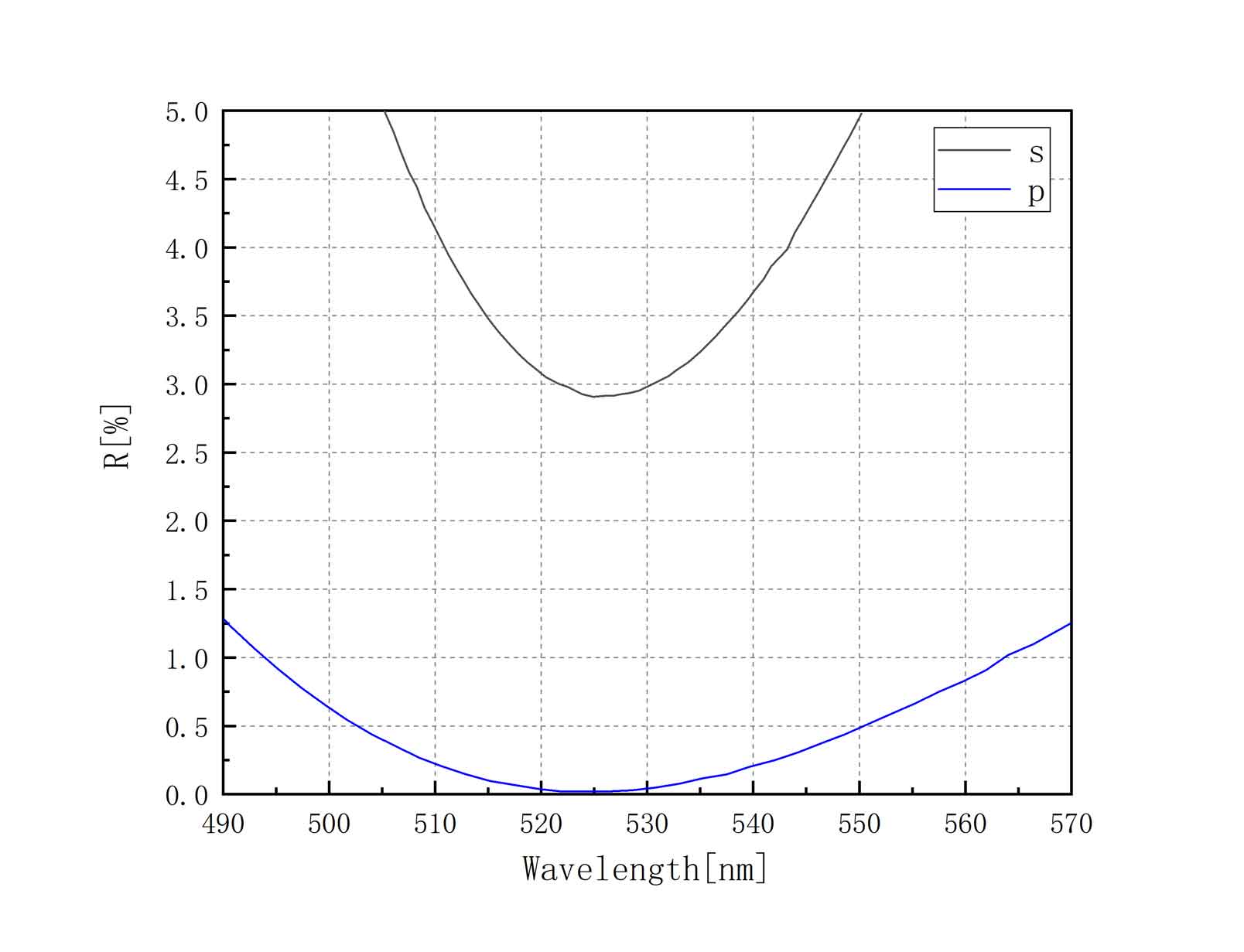

| Coating | Front Side (S2) HRs(45°,340-355nm)>99.5% Rp(45°,515-530nm)<5% Rs(45°,1020-1060nm)<10% Rear Side (S1) ARp(45°,515-530nm)<0.5% ARs(45°,1020-1060nm)<0.5% |
| optical element | Separator Combiner |
| Shape | Round |
| Parallelism | 5ʹ |
| type | Yb:YAG-Laser Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.3 mm (±0.1 mm) Rear Side (S1) 0.3 mm (±0.1 mm) |
