Separator 102271

Categories: ,

Description

Material Corning 7980 2F or equal
Geometry ∅=25.4 mm(-0.1 mm)
t=6.35 mm(±0.1 mm)
Form Front Side  (S2)
plane
Rear Side  (S1)
plane
Coating Front Side   (S2)
HRs(45°,340-355nm)>99.5%
Rp(45°,515-530nm)<5%
Rs(45°,1020-1060nm)<10%
Rear Side   (S1)
ARp(45°,515-530nm)<0.5%
ARs(45°,1020-1060nm)<0.5%
Application cw/ns
Optical element Separator
Combiner
Shape Round
Parallelism
Type Yb:YAG-Laser
Nd:YAG-Laser
Chamfer Front Side  (S2)
0.3 mm (±0.1 mm)
Rear Side  (S1)
0.3 mm (±0.1 mm)

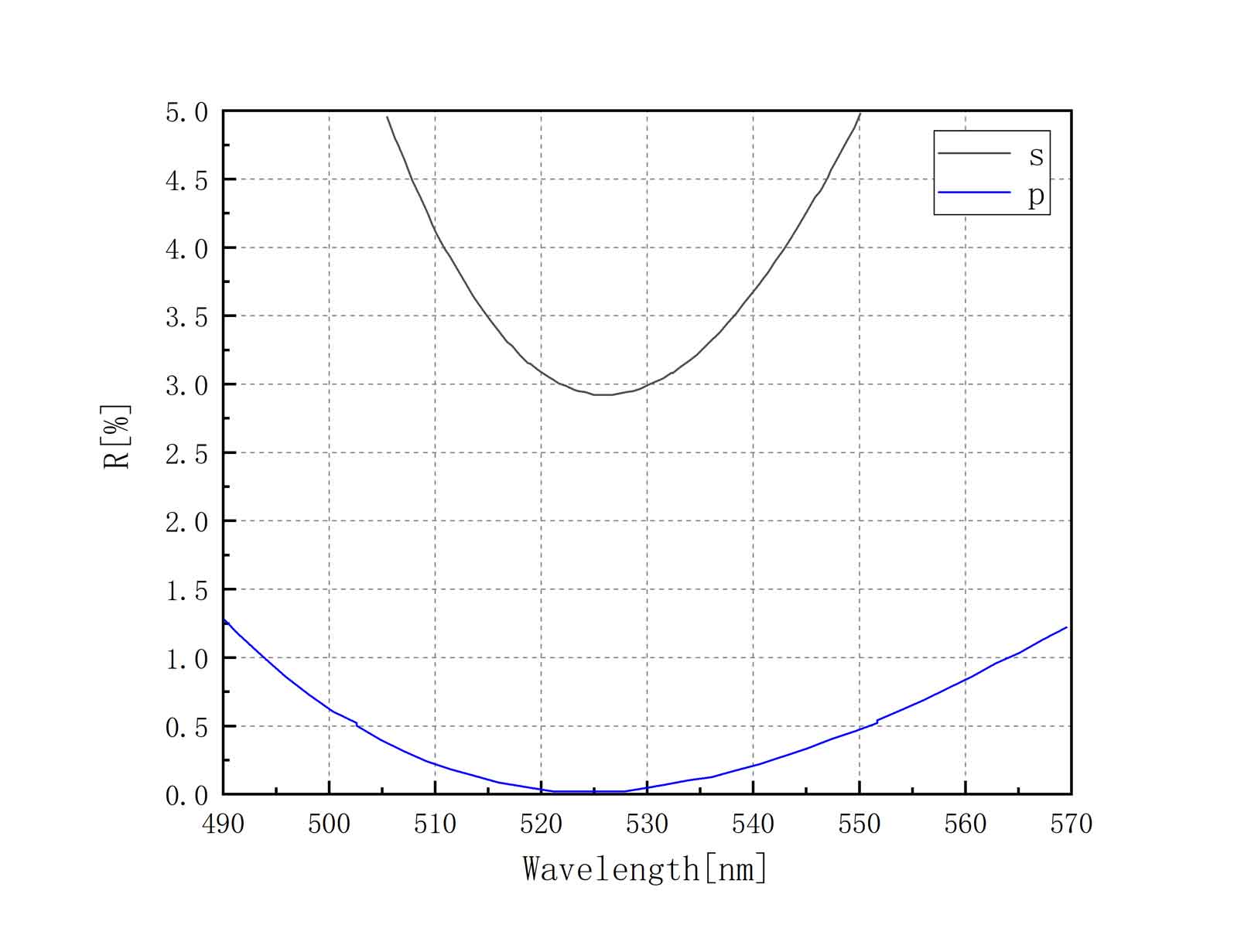

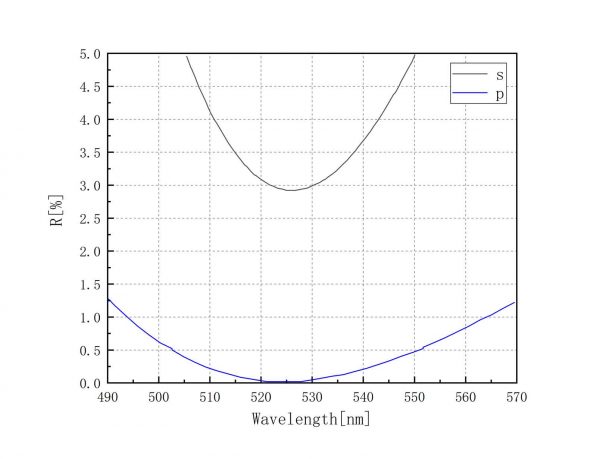

102271-s1-1
s1-1

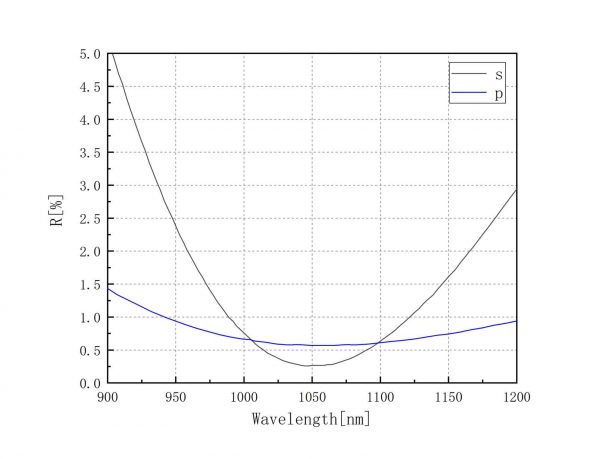

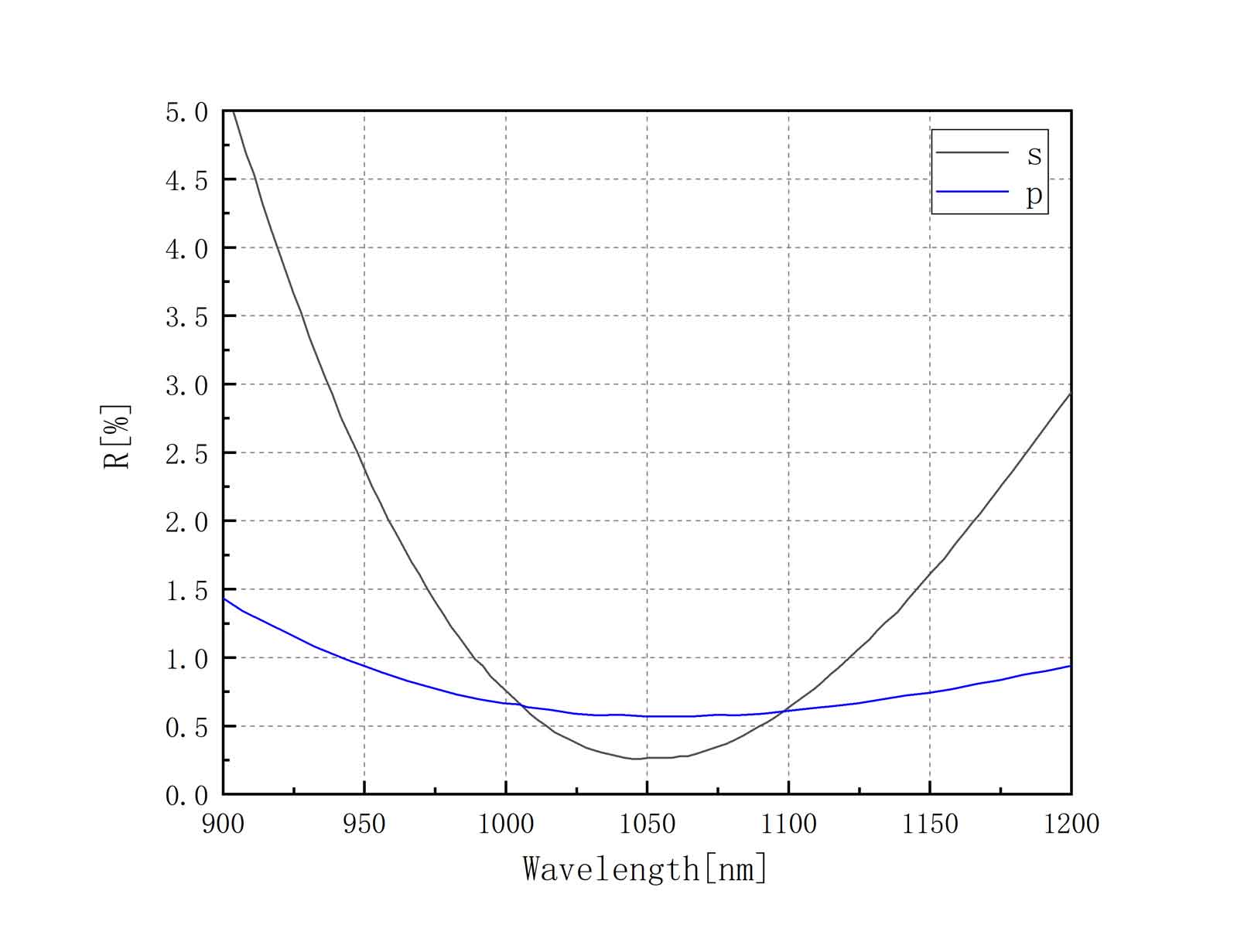

102271-s1-2
s1-2
