Separator 103944

Categories: ,

Description

Material Corning 7980 2F or equal
Geometry ∅=12.7 mm(-0.1mm)
t=6.35 mm(±0.1mm)
Form Front Side  (S2)
plane
Rear Side  (S1)
plane
Coating Front Side   (S2)
HRu(45°,515-532nm)>99.8%
Ru(45°,1030-1064nm)<3%
Rear Side   (S1)
ARu(45°,1030-1064nm)<0.6%
Application cw/ns
Optical element Separator
Combiner
Shape Round
Parallelism
Type Yb:YAG-Laser
Nd:YAG-Laser
Chamfer Front Side  (S2)
0.3mm (±0.1mm)
Rear Side  (S1)
0.3mm (±0.1mm)

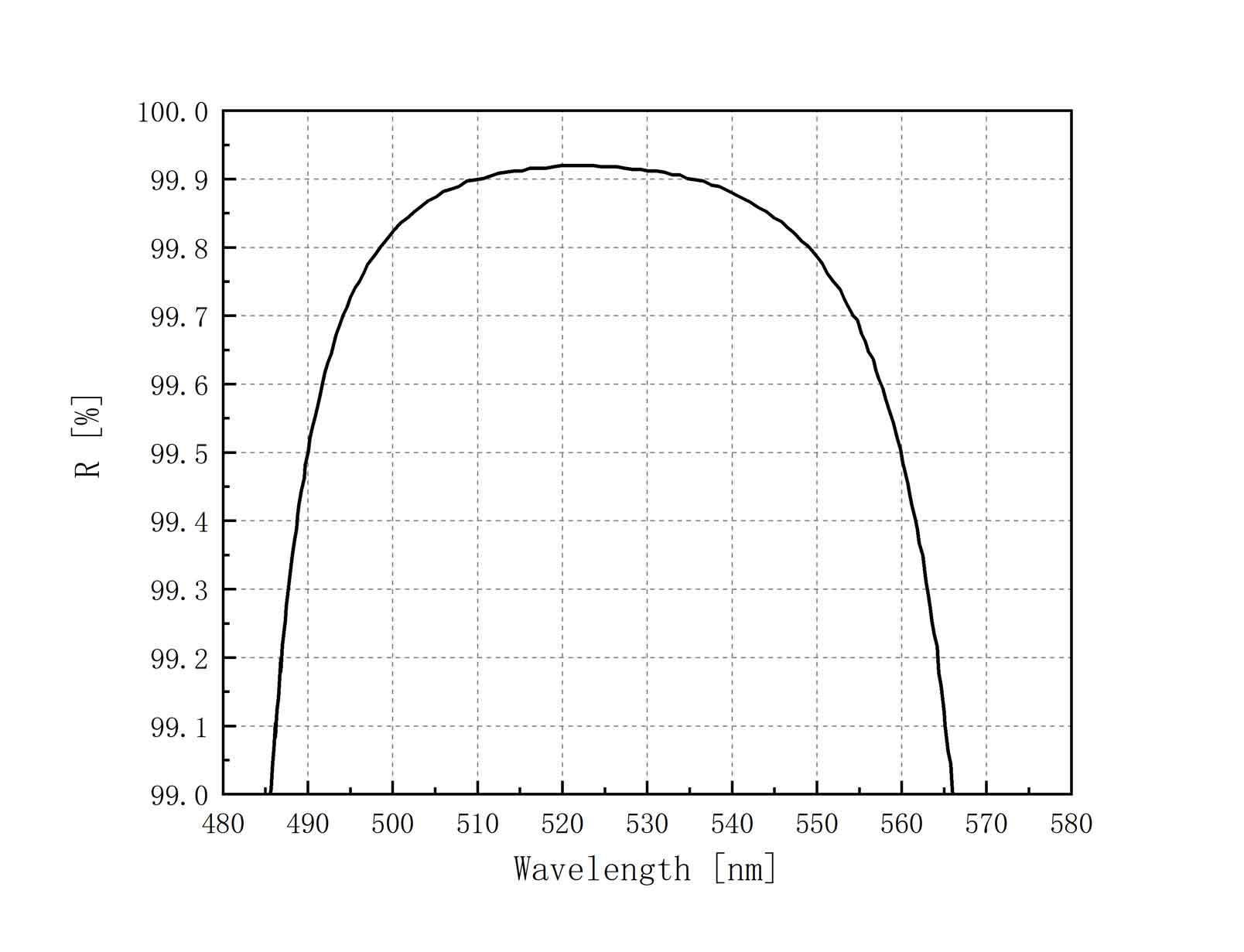

103944-s2-1
s2-1

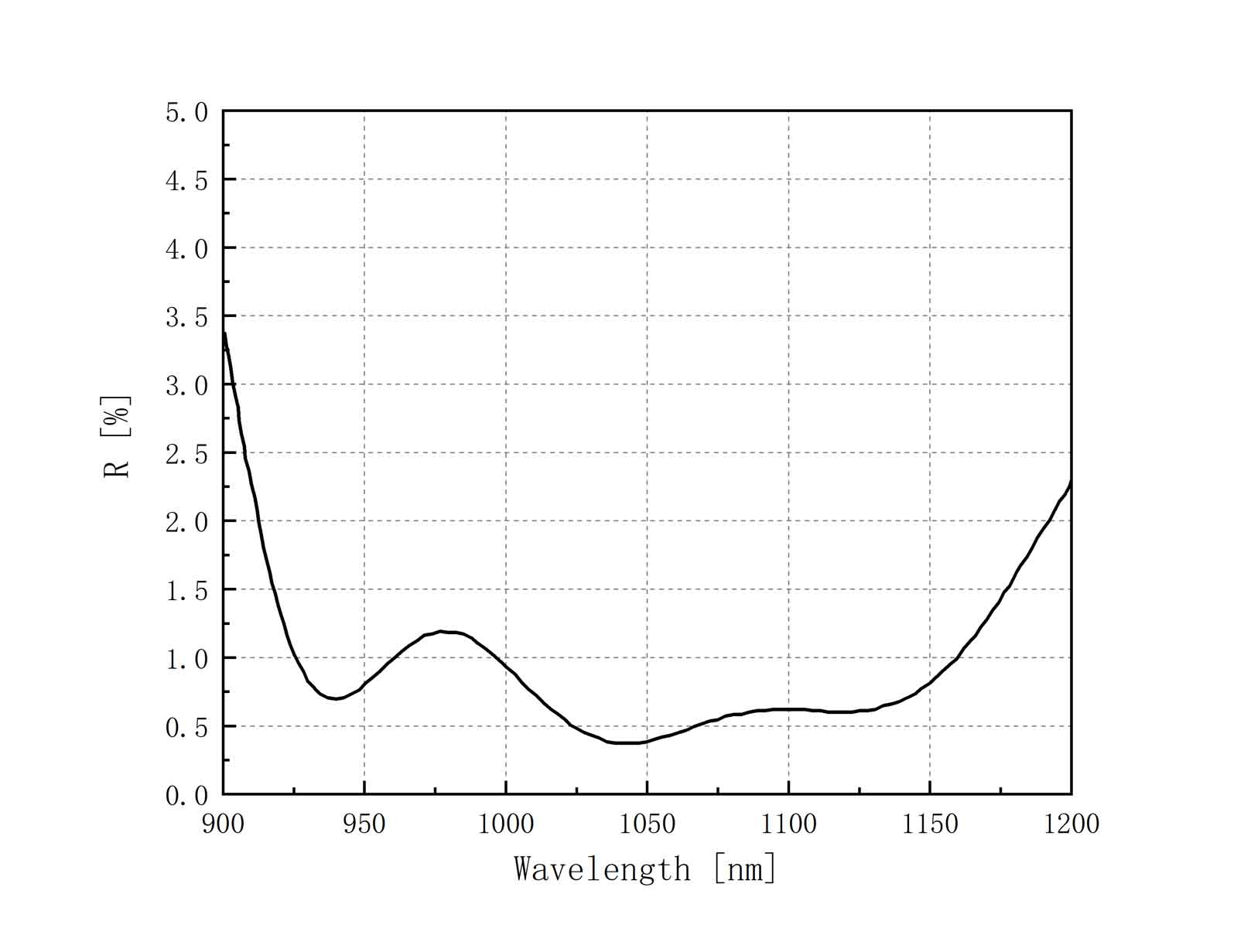

103944-s2-2
s2-2

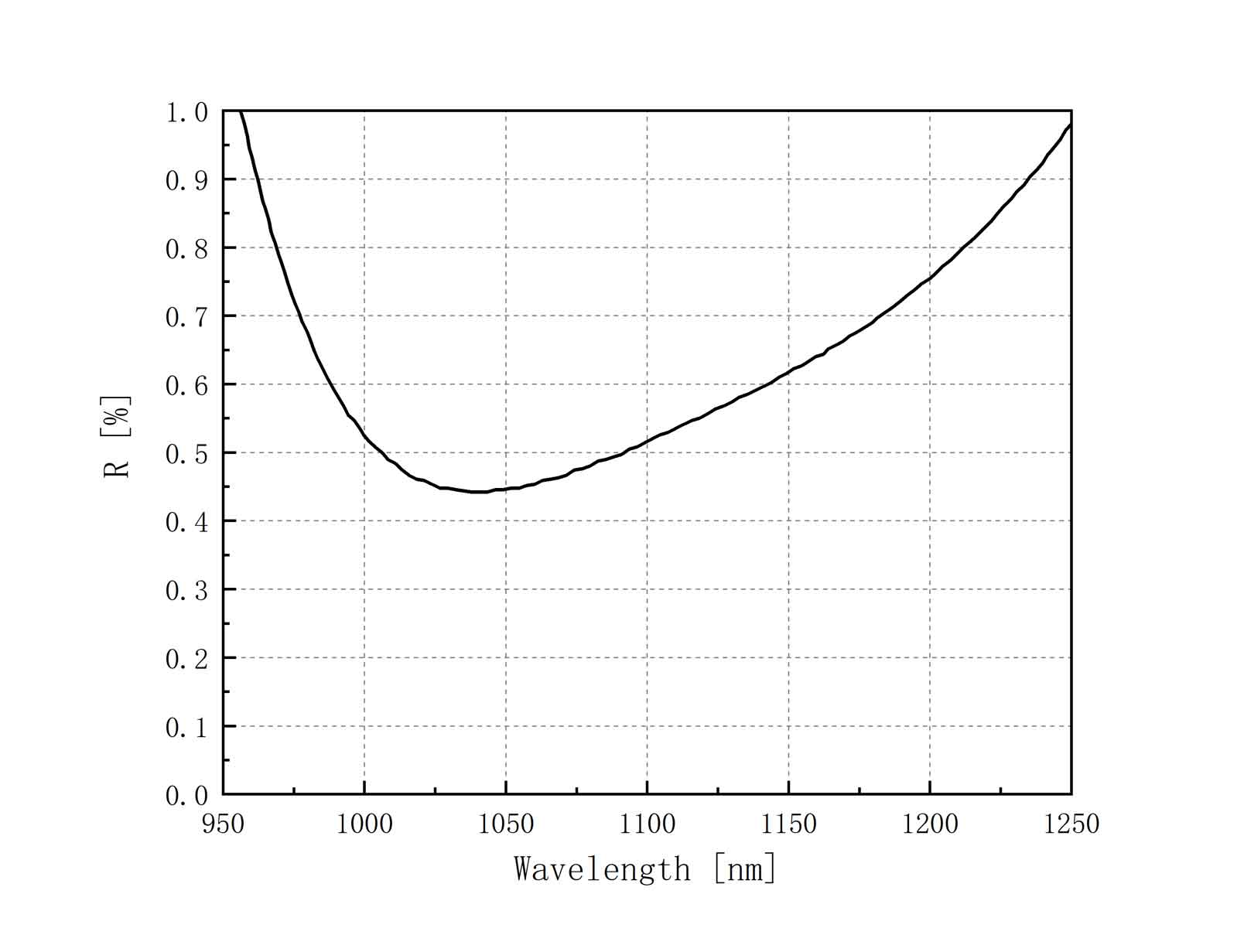

103944-s1
s1
