Separator 104738

Categories: ,

Description

Material Corning 7980 2F or equal
Geometry ∅ =25 mm(-0.1mm)
t=2.3 mm(±0.1mm)
Form Front Side  (S2)
plane
Rear Side  (S1)
plane
Coating Front Side   (S2)

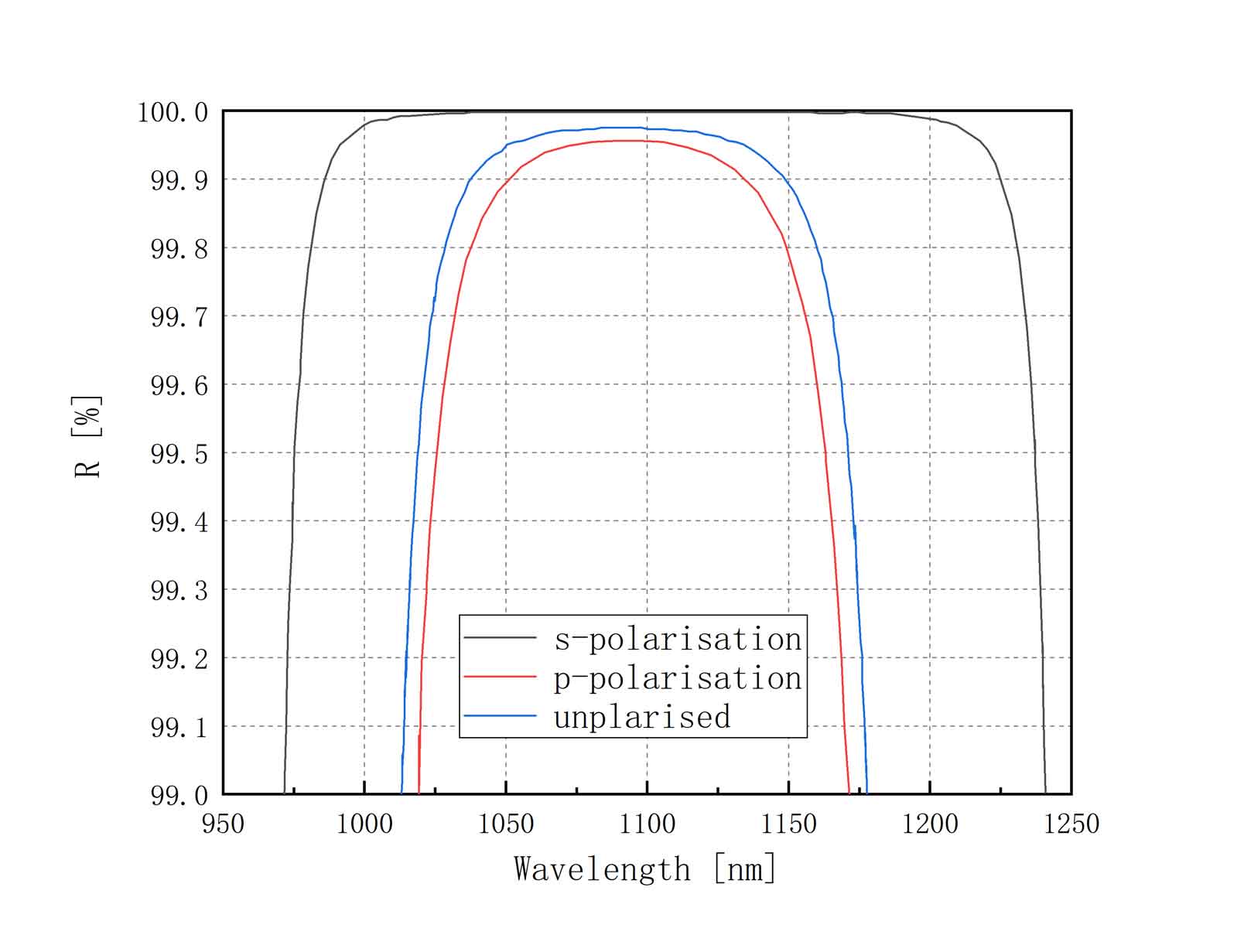

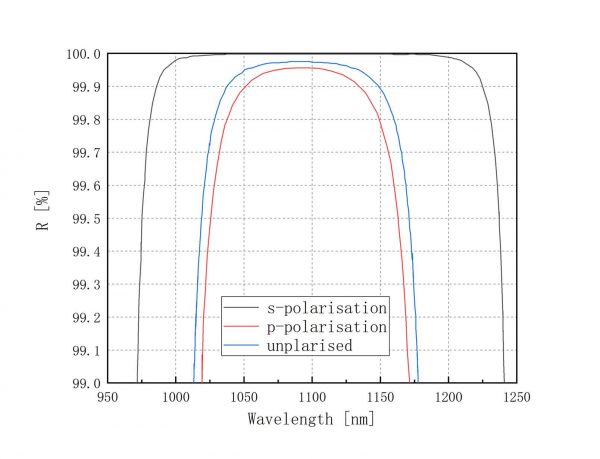

HRu(45°,1064nm)>99.9 %

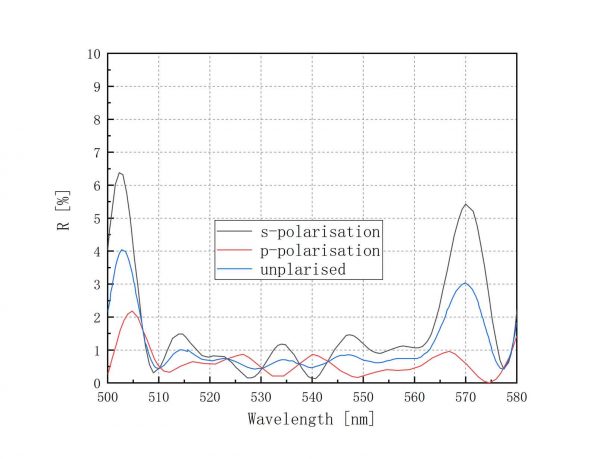

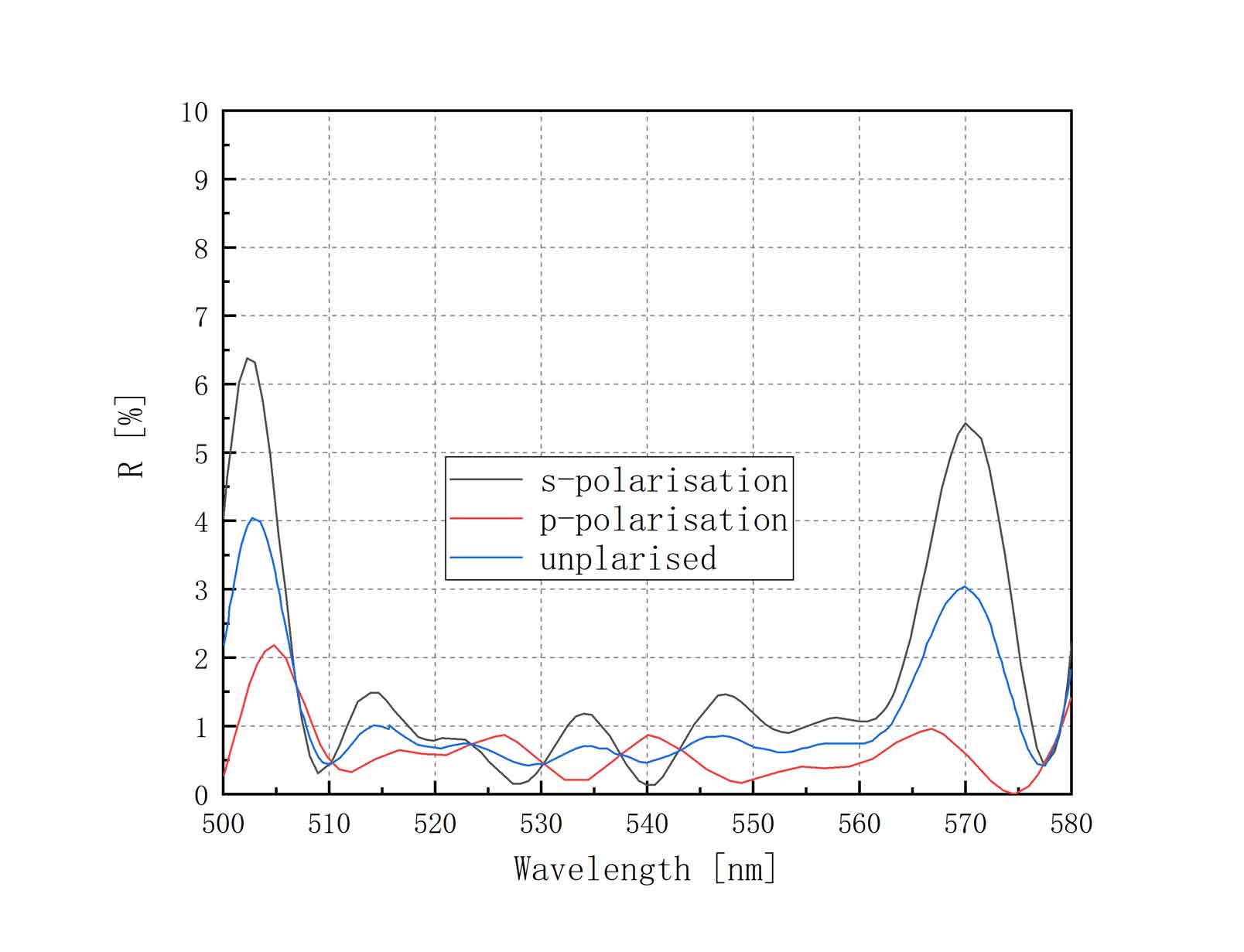

Ru(45°,532nm)<10%

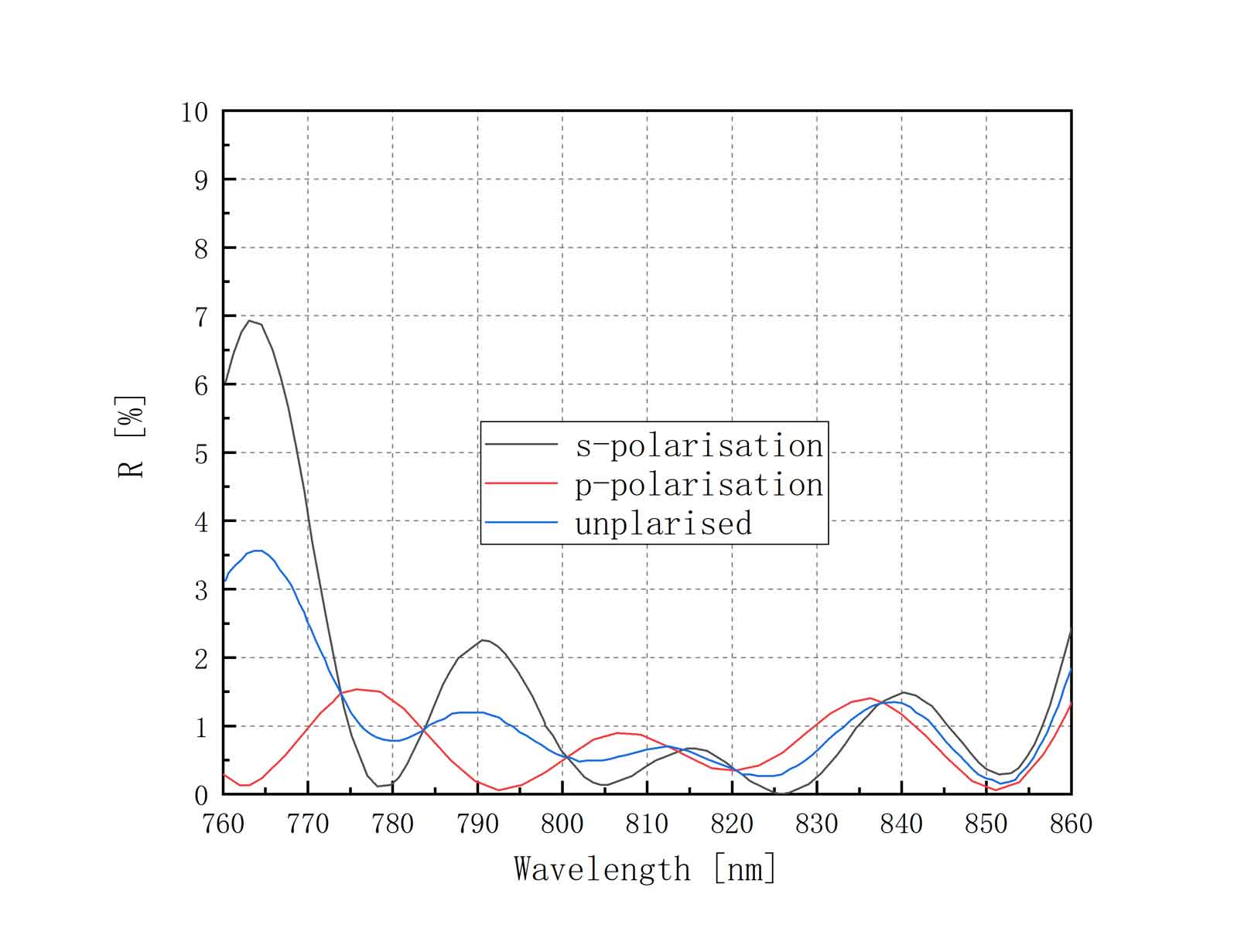

Ru(45°,808nm)<10%
Rear Side   (S1)

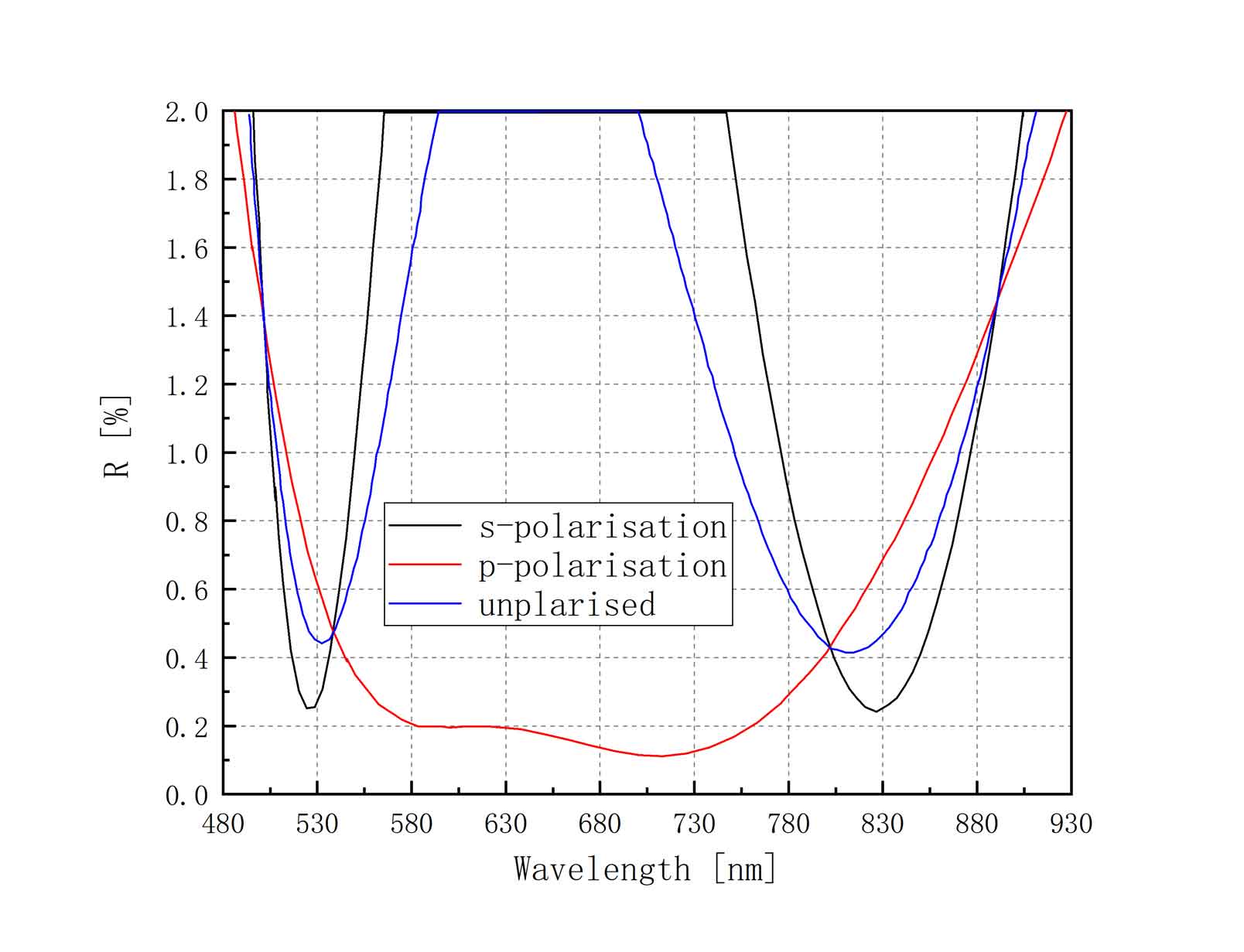

ARu(45°,532nm)<0.6%
ARu(45°,808nm)<0.6%
Application cw/ns
Optical element Separator
Combiner
Shape Round
Parallelism
Type Nd:YAG-Laser
Chamfer Front Side  (S2)
0.2mm (±0.05mm)
Rear Side  (S1)
0.2mm (±0.05mm)
104738-s2-1
s2-1
104738-s2-2
s2-2
104738-s2-3
s2-3
104738-s1
s1
