Separator 108059

Categories: ,

Description

Material Corning 7980 2F or equal
Geometry ∅ = 25 mm  (-0.1 mm)
t = 6.35 mm (±0.1 mm)
Form Front Side  (S2)
plane
Rear Side  (S1)
plane
Coating Front Side   (S2)
HRp(45°,355nm)>99%
Rs(45°,532nm)<3%
Rp(45°,1064nm)<2%
Rear Side   (S1)
ARs(45°,532nm)<0.5%
ARp(45°,1064nm)<0.5%
Application ns
Optical element Separator
Combiner
Shape Round
Parallelism
Type Nd:YAG-Laser
Chamfer Front Side  (S2)
0.3 mm (±0.1 mm)
Rear Side  (S1)
0.3 mm (±0.1 mm)
PDFdownload

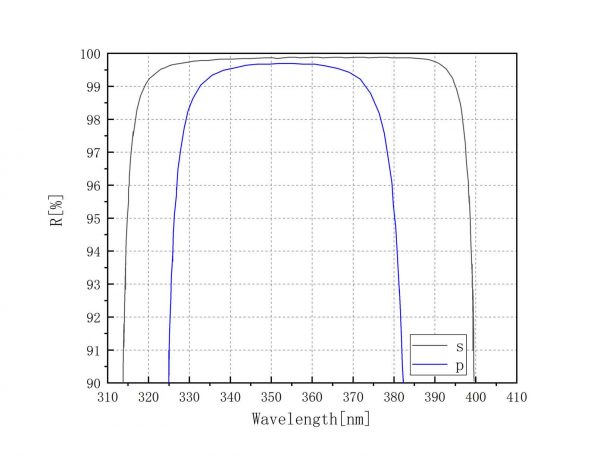

108059-s2-1
s2-1

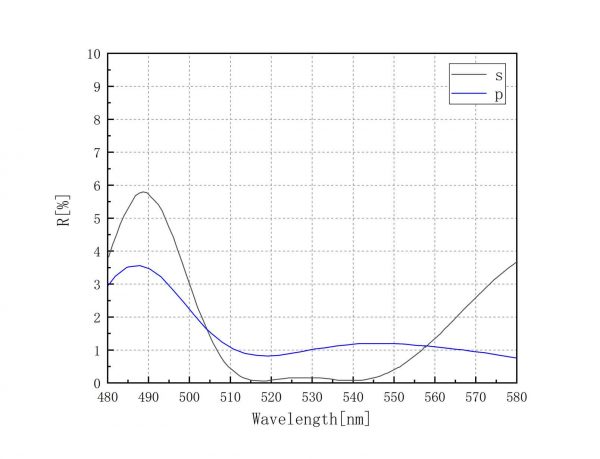

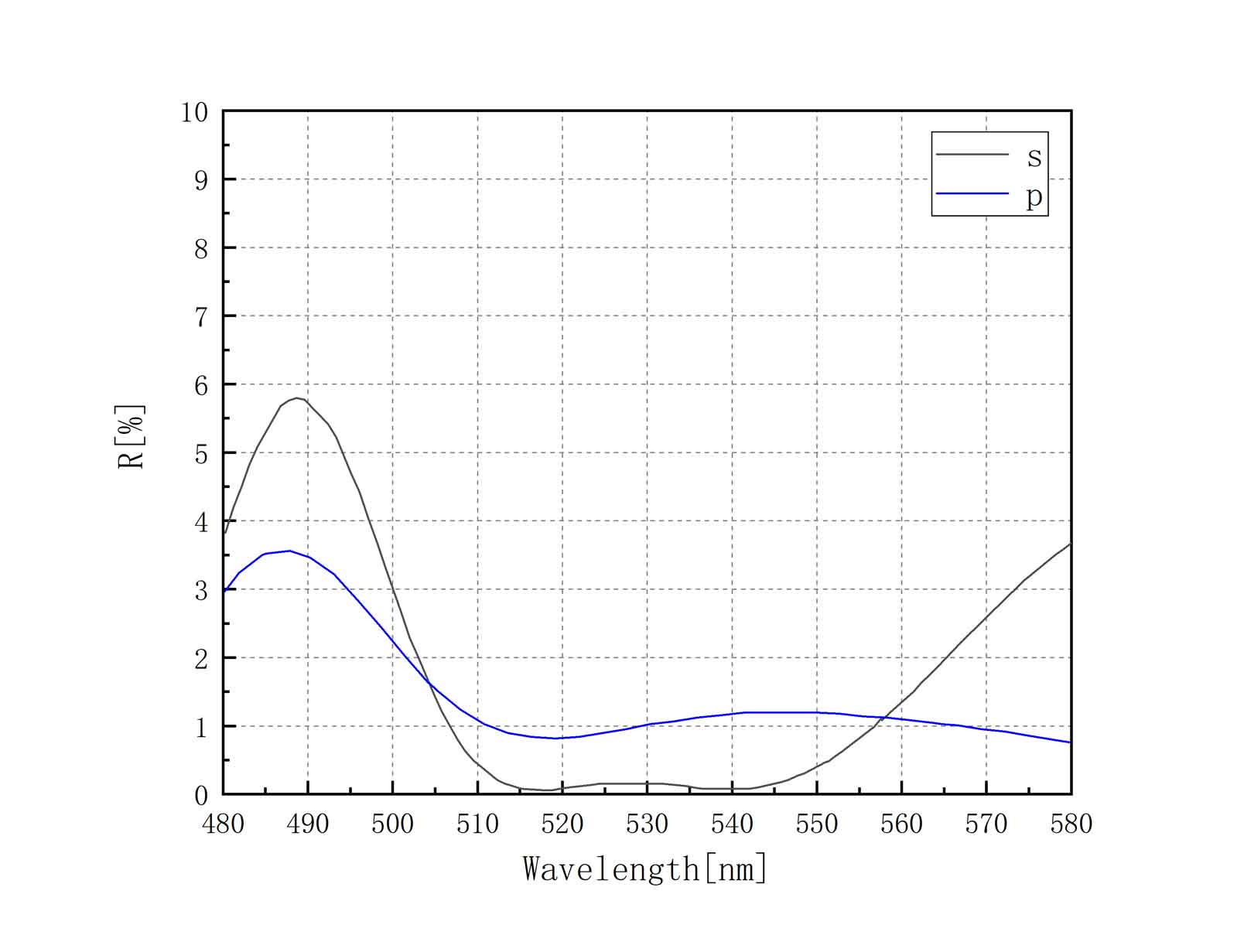

108059-s2-2
s2-2

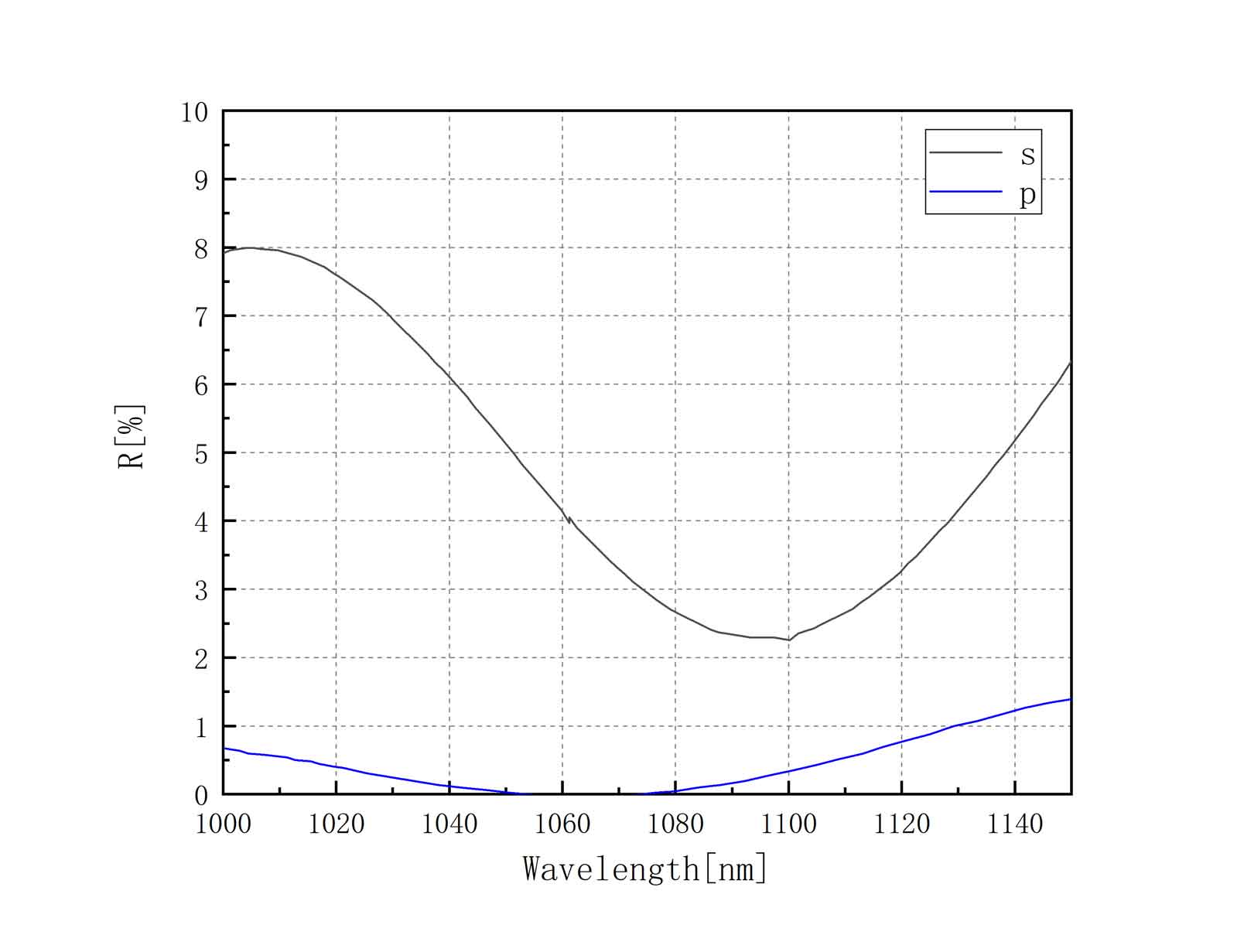

108059-s2-3
s2-3

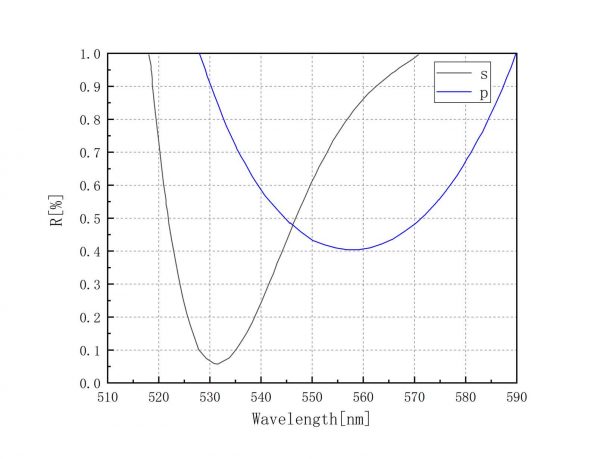

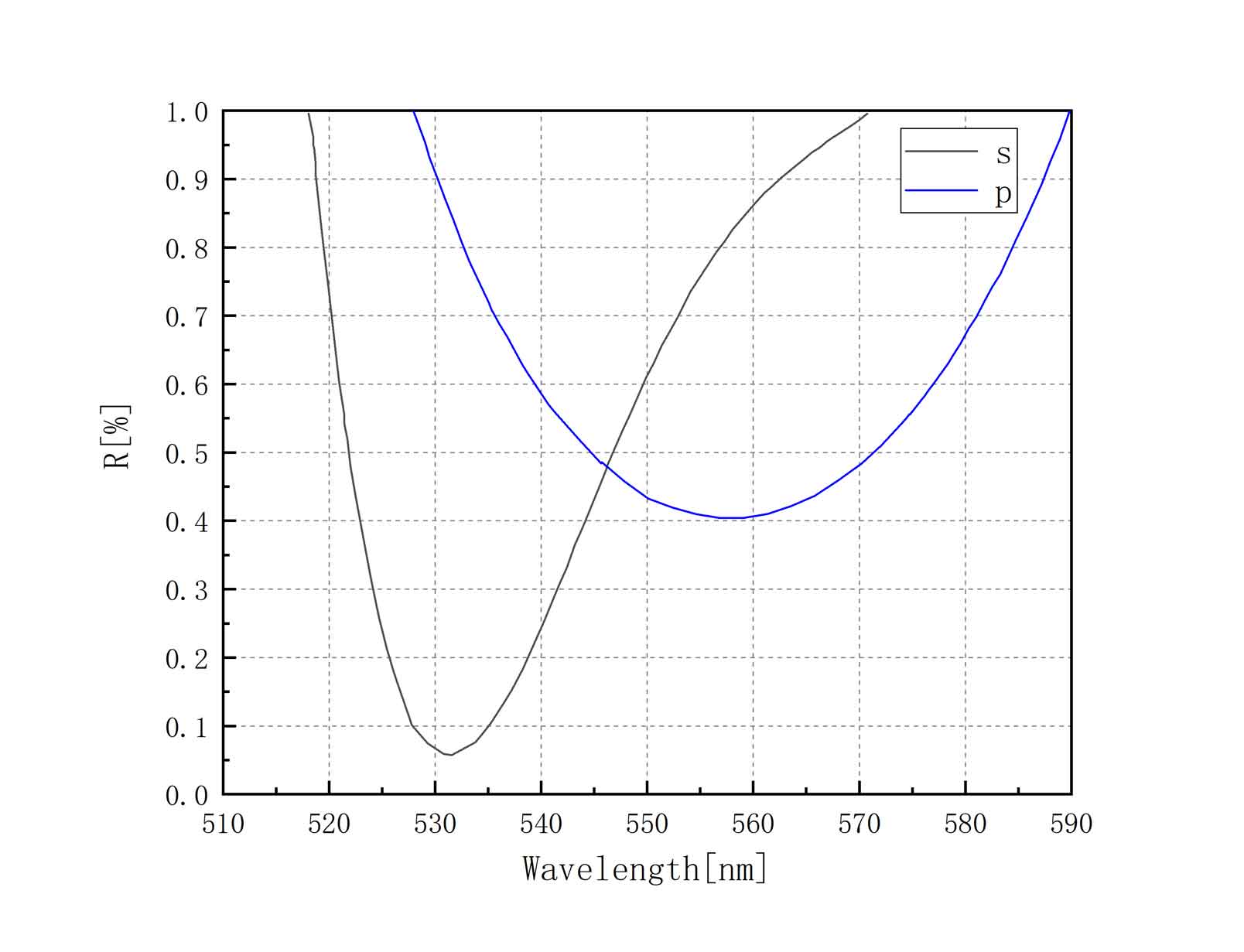

108059-s1-1
s1-1

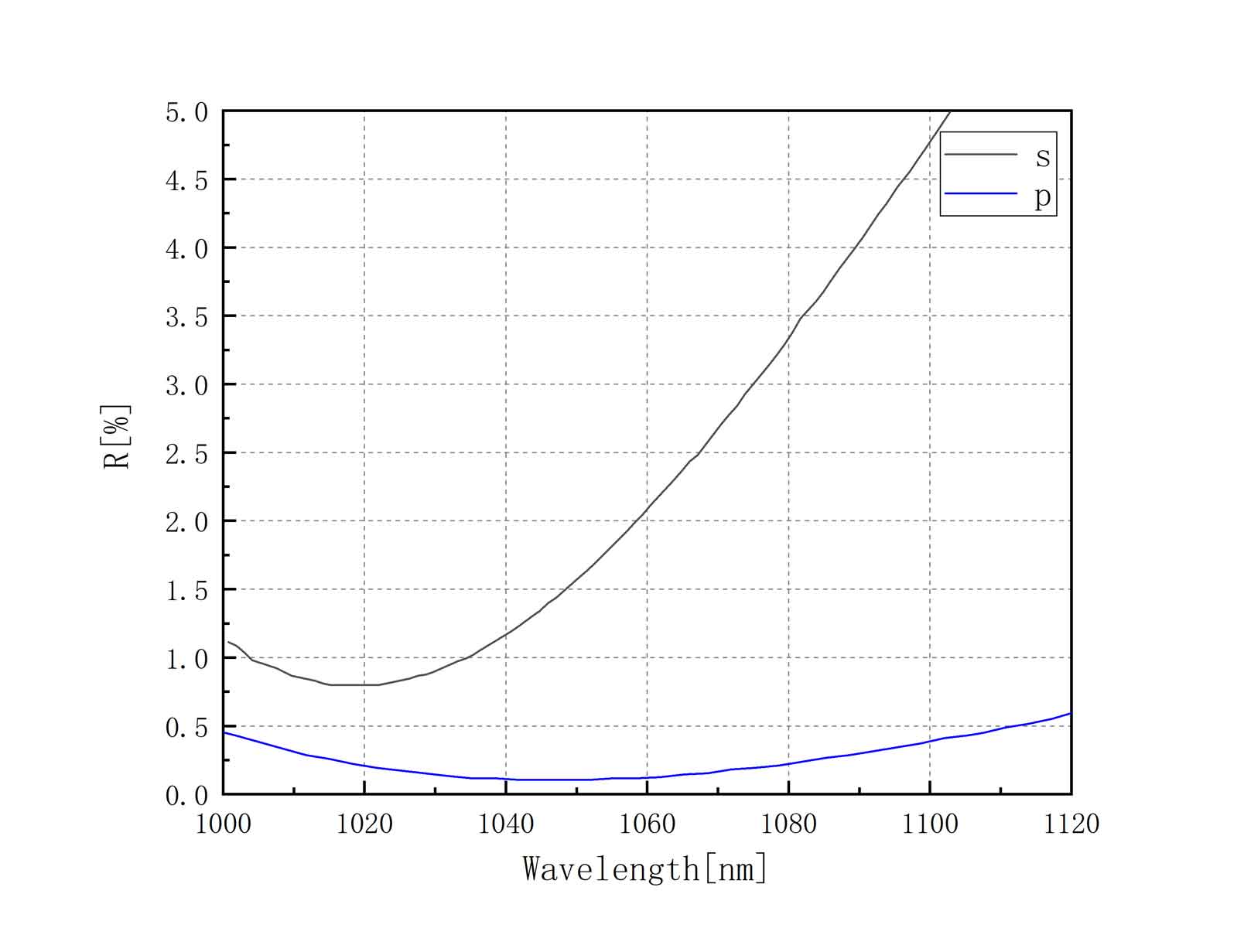

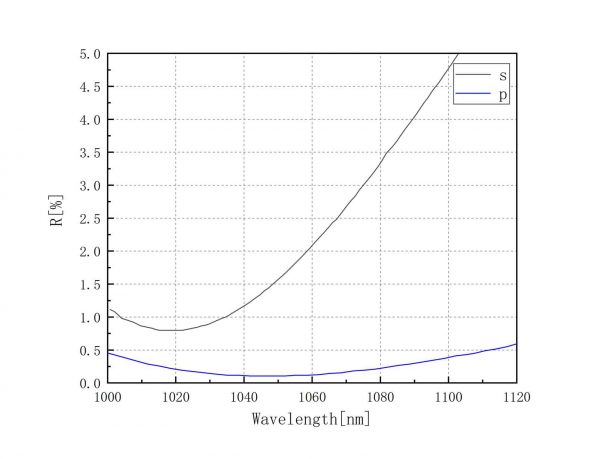

108059-s1-2
s1-2
