Description
| Material | Corning 7980 2F or equal |
| Geometry | ∅ =25 mm (-0.1 mm) t=6.35 mm(±0.1 mm) |
| Form | Front Side (S2) plane Rear Side (S1) plane |

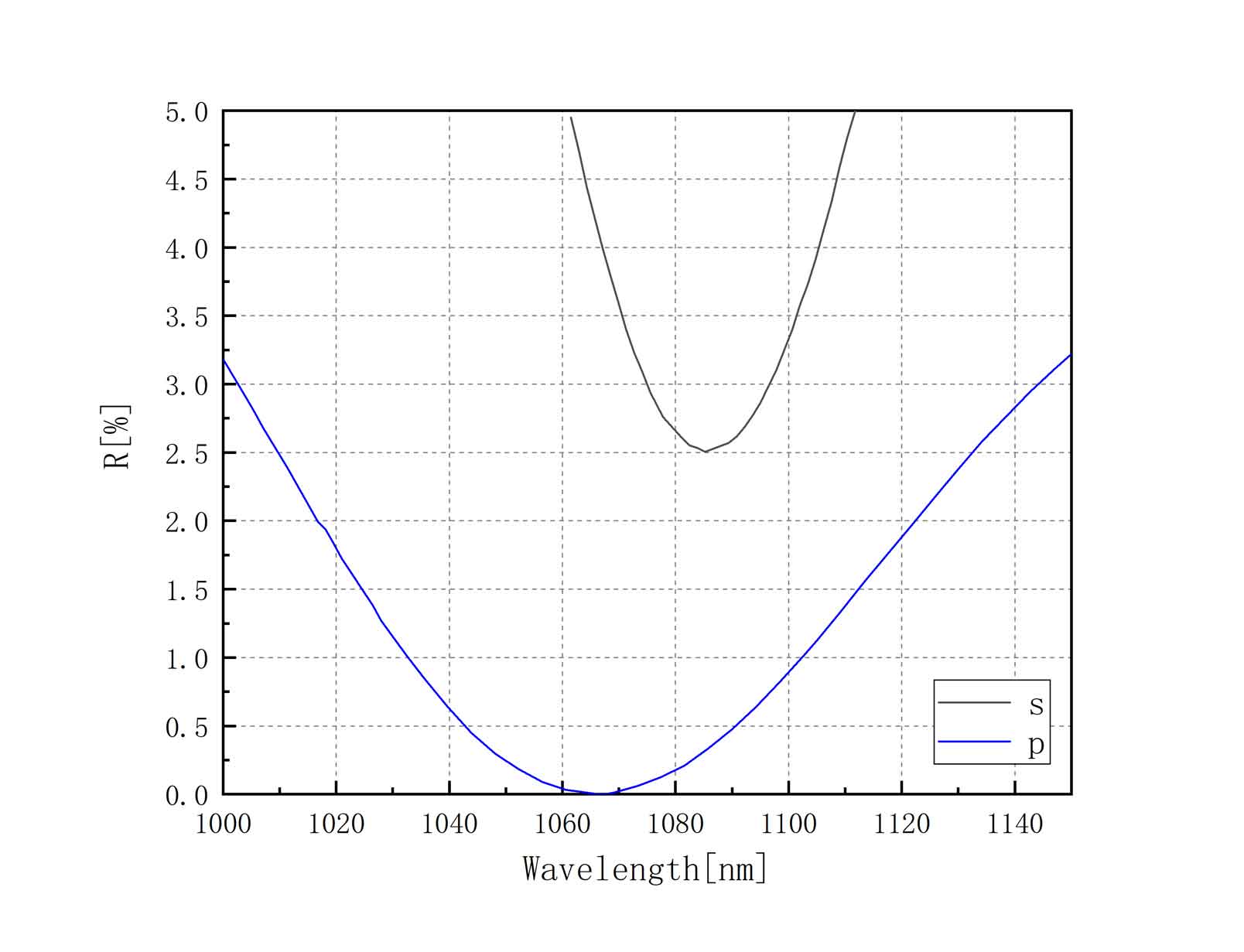

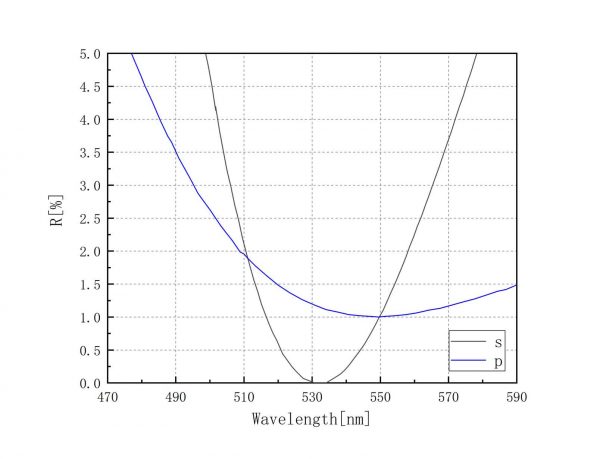

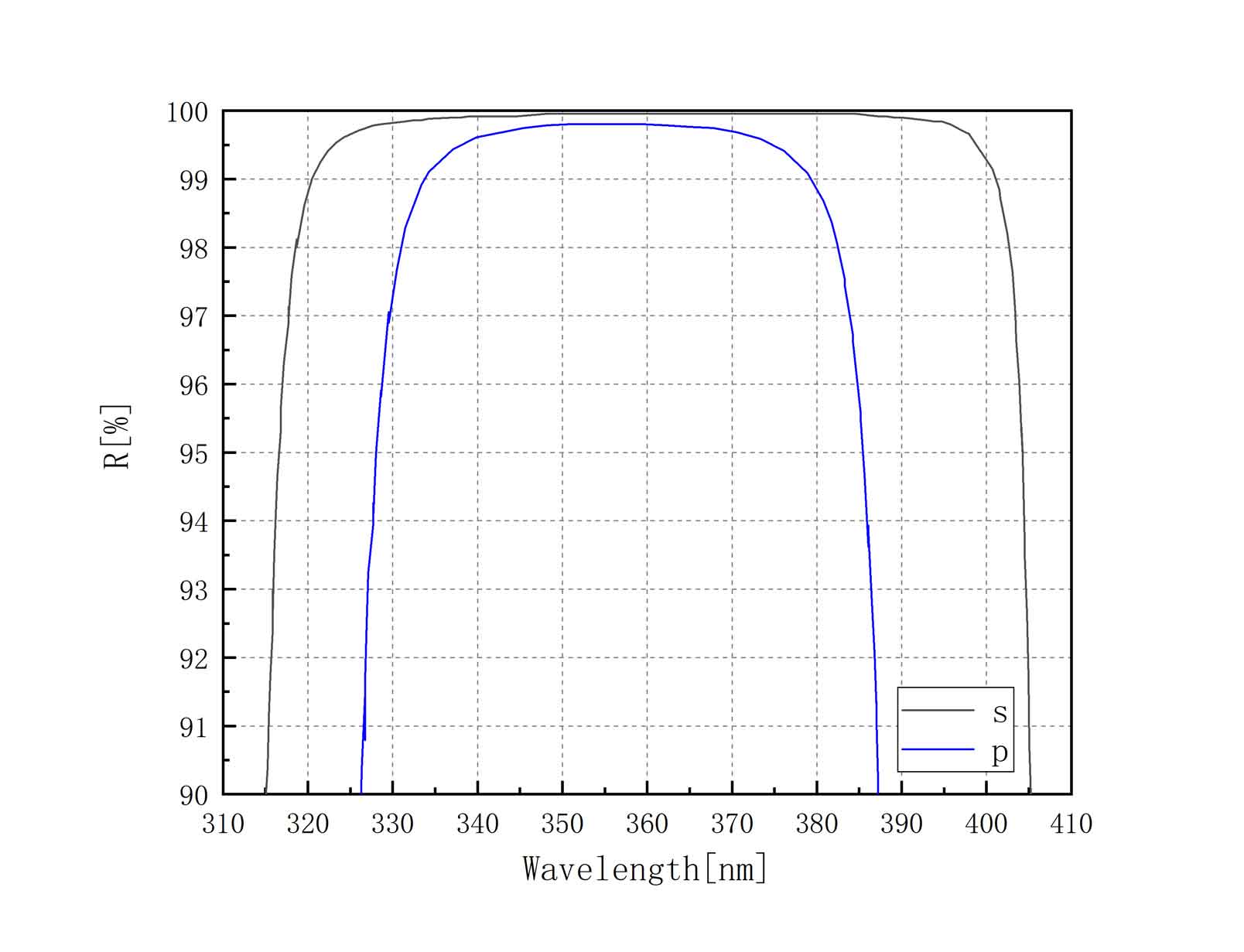

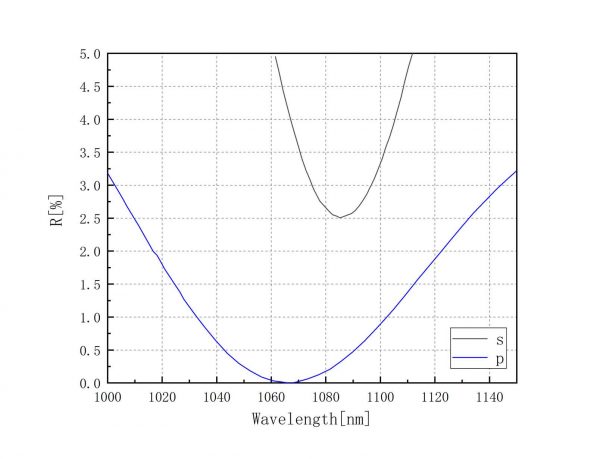

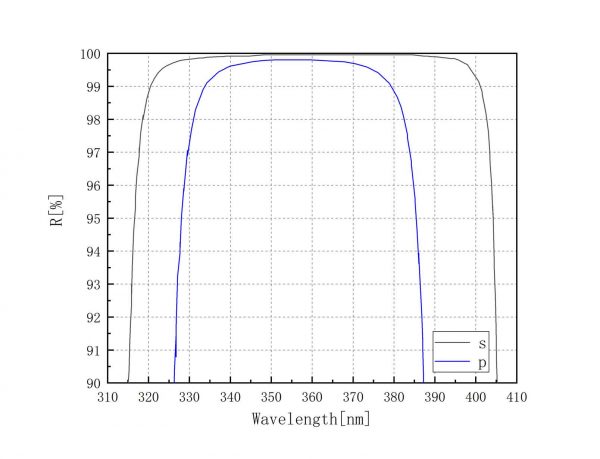

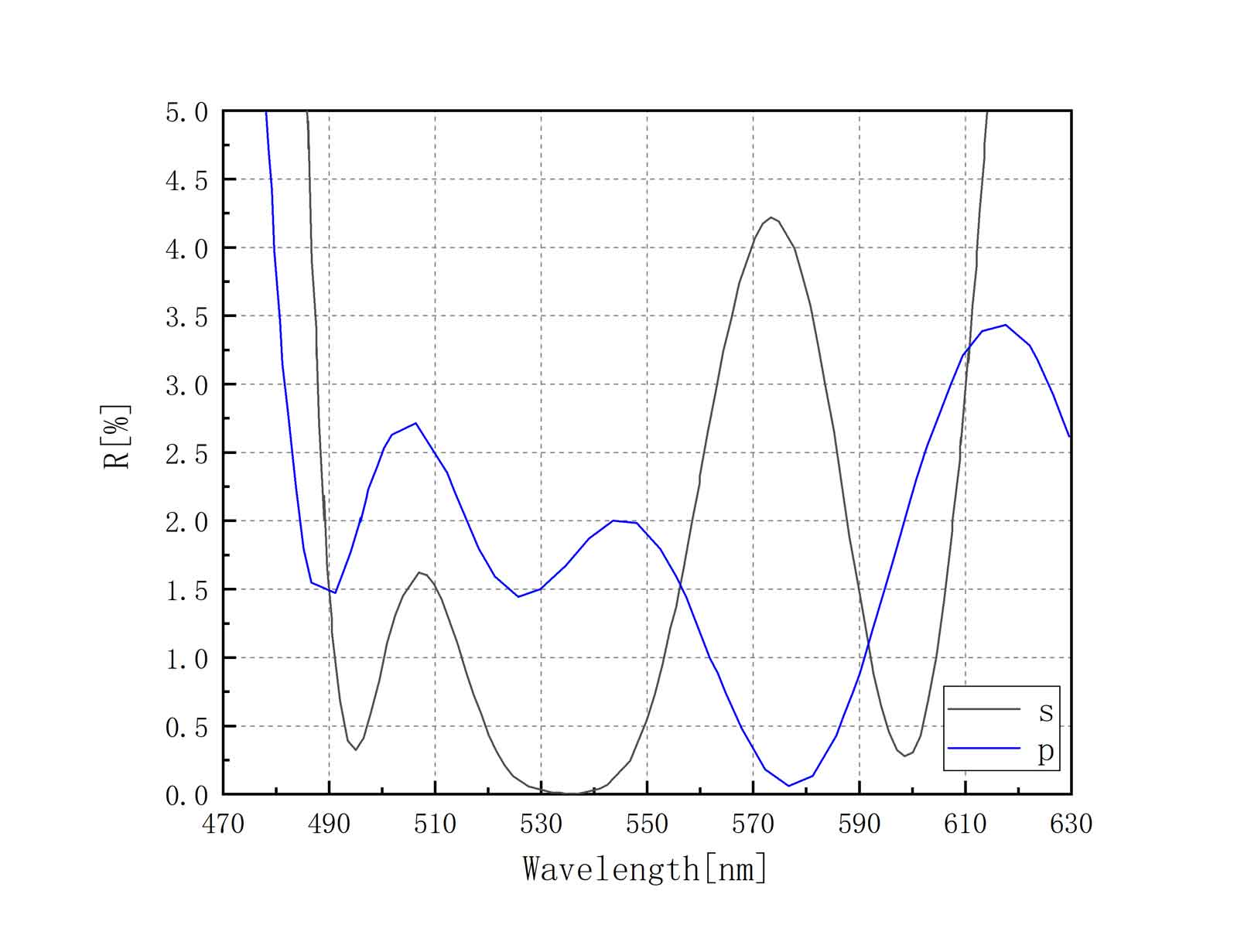

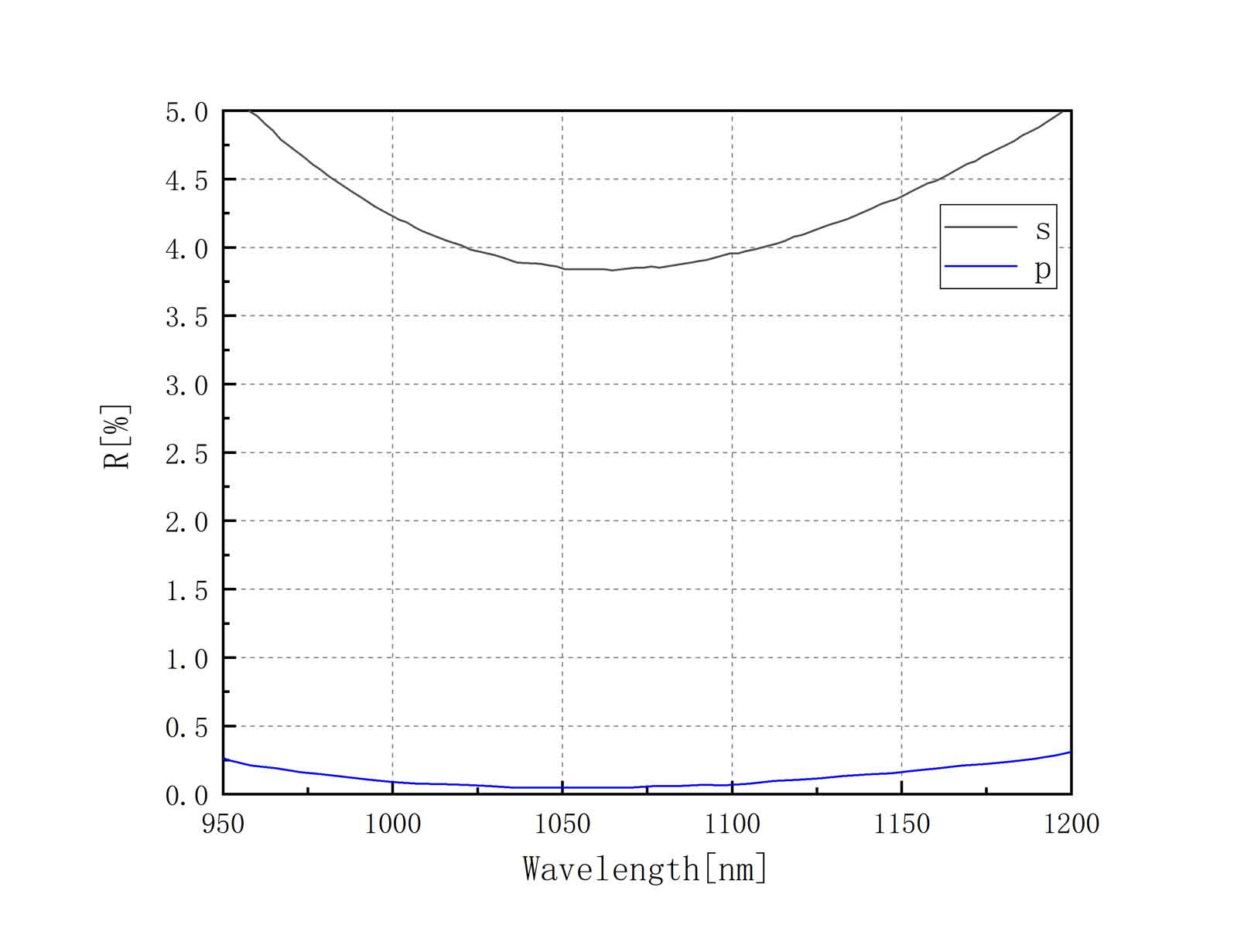

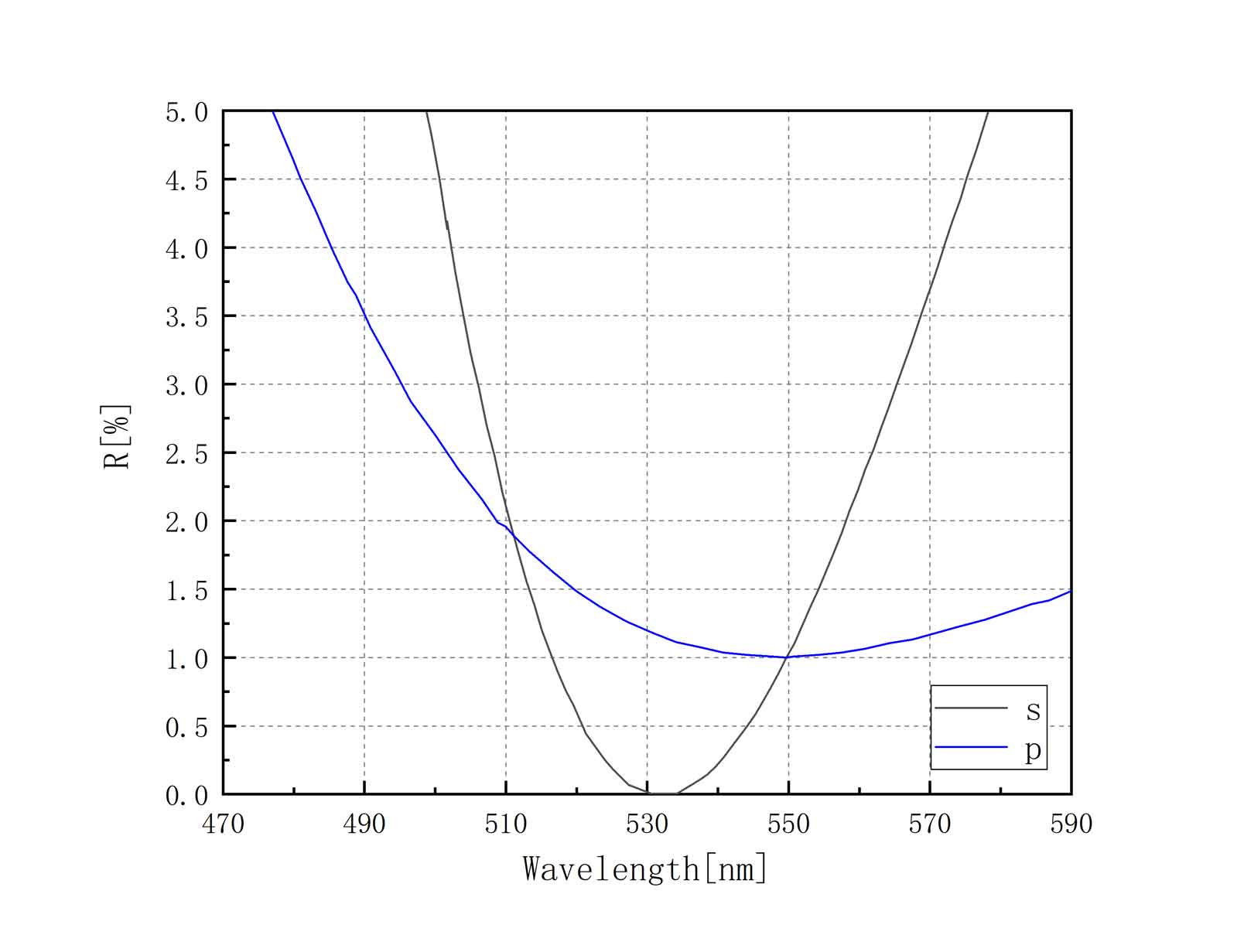

| Coating | Front Side (S2) HRp(45°,355nm)> 99.5% Rs(45°,532nm)<5% Rp(45°,1064nm)<5% Rear Side (S1) ARs(45°,532nm)<0.5% ARp(45°,1064nm)<0.5% |
| Application | cw/ns |
| Optical element | Separator Combiner |
| Shape | Round |
| Parallelism | 5ʹ |
| Type | Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.3 mm (±0.1 mm) Rear Side (S1) 0.3 mm (±0.1 mm) |
