Separator 109817

Categories: ,

Description

Material Corning 7980 2F or equal
Geometry ∅=12.7 mm(-0.1 mm)
t=6.35 mm(±0.1 mm)
Form Front Side  (S2)
plane
Rear Side  (S1)
plane
Coating Front Side   (S2)
HRp(45°,355nm)> 99.5%
Rs(45°,532nm)<5%
Rp(45°,1064nm)<5%
Rear Side   (S1)
ARs(45°,532nm)<0.5%
ARp(45°,1064nm)<0.5%
Optical element Separator
Combiner
Shape Round
Parallelism
Type Nd:YAG-Laser
Chamfer Front Side  (S2)
0.3 mm (±0.1 mm)
Rear Side  (S1)
0.3 mm (±0.1 mm)

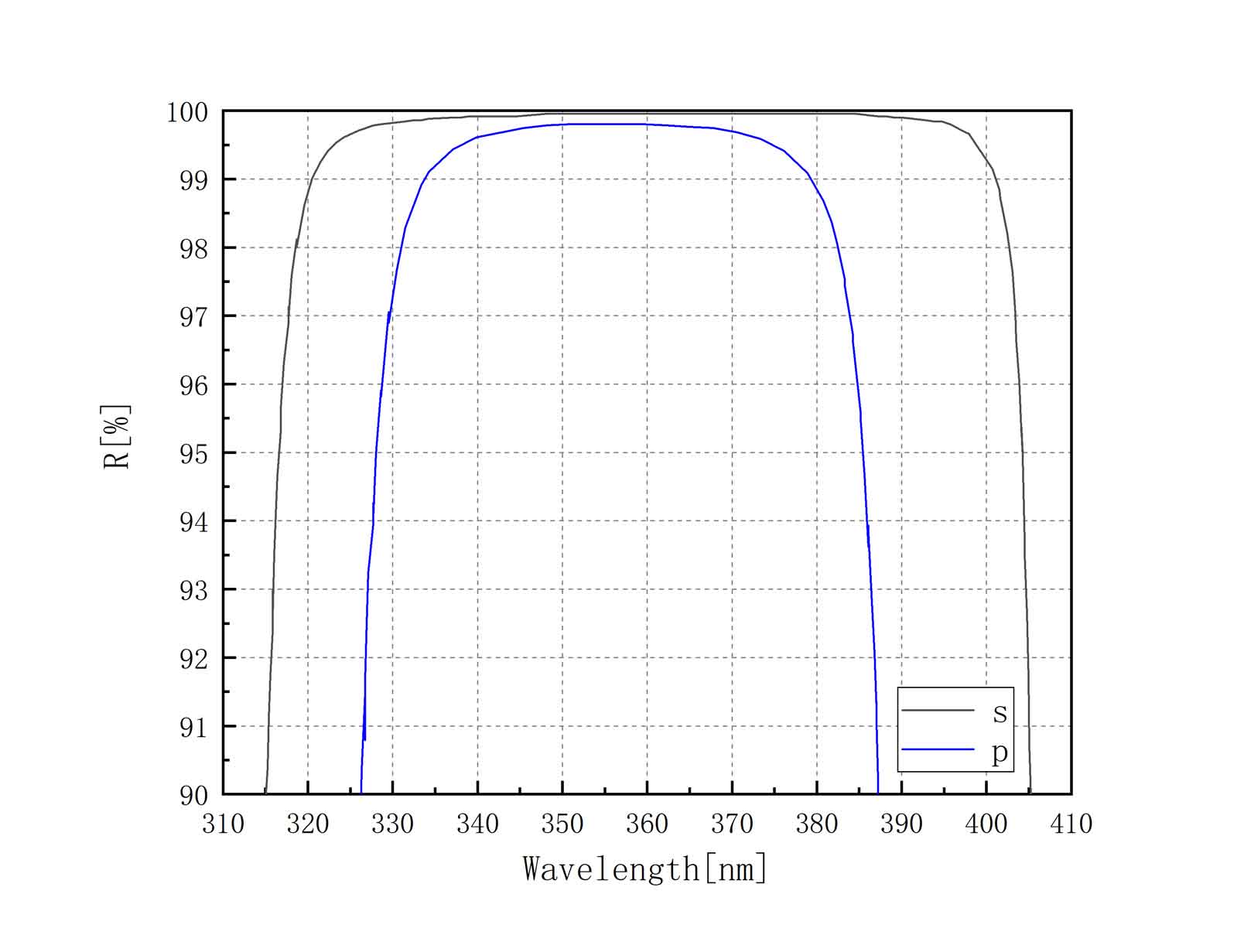

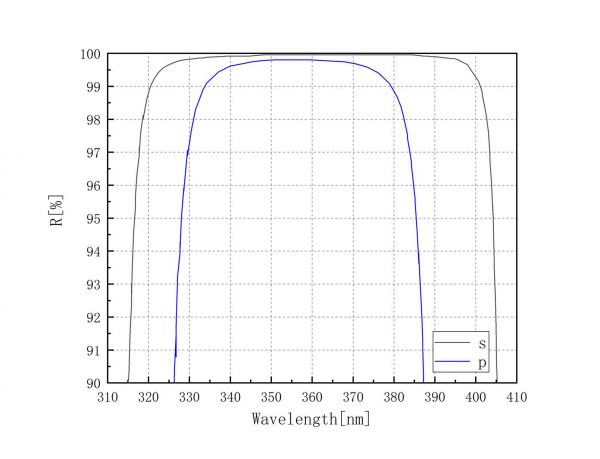

109817-s2-1
s2-1

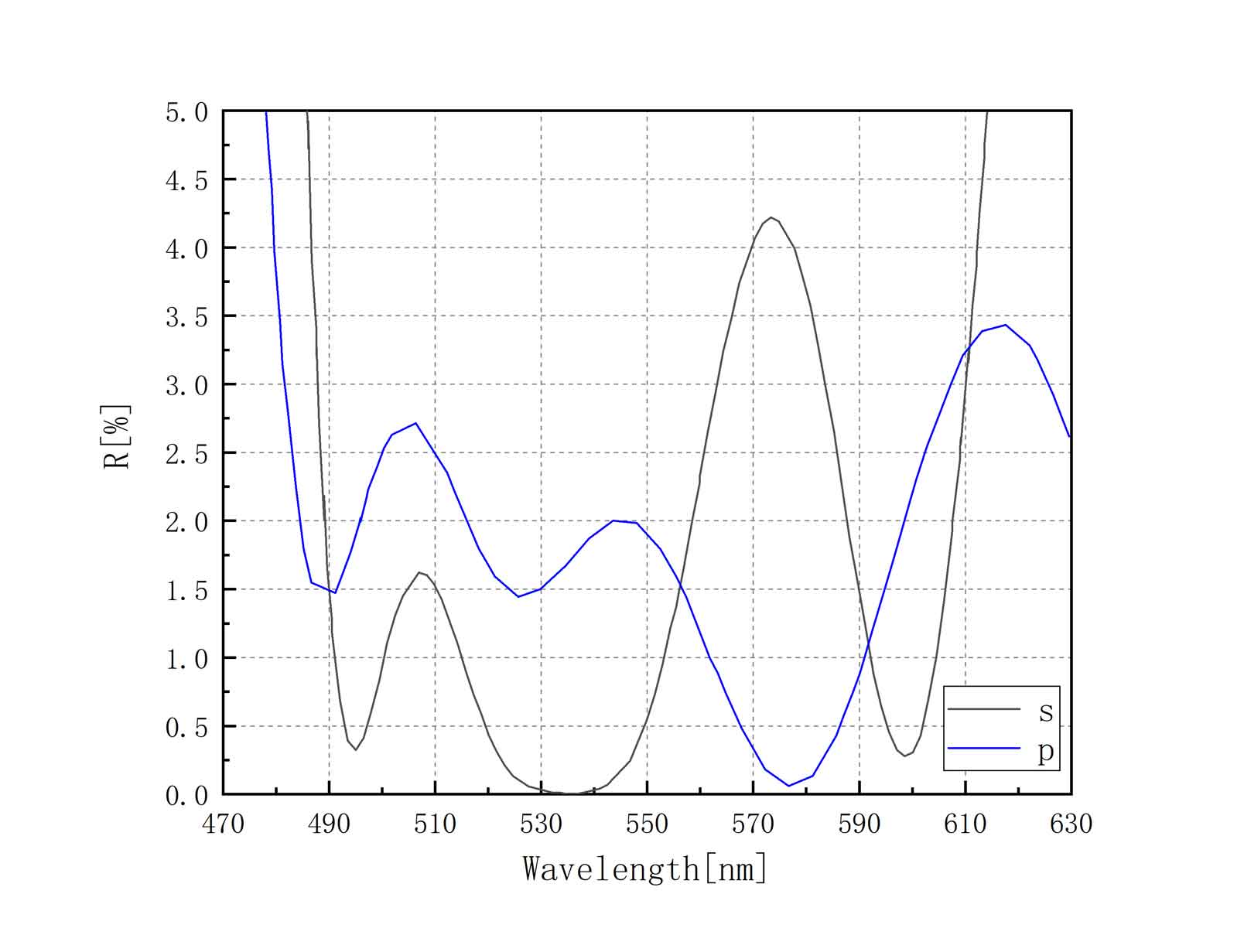

109817-s2-2
s2-2

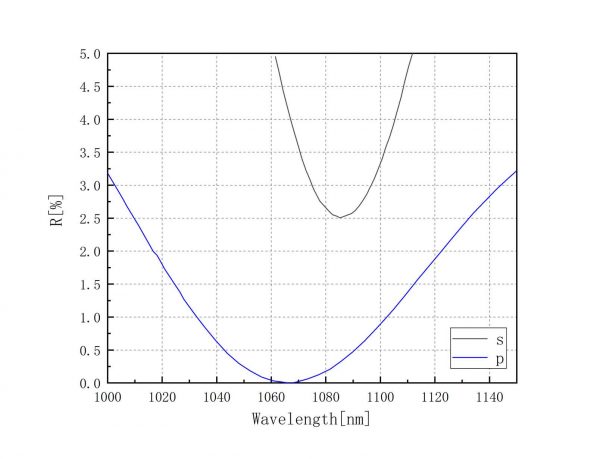

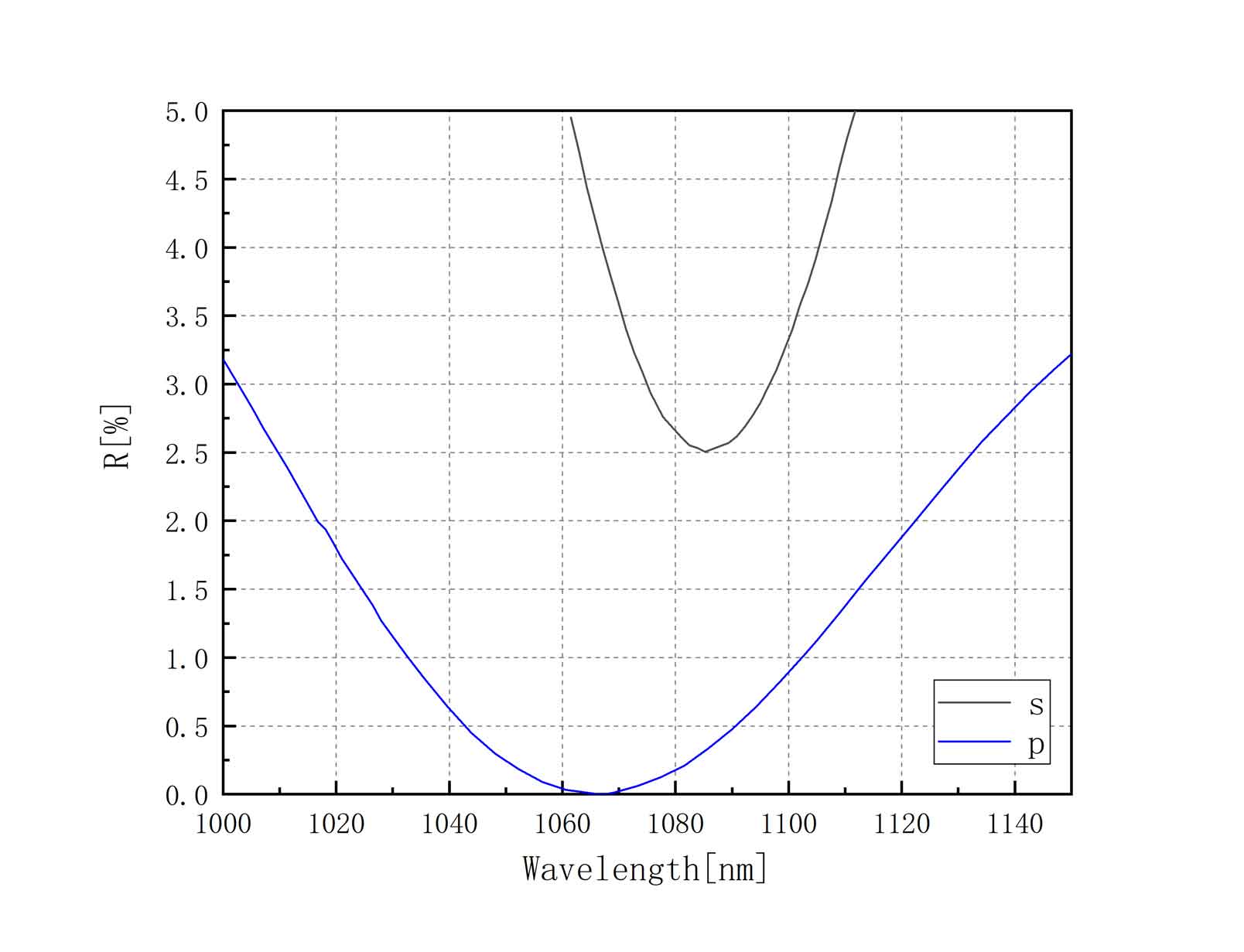

109817-s2-3
s2-3

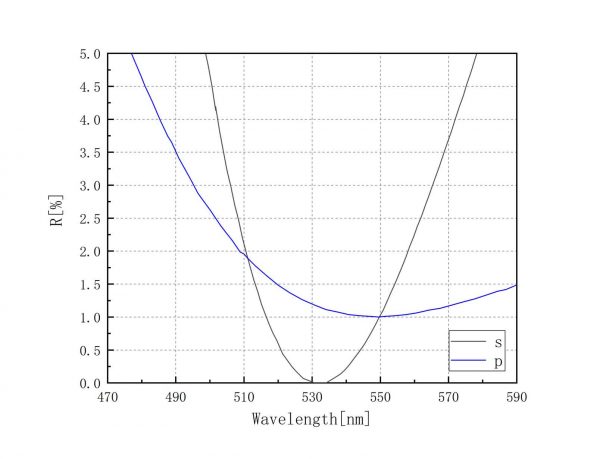

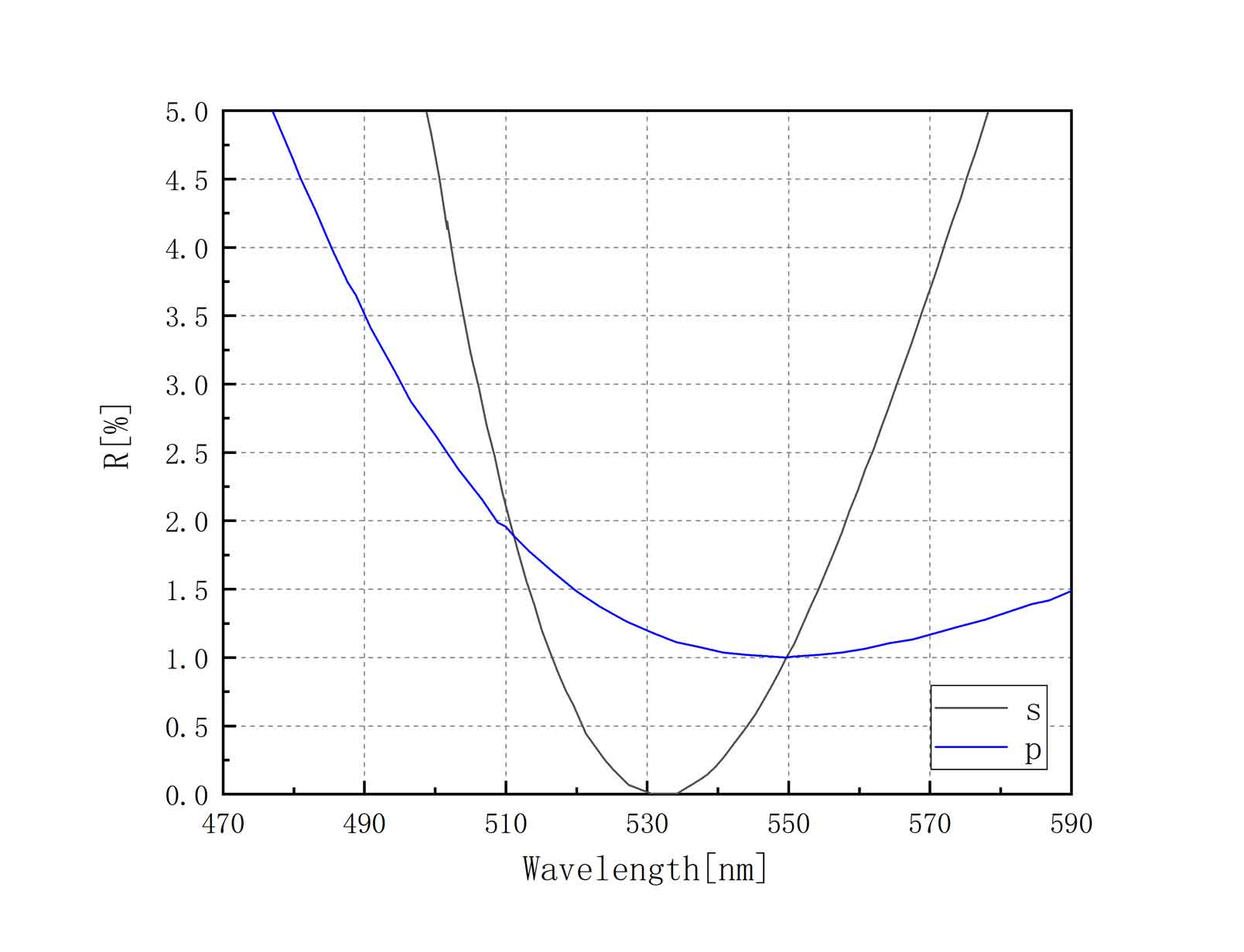

109817-s1-1
s1-1

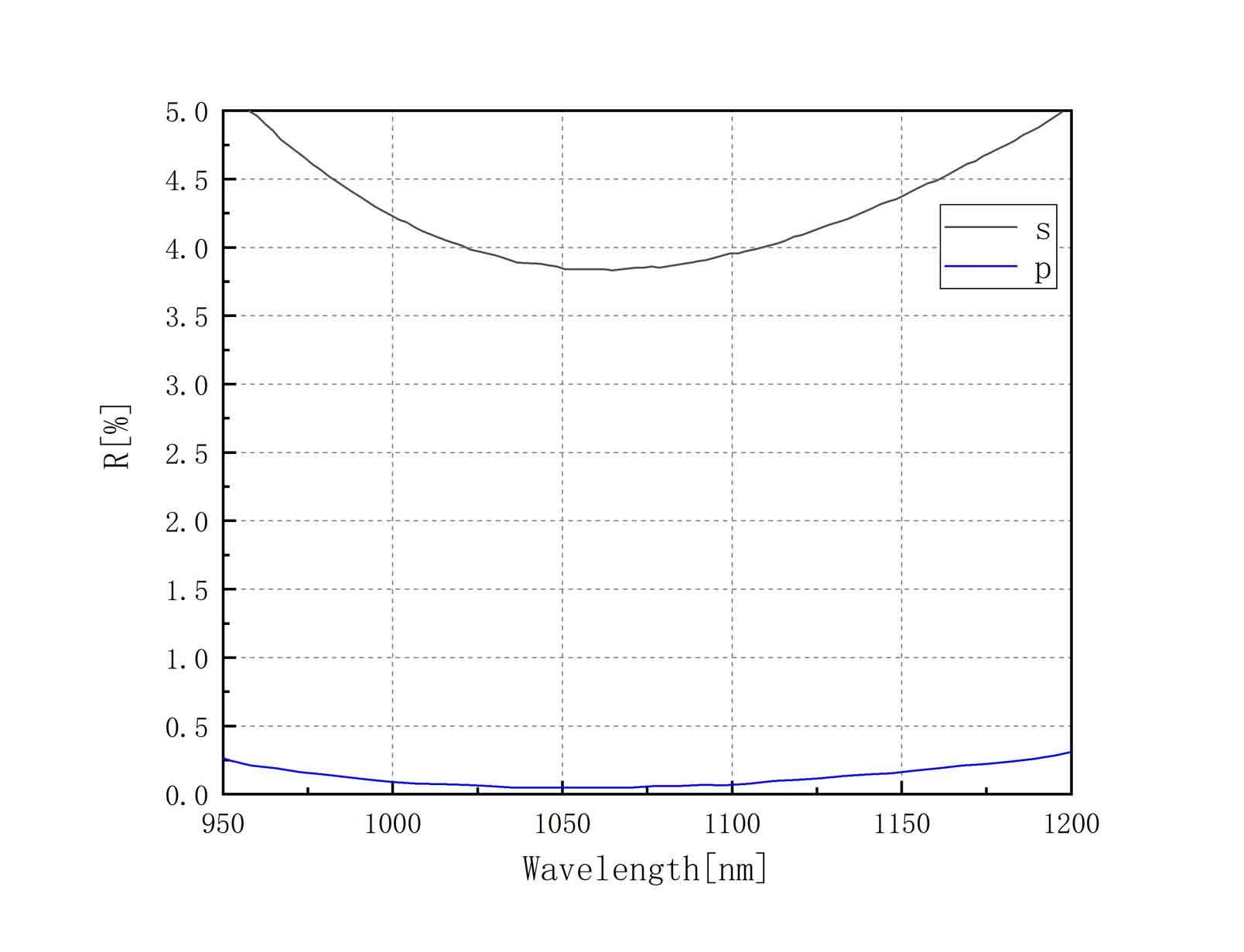

109817-s1-2
s1-2
