Description
Material | Corning 7980 2F or equal |
Geometry | ∅=25 mm (-0.1 mm) t=6.35 mm(±0.1 mm) |
Form | Front Side (S2) plane Rear Side (S1) plane |

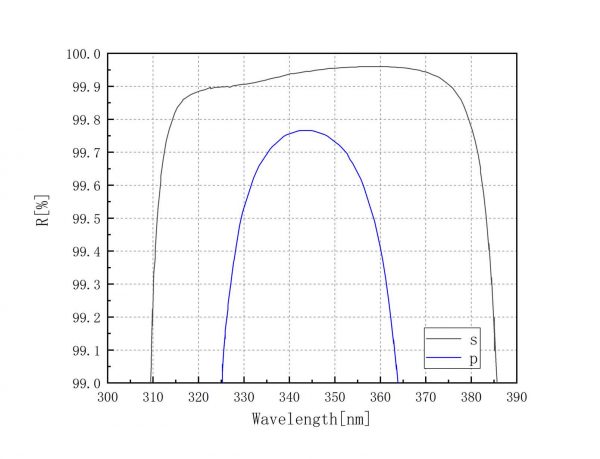

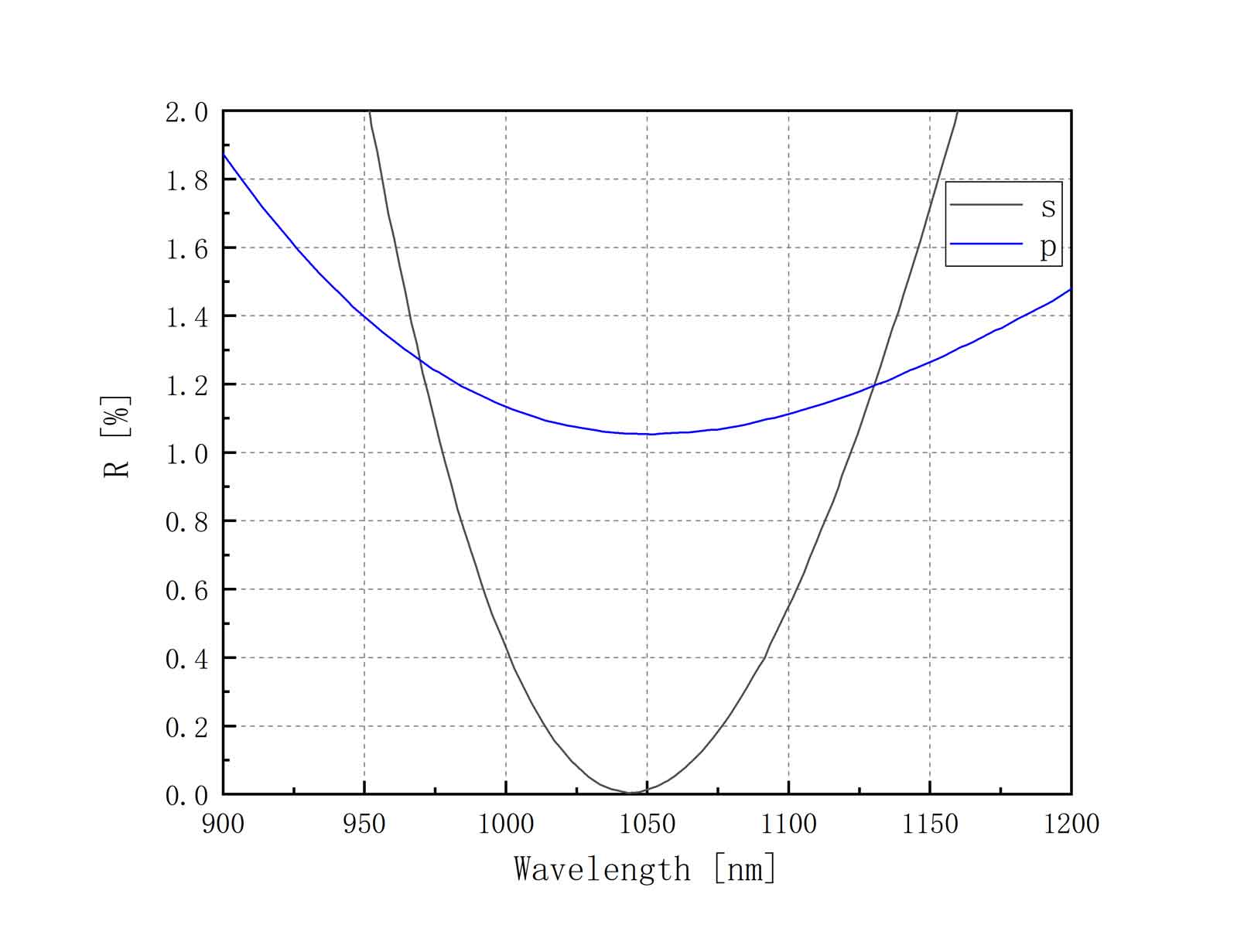

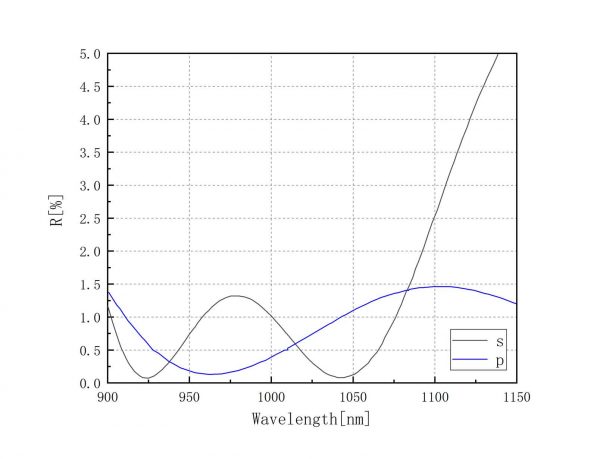

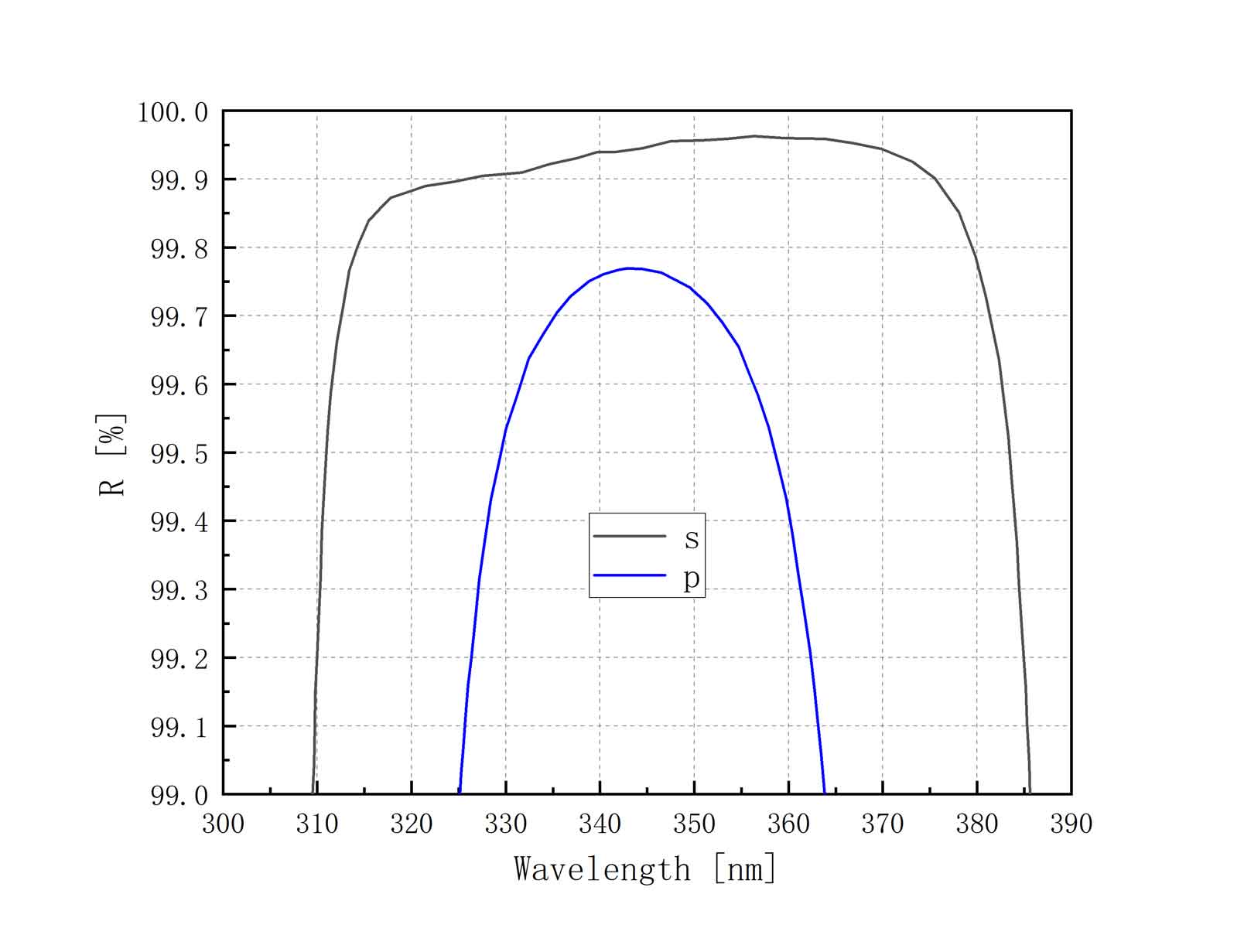

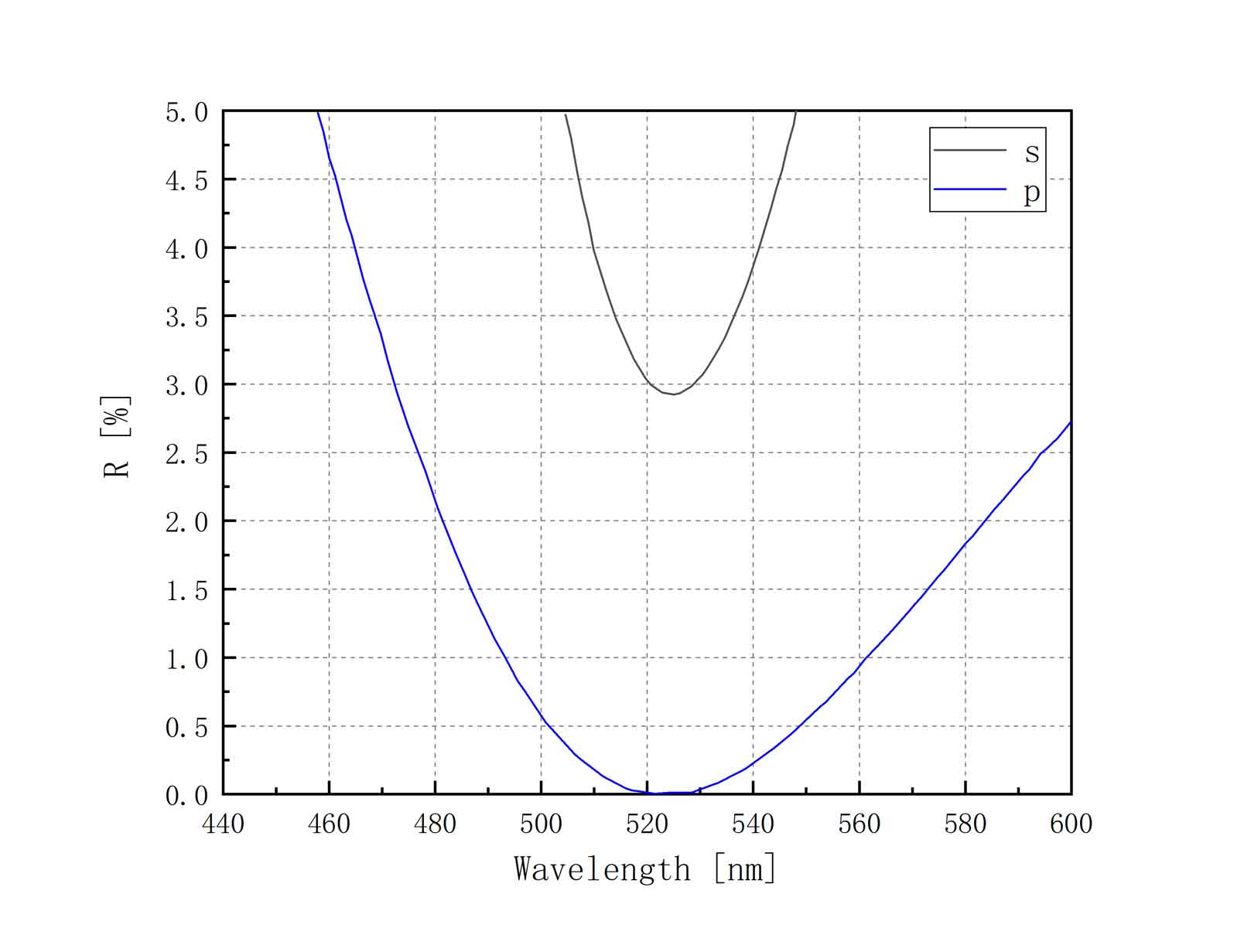

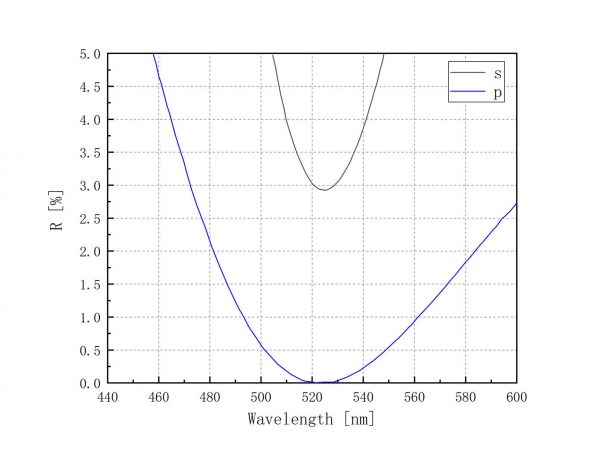

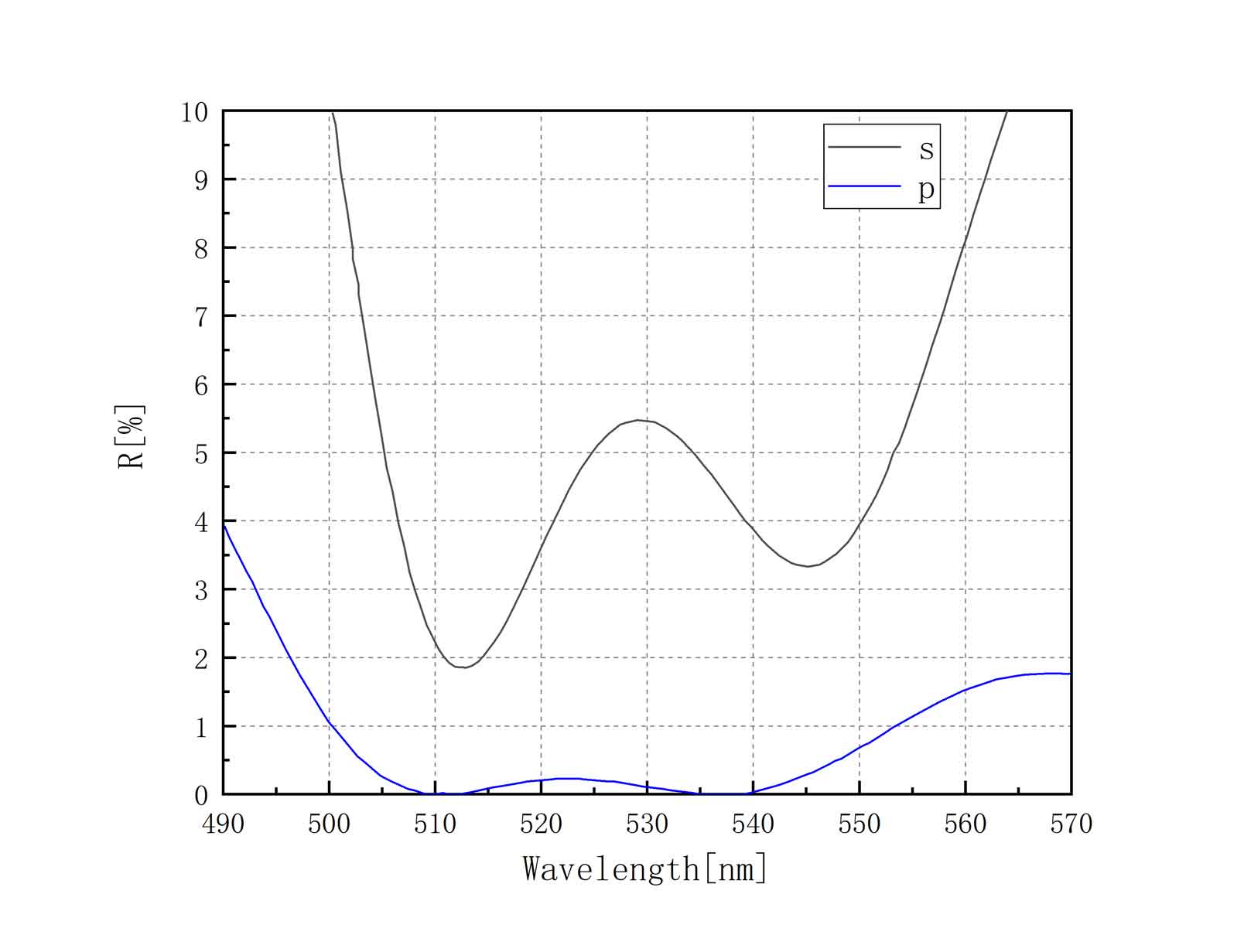

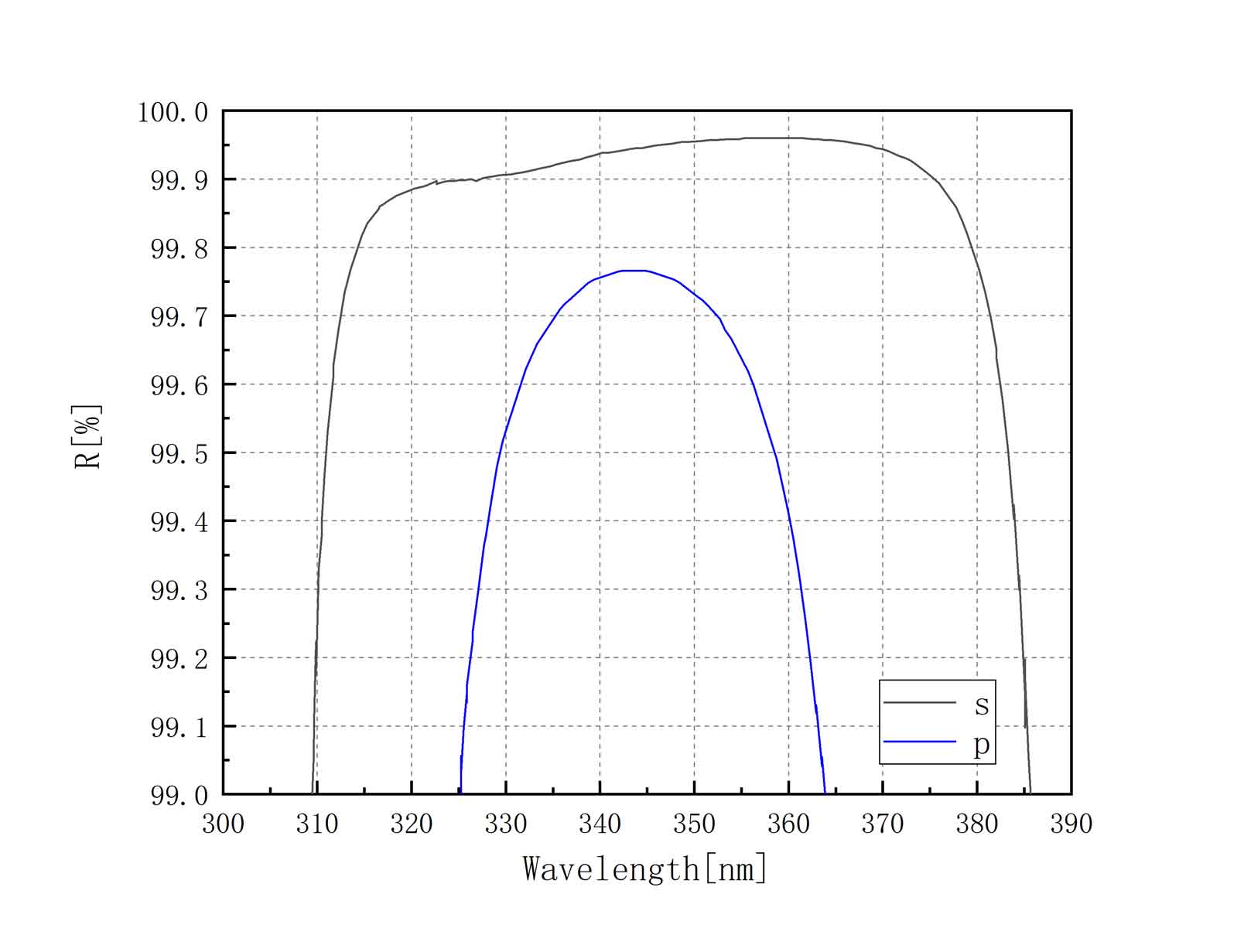

Coating | Front Side (S2) HRs(45°,343-358nm)>99.9% Rp(45°,515-532nm)<1% Rs(45°,1030-1064nm)<1% Rear Side (S1) ARp(45°,515-532nm)<0.3% ARs(45°,1030-1064nm)<0.2% |
Application | cw/ns |
Optical element | Separator Combiner |
Shape | Round |
Parallelism | 5ʹ |
Type | Yb:YAG-Laser Nd:YAG-Laser |
Chamfer | Front Side (S2) 0.3 mm (±0.1 mm) Rear Side (S1) 0.3 mm (±0.1 mm) |
