Description
| material | Corning 7980 2F or equal |
| Geometry | ∅ = 38.1mm t = 6.35mm |
| Form | Front Side (S2) plane Rear Side (S1) plane |

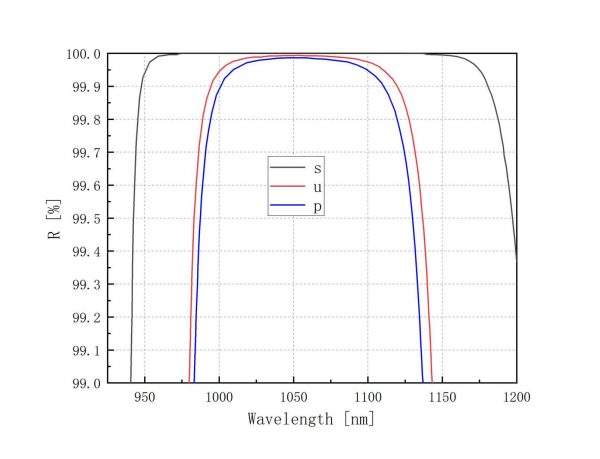

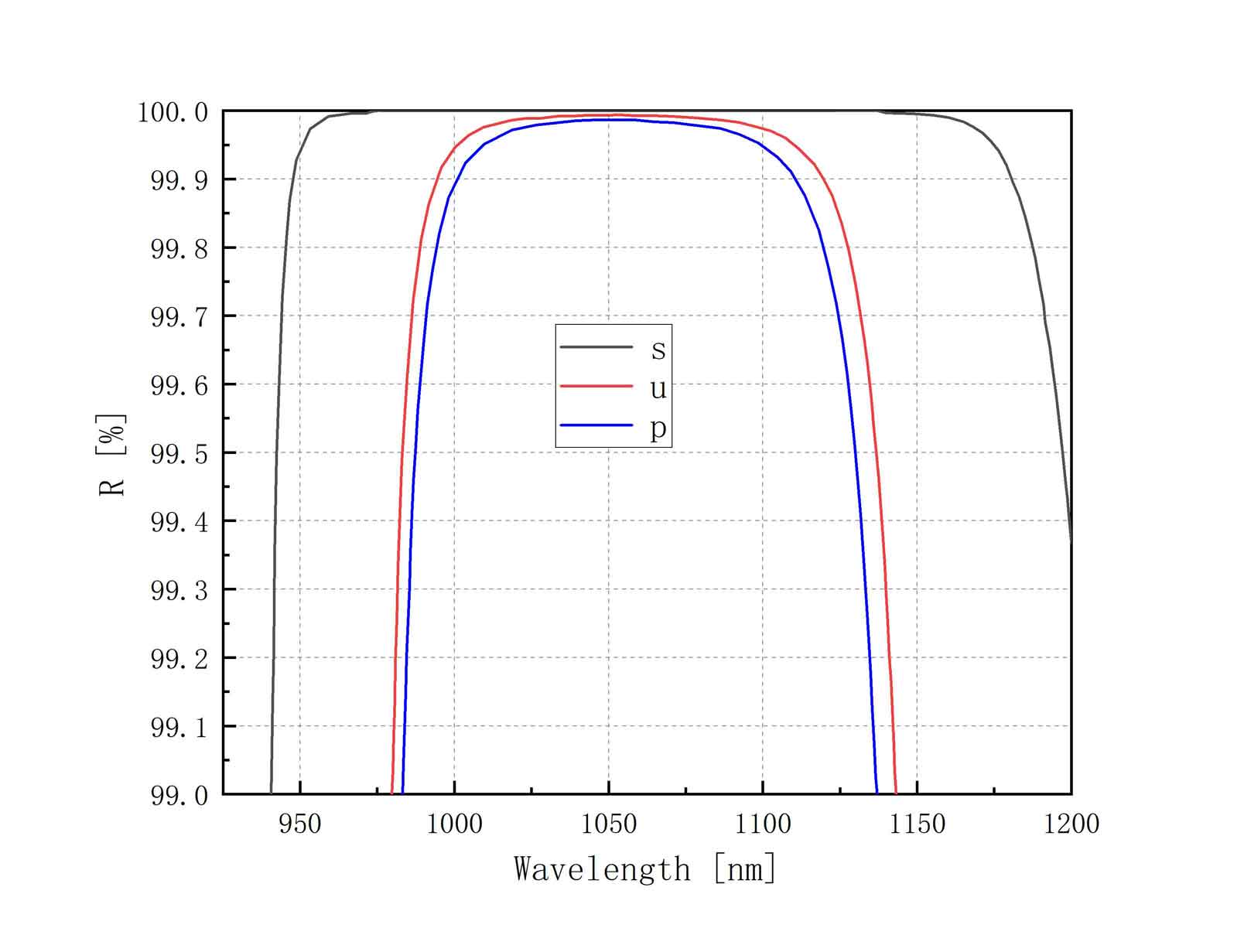

| Coating | Front Side (S2) HRu(45°,1030-1064nm)>99.9% |
| application | cw/ns |
| optical element | Turning Mirror |
| Shape | Round |
| Parallelism | 5ʹ |
| type | Yb:YAG-Laser Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.5 mm (±0.1 mm) Rear Side (S1) 0.5 mm (±0.1 mm) |
