Description
| Material | Corning 7980 2F or equal |
| Geometry | ∅=12.7 mm(-0.1mm) t=3.05 mm(±0.1mm) |
| Form | Front Side (S2) plane Rear Side (S1) plane |

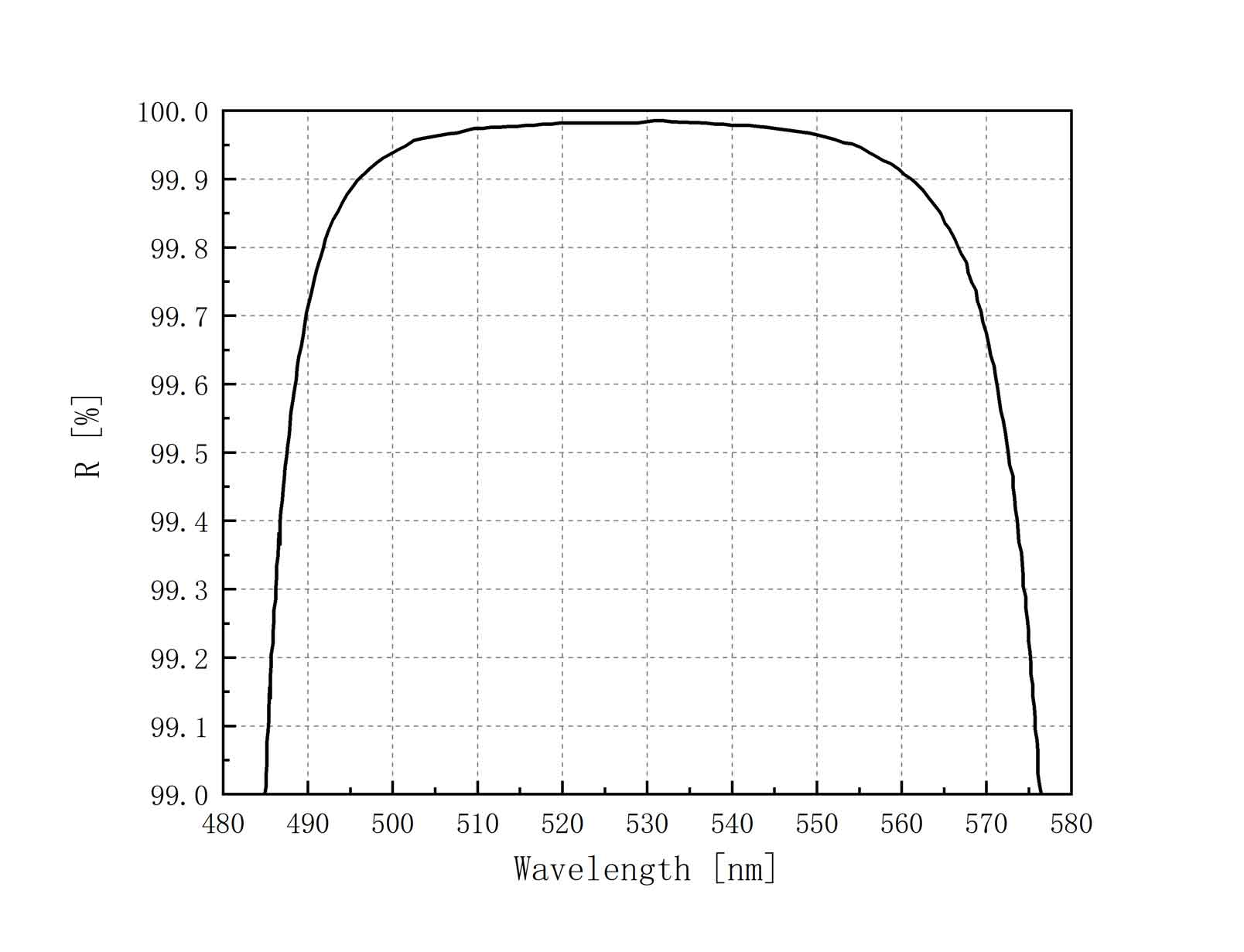

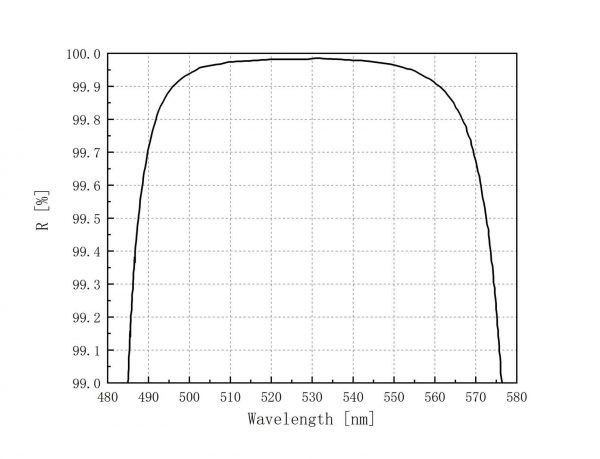

| Coating | Front Side (S2) HRu(45°,532nm)> 99.9% |
| Application | cw/ns |
| Optical element | Turning Mirror |
| Shape | Round |
| Parallelism | 5ʹ |
| Type | Nd:YAG-Laser |
| Chamfer | Front Side (S2) 0.2mm (±0.1mm) Rear Side (S1) 0.2mm (±0.1mm) |
